SVI4K-0745 Smart Visual Inspection System without Computer Setups | Oklab®️

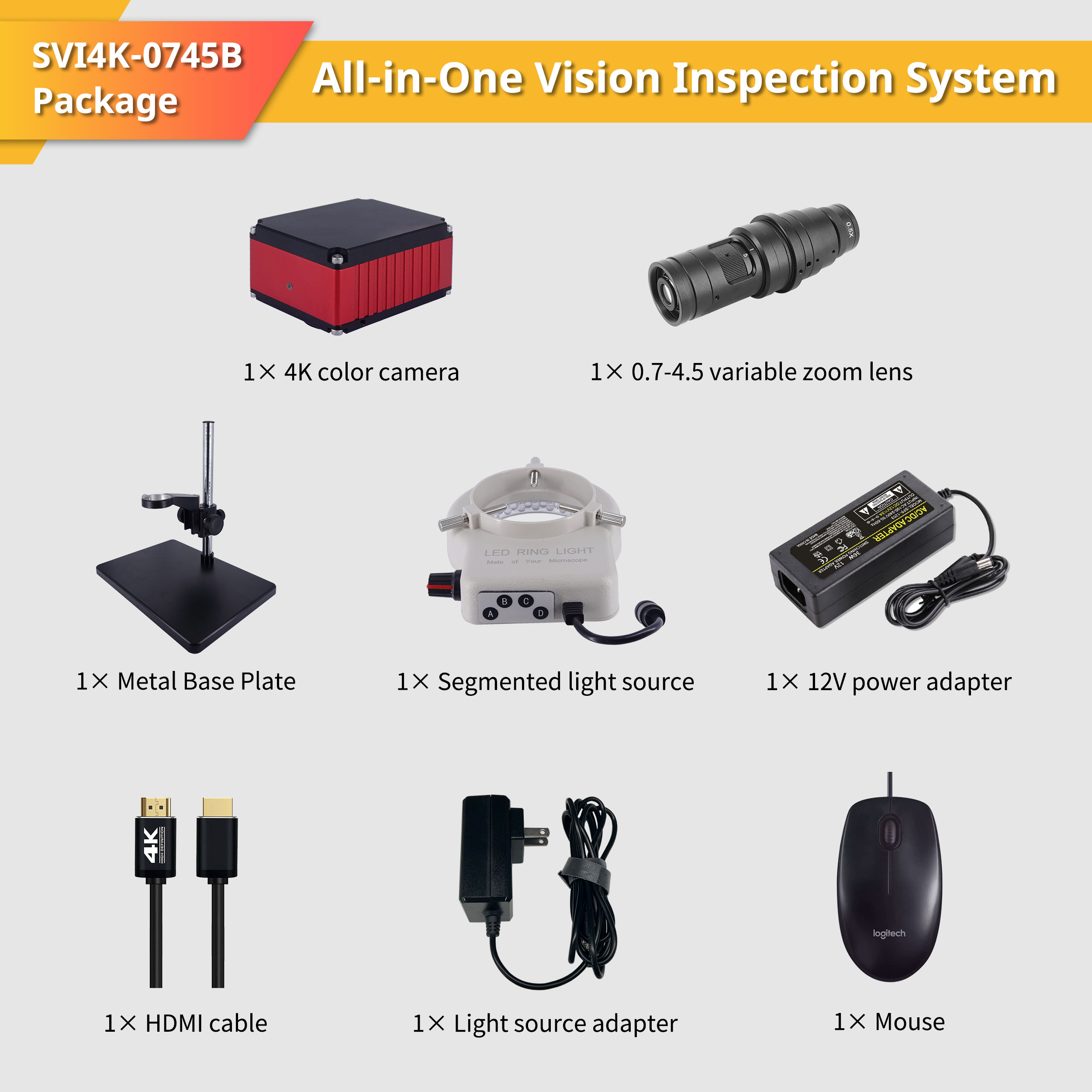

Model No. SVI4K-0745B
$794.50 USD $1,096.40 USD Save $301.90 USD
Shipping calculated at checkout.

⚪1/2'' Sony sensor, 4K camera resolution output
⚪Smooth 60fps video with zero motion blur
⚪18 measurement tools including point-to-point, line-to-line, circle, and arc
⚪Continuous 0.7-4.5X zoom range for flexibility
⚪Auto-calibrating system eliminates manual calibration procedures
⚪Smart feature recognition with selected tools
Model No.
Quantity
SVI4K-0745 Smart Visual Inspection System | Oklab®️ SVI4K-0745 Smart Visual Inspection System | Oklab®️ SVI4K-0745 Smart Visual Inspection System | Oklab®️ SVI4K-0745 Smart Visual Inspection System | Oklab®️ SVI4K-0745 Smart Visual Inspection System | Oklab®️ SVI4K-0745 Smart Visual Inspection System | Oklab®️ SVI4K-0745 Smart Visual Inspection System | Oklab®️ SVI4K-0745 Smart Visual Inspection System | Oklab®️

Description

Intelligent Measurement Assistant System can handle without a PC.

The SVI4K-0745 simplifies precise measurements with its smart visual inspection capabilities. Unlike conventional vision systems that require complex computer setups and technical expertise, the SVI4K-0745 works right out of the box—no PC required.

It requires no manual calibration before use - just power on, select a tool, and define your measurement area. The system handles the rest automatically, finding features and calculating measurements with exceptional accuracy.

3 Simple Steps to Precise Measurement

  1. Power On - System initializes with automatic calibration
  2. Select Function - Choose from 18 built-in measurement tools
  3. Define Range - Select the area to measure

The system automatically recognizes features within your defined area and performs accurate measurements at high speed.

Key Features

  • Auto-Calibration Technology: Measure directly without tedious calibration procedures
  • Automatic Feature Recognition: System identifies measurement points after you select the tool
  • One-Click Image Export: Capture and save high-resolution images with measurements
  • One-Click Data Export: Generate measurement data tables instantly
  • Smooth 4K Imaging: 60 FPS video feed provides clear, blur-free viewing
  • Versatile Magnification: Continuous 0.7X-4.5X zoom range (model dependent)
Model
Camera Info
Lens Info
Adjustment Mode
Display
Field of View
SVI4K-0745B
4K, Sony sensor, 1/2"
0.7-4.5x zoom lens
Linear adjustment
4K color
-
Max(13x7.5mm) Min(2x1mm)

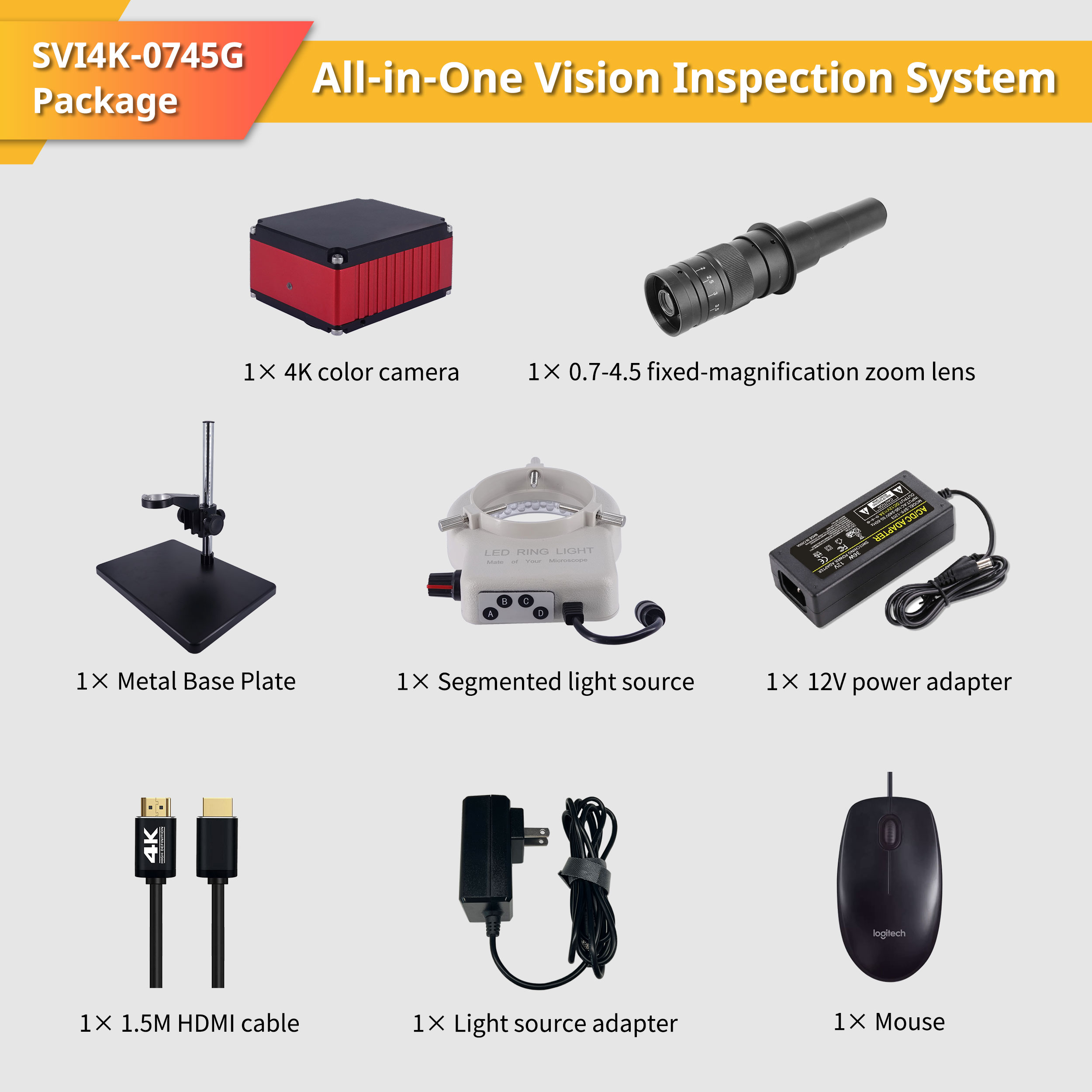

SVI4K-0745G
4K, Sony sensor, 1/2"
0.7-4.5x zoom lens
Fixed magnification adjustment
4K color
-
Max(22x12mm) Min(3.5x2mm)
SVI4K-0745D
4K, Sony sensor, 1/2"
0.7-4.5x zoom lens with large depth of field
Linear adjustment
4K color
-
Max(26x15mm) Min(4x2mm)
SVI4K-0745BM
4K, Sony sensor, 1/2"
0.7-4.5x zoom lens
Linear adjustment
4K color
4K Ultra HD
Max(13x7.5mm) Min(2x1mm)

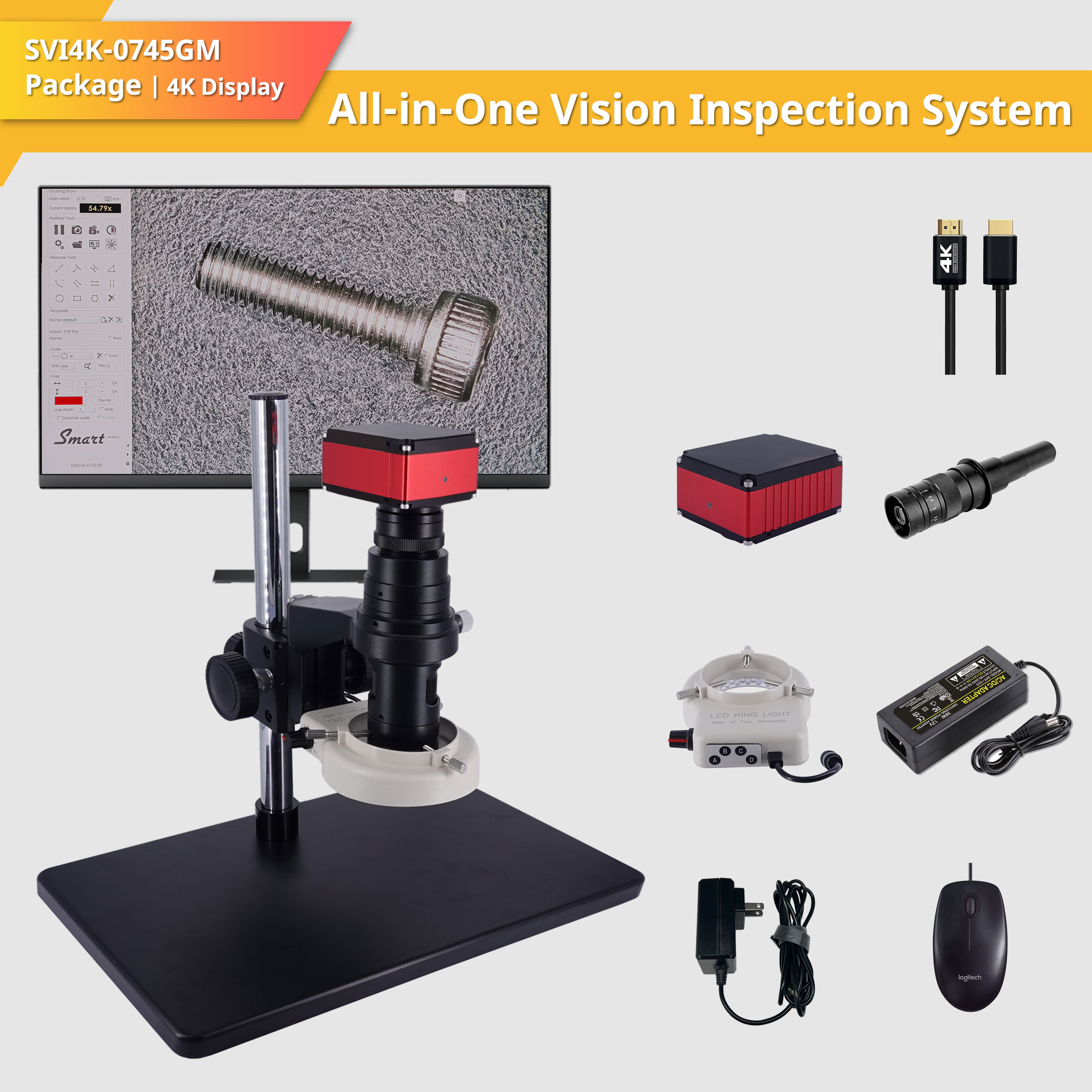

SVI4K-0745GM
4K, Sony sensor, 1/2"
0.7-4.5x zoom lens
Fixed magnification adjustment
4K color
4K Ultra HD
Max(22x12mm) Min(3.5x2mm)
SVI4K-0745DM
4K, Sony sensor, 1/2"
0.7-4.5x zoom lens with large depth of field
Linear adjustment
4K color
4K Ultra HD
Max(26x15mm) Min(4x2mm)

Vision System Components

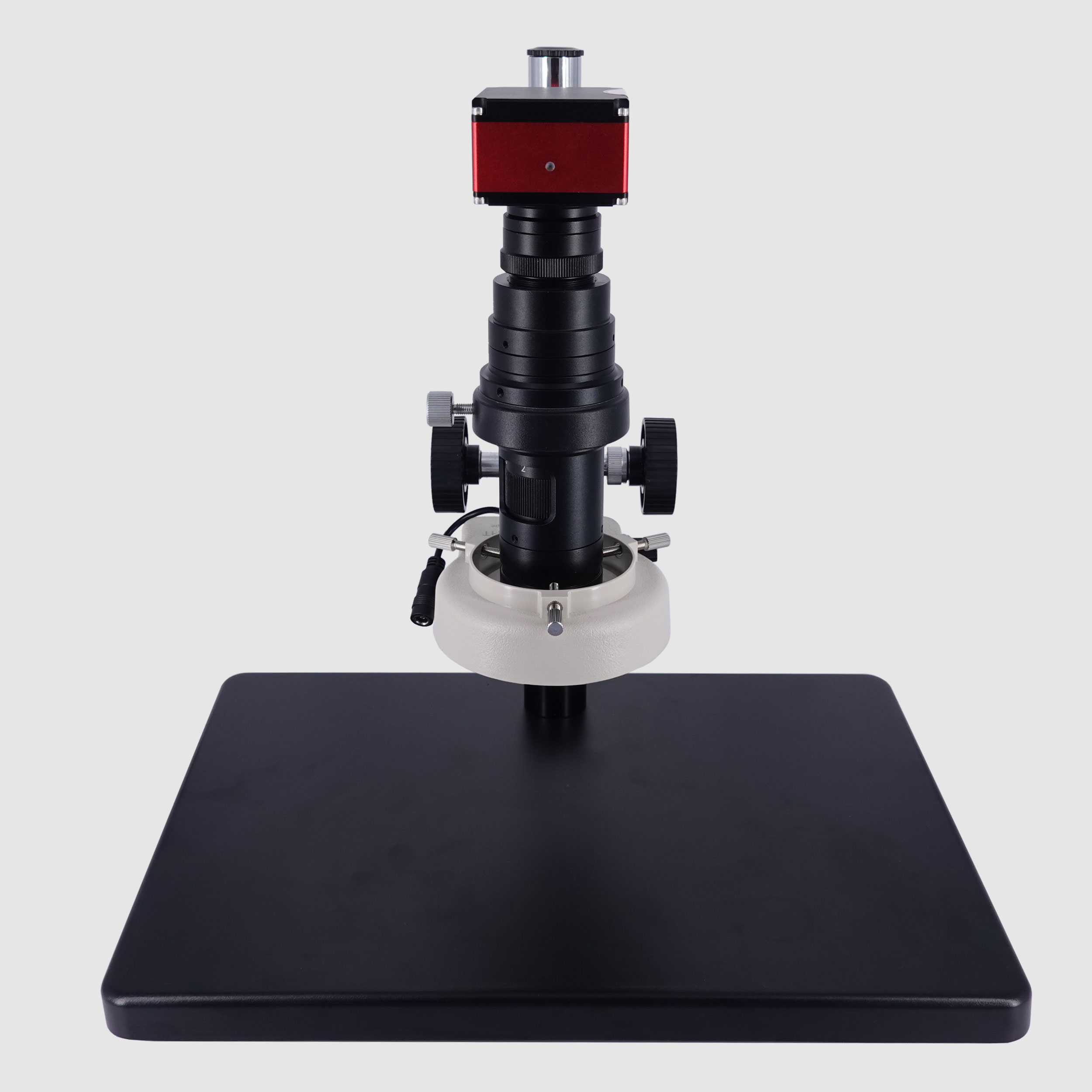

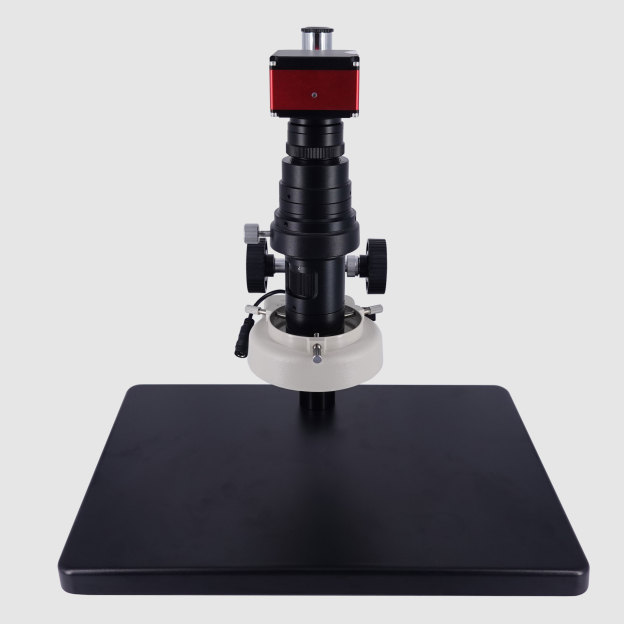

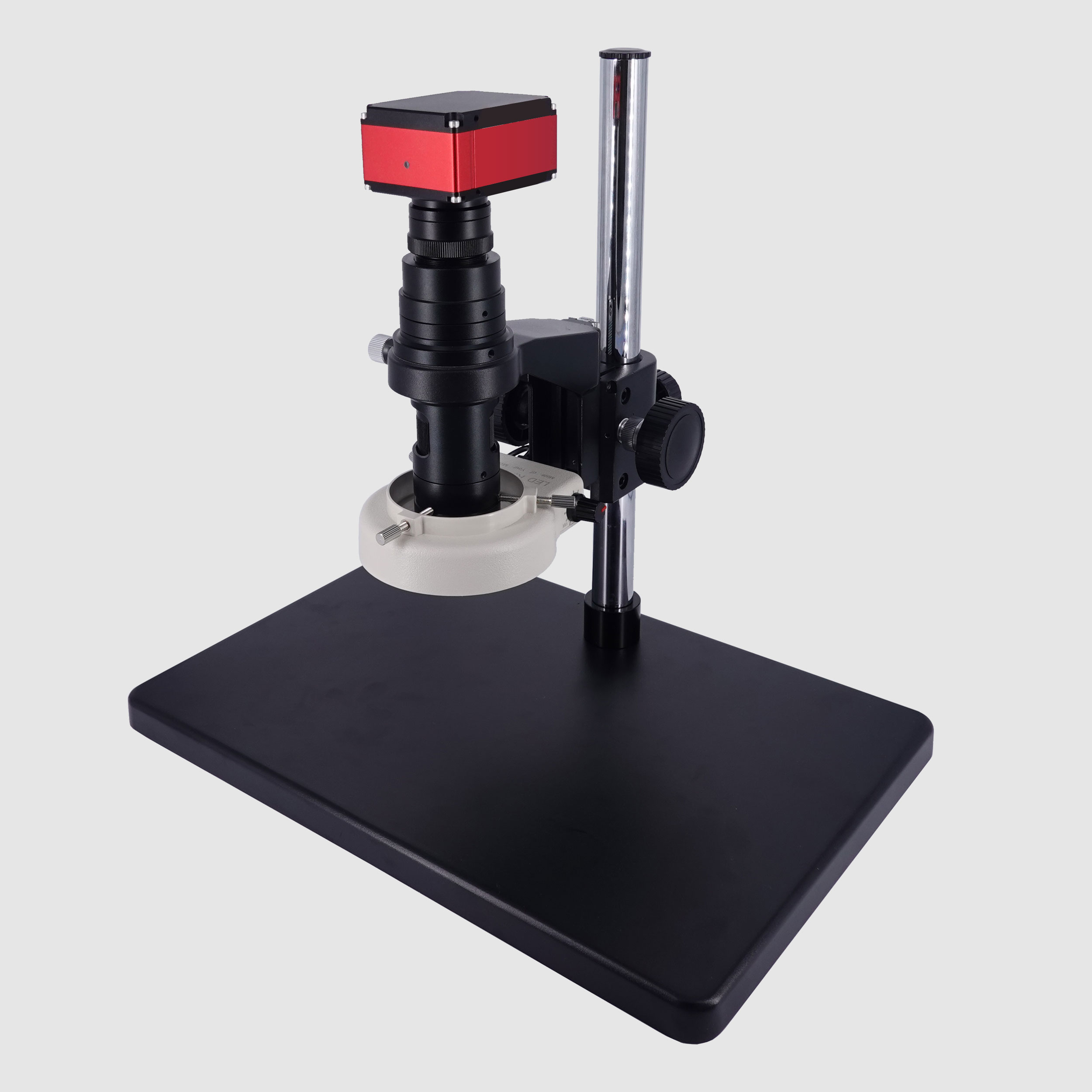

Main Camera Stand
  • Camera: Industrial camera with high-resolution sensor
  • Mounting Pole: Mounting Pole: 34cm height support column
  • Zoom Lens: Variable magnification optics
  • Light Source: Built-in illumination
  • Fine Adjustment Knob: Precision focus control
  • Light Intensity Control: Brightness adjustment
  • Metal Base Plate: Stable platform (38cm × 26cm)

Camera Interface
Optical Components
LED Ring Light
  • Power Input: Main connection port
  • USB 2.0 Port: Data transfer connection
  • USB 3.0 Port: High-speed data transfer
  • GigE Connection: Network interface
  • HDMI Output: Direct display connection
  • C-Mount Interface: Standard lens connection
  • Magnification Scale: Zoom level indicator
  • Magnification Adjustment Ring: Focus control
  • Mounting Brackets:Secure attachment system
  • Light Intensity Control:Brightness adjustment dial
  • Segment Control Switches:A/B/C/D quadrant lighting selectors
Soluciones Inteligentes Todo-en-Uno para Cada Industria

Nuestros sistemas de visión ofrecen medición precisa y control de calidad en diversas aplicaciones, optimizando su flujo de trabajo con tecnología intuitiva que se adapta a sus necesidades específicas.

Electronic Components

  • Pin measurements on microchips



  • Solder ball inspection

  • Gold wire measurements

  • PCB inspection

Manufacturing Quality Control

  • Small metal part measurements
  • Watch component inspection
  • Fine defect detection

Materials Analysis

  • Lens and wafer scratch/contamination detection
  • Polymer material analysis
  • Fabric and textile inspection

Precision Operations

  • Micro-assembly assistance
  • Small component soldering
  • Detailed visual inspection
Precision Machining & Metal Components

Transform your quality control process with high-definition inspection of machined parts. Our system provides crystal-clear views of metal cutting edges, surface finishes, and critical tolerances—all with simple point-and-click measurement tools.

Pin Measurement & Component Analysis

Achieve sub-micron measurement accuracy for PCB pins, connectors, and electronic components. The system's auto-detection tools measure point-to-point distances with precision down to 0.001mm, ensuring your components meet exact specifications.

Optical Surface Inspection

Detect microscopic scratches, contamination, and defects on lenses, wafers, and sensitive sensor surfaces. The extended depth of field allows full inspection without constant refocusing, dramatically increasing inspection efficiency.

Textile & Polymer Material Analysis

Examine fiber quality, weave patterns, and material integrity with exceptional clarity. The 4K color imaging system reveals material characteristics invisible to the naked eye, from synthetic polymers to natural textiles.

Micro-Assembly Operations

Support delicate assembly work with hands-free magnification and measurement. The continuous zoom range provides the perfect view for soldering tiny components, wire bonding, and precision positioning tasks.

Watchmaking & Small Parts Inspection

Perfect for luxury watch repair and small mechanism inspection. Examine intricate watch movements, gears, and small mechanical parts with exceptional detail, making component verification and defect detection effortless.


Need assistance with your order?

Our vision specialists are ready to help you select the optimal lens configuration for your specific application. If you have any questions during the ordering process or need guidance on:

  • Product selection and compatibility
  • Technical specifications
  • Integration with your existing systems
  • Custom requirements for your industry

Don't hesitate to reach out. Technical documentation, integration guidance, and custom solutions are available upon request.

We're committed to ensuring you find the perfect vision solution for your needs.

Important Note

Important Shipping & Customs Information

Please note: Your order total includes product cost and shipping fees only. Import duties and customs fees are not included and will be collected separately by your local customs authority upon delivery.

Customs & Duties
  • Import duties vary by destination country and are determined by your local customs office
  • You will be contacted directly by customs or the delivery carrier to arrange payment
  • Oklab cannot pre-collect customs fees as rates differ across international destinations

Additional Documentation
If your delivery location requires special documentation (such as tax ID numbers or import licenses), our team will contact you after order placement to obtain the necessary information.

Questions?
For shipping inquiries, please contact us at sales@oklab.com

By placing an order, you acknowledge responsibility for any applicable import duties, taxes, and customs fees in your country.
