High Flex

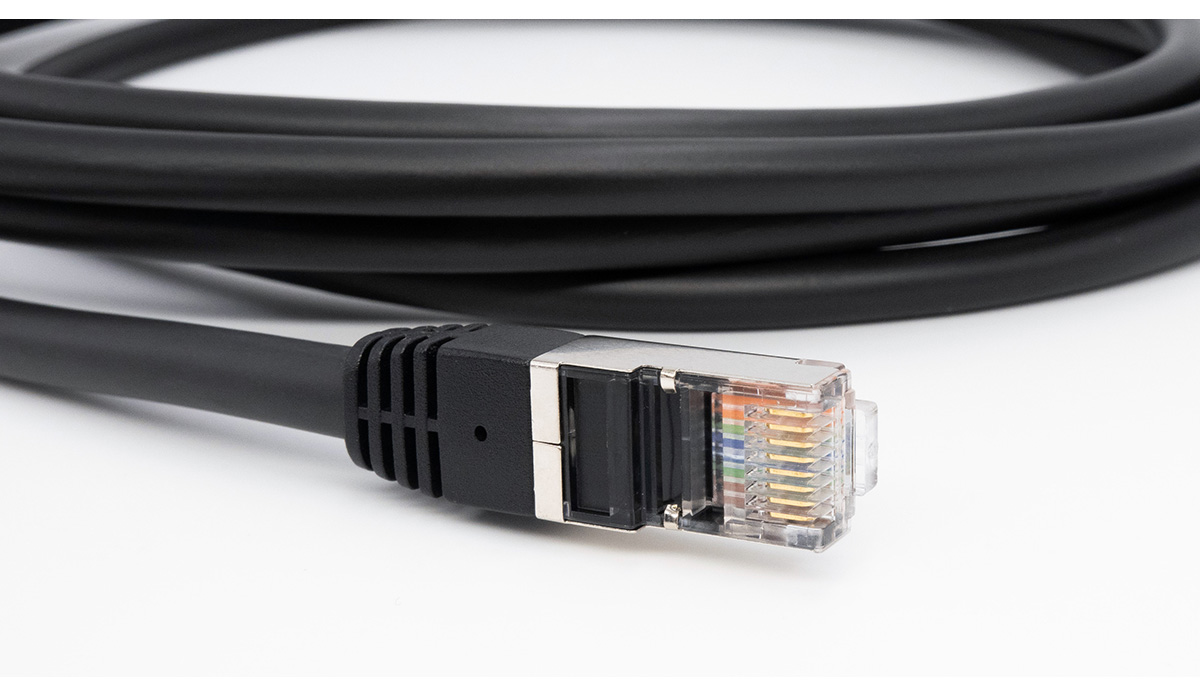

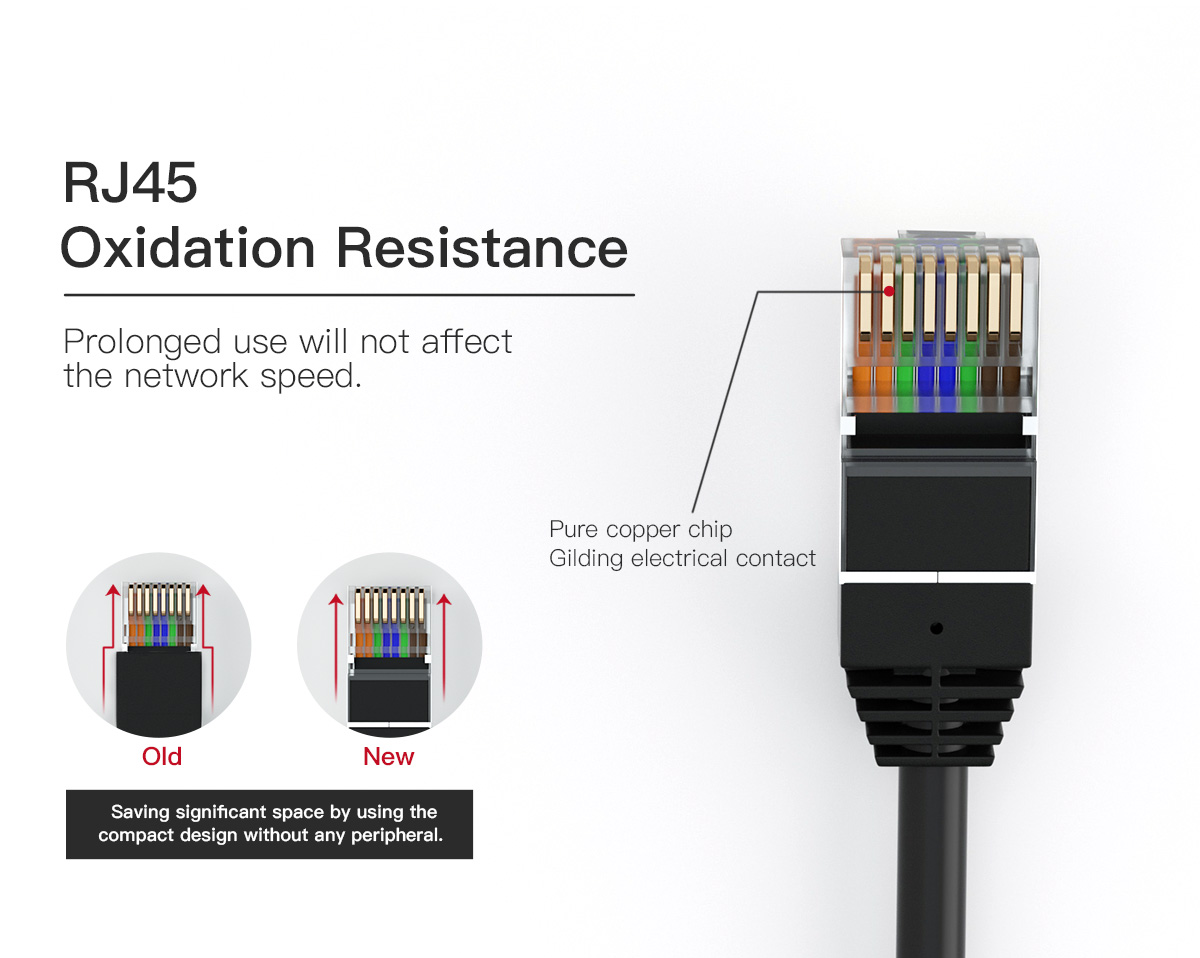

RJ45 Straight

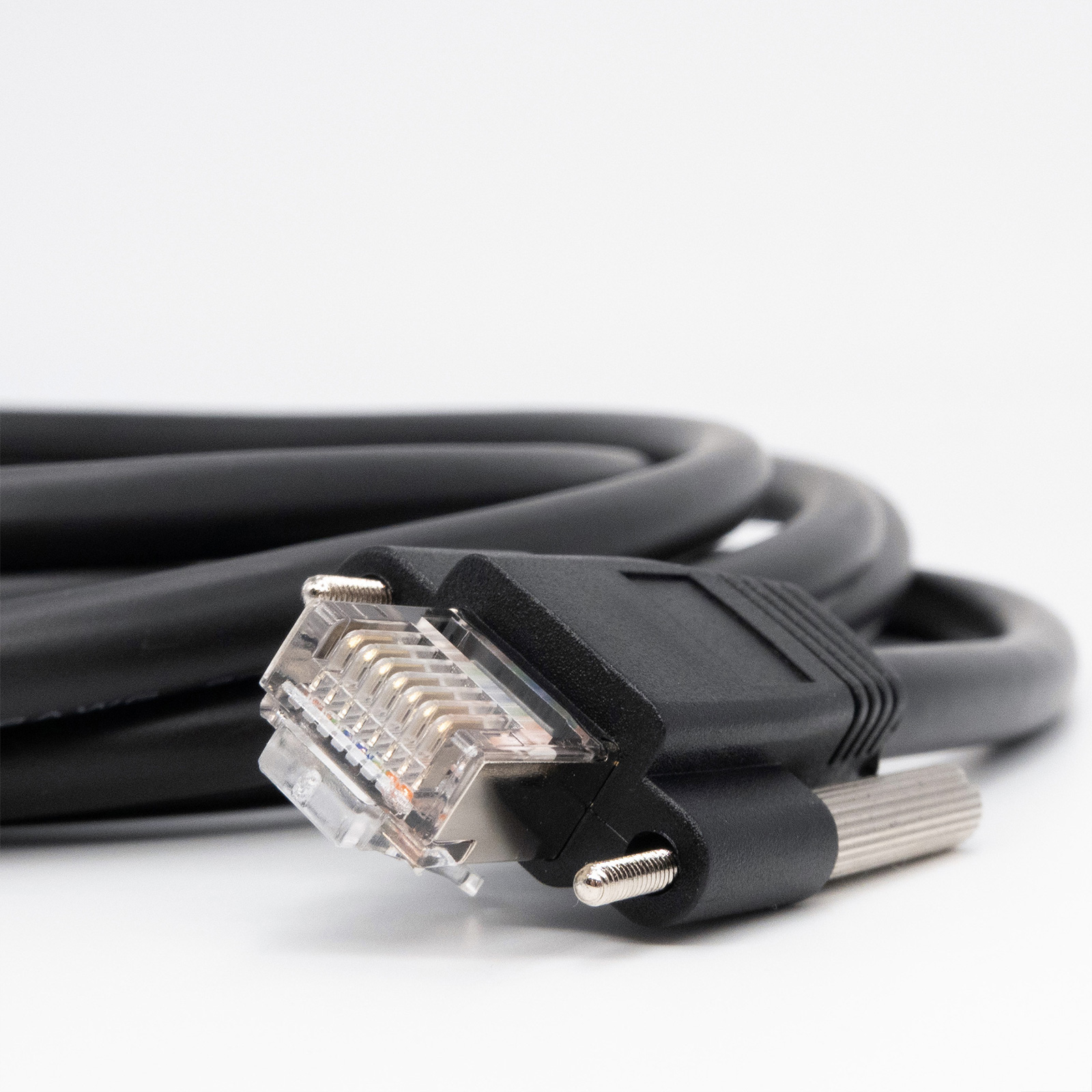

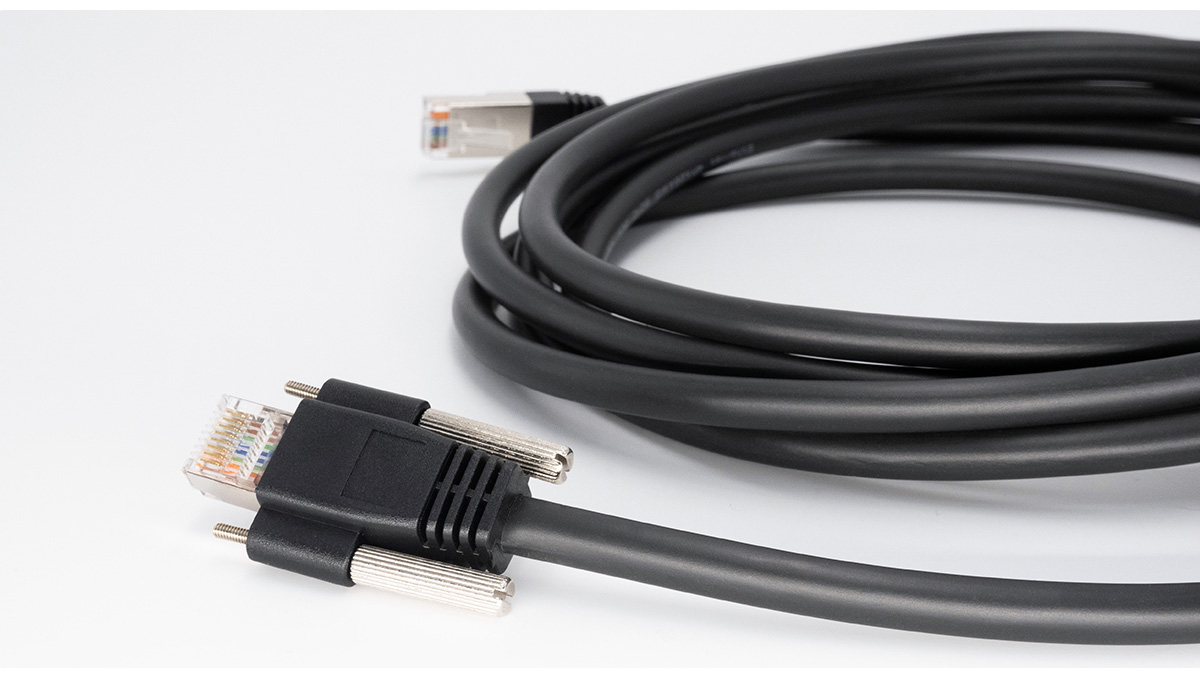

RJ45, 90° with Horizontal Screws
Double shielded braid
GigE Ethernet Application
GigE Ethernet can be used in demanding applications.
They are ensure network throughput in harsh industrial environments.

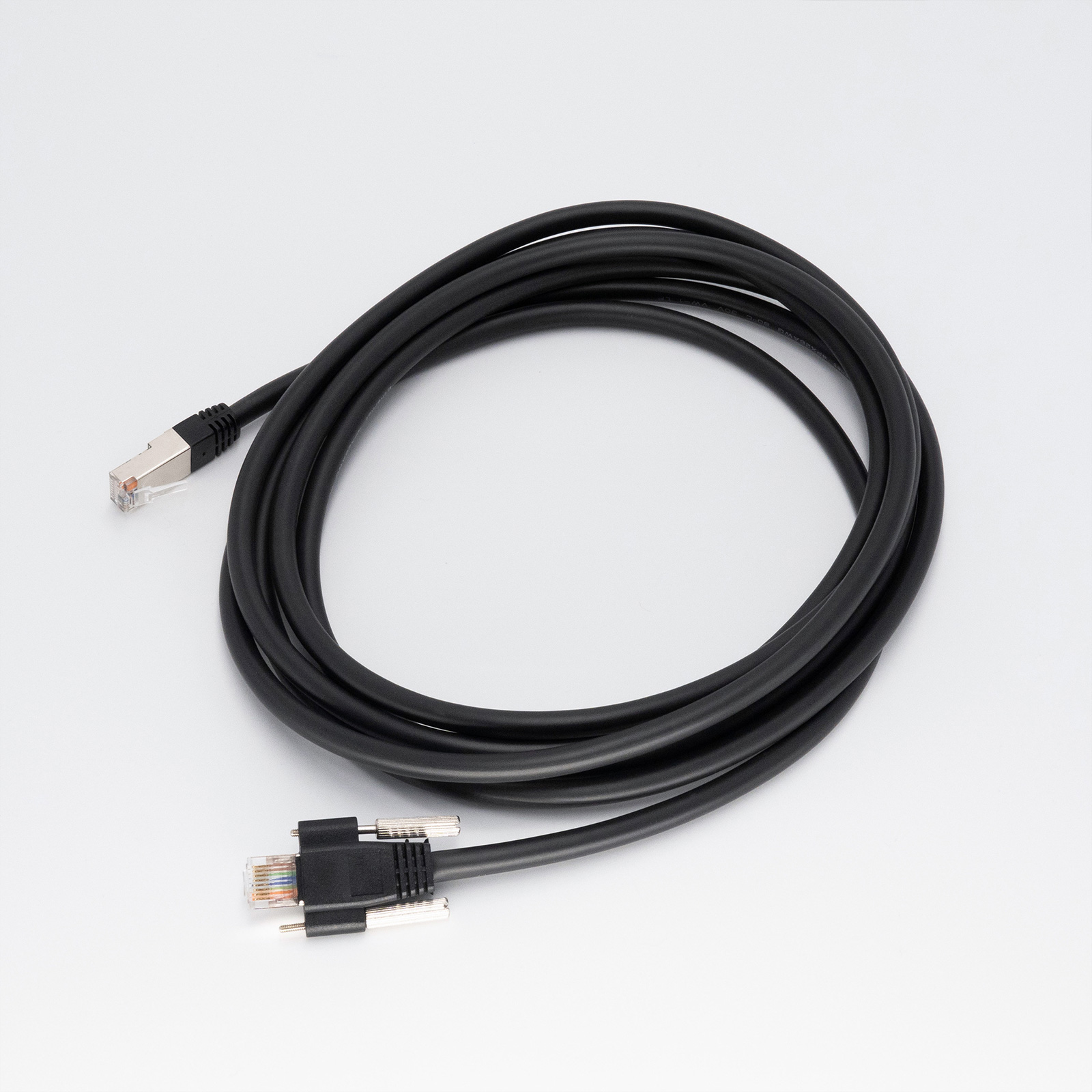

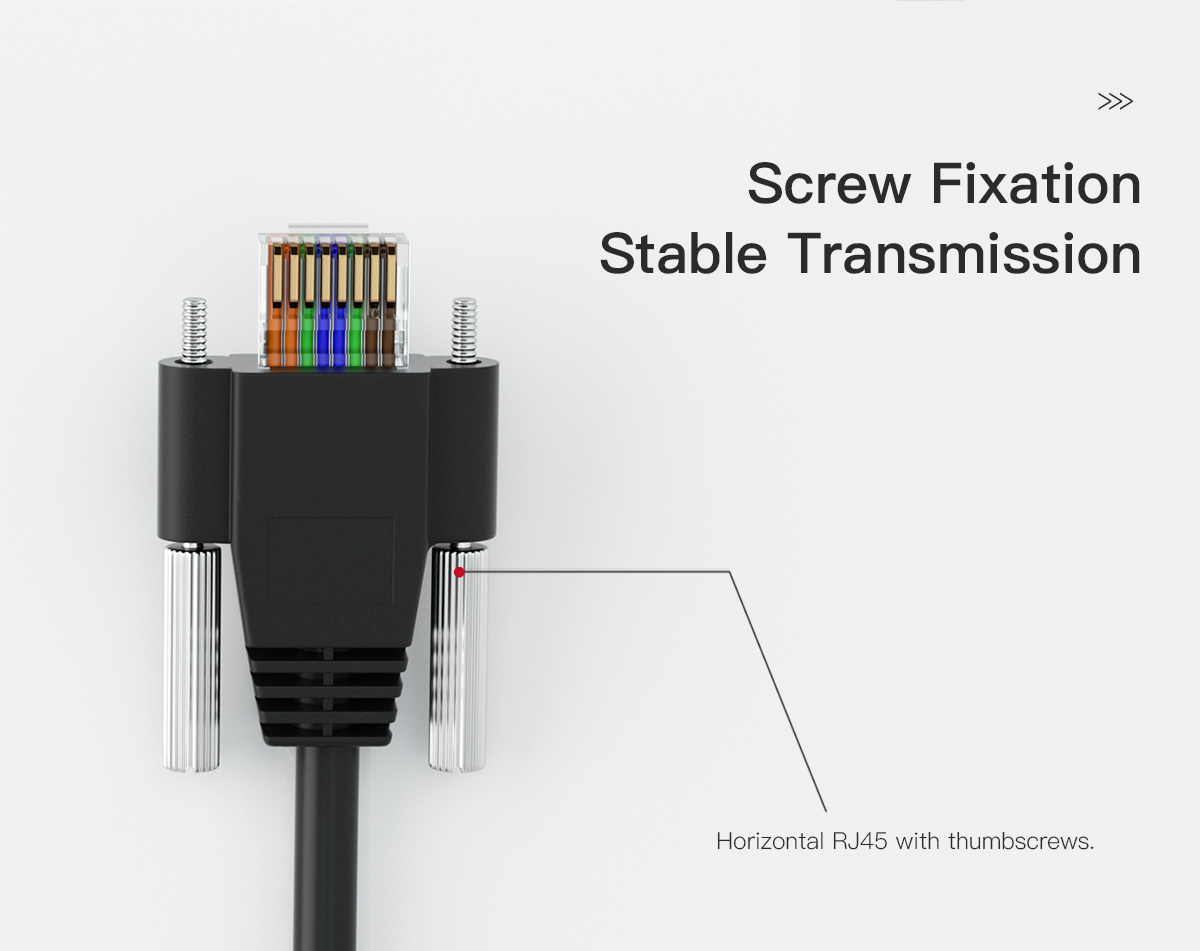

• This twisted GigE cable is used for data transmission and comes outfitted with two RJ45 plugs, one with horizontal screw.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.

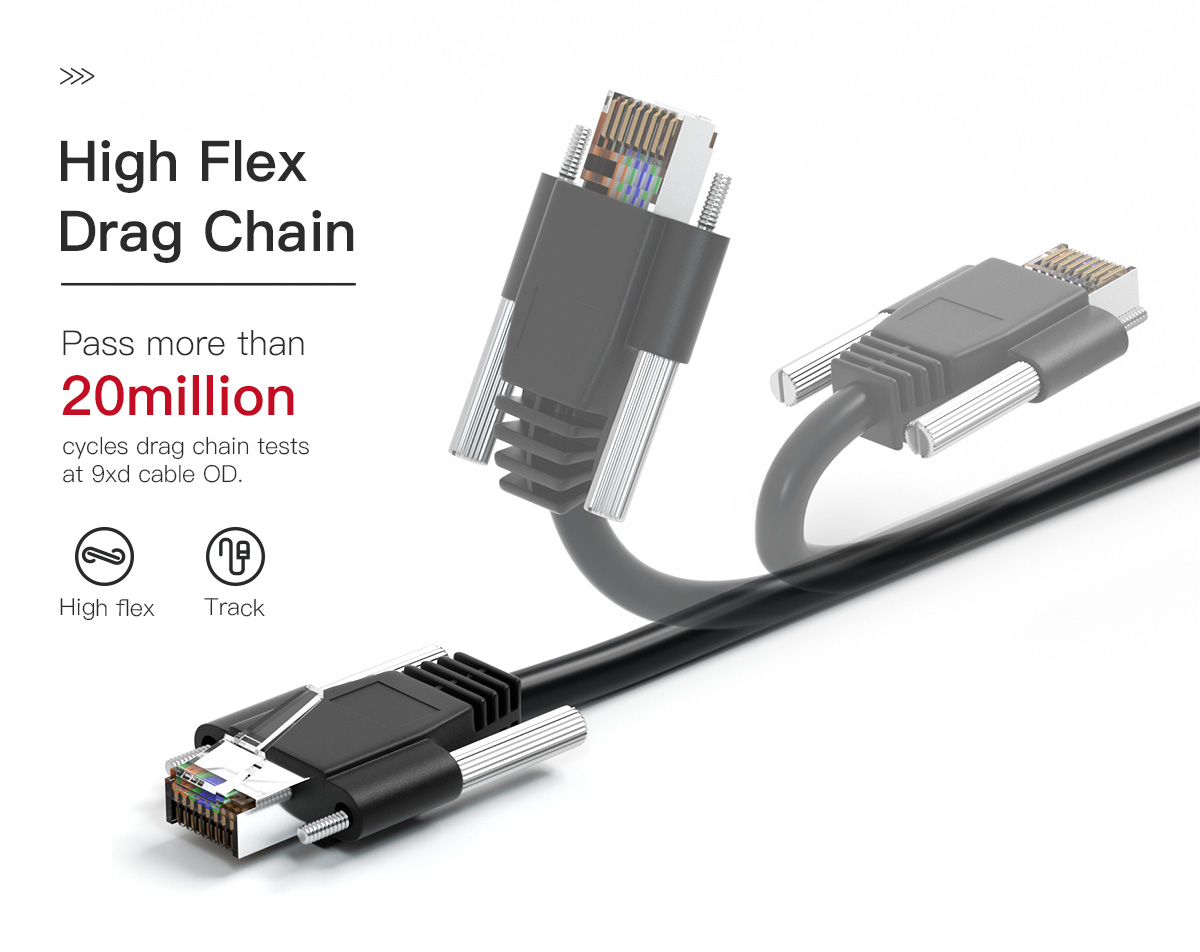

• High flexible, drag chain test 20KK cycles.
• 99% shielded, reliable signal transmission, 360 degree omni-directional Shielding in EMI Environment.

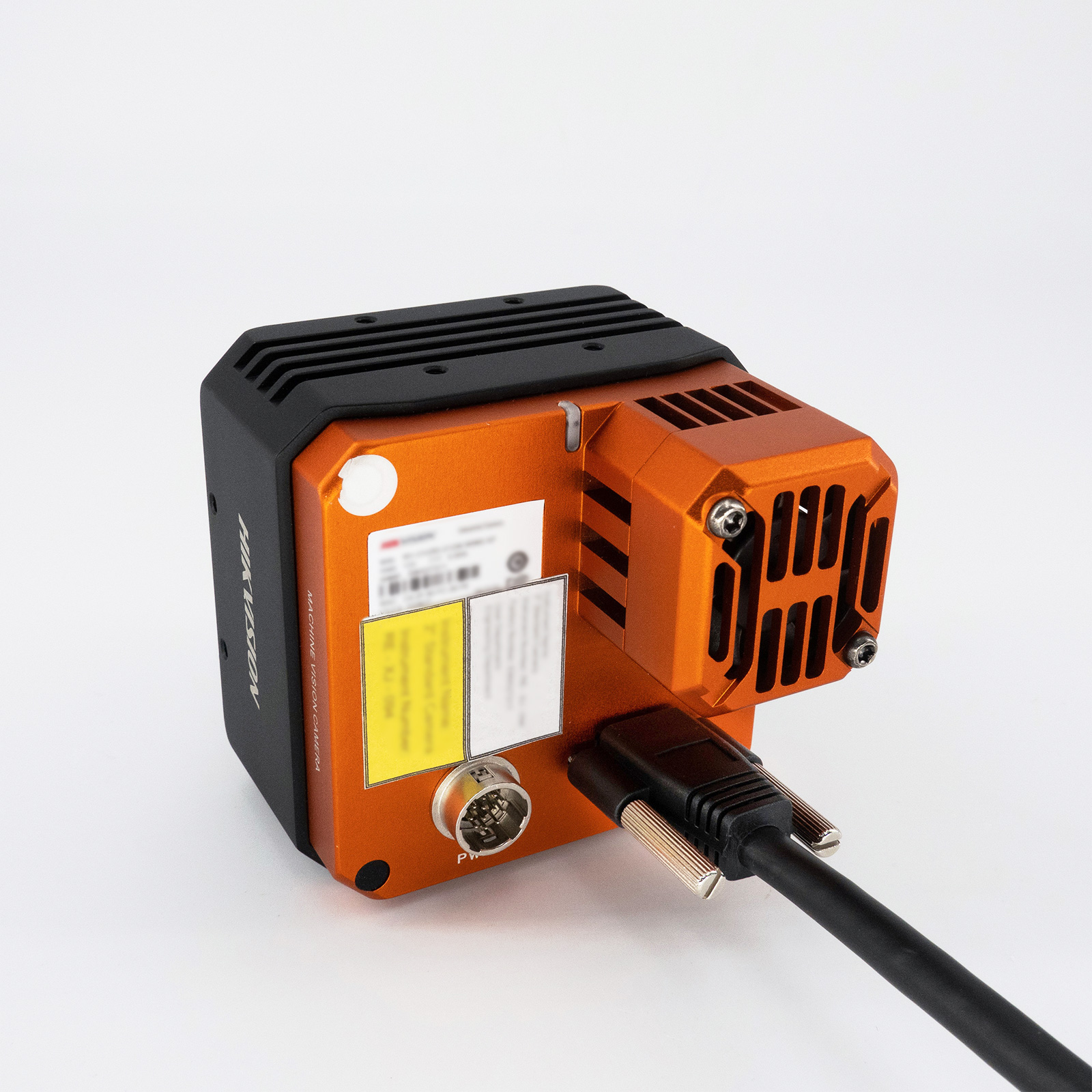

• For industrial machinery, Basler Sony Cognex CCD cameras, Matrix Vision Camera, Triton camera models, Networks, Ethernet, Power.
Application: Industrial Machine / EtherCAT and EtherNet/IP / Factory Automation
Delivery Time: 4-10 working days
Payment Terms: online or T/T
GigE Ethernet Specification

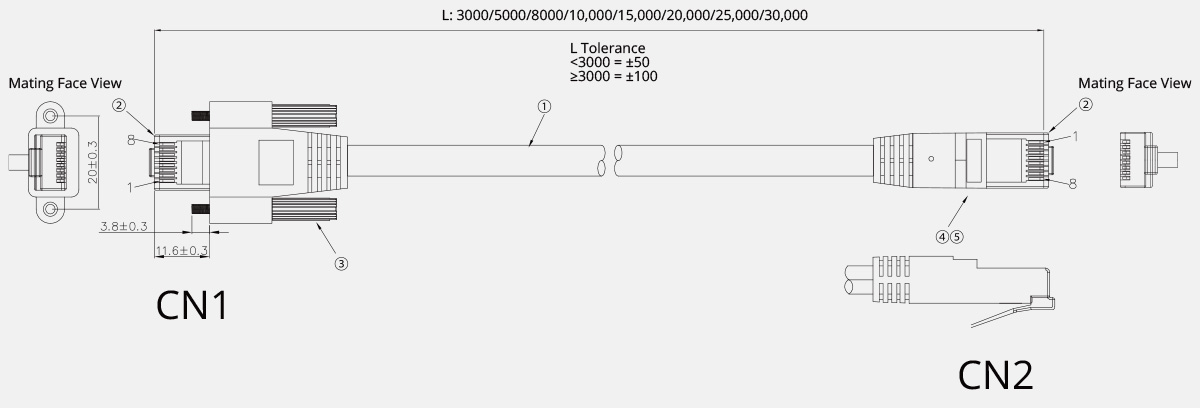

| GigE Cable Specification |
 |
| Bill Of Gige Connector | Wiring Diagram of GigE Vision | |||
| Item | Description | QTY | Specification |  |
| ① | Wire | 1 | GIGE CABLE CAT5E BLACK LF 4PX26AWG | |
| ② | RJ45 Connector | 2 | 8P8C | |
| ③ | Screw Rod | 2 | M2.0*0.4 4.75 | |
| ④ | Inner Mold | 1 | PE(J5019) | |
| ⑤ | Outer Mold | 1 | DWHC-10035(Black) | |
Wiring Diagram & Pinout of GigE Ethernet
| Drawing | Pair Twist Insulator Colour | ||
 |
Pair Twist | Insulator Colour 1 | Insulator Colour 2 |
| 1 | Blue | Blue / White | |
| 2 | Orange | Orange / White | |
| 3 | Green | Green / White | |
| 4 | Brown | Brown / White | |
| Blue / White: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others. | |||

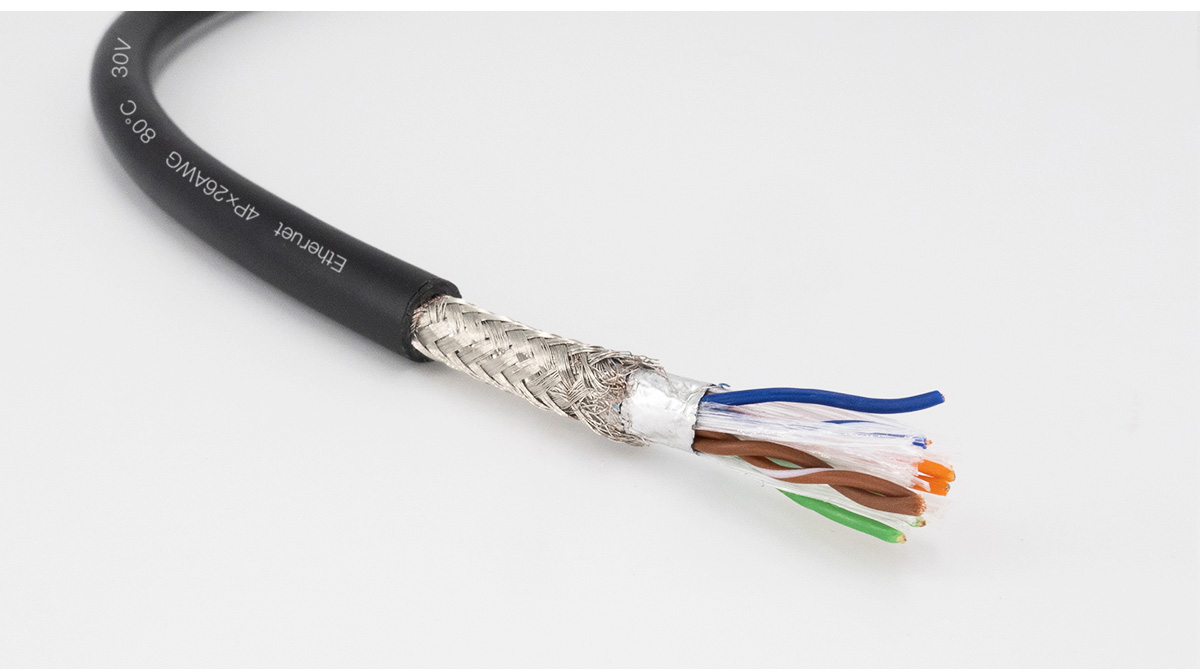

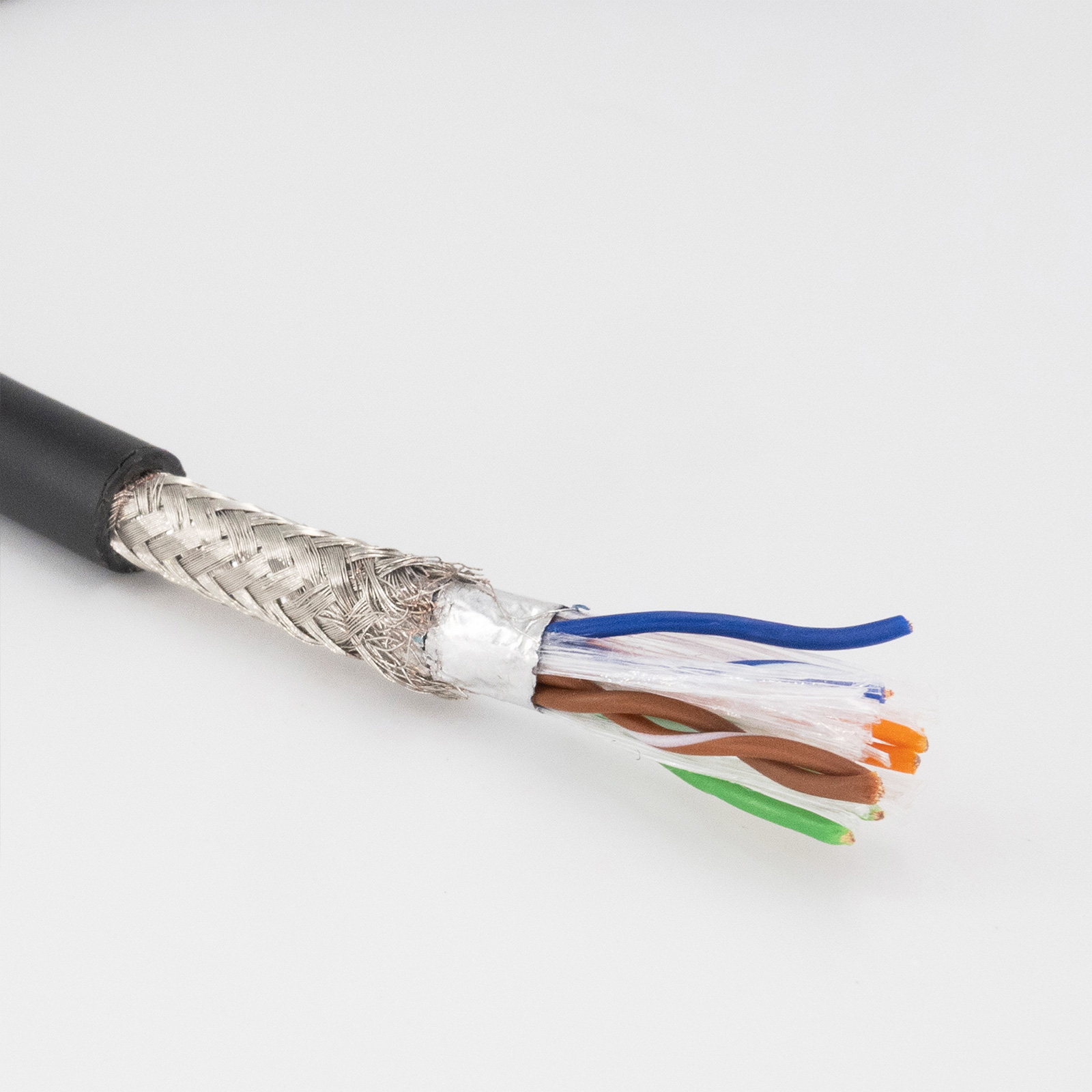

Cross-Section & Pair Twist Configuration
| Model NO. | OLA-GIGE-7-1-3-XM CABLE | Printing | Ethernet, 4PX26AWG, 80°C, 30V, VW-1, LF | ||
| Style | GIGE Ethernet/T/20276-SB BLACK LF 4PX26AWG | Size | 4PX26AWG | ||
| Approbation | UL20276 AWM 80°C 30V | Flame Retardant Grade | VW-1 | ||

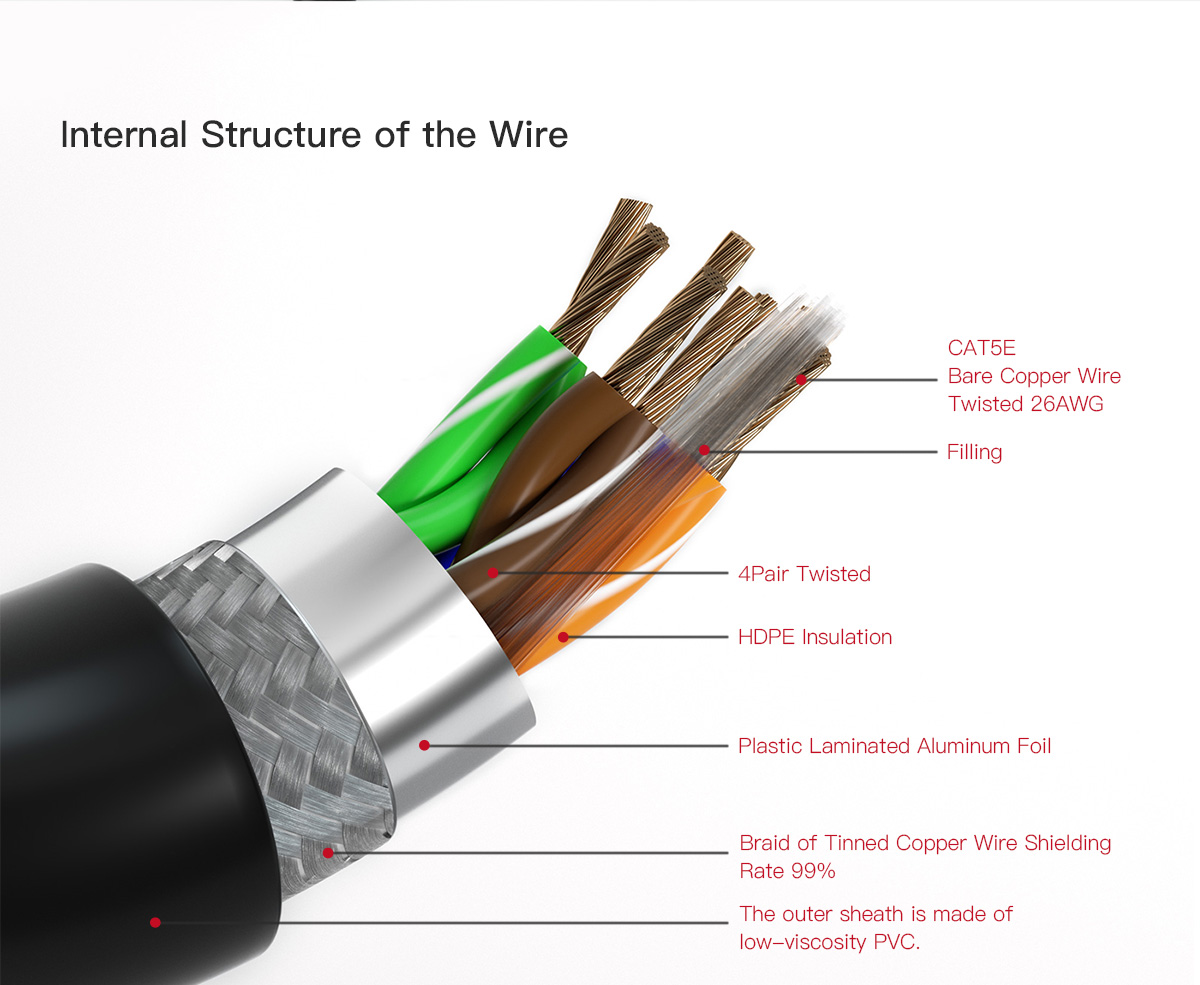

| Conductor of GigE Vision Cable | Size | 26AWG/4P | Shielded | Al/Pet | 0.05*20mm |
| Cond. Material | Bare Copper BC | Braid | 24/8/0.1TC | ||
| Construction | 30/0.08 BC | Covered | 99% Min | ||
| Diameter | 0.51mm | Jacketed | Material | PVC | |
| Tolern | ±0.003mm | Avg.Thick. | 0.765mm | ||
| Insulation | Material | HDPE | Min.Thick. | 0.723mm | |
| Avg.Thick. | 0.207mm | Diameter | ø6.5±0.2mm | ||
| Min.Thick. | 0.184mm | Colour | Black (Similar to RAL 9005) | ||
| Diameter | 0.97±0.05mm | Electrical Properties | Conductor Resistance | ≤124 Ω/km 20°C | |
| Colour | (Bule*Bule/White) | Test Voltage | 500V/1min | ||
| (Orange*Orange/White) | Insulating Resistance | > 10 MΩ/km 20°C | |||
| (Green*Green/White) | Characteristic Impedance | 100±15Ω | |||

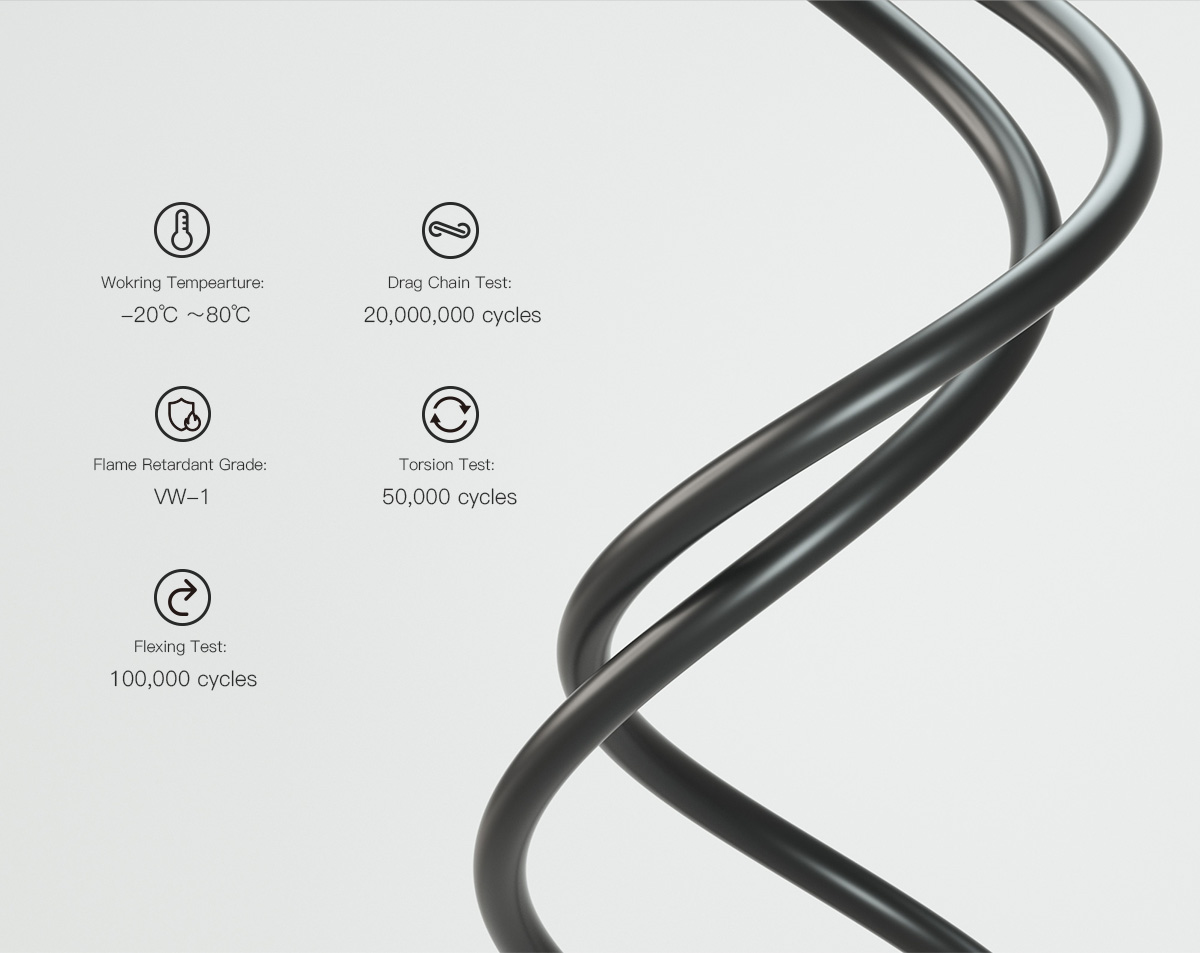

| (Brown*Brown/White) | Wokring Tempearture | Fixed Installation | -20°C ~ 80°C | ||
| Pair Twist | Pair Twist | 1P*26AWG | Moved Installation | -5°C ~ 50°C | |
| Diameter | 1.94mm | Minimal Bending Radius | Fixed Installation | 5 X Cable-ø | |
| Assembly Standed | 26AWG/4P | Moved Installation | 8.5 X Cable-ø | ||
| Quality Certifications |     |
||||
GigE Cable Details

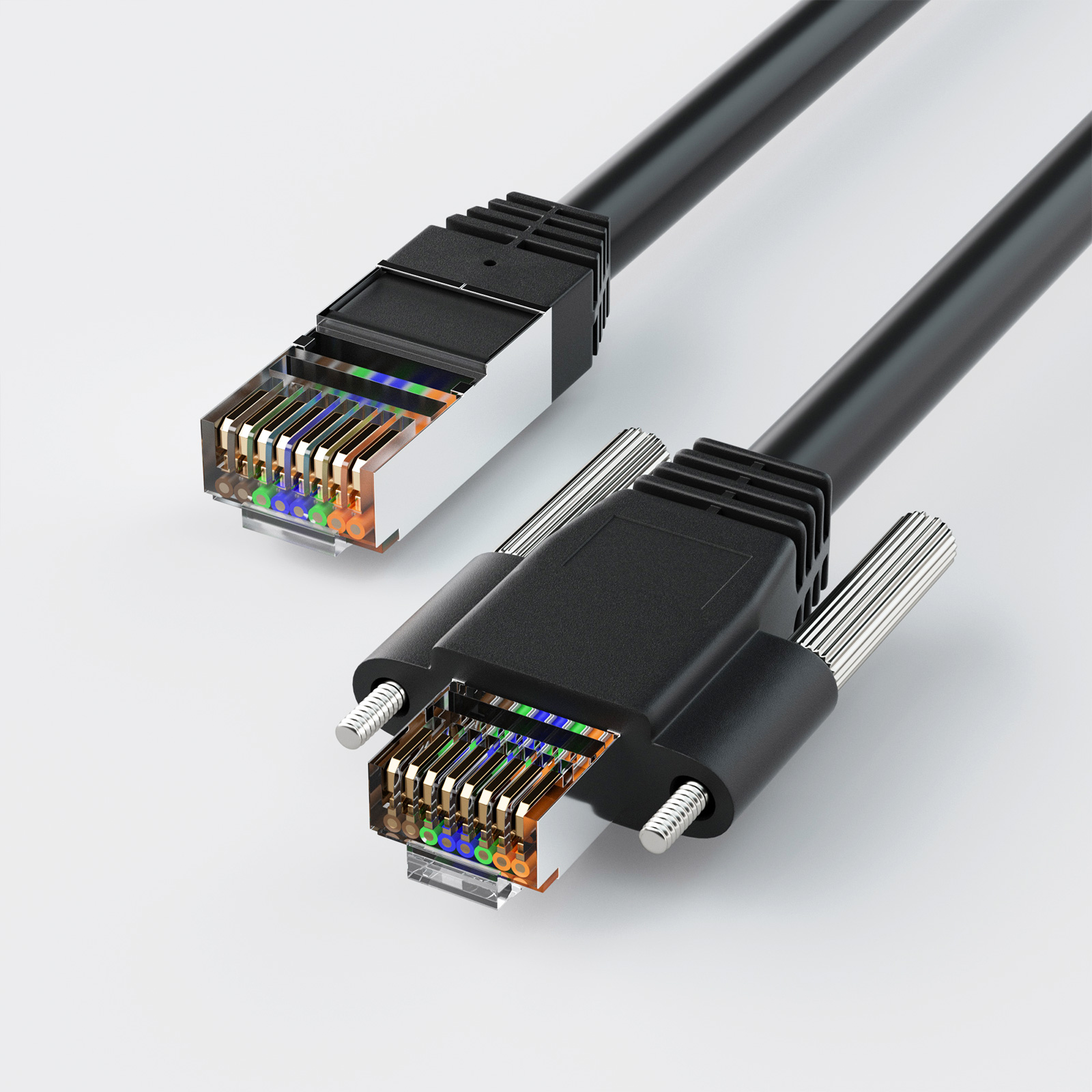

Product Photograph
FAQ of GigE Ethernet
1. What makes this GigE Ethernet cable suitable for long camera-to-control-cabinet connections?
The product page offers lengths from 3 m to 30 m, including 20 m, 25 m, and 30 m options for cameras installed away from the control cabinet. For longer installations, the complete channel—including couplers, switches, and patch panels—should still be checked for stable data transmission.
2. How does the 26AWG stranded conductor construction affect this GigE Ethernet cable?
The cable contains four twisted pairs of 26AWG bare-copper conductors, with each conductor built from multiple fine strands. This construction provides better flexibility and repeated-movement resistance than a typical solid-conductor Ethernet cable.
3. What cable-clamp or gland size should be selected for this GigE Ethernet cable?
The specified cable outer diameter is 6.5 ± 0.2 mm. Select a cable clamp or gland that securely accommodates approximately 6.3–6.7 mm without crushing the jacket or deforming the twisted pairs.
4. What do the UL20276 AWM and VW-1 markings mean for this GigE Ethernet cable?
The cable is marked UL20276 AWM with an 80°C and 30 V rating, while VW-1 identifies its flame-retardant classification. These markings apply to the cable construction and should not be interpreted as an IP, outdoor-use, or complete-system certification.
5. Is this GigE Ethernet cable rated for oil, coolant, outdoor, or washdown exposure?
The page describes abrasion, flame, torsion, and heat resistance, but it does not provide an oil-resistance, UV-resistance, or IP rating. Additional protection or written confirmation is required for coolant, outdoor, or washdown environments.
6. Should shielded couplers be used when extending this GigE Ethernet cable?
Yes. The cable uses aluminum-foil and braided shielding, so any coupler, bulkhead connector, or patch panel should also be shielded to maintain shielding continuity. A continuous cable is preferable because every additional connection can increase signal loss and create another possible failure point.
