High Flex
RJ45 Straight
RJ45, 90° Right angled
Double shielded braid
Gige Connector Application
The GigE Connector can be used in demanding applications.
They are ensure network throughput in harsh industrial environments.

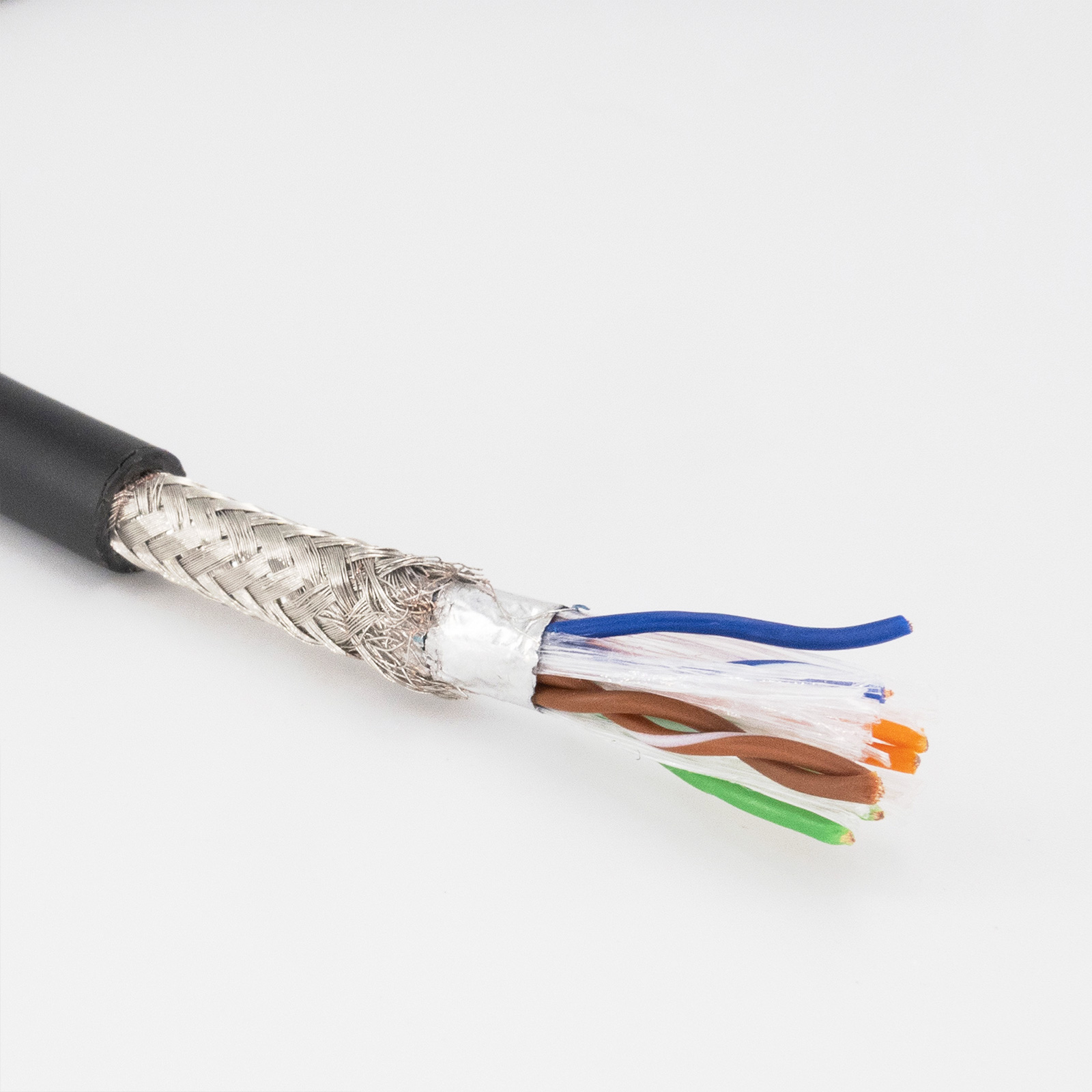

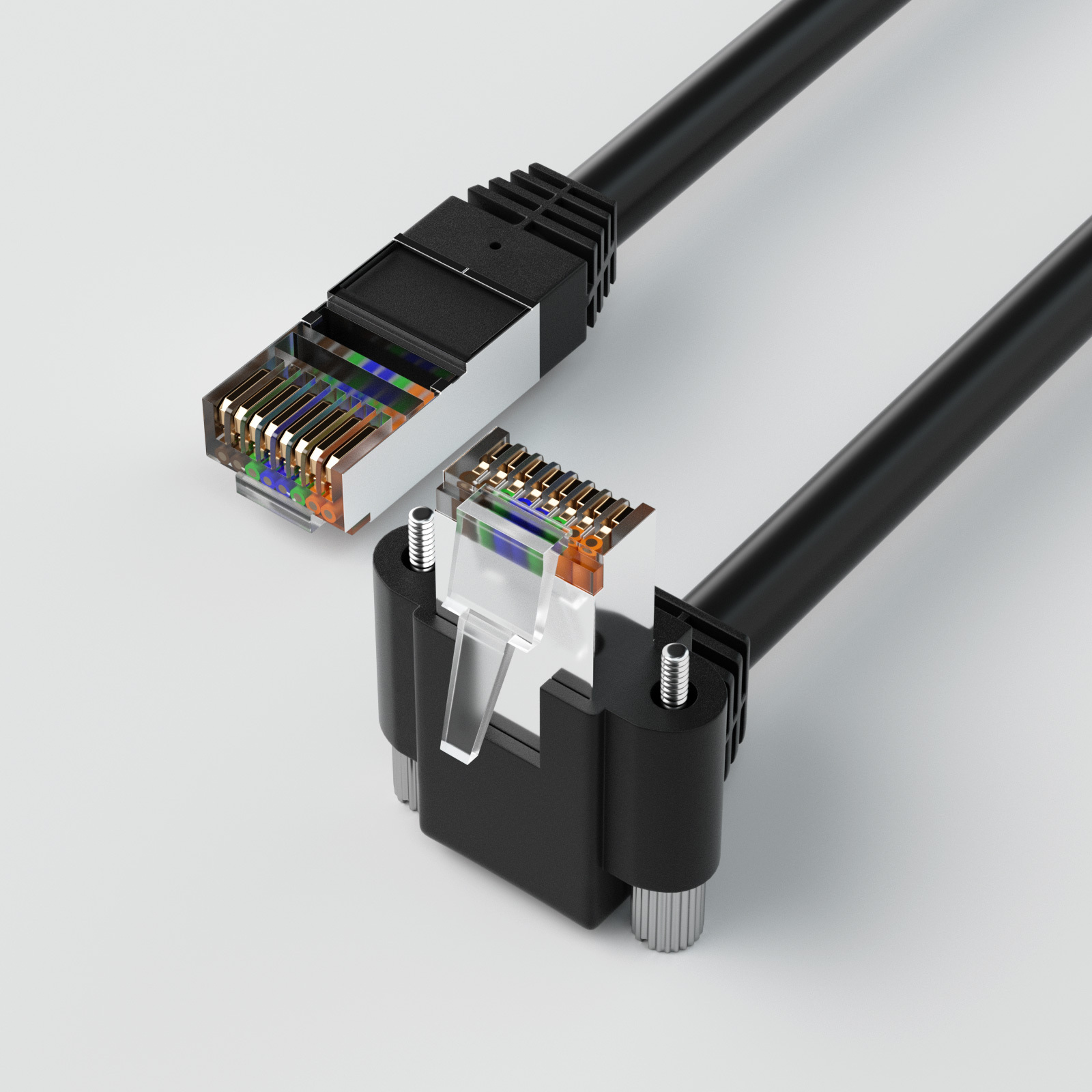

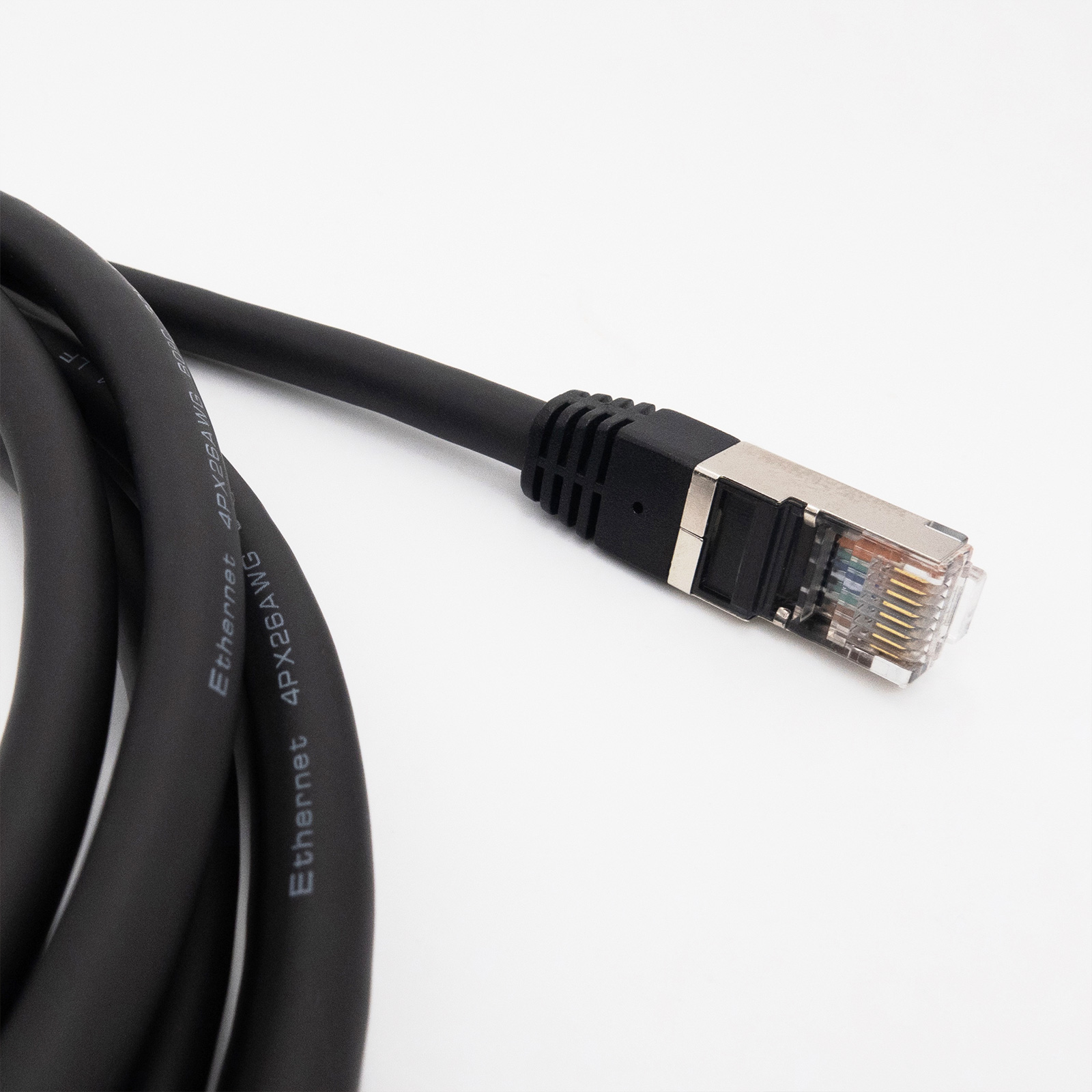

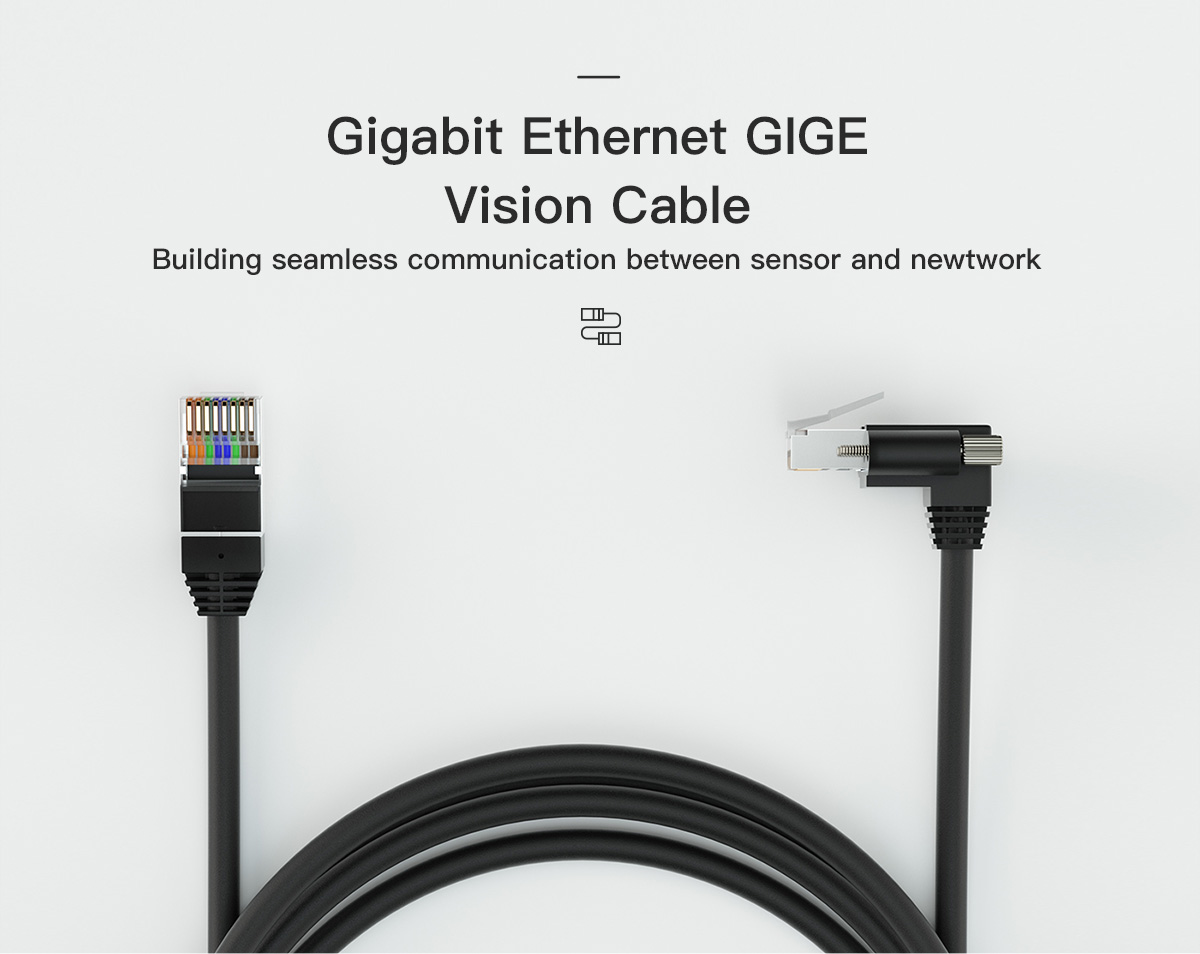

• This twisted GigE cable is used for data transmission and comes outfitted with two RJ45 plugs, one with horizontal screw-down.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.

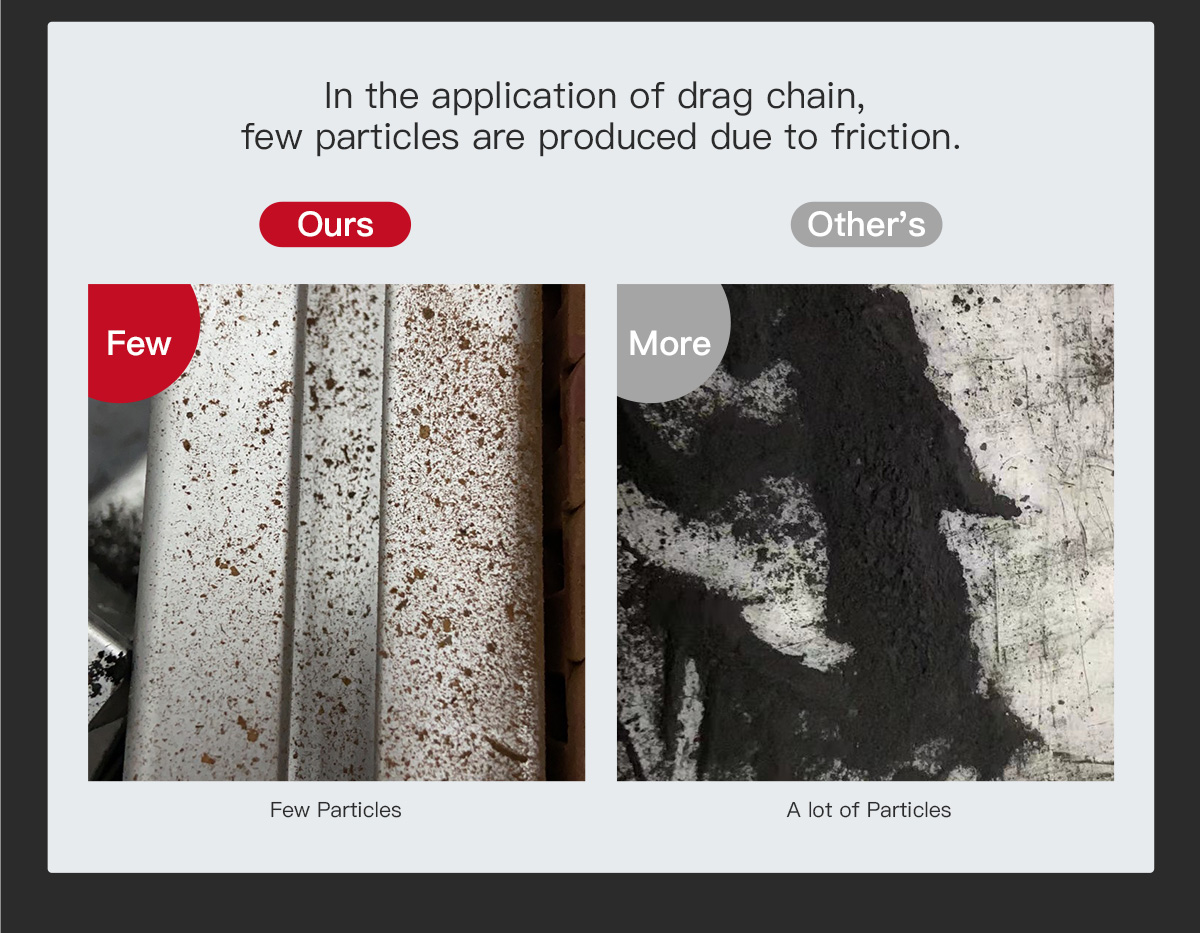

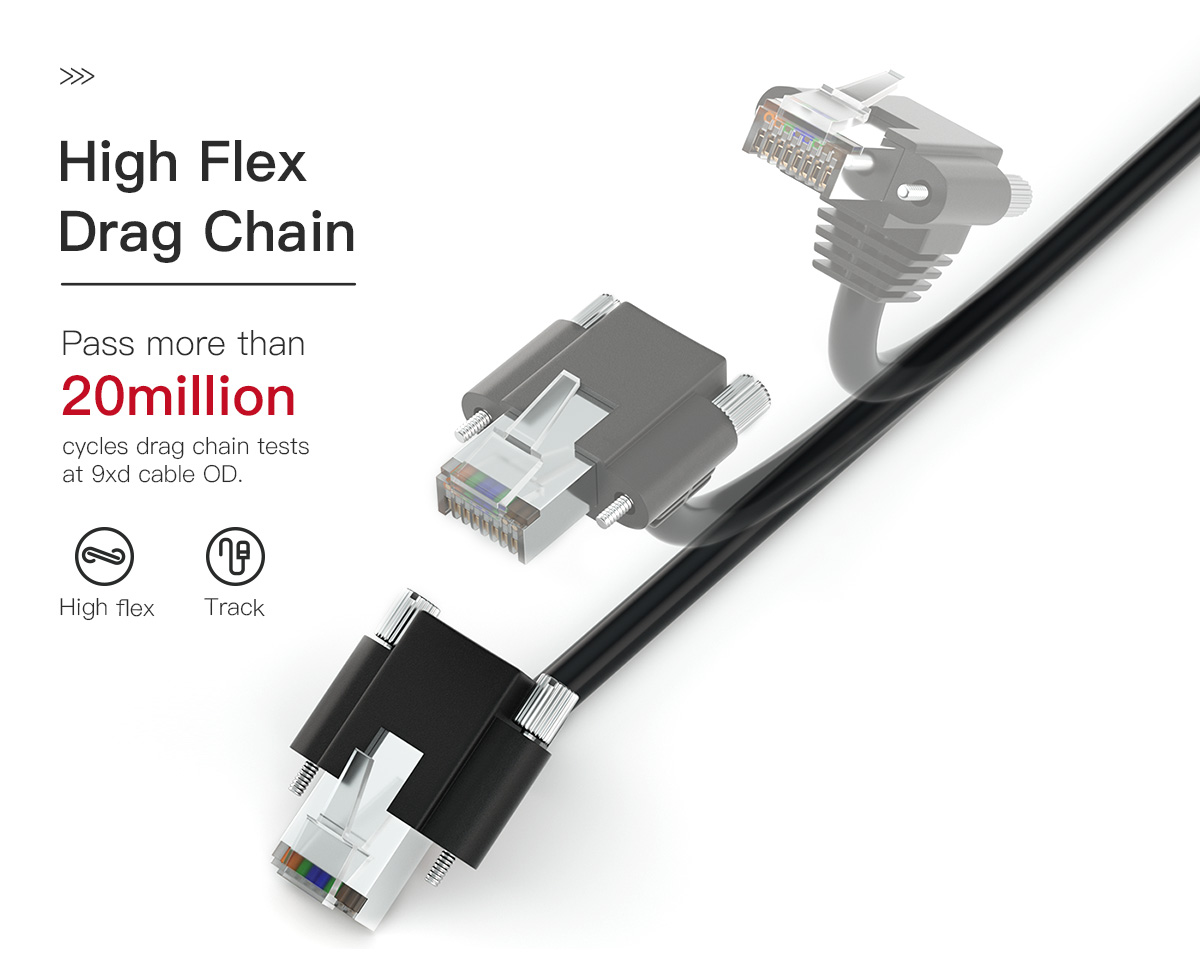

• High flexible, drag chain test 20KK cycles.

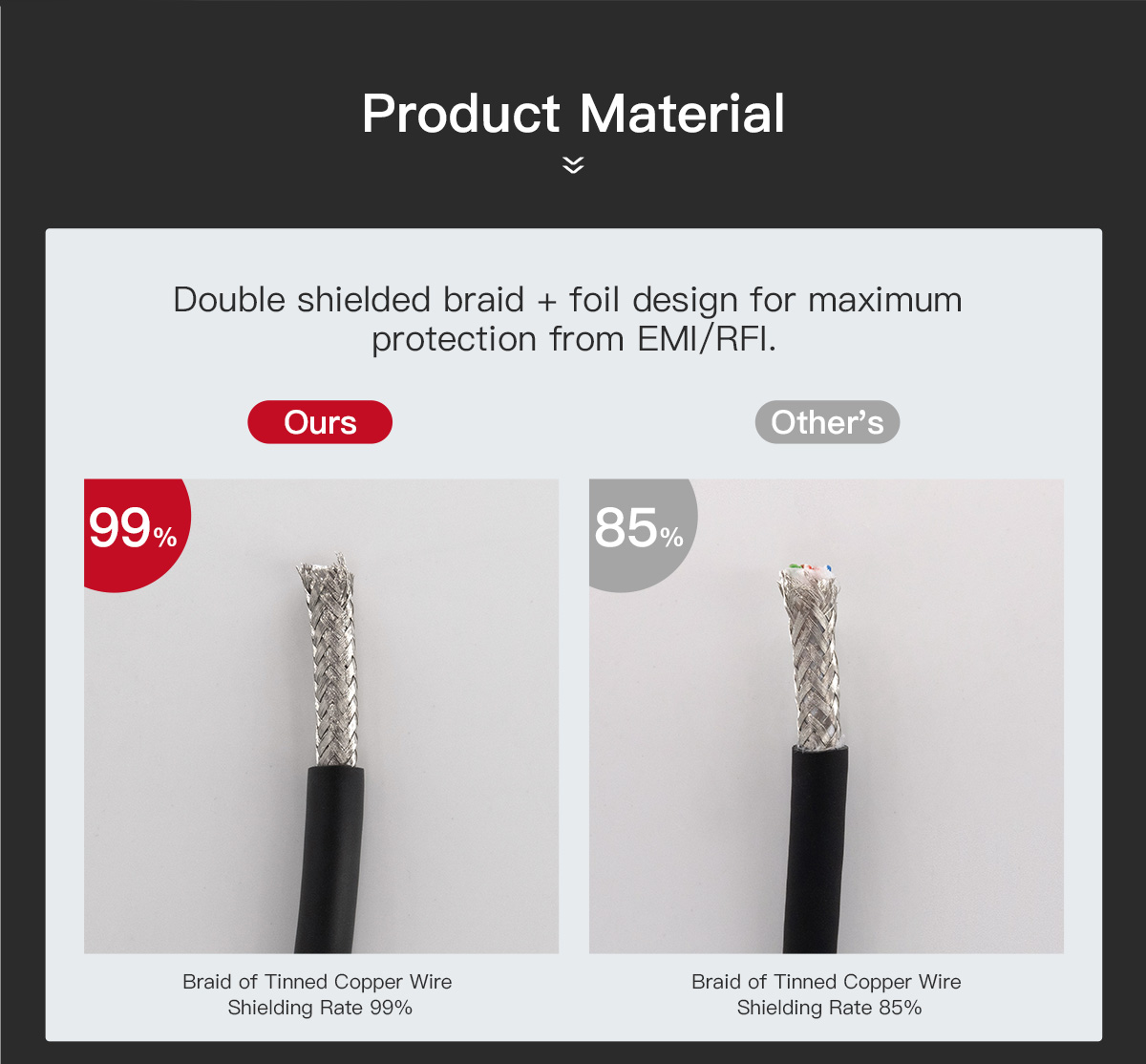

• 99% shielded, reliable signal transmission, 360 degree omni-directional Shielding in EMI Environment.

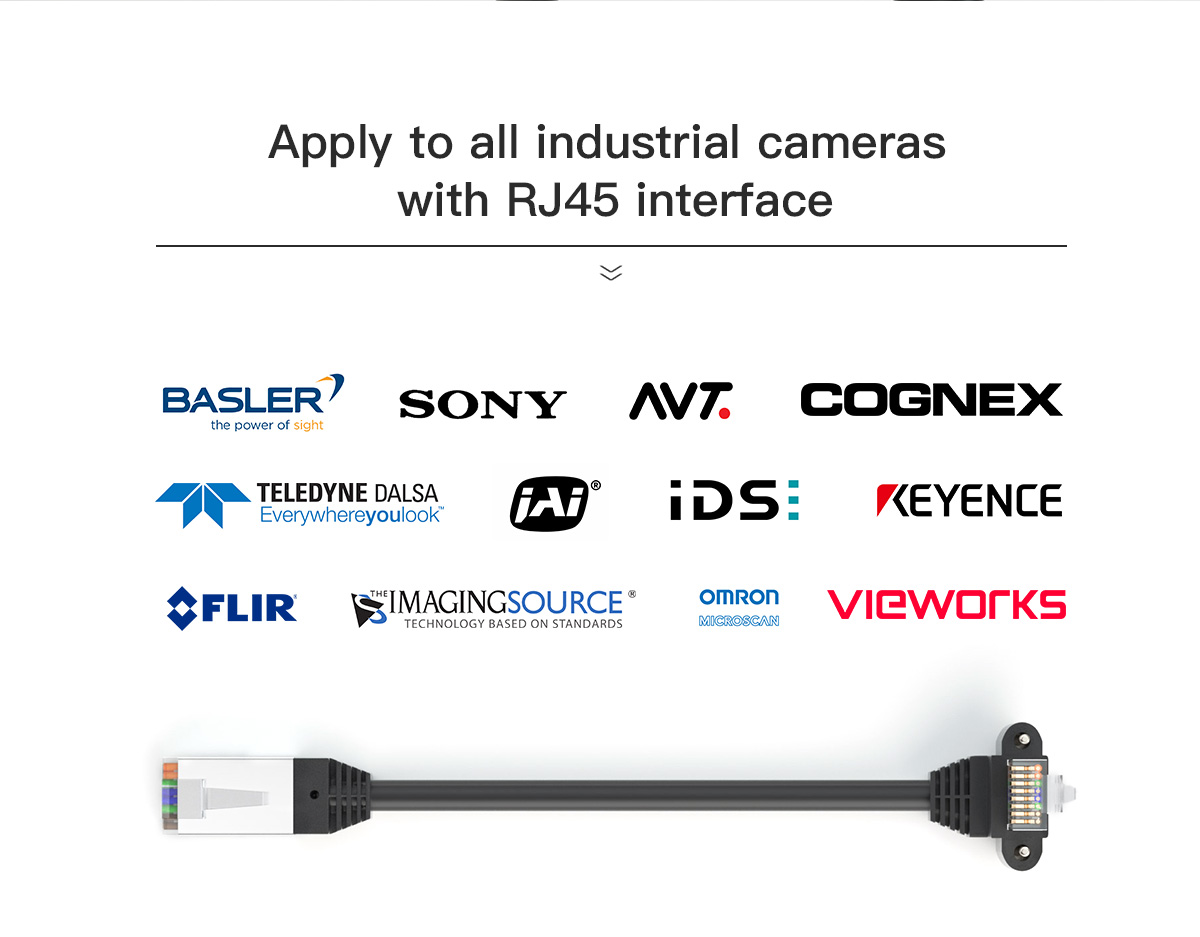

• For industrial machinery, Basler Sony Cognex CCD cameras, Matrix Vision Camera, Triton camera models, Networks, Ethernet, Power.
Application: Industrial Machine / EtherCAT and EtherNet/IP / Factory Automation
Delivery Time: 4-10 working days
Payment Terms: online or T/T
GigE Connector Specification
| GigE Vision Specification |
 |
| Bill Of Materials | Wiring Diagram | |||
| Item | Description | QTY | Specification |  |
| ① | Wire | 1 | GIGE CABLE CAT5E BLACK LF 4PX26AWG | |
| ② | RJ45 Connector | 2 | 8P8C | |
| ③ | Screw Rod | 2 | M2.0*0.4 4.75 | |
| ④ | Inner Mold | 1 | PE(J5019) | |
| ⑤ | Outer Mold | 1 | DWHC-10035(Black) | |
Wiring Diagram & Pinout of GigE Connector

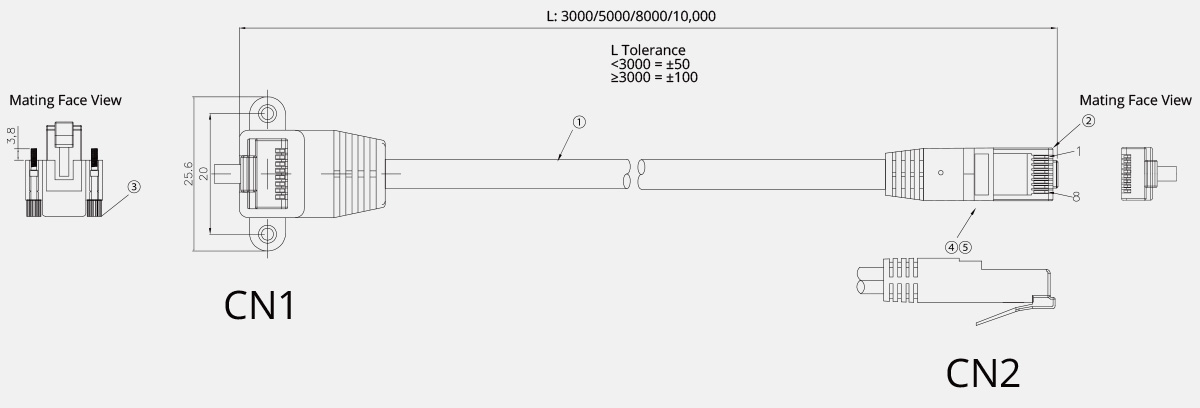

| Drawing of GigE Vision Cable | Pair Twist Insulator Colour | ||
 |
Pair Twist | Insulator Colour 1 | Insulator Colour 2 |
|---|---|---|---|
| 1 | Blue | Blue / White | |
| 2 | Orange | Orange / White | |
| 3 | Green | Green / White | |
| 4 | Brown | Brown / White | |
| Blue / White: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others. | |||

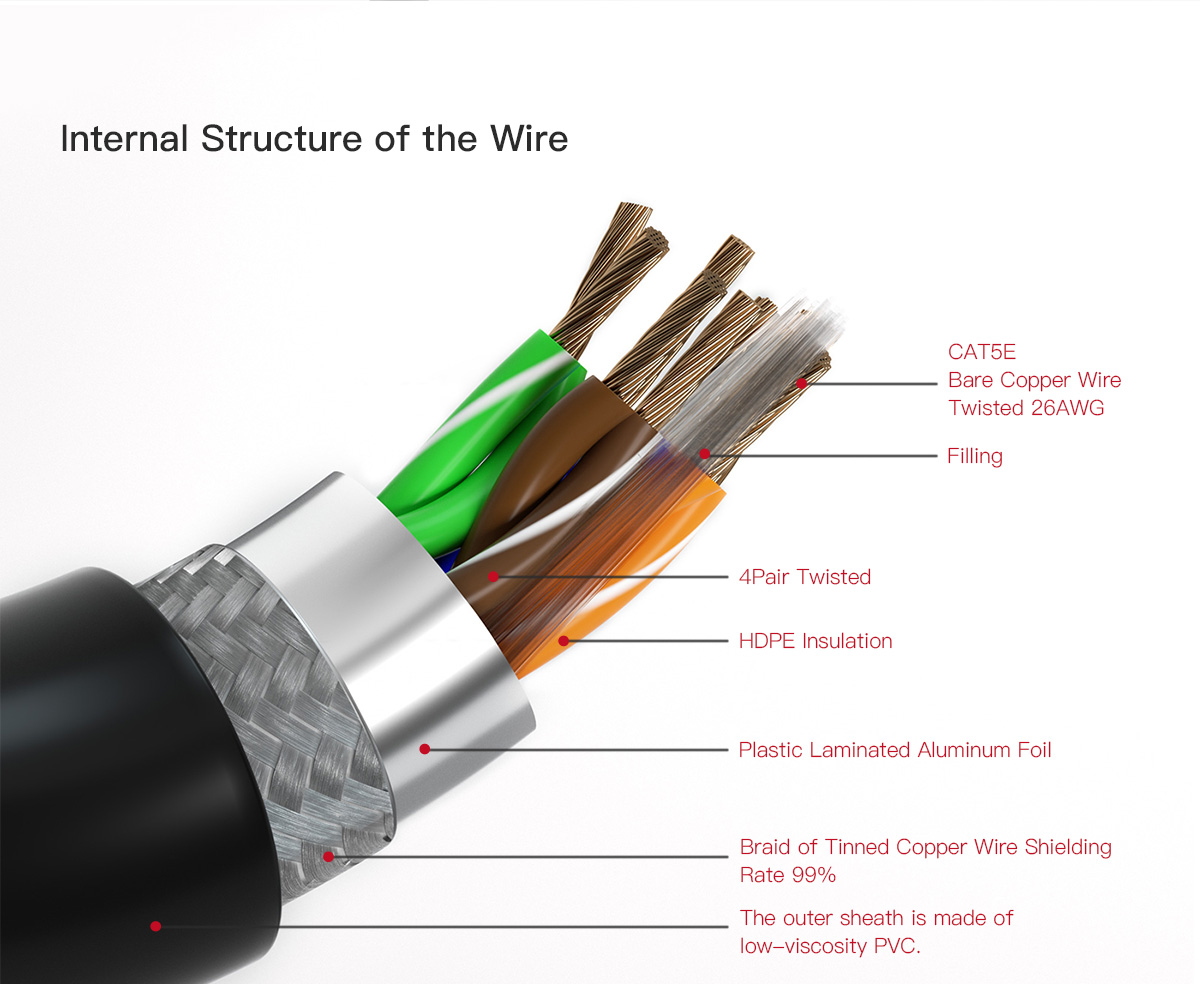

Cross-Section & Pair Twist Configuration
| Model NO. | OLA-GIGE-7-1-5-XM CABLE | Printing | Ethernet, 4PX26AWG, 80°C, 30V, VW-1, LF | ||
| Style | GIGE Ethernet/T/20276-SB BLACK LF 4PX26AWG | Size | 4PX26AWG | ||
| Approbation | UL20276 AWM 80°C 30V | Flame Retardant Grade | VW-1 | ||
| Conductor of GigE Ethernet |
Size | 26AWG/4P | Shielded |
Al/Pet | 0.05*20mm |
| Cond. Material | Bare Copper BC | Braid | 24/8/0.1TC | ||
| Construction | 30/0.08 BC | Covered | 99% Min | ||
| Diameter | 0.51mm | Jacketed |
Material | PVC | |
| Tolern | ±0.003mm | Avg.Thick. | 0.765mm | ||
| Insulation | Material | HDPE | Min.Thick. | 0.723mm | |
| Avg.Thick. | 0.207mm | Diameter | ø6.5±0.2mm | ||
| Min.Thick. | 0.184mm | Colour | Black (Similar to RAL 9005) | ||
| Diameter | 0.95±0.05mm | Electrical Properties |
Conductor Resistance | ≤124 Ω/km 20°C | |
| Colour | (Bule*Bule/White) | Test Voltage | 500V/1min | ||
| (Orange*Orange/White) | Insulating Resistance | > 10 MΩ/km 20°C | |||
| (Green*Green/White) | Characteristic Impedance | 100±15Ω | |||
| (Brown*Brown/White) | Wokring Tempearture | Fixed Installation | -20°C ~ 80°C | ||
| Pair Twist |
Pair Twist | 1P*26AWG | Moved Installation | -5°C ~ 50°C | |
| Diameter | 1.94mm | Minimal Bending Radius |
Fixed Installation | 5 X Cable-ø | |
| Assembly Standed | 26AWG/4P | Moved Installation | 8.5 X Cable-ø | ||
| Quality Certifications |     |
||||

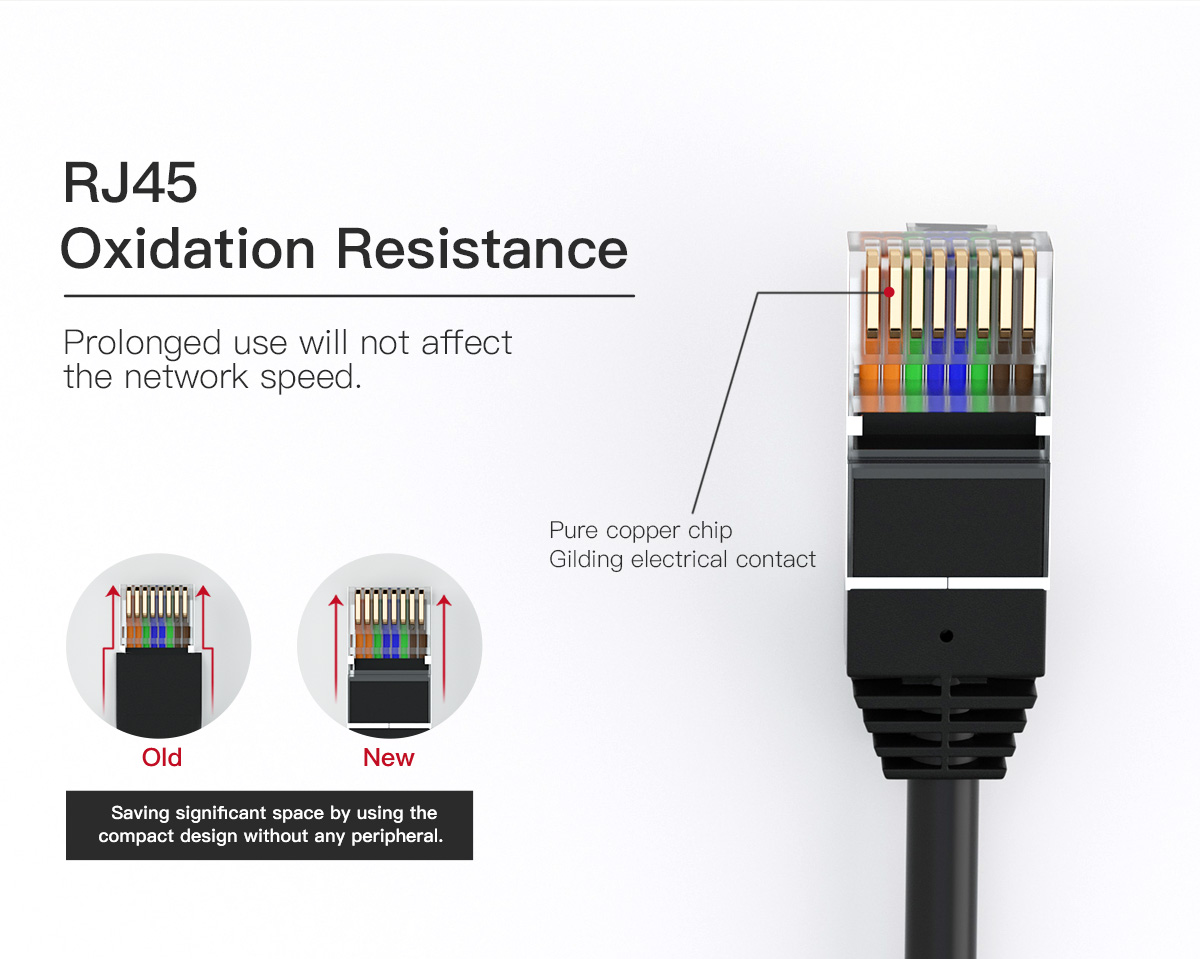

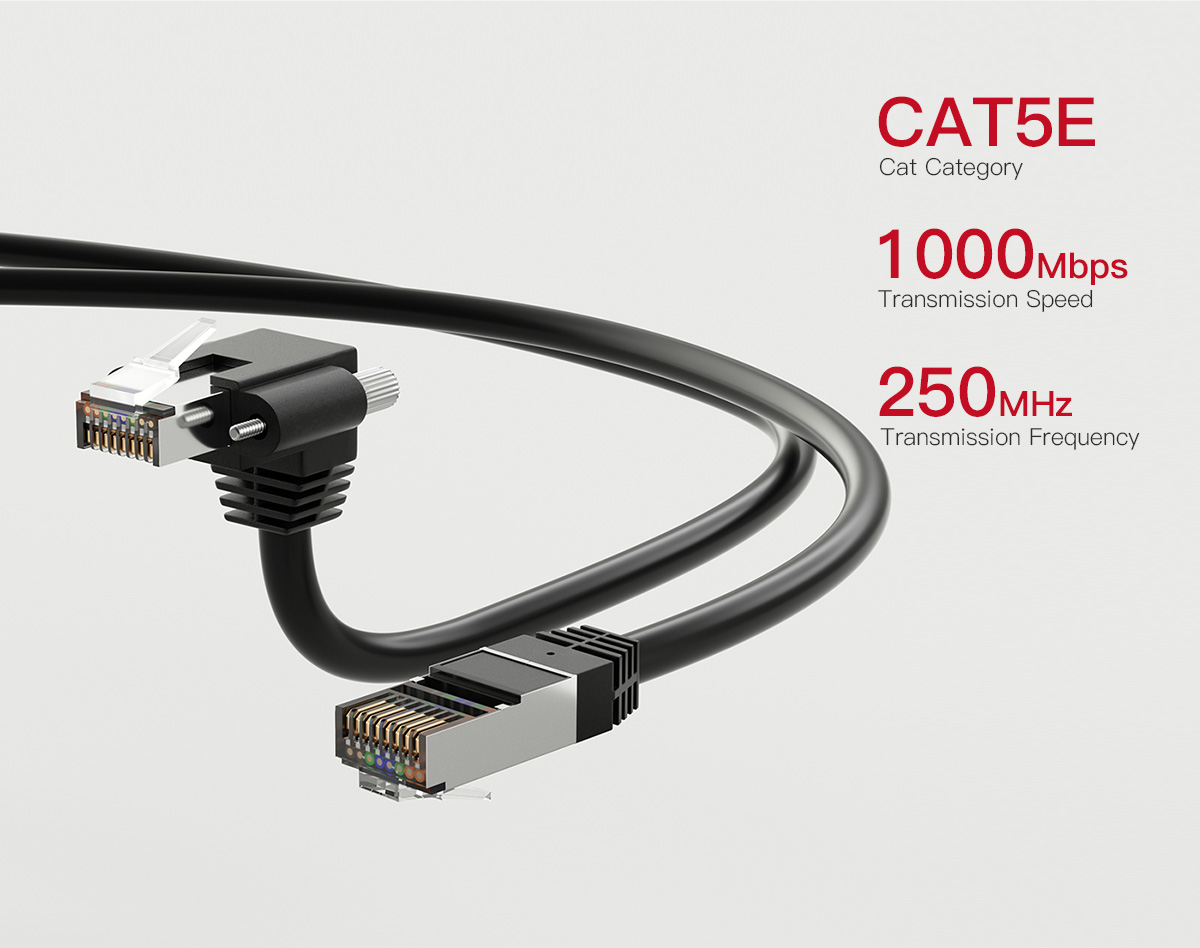

GigE Cable Details

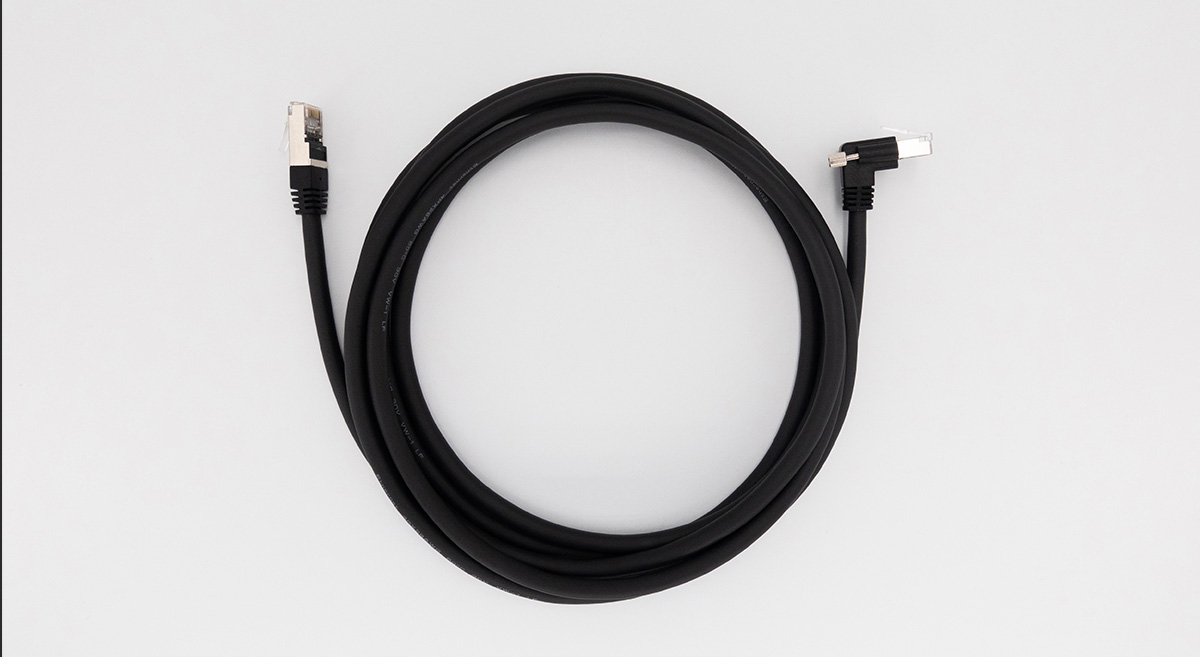

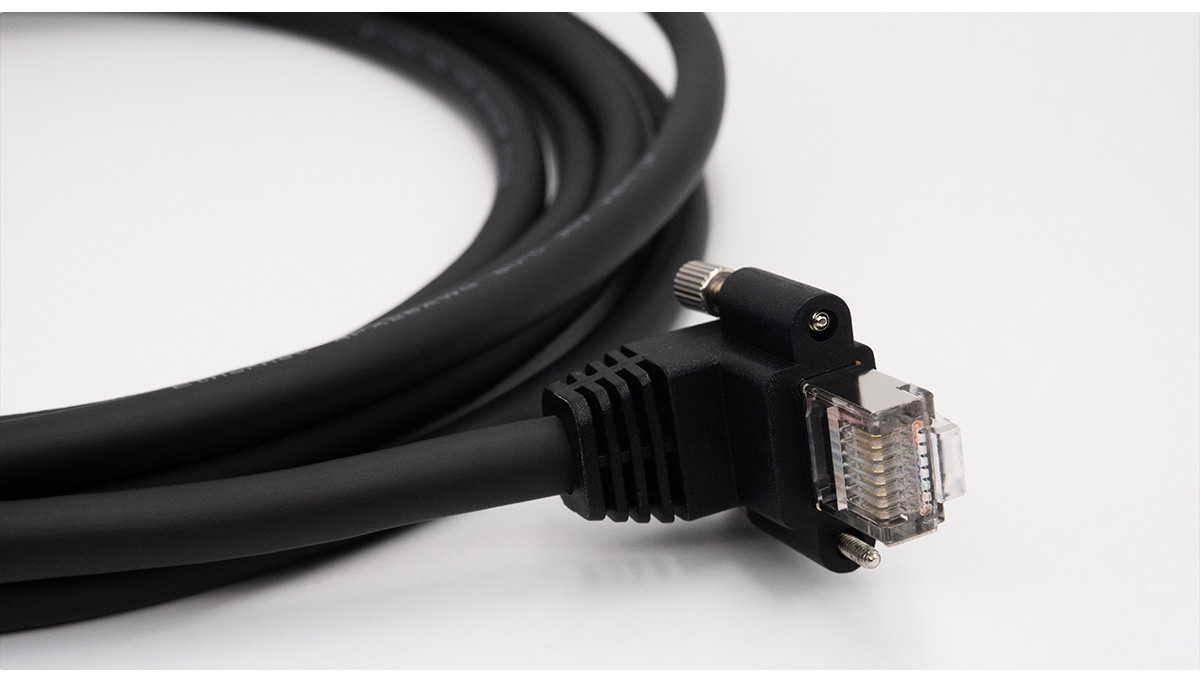

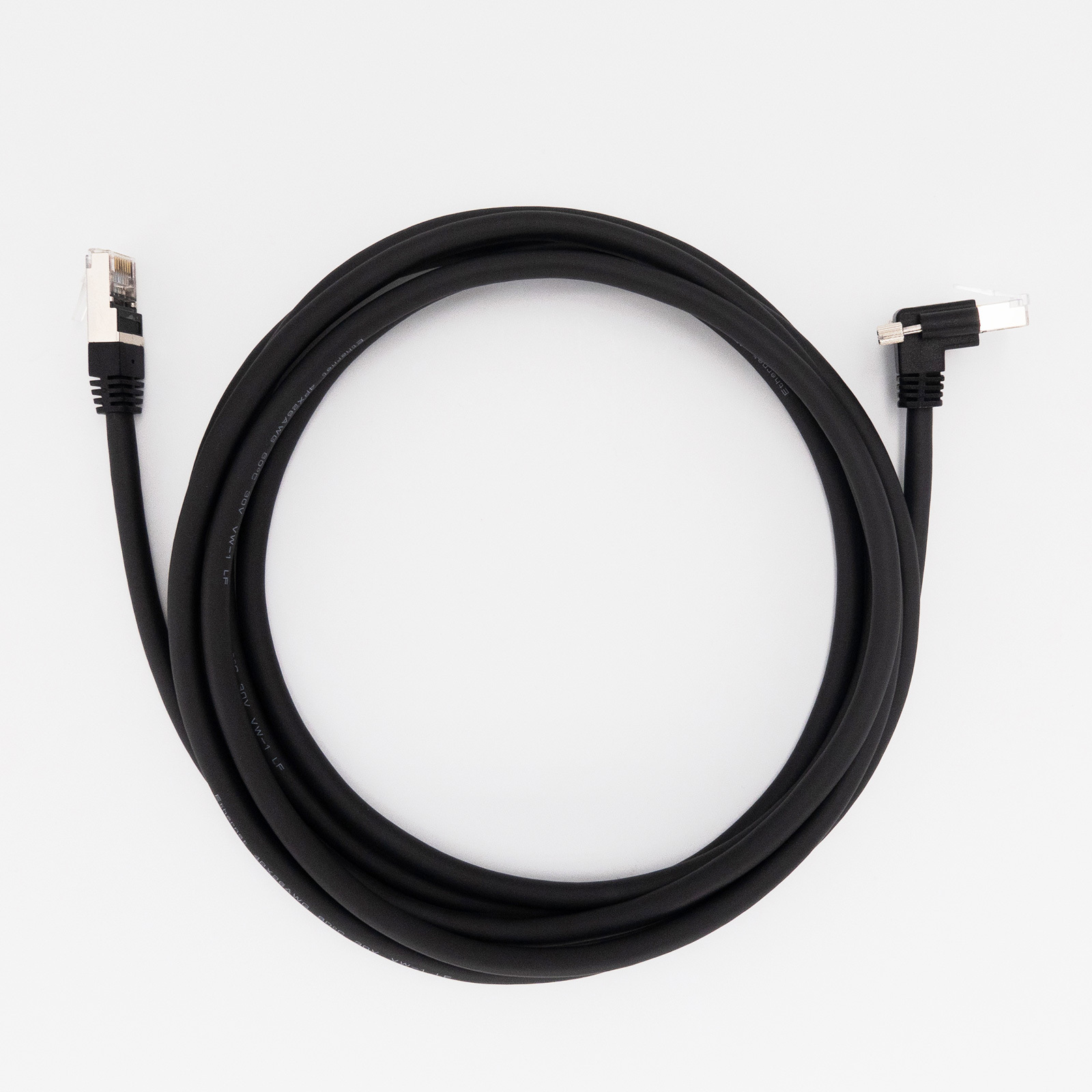

Gige Connector Photograph
FAQ of Gige Connector

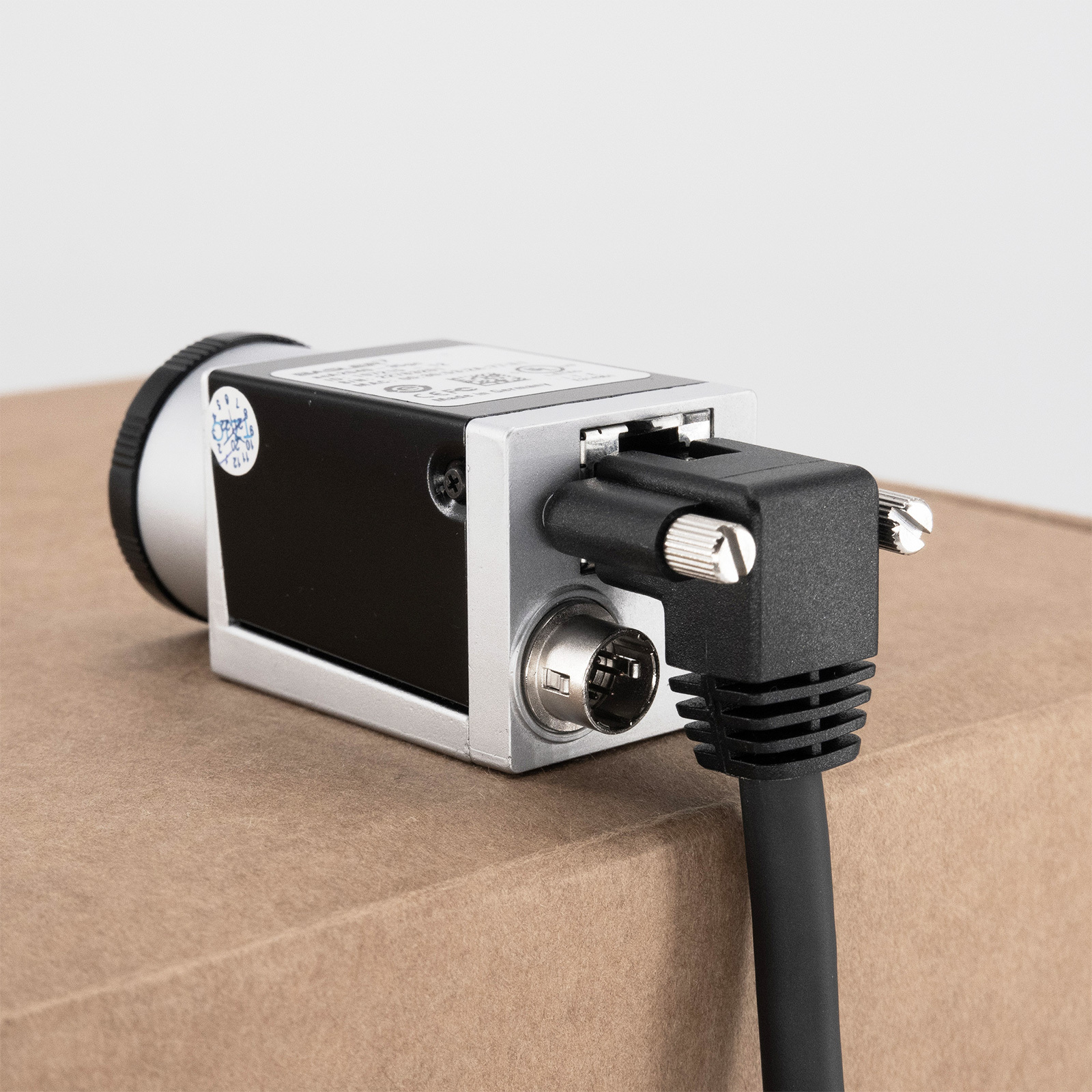

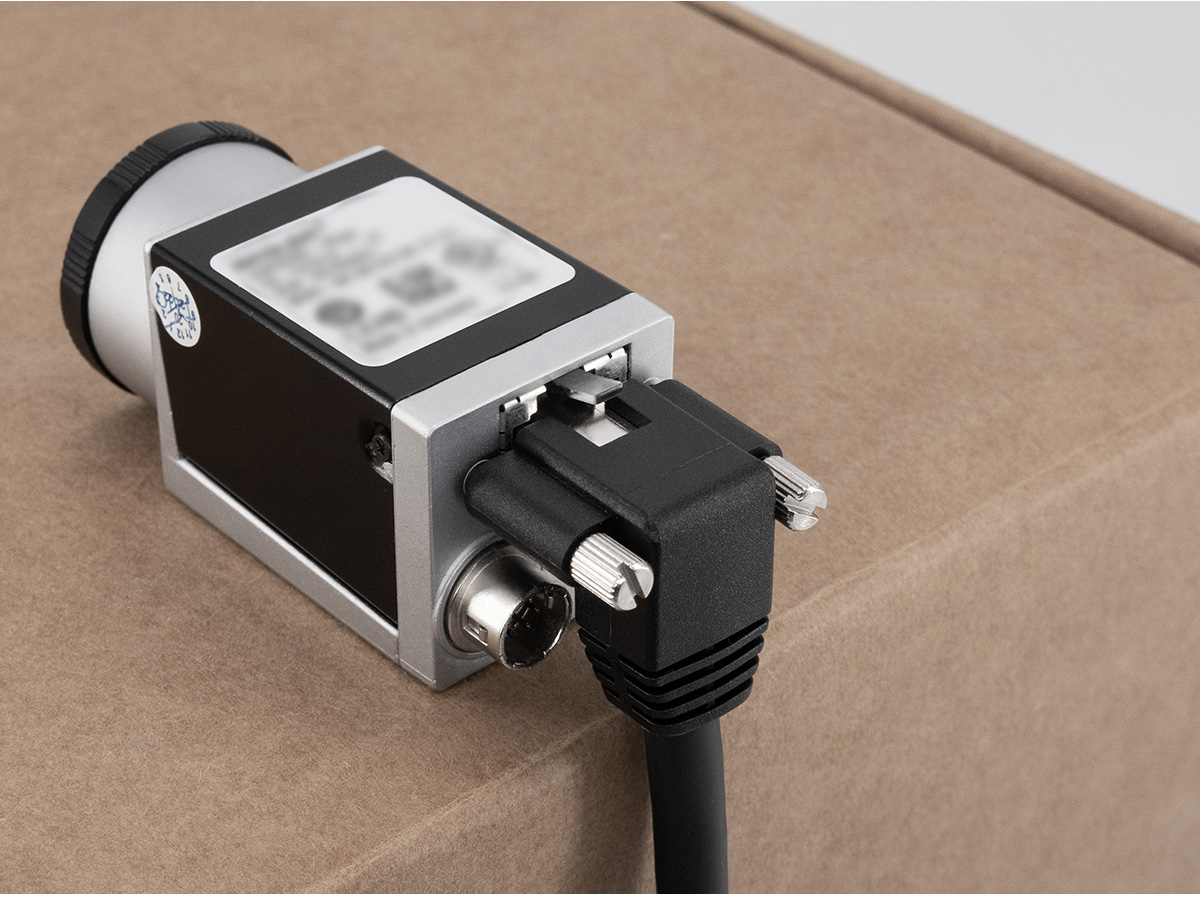

1. What camera layouts are best suited to the 90° down Gige Connector?
The 90° down design suits cameras installed above a cable tray, machine base, or control cabinet where the Ethernet cable needs to run downward. It keeps the cable from extending upward or directly behind the camera, but the camera bracket below the port must provide enough clearance.
2. Does this Gige Connector use a straight-through T568B wire map?
Yes. The specification shows a T568B wire map with pins 1 through 8 connected pin-to-pin between the two 8P8C RJ45 connectors. It is a straight-through Ethernet cable rather than a crossover cable.
3. Which Ethernet standards are documented for this Gige Connector?
The cable test report lists compatibility with 10BASE-T, 100BASE-TX, 1000BASE-T, and 2.5GBASE-T. For GigE Vision cameras, 1000BASE-T is the primary application. Any 2.5G connection should still be verified with the selected camera, network interface, and cable length.
4. What finished-cable electrical tests are specified for this Gige Connector?
The assembly specification includes continuity testing for short circuits, open circuits, and incorrect pin matching. It also specifies an AC 500 V withstand-voltage test, a DC 500 V insulation test at 100 MΩ, and a three-second instantaneous-break test.

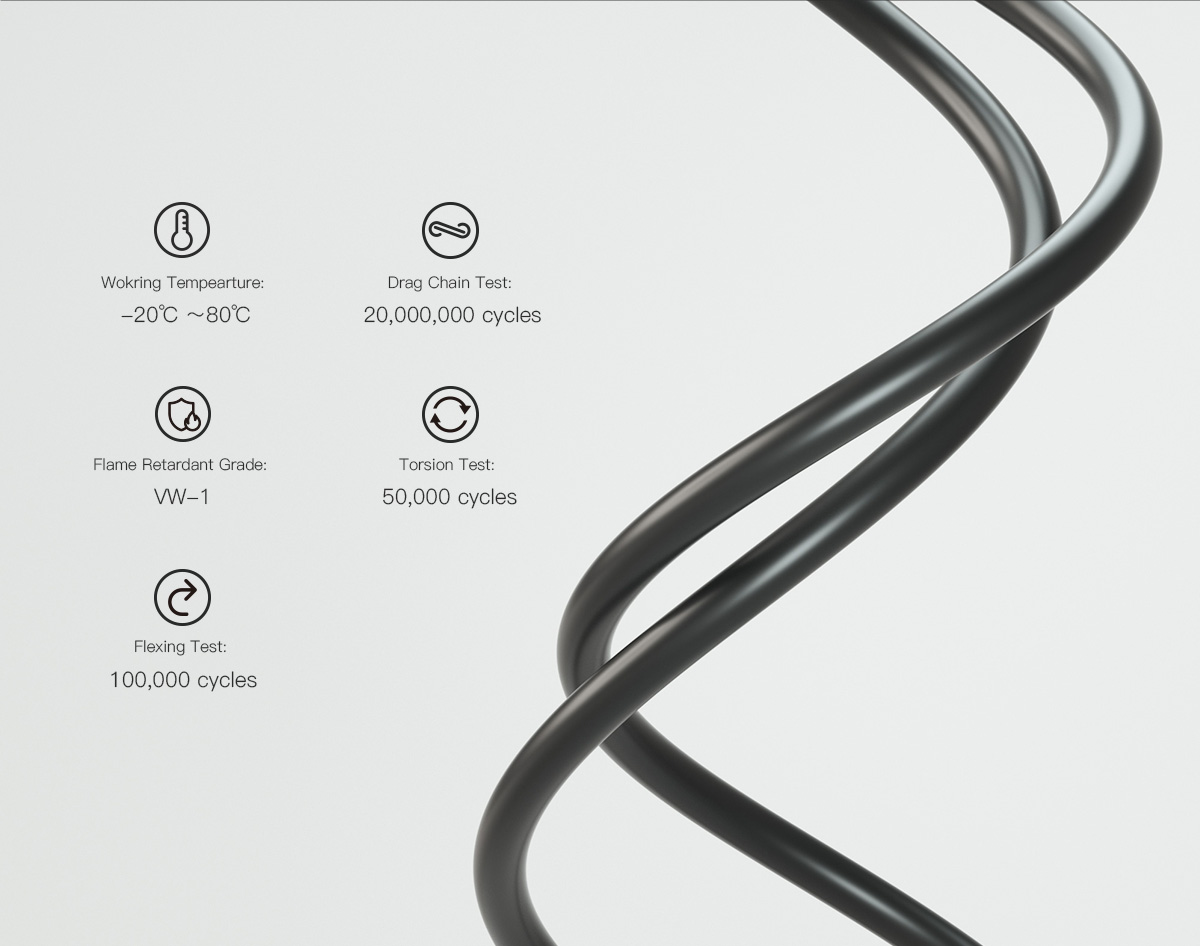

5. What dynamic-motion tests are reported for this Gige Connector cable?
The high-flex cable completed more than 20 million drag-chain cycles without disconnection. The specification also reports 50,000 torsion cycles at ±180° and more than 100,000 flexing cycles at ±90°, with no disconnection under the stated test conditions.
6. Is a 15 m Gige Connector option available on this product page?
Yes. The product page lists 3 m, 5 m, 8 m, 10 m, and 15 m options. For a 15 m order, confirm the final model number and production lead time before purchase.
