Two measurements. One device. Zero compromises.

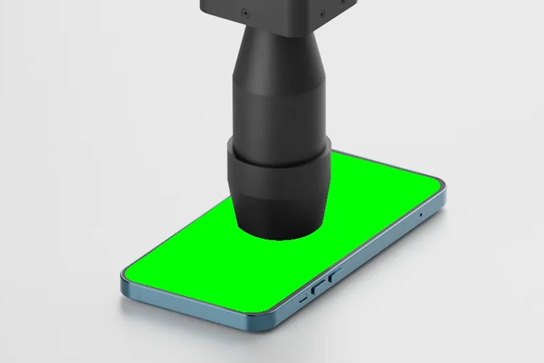

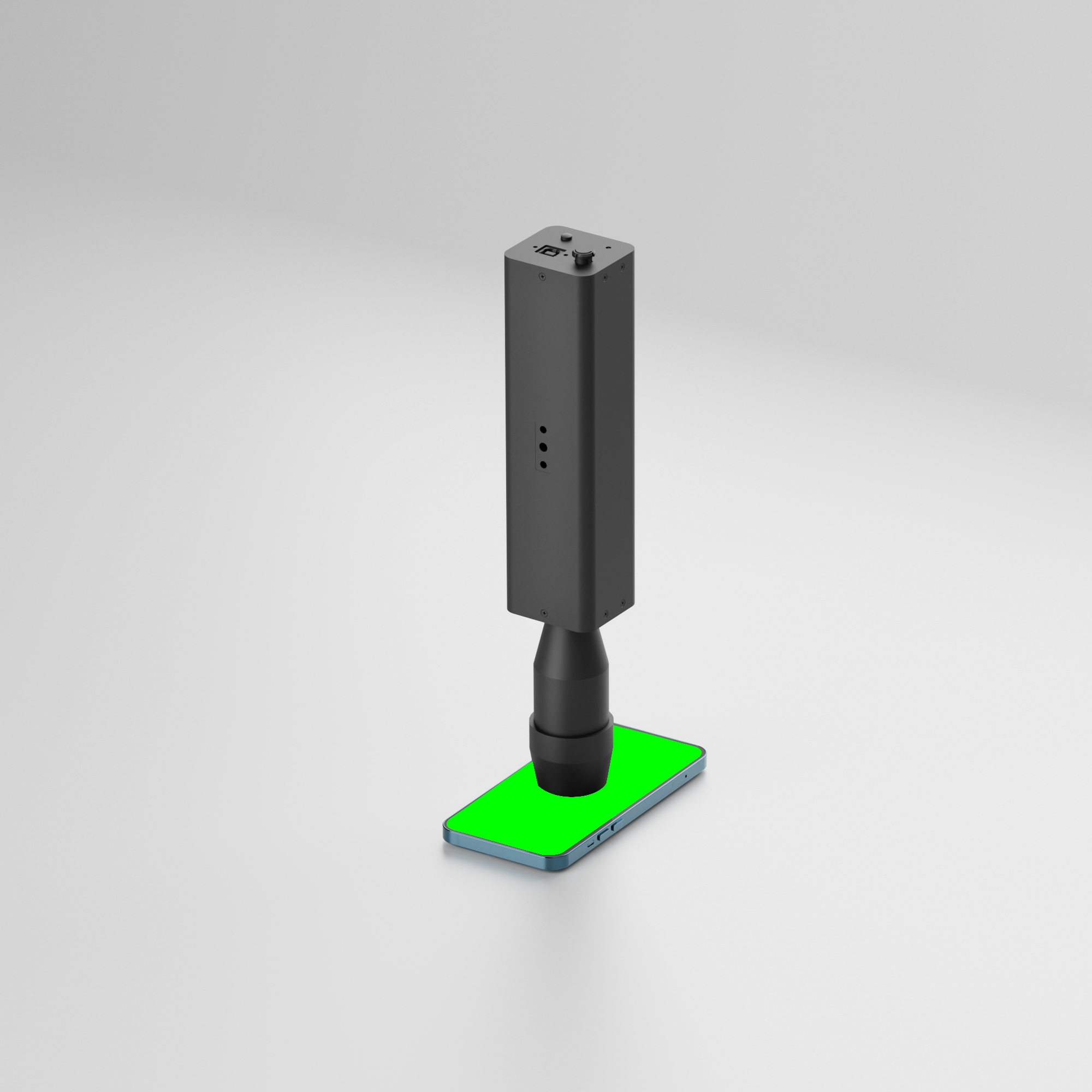

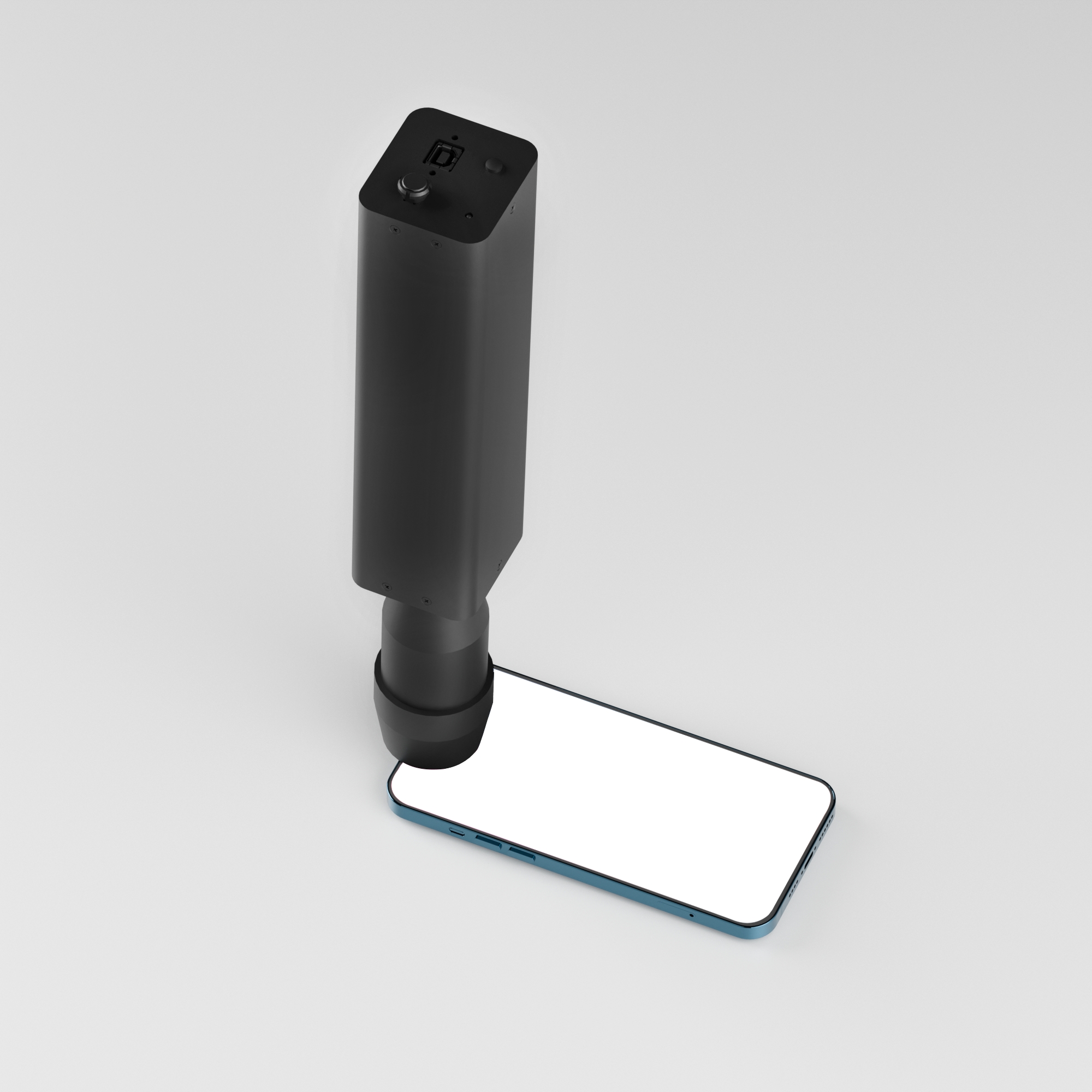

- The LTDCM-4035 is the first color analyzer that can test two screen areas simultaneously. Built specifically for modern displays - from foldable phones to under-display cameras.
- Why it matters: Instead of testing one spot at a time, you get dual measurements instantly. That means faster quality control, better accuracy, and less time spent moving equipment around.

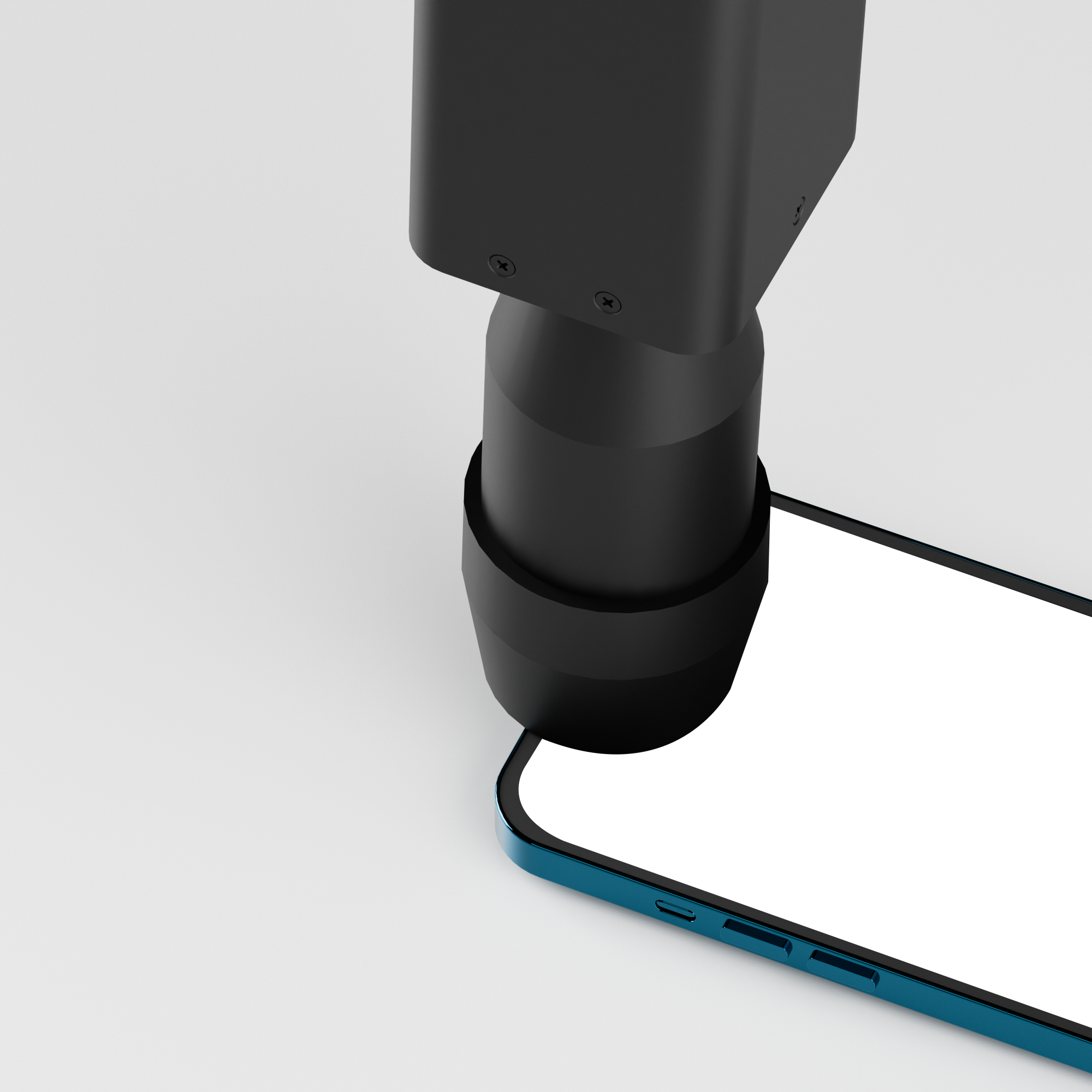

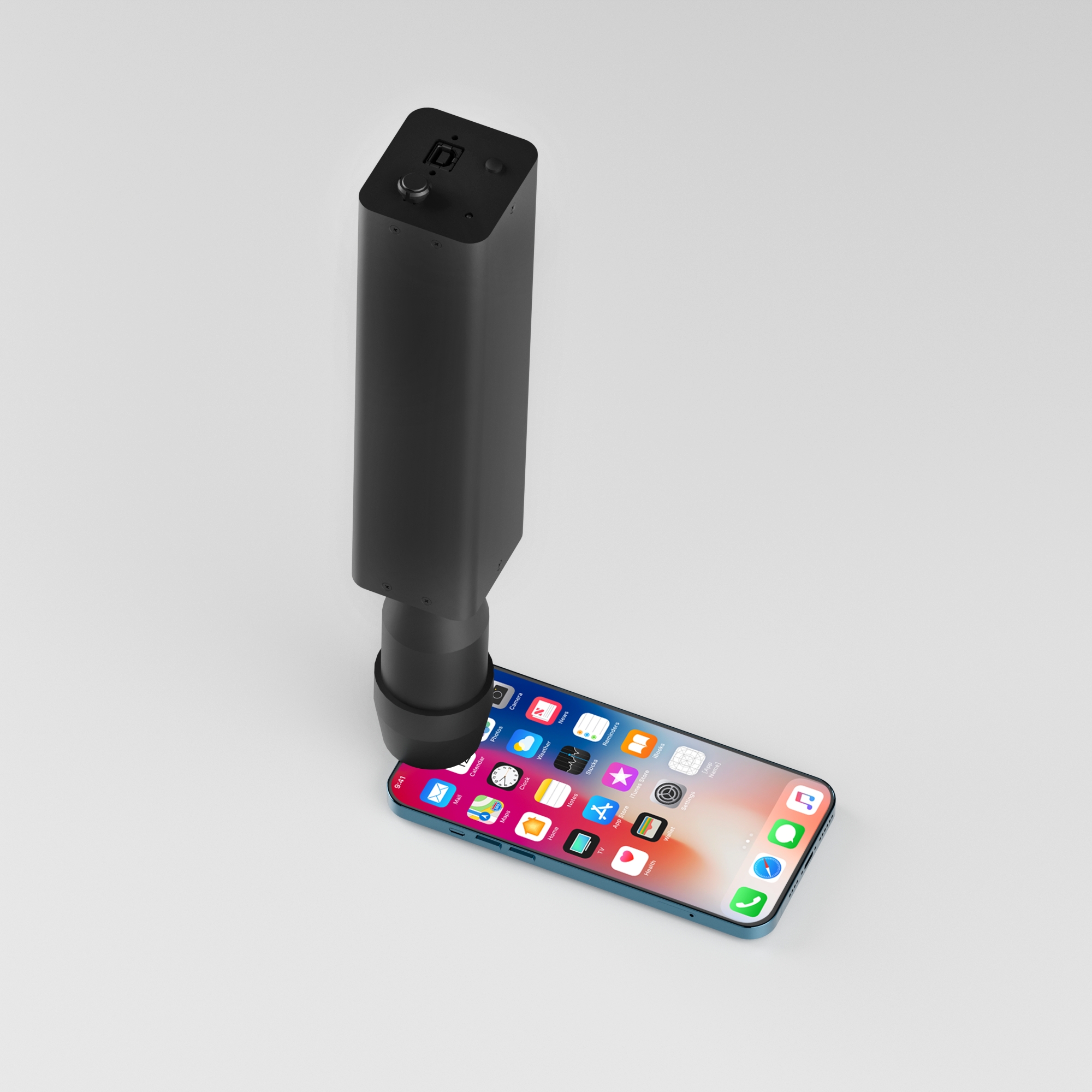

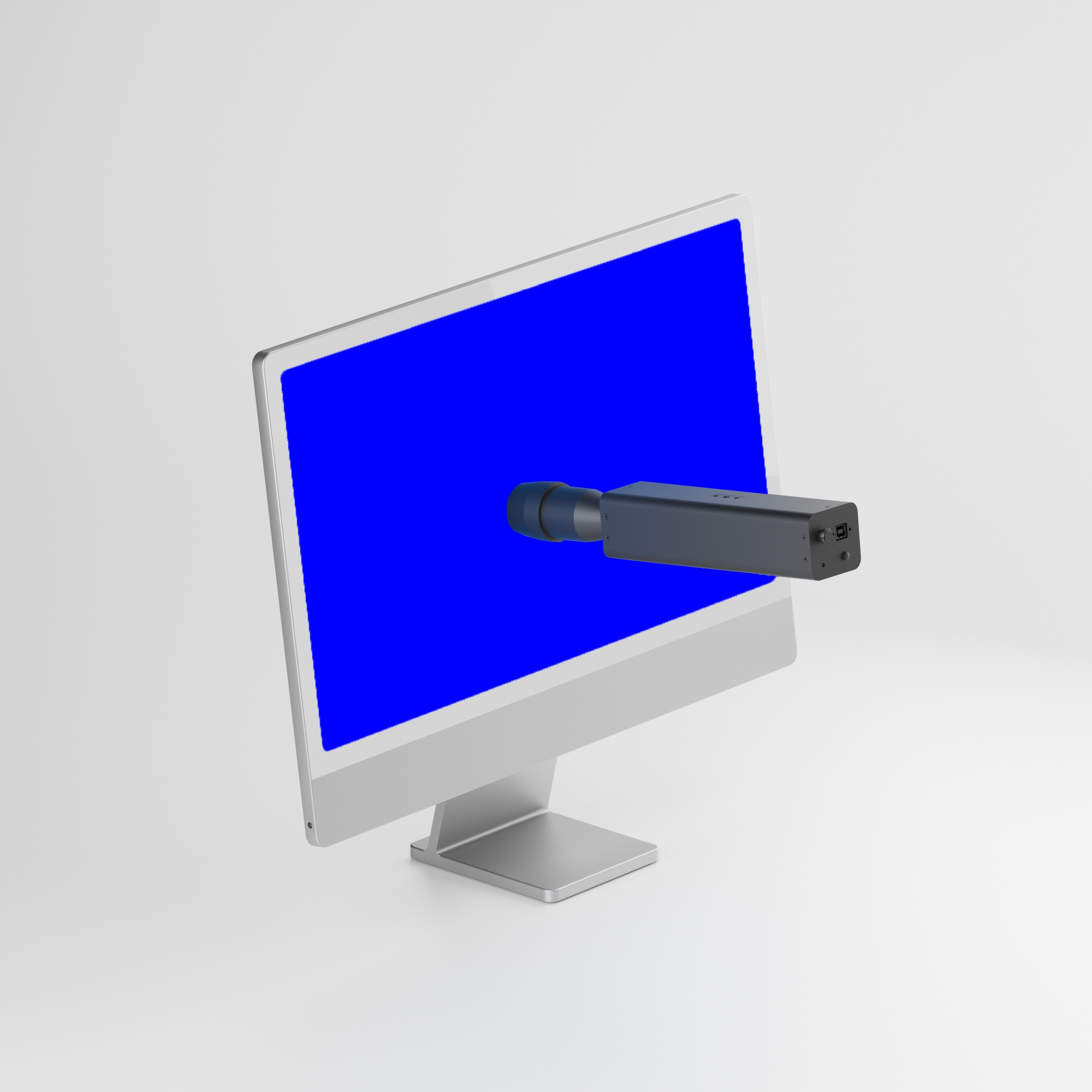

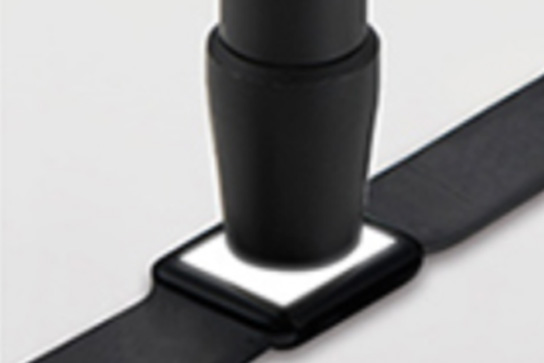

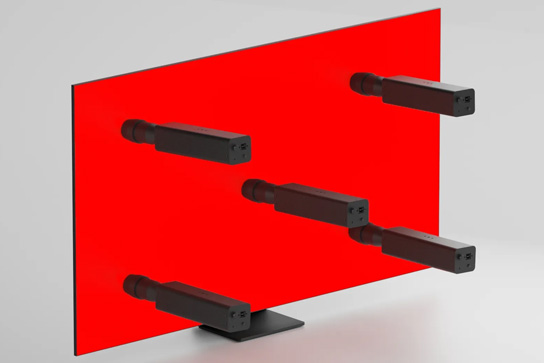

- Perfect for: Smartphone testing, foldable displays, automotive screens, and any next-gen display technology that demands precision.
Specifications of Display Color Analyzer

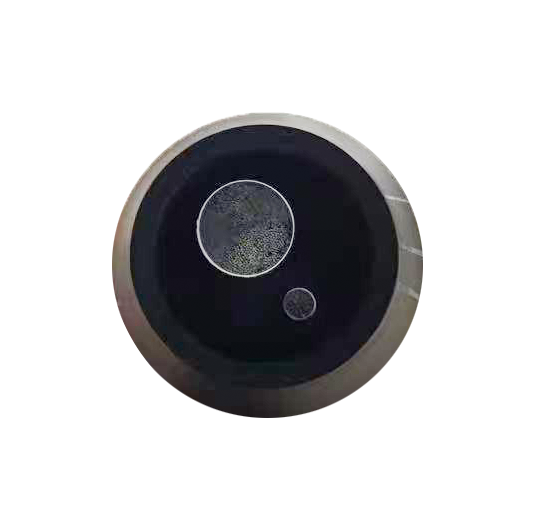

| Optical Paths | ⌀ 3mm | ⌀ 5mm | ||
| Working Distance | 30±1.5mm | |||
| Display Range | Brightness (Luminance) | 0.0001-6000cd/m² | ||
| Color Bit Depth | 4digit | |||
| Brightness (Auto Mode) | Range | 0.001-6000cd/m² | ||
| Accuracy (White) | ≥0.001cd/m² | ±6.0% | ±3.0% | |
| ≥0.01cd/m² | ±2.0% | ±1.5% | ||
| ≥0.1cd/m² | ±1.5% | ±1.5% | ||
| ≥15cd/m² | ±1.5% | ±1.5% | ||
| Repeatability (2σ) | ≥0.001cd/m² | 6.00% | 3.00% | |
| ≥0.01cd/m² | 2.00% | 1.00% | ||
| ≥0.1cd/m² | 0.50% | 0.25% | ||
| ≥1cd/m² | 0.20% | 0.20% | ||
| ≥15cd/m² | 0.20% | 0.10% | ||
| Color (Chromaticity) | Range | 0.005-6000cd/m² | ||
| Accuracy (White) | ≥0.005cd/m² | ±0.005 | ±0.004 | |
| ≥0.01cd/m² | ±0.004 | ±0.003 | ||
| ≥0.1cd/m² | ±0.003 | ±0.002 | ||
| ≥15cd/m² | ±0.002 | ±0.002 | ||
| 100 cd/m² for monochrome | ±0.003 | ±0.003 | ||
| Repeatability (2σ) | ≥0.005cd/m² | 0.006 | 0.003 | |
| ≥0.01cd/m² | 0.004 | 0.002 | ||
| ≥0.1cd/m² | 0.002 | 0.0008 | ||
| ≥1cd/m² | 0.0005 | 0.0002 | ||
| ≥15cd/m² | 0.0003 | 0.0002 | ||
| Flicker (Contrast Ratio Method) | Range | ≥5 cd/m² | ||
| Display Range | 0.0-999.9% | |||
| Accuracy | 30Hz AC/DC 10% sine wave | ±0.9% | ±0.3% | |
| 60Hz AC/DC 10% sine wave | ±1.3% | ±0.7% | ||
| Repeatability(2σ, 20-65Hz AC/DC 10% sine wave) | 0.80% | 0.30% | ||
| Flicker (JEITA Method) | Range | ≥10cd/m² | ≥5cd/m² | |
| Accuracy | 30Hz AC/DC 4% sine wave | ±0.3db | ±0.3db | |
| 30Hz AC/DC 1.2% sine wave | ±0.3db | ±0.3db | ||
| Repeatability(2σ) | 30Hz AC/DC 4% sine wave | 0.2db | 0.1db | |
| 30Hz AC/DC 1.2% sine wave | 0.3db | 0.2db | ||
| Measurement Speed | Lv, xy (Auto Mode) | <0.5 cd/m² | 1 times/s | |
| 0.5–15 cd/m² | 6 times/s | |||
| 15–140 cd/m² | 15 times/s | |||
| >140 cd/m² | 20 times/s | |||
| Flicker (Contrast Method) | 16 times/s | |||
Features of Display Color Analyzer
- Dual optical path design Two independent optical systems in one instrument, enabling simultaneous measurement of different screen areas - dramatically improving testing speed while maintaining precision.
- Expanded accuracy-guaranteed range of luminance: Wider range of measurement accuracy and repeatability. Luminance: 0.0001-6,000cd/m² – Chromaticity: 0.001-6,000cd/m². It enables precise measurement and calibration of chromaticity and gamma characteristics for OLED and HDR displays that require ultra-low luminance measurement capabilities.
- High reliability with ultra-fast measurement speed, Delivering consistent results with ultra-low luminance detection (1 sec at 0,0001 cd/m²) and high-resolution performance.
- Comprehensive parameter analysis covering luminance, chromaticity, gamma, and flicker, meeting the precise measurement and calibration requirements for OLED and HDR displays requiring ultra-low luminance testing
- Specialized under-display camera (UDC) measurement capability, Optimized for displays with under-panel camera integration.
- Streamlined workflow integration, Supporting both screen module calibration and final product display QA processes.
- Full software support: PC software in addition to Software Development Kit (SDK)
Display Color Analyzer Applications
Case 1: Foldable Phone Simultaneous Data Collection
"Real-time dual measurement for foldable displays"
The LTDCM-4035 enables simultaneous measurement of both folded screen sections, capturing color and brightness data from multiple areas at once. This eliminates the need for sequential testing, dramatically reducing inspection time for complex foldable device geometries.
Key Benefits:
- Instant dual-zone data capture
- Synchronized measurement for folded configurations
- Reduced testing complexity for multi-panel displays

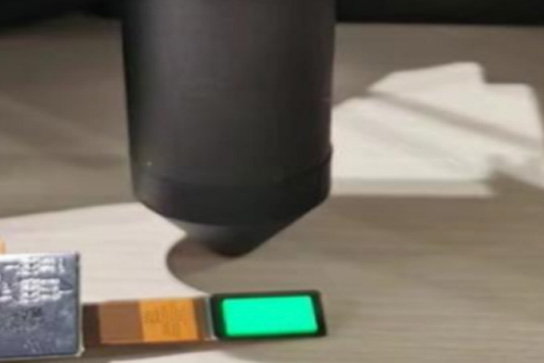

Case 2: Compact Design for High-Volume Online Inspection
"Automated production line integration for mass manufacturing"

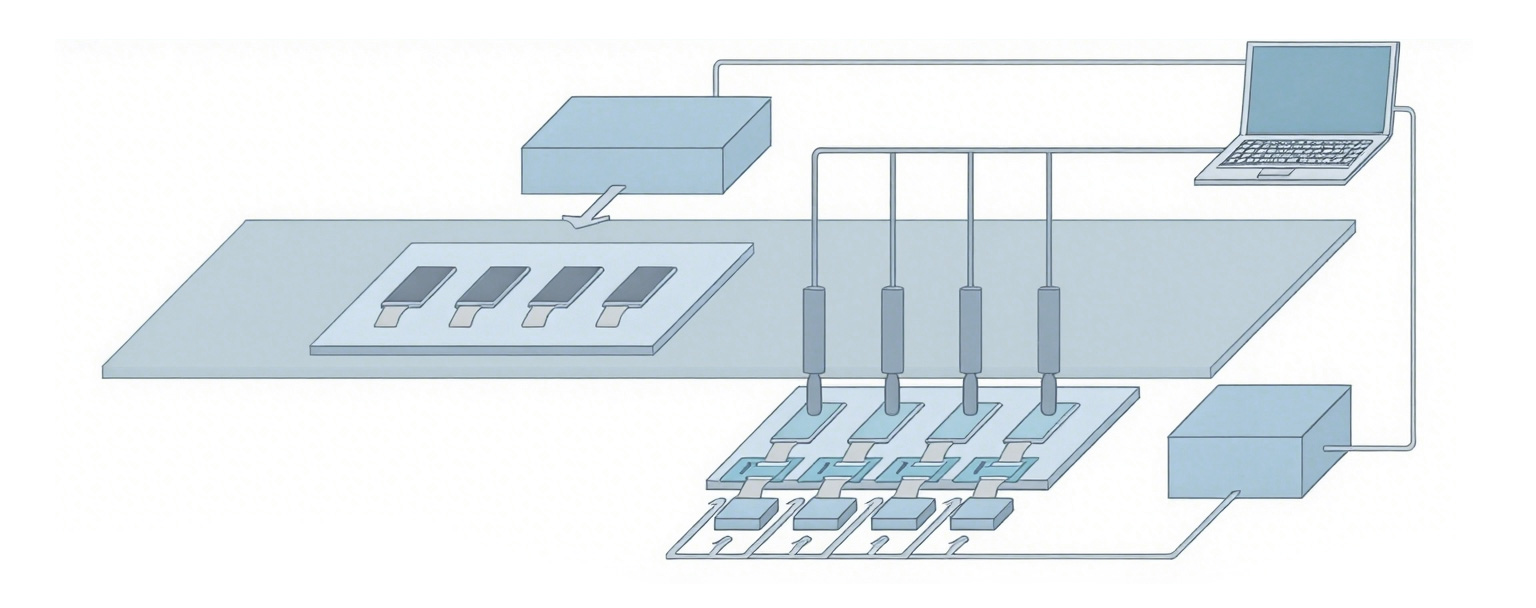

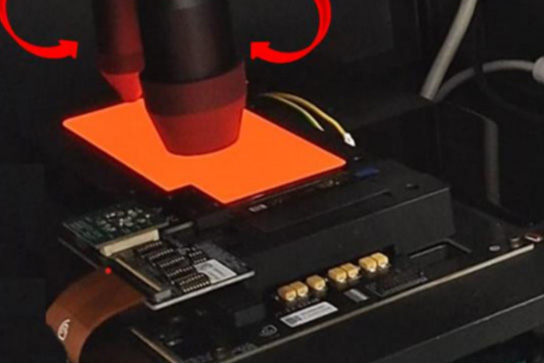

The system's compact footprint allows seamless integration into automated production lines. With mobile controller connectivity via USB or RS-232C, it enables continuous quality inspection of display modules as they move through the manufacturing process.
Production Line Components:
- Mobile Controller - Automated measurement coordination
- USB/RS-232C Interface - Real-time data communication
- Conveyor Belt Integration - Continuous flow inspection
- Module Testing Stations - Automated positioning and measurement
- Circuit Board & PG Controller - Production line synchronization
 |
 |
 |
 |
 |
 |
FAQ of Display Color Analyzer
1. How does the dual-optical-path design of the Display Color Analyzer work?
The LTDCM-4035 contains two independent optical measuring systems that can collect data from two screen areas simultaneously. As a Display Colorimeter, it reduces sequential probe movement and supports synchronized comparison of separate zones on foldable displays, automotive screens and under-panel camera areas.
2. Which parameters can the Display Color Analyzer measure?
The Screen Color Analyzer measures luminance and chromaticity and supports gamma and flicker analysis. Flicker can be evaluated through both the contrast-ratio method and the JEITA method, allowing brightness, color and temporal display performance to be checked with one instrument.
3. Can the Display Color Analyzer measure OLED and HDR screens at very low luminance?
Yes. As a Display Measurement System, it covers an overall luminance range of 0.0001–6000 cd/m², an auto-mode luminance range of 0.001–6000 cd/m² and a chromaticity range starting from 0.005 cd/m². This range supports dark-state and high-brightness testing for OLED and HDR displays.
4. How fast is the Display Color Analyzer at different brightness levels?
The Color Measurement Analyzer performs Lv and xy measurements at 1 measurement per second below 0.5 cd/m², 6 per second from 0.5–15 cd/m², 15 per second from 15–140 cd/m² and 20 per second above 140 cd/m². Contrast-method flicker measurement operates at up to 16 measurements per second.
5. What working distance and measuring apertures does the Display Color Analyzer require?
The specified working distance is 30 ± 1.5 mm. The two optical paths use 3 mm and 5 mm measuring apertures, so the fixture must maintain the correct distance and align both measuring areas completely within the active screen regions.
6. How can the Display Color Analyzer be integrated into an automated production line?
The instrument connects directly to a computer through USB 3.0 and also supports RS-232C communication. PC software and an SDK are available for system integration. Automated installations still require suitable positioning fixtures, a controller, display pattern generation and production-line synchronization.
