Hirose Connector 6 Pin Application
The Hirose Connector 6 Pin can be used in demanding applications.
They are ensure network throughput in harsh industrial environments.
• This is an extension cable for industrial camera power supply I/O trigger and data transmit.

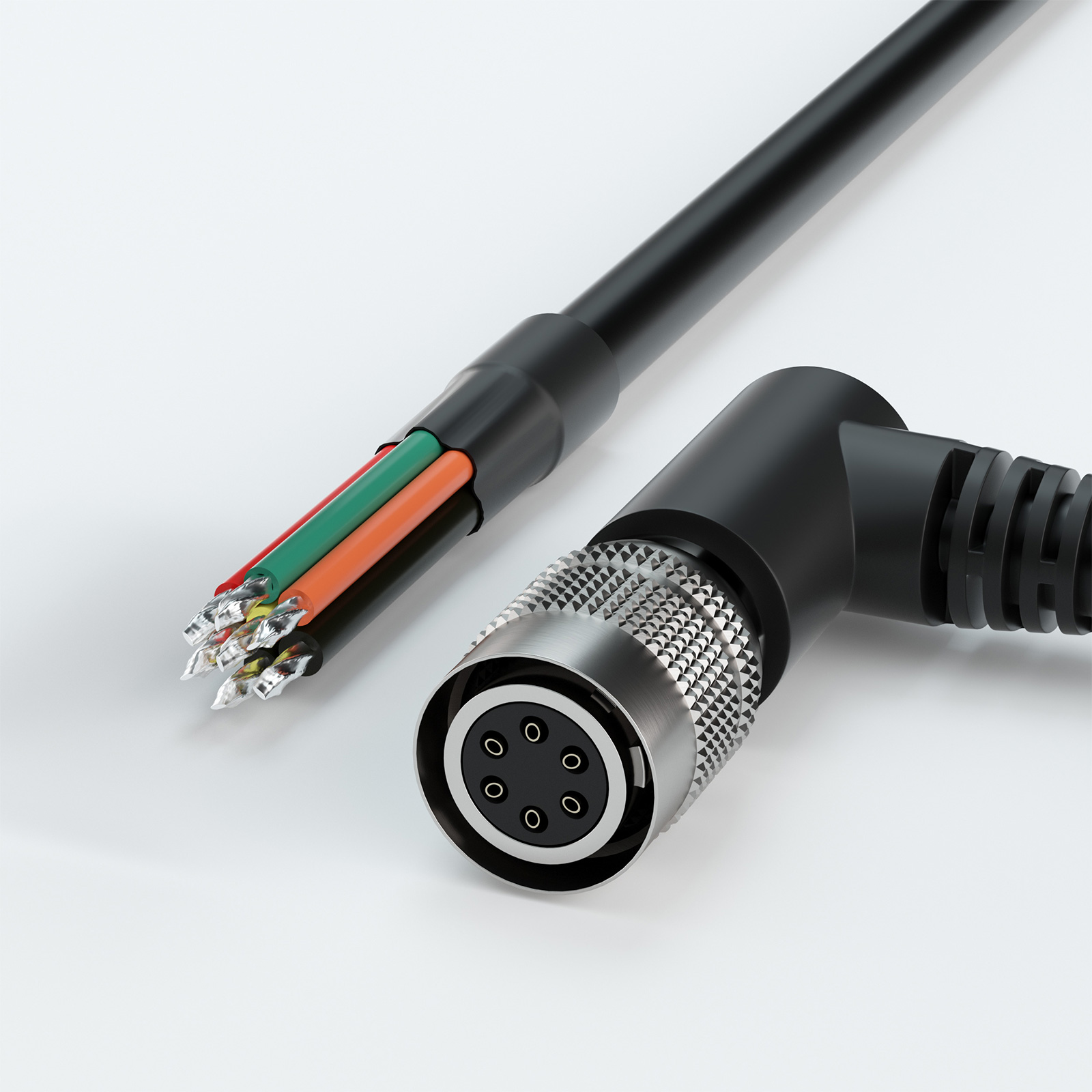

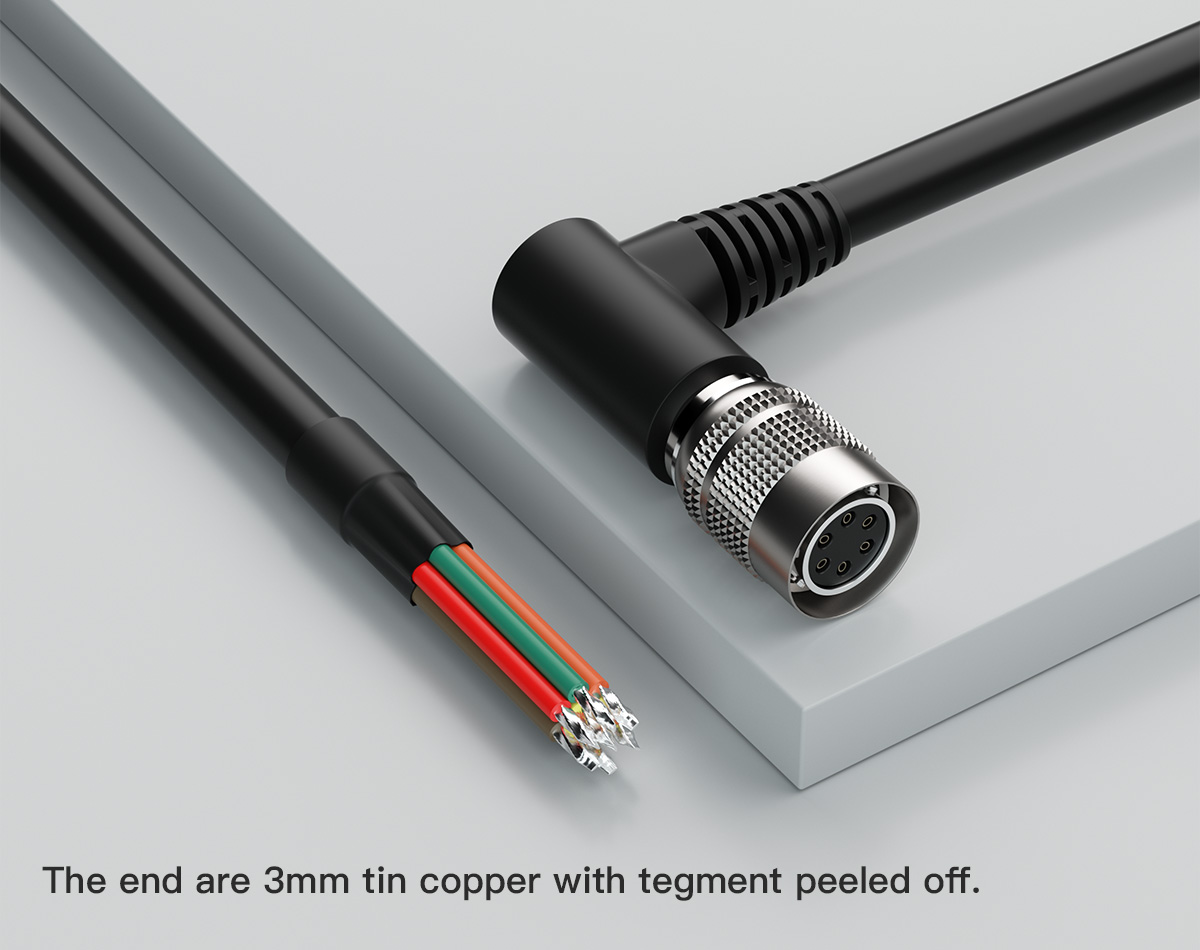

• Hirose 6 pin female 90° right angled-1 connector to open end, make DIY connections according to your needs.

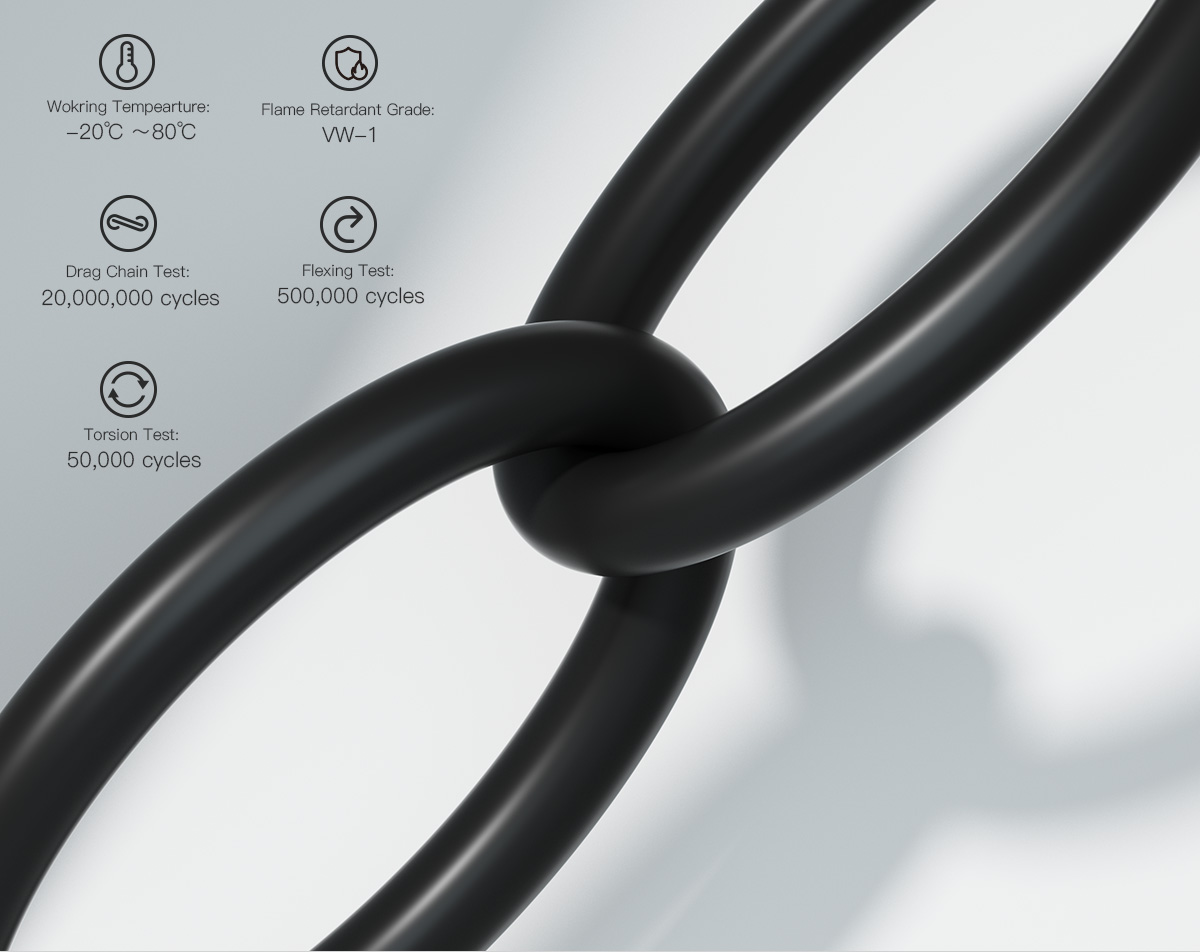

• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.
• High flexible, drag chain.

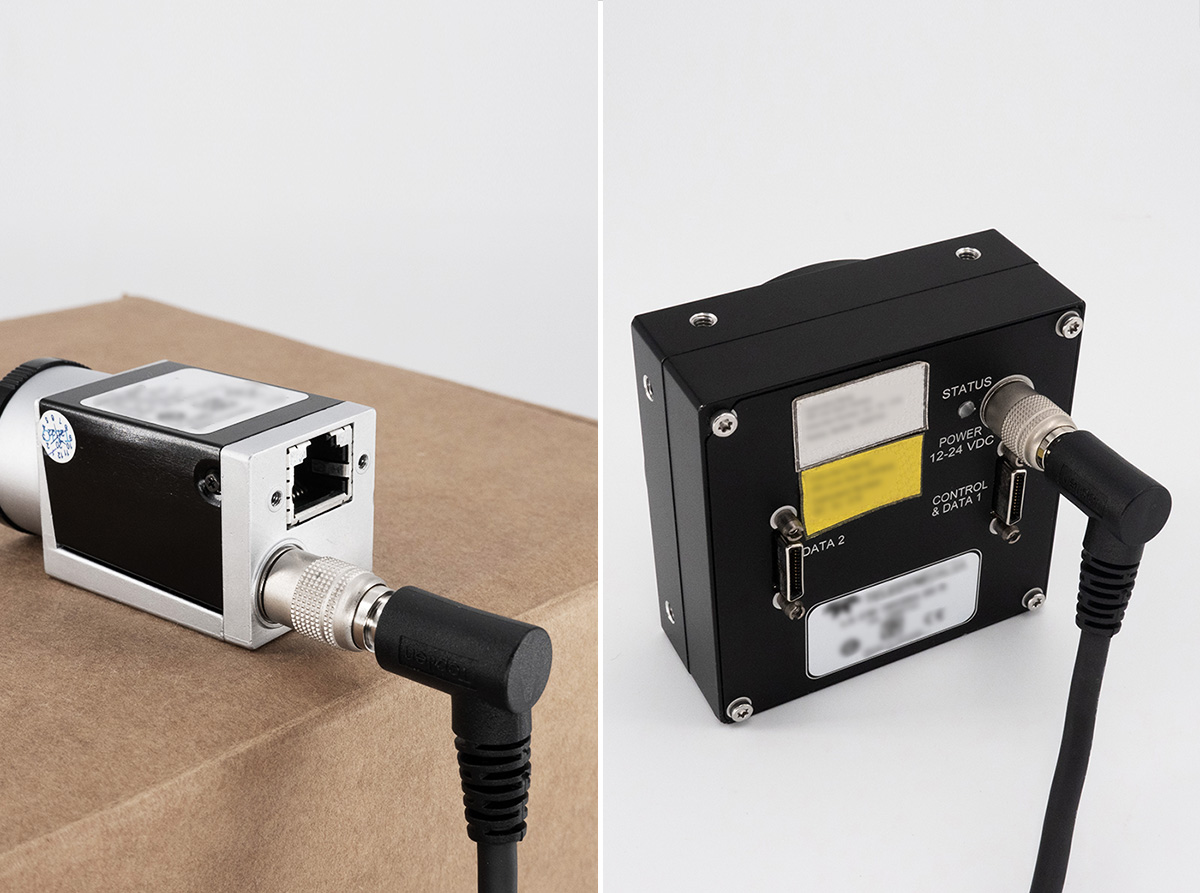

• Basler racer GigE and runner cameras, Sony industrial CCD camera, Allied Vision cameras and more industrial Machine Vision cameras with Hirose 6 pin Male Connector.
Application: Power drag chains environments
Delivery Time: 4-10 working days
Payment Terms: Online or T/T
Hirose Connector 6 Pin Specification
| 6 Pin Hirose Connector Specification |
 |
| Bill Of Materials | Wiring Diagram | Location of Pins | |||||
| Item | Description | QTY | Specification |  |
PIC | Pin | Clour |
| ① | Wire | 1 | 2X24AWG+4X26AWG RoHS LF BLACK |
 |
1 |
Red |
|
| ② | Connector | 1 | HR-10A-7P-6S | 2 |
Green |
||
| ③ | Shrinkable Tube | 1 | ø6.0 | ||||
| ④ | Shrinkable Tube | 1 | ø2.0 | 3 | Orange | ||
| ⑤ | Label | 1 | Wiring Diagram | 4 | Brown | ||
| ⑥ | Inner Mold | 1 | OFM019 | 5 | Yellow | ||
| ⑦ | Outer Mold | 1 | OFM020 | 6 | Black | ||
| ⑧ | Label | 1 | BLACK DWHC-10035 86A | ||||

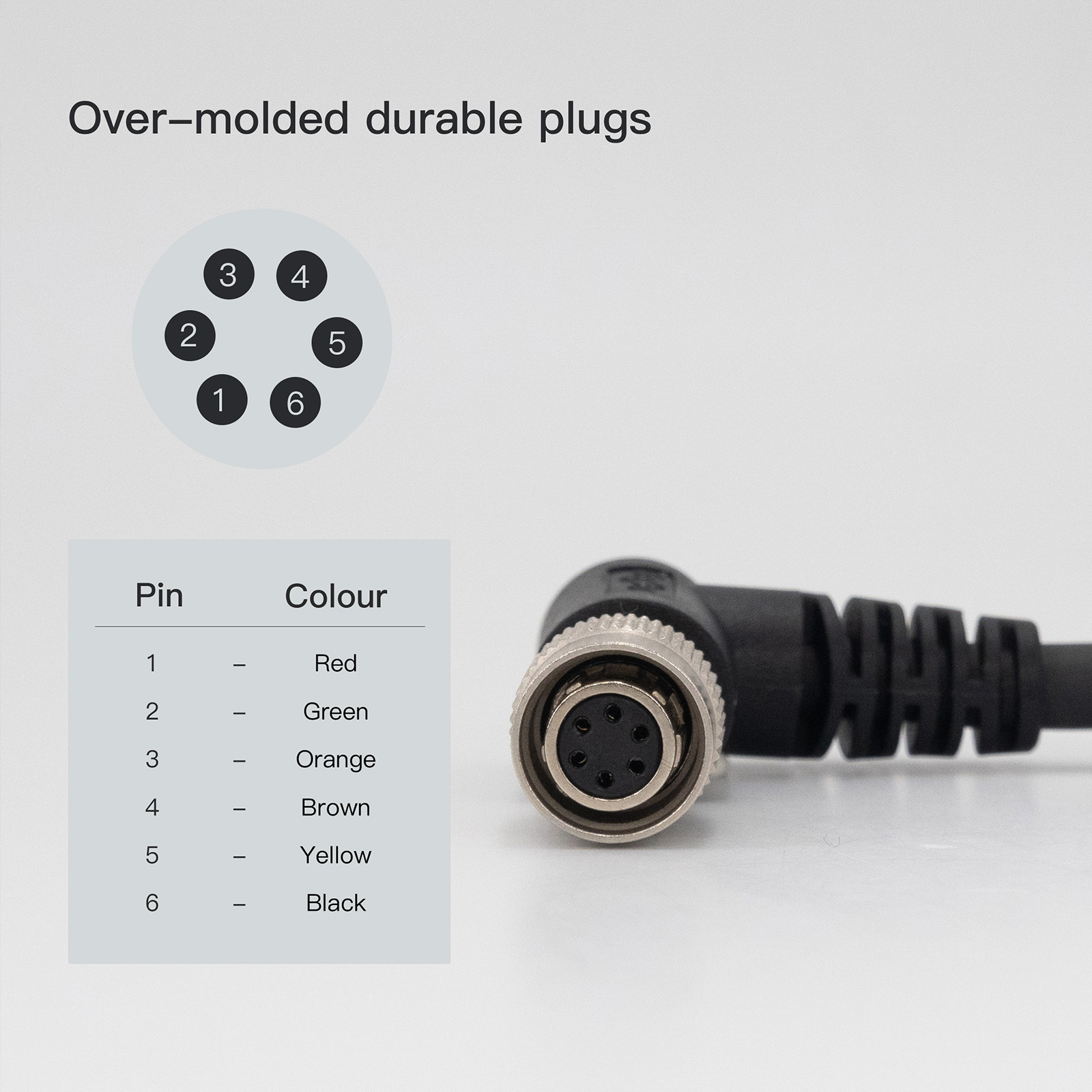

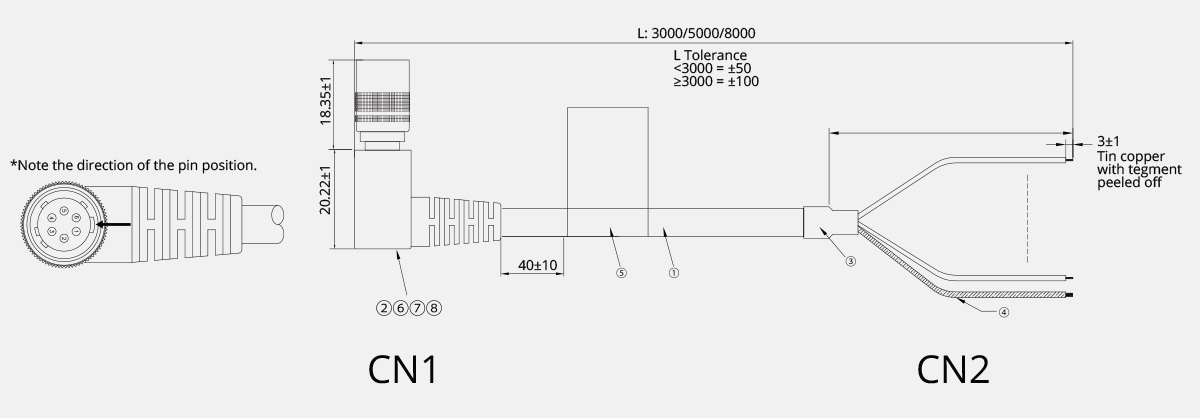

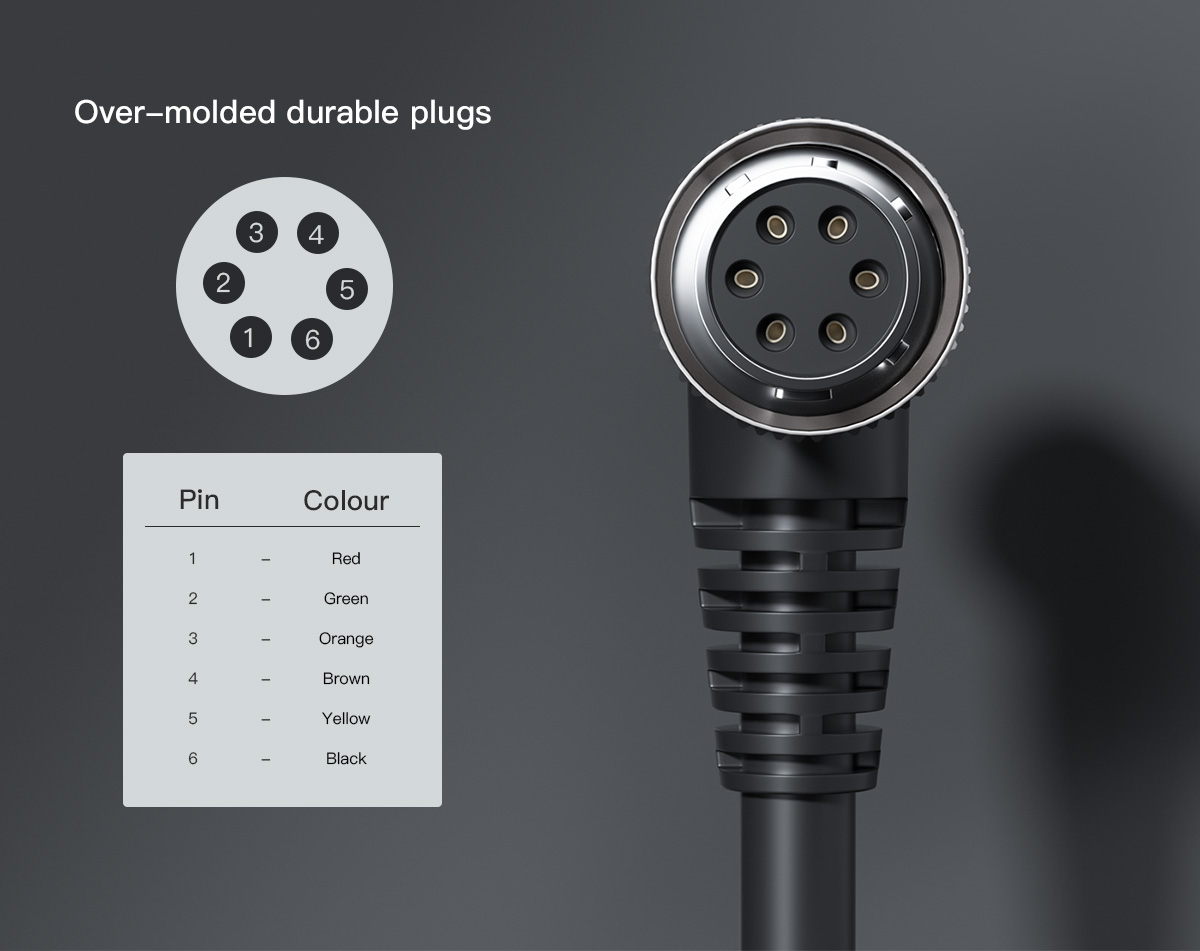

Wiring Diagram & Pinout of Hirose Connector 6 Pin
| Drawing of 6 pin hirose connector pinout | Pair Twist Insulator Colour | |
 |
Pair Twist | Insulator Colour |
| 1 | Red | |
| 2 | Green | |
| 3 | Orange | |
| 4 | Brown | |
| 5 | Yellow | |
| 6 | Black | |

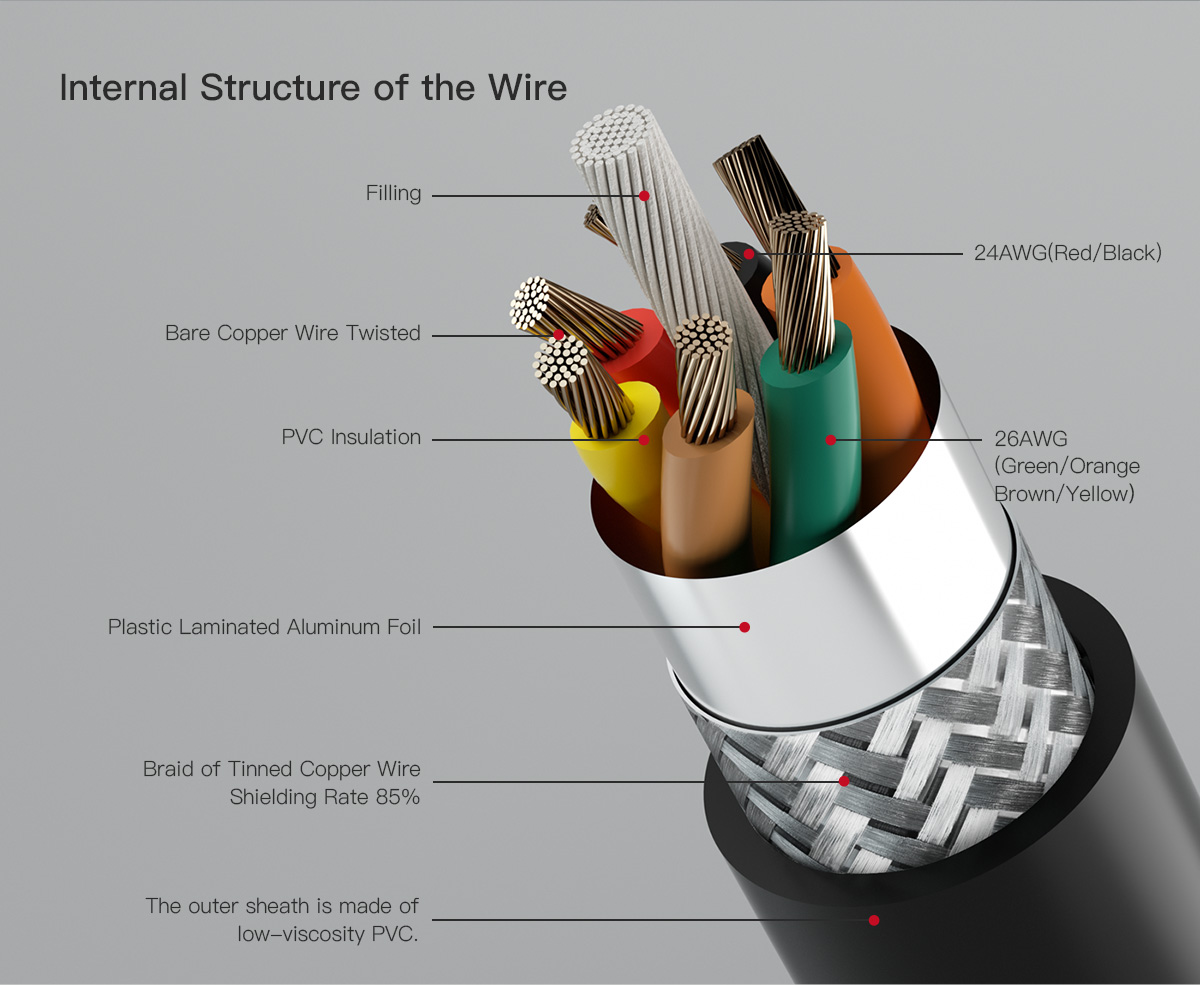

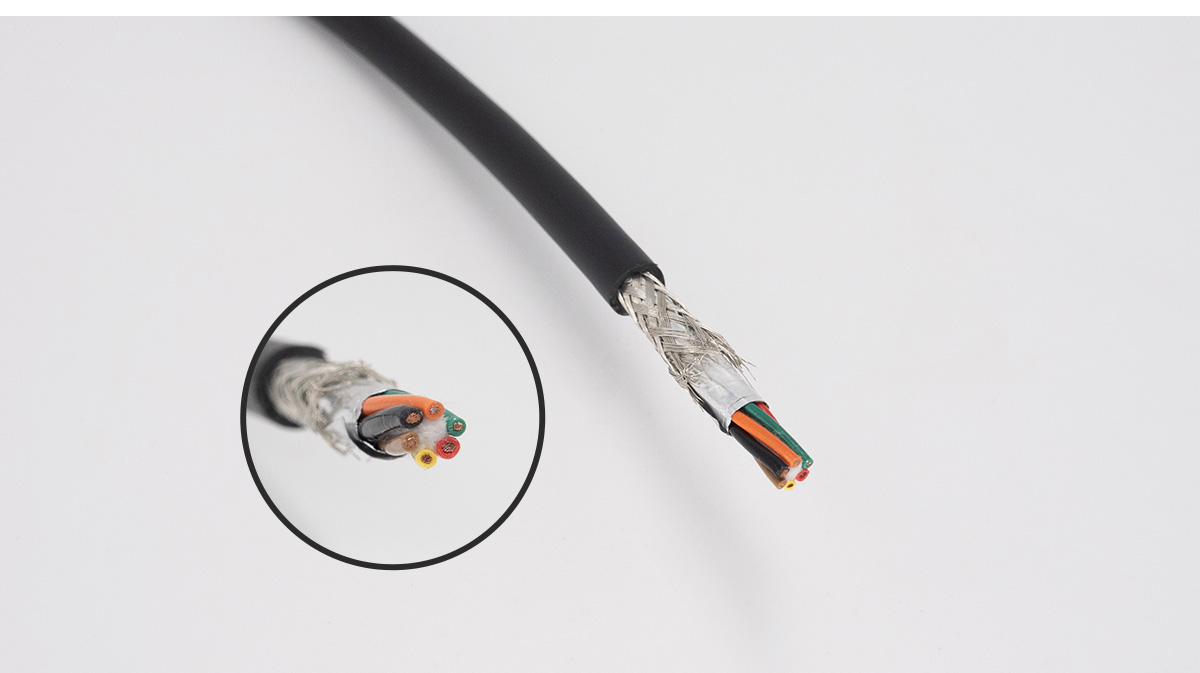

Cross-Section & Pair Twist Configuration of Hirose Connector 6 Pin
| Model NO. | TPL-ANA-2-X-XM-1 CABLE | Printing | 2X24AWG+4X26AWG | |||
| Style | 2X24AWG+4X26AWG RoHS LF BLACK | Size | 2X24AWG+4X26AWG | |||
| Approbation | UL20276 | Flame Retardant Grade | VW-1 | |||

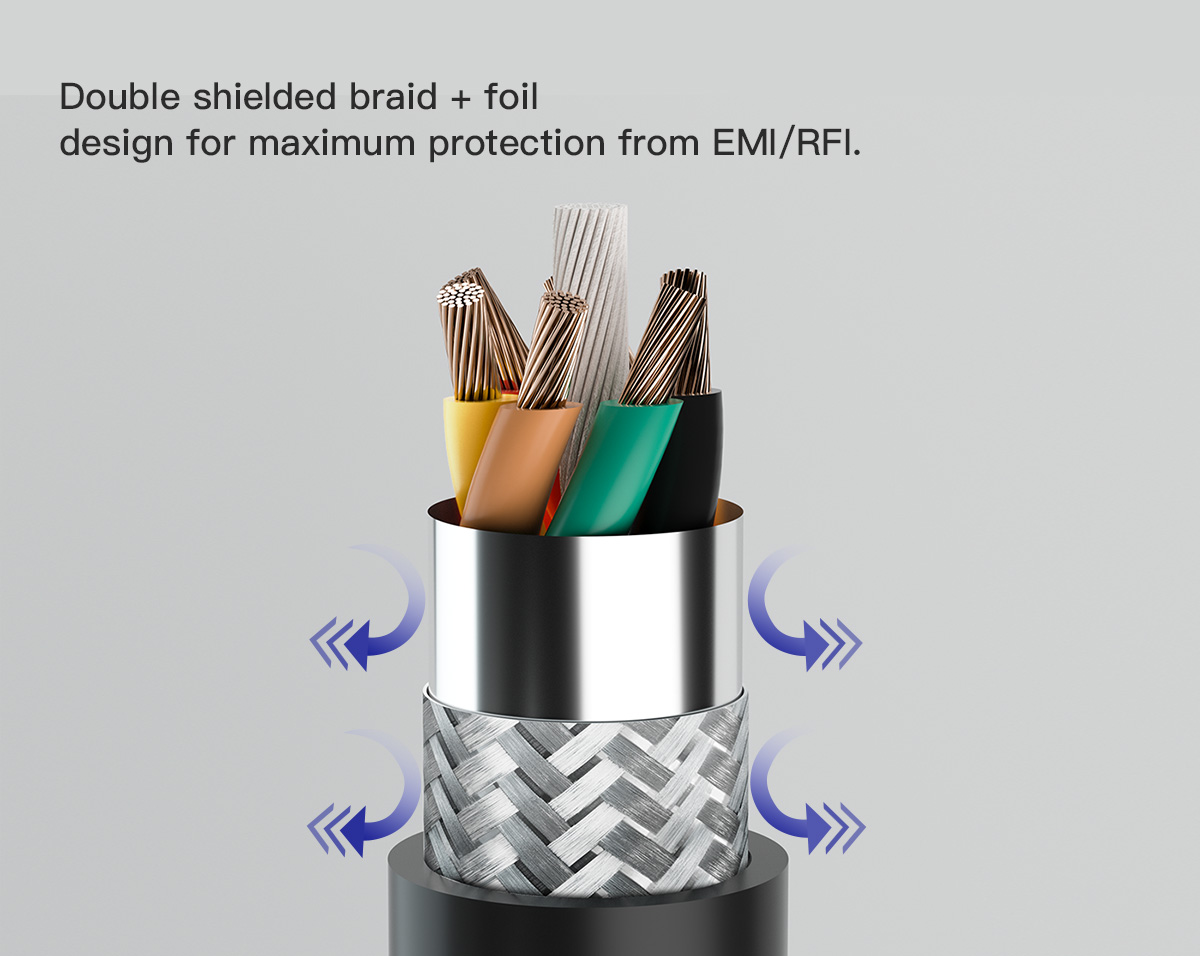

| Conductor of Hirose 6 Pin Female Connector | Size | 24AWG | 26AWG | Shielded | Al/Pet | 0.05*10mm |
| Cond. Material | Bare Copper BC | Bare Copper BC | Braid | 16/7/0.1TC | ||
| Construction | 41/0.08 BC | 30/0.08 BC | ACovered | 85% Min | ||
| Diameter | 0.59mm | 0.51mm | Jacketed | Material | PVC | |
| Tolern | ±0.003mm | ±0.003mm | Diameter | ø5.0±0.3mm | ||
| Insulation of Hirose 6 Pin Connector | Material | PVC | PVC | Colour | Black (Similar to RAL 9005) | |
| Diameter | 1.09±0.05mm | 0.95±0.05mm | Wokring Tempearture | Fixed Installation | -20°C ~ 80°C | |
| Colour | Red | Yellow, Brown, | Moved Installation | -10°C ~ 50°C | ||
| Black | Orange,Green | Minimal Bending Radius | Minimal Bending Radius | 4 X Cable-ø | ||
| Electrical Properties |
Conductor Resistance | ≤87.6 Ω/km 20°C | ≤124 Ω/km 20°C | Moved Installation | 8 X Cable-ø | |
| Test Voltage | 500V/1min | 500V/1min | Printing | Movecable FT1 80°C 30V VW-1 LF RoHS REACH conform | ||
| Sparking Voltage | 1500V | 1500V | ||||
| Quality Certifications |    |
|||||

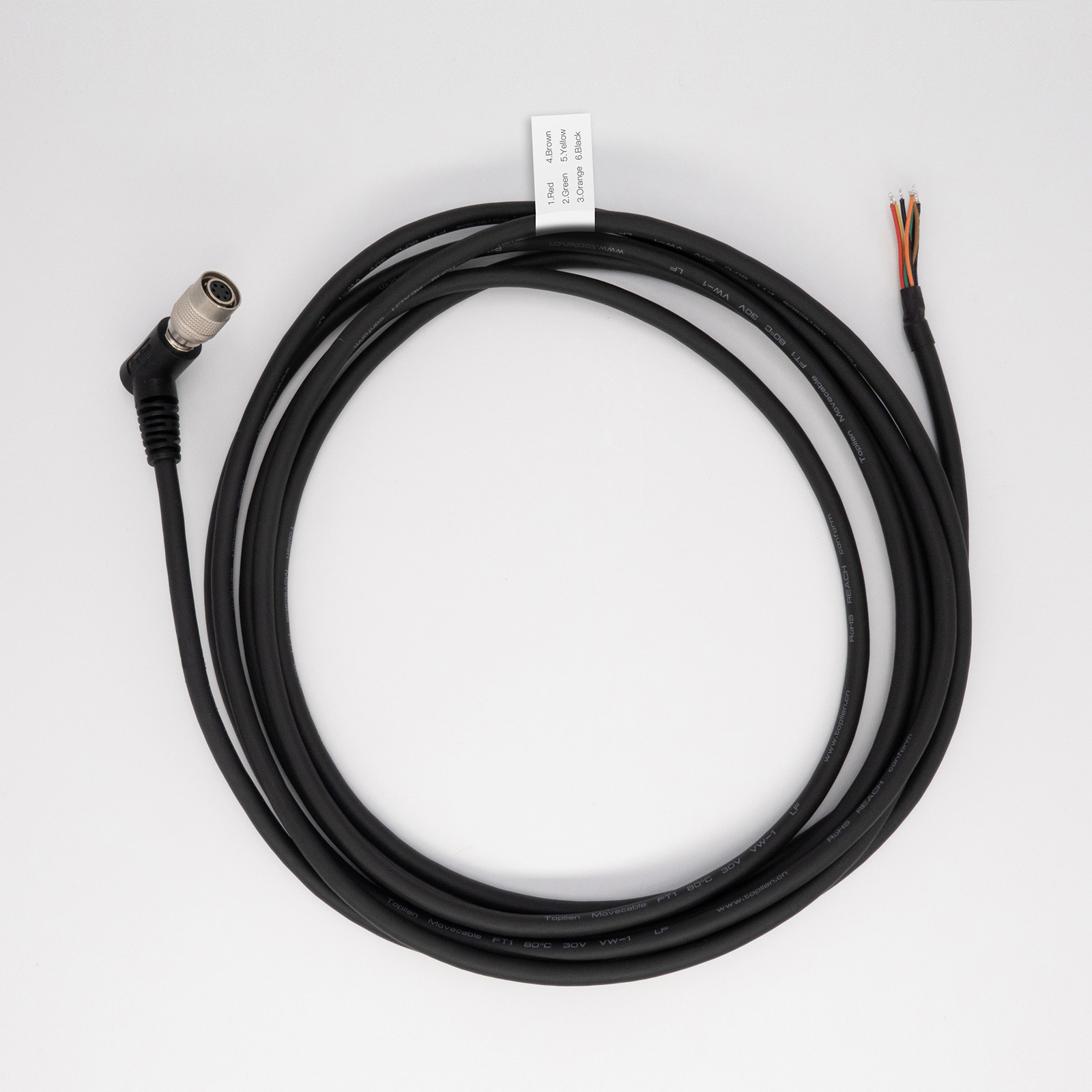

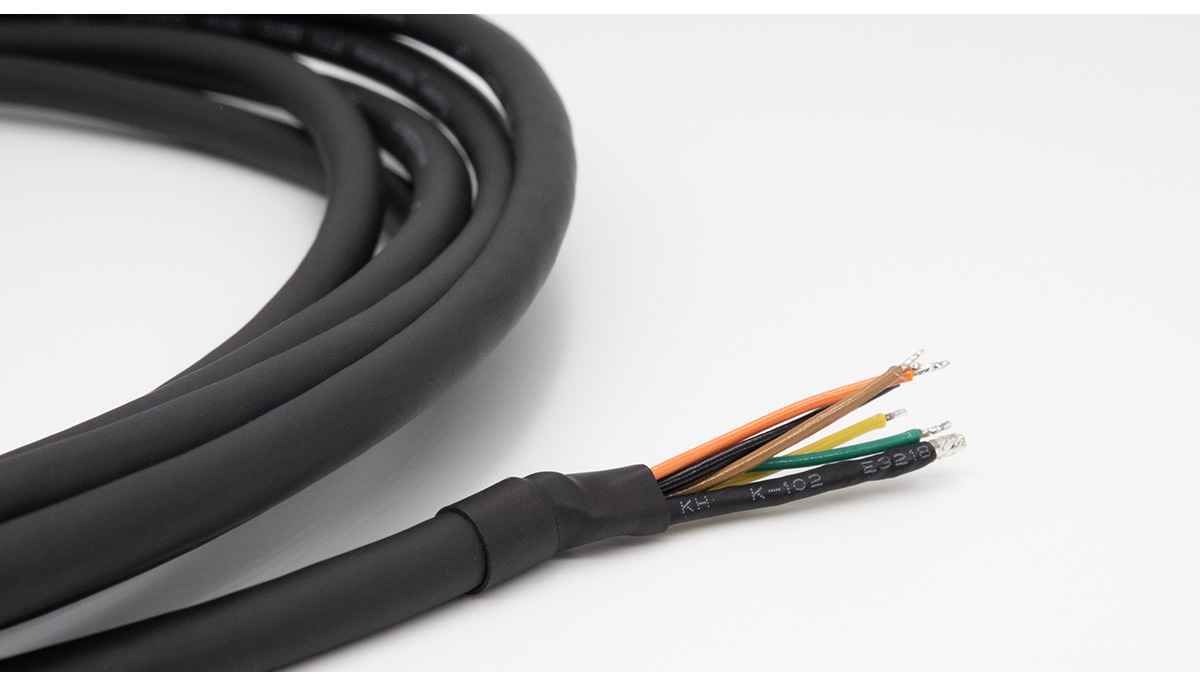

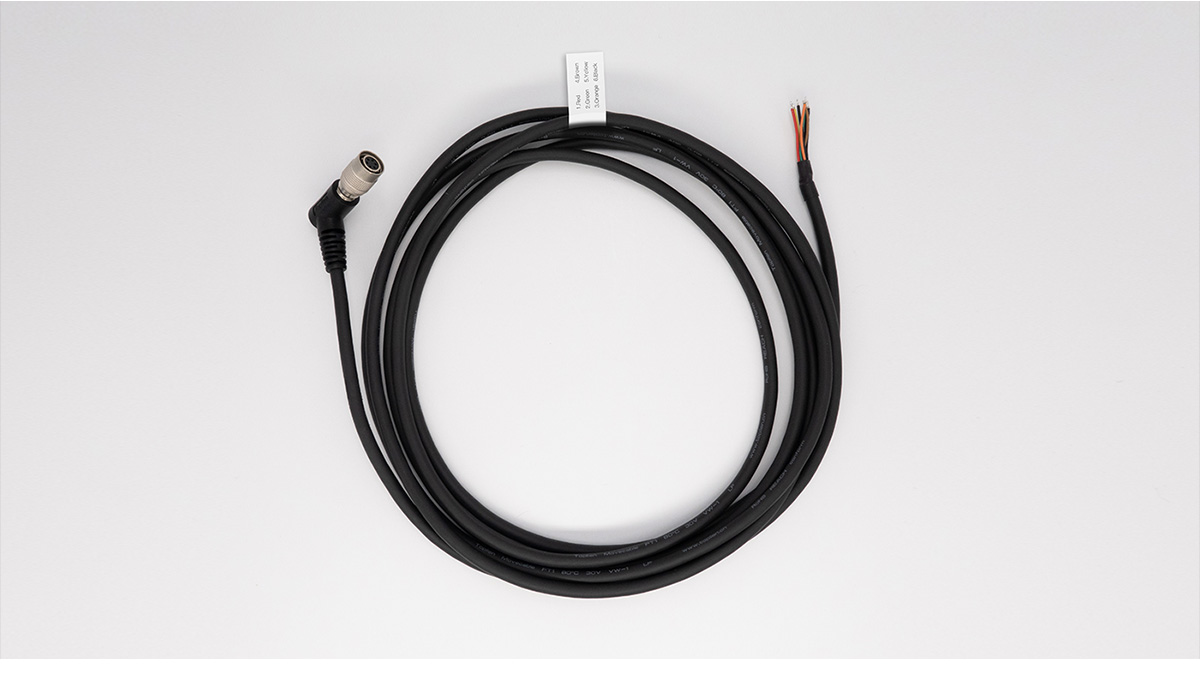

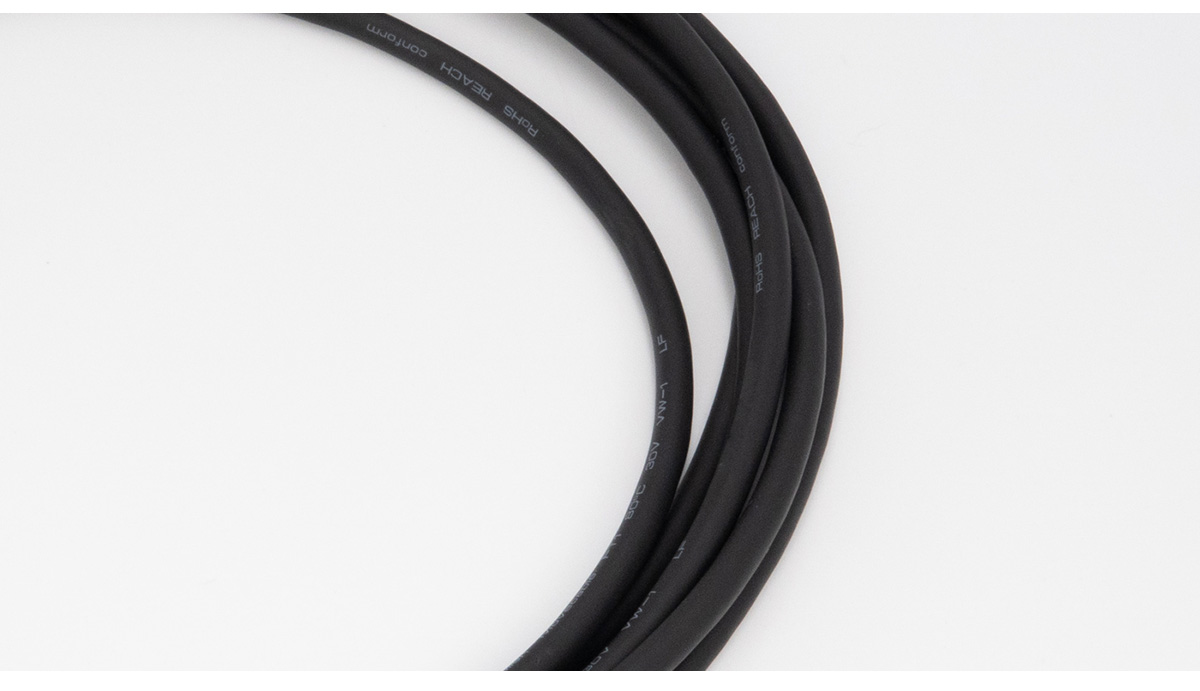

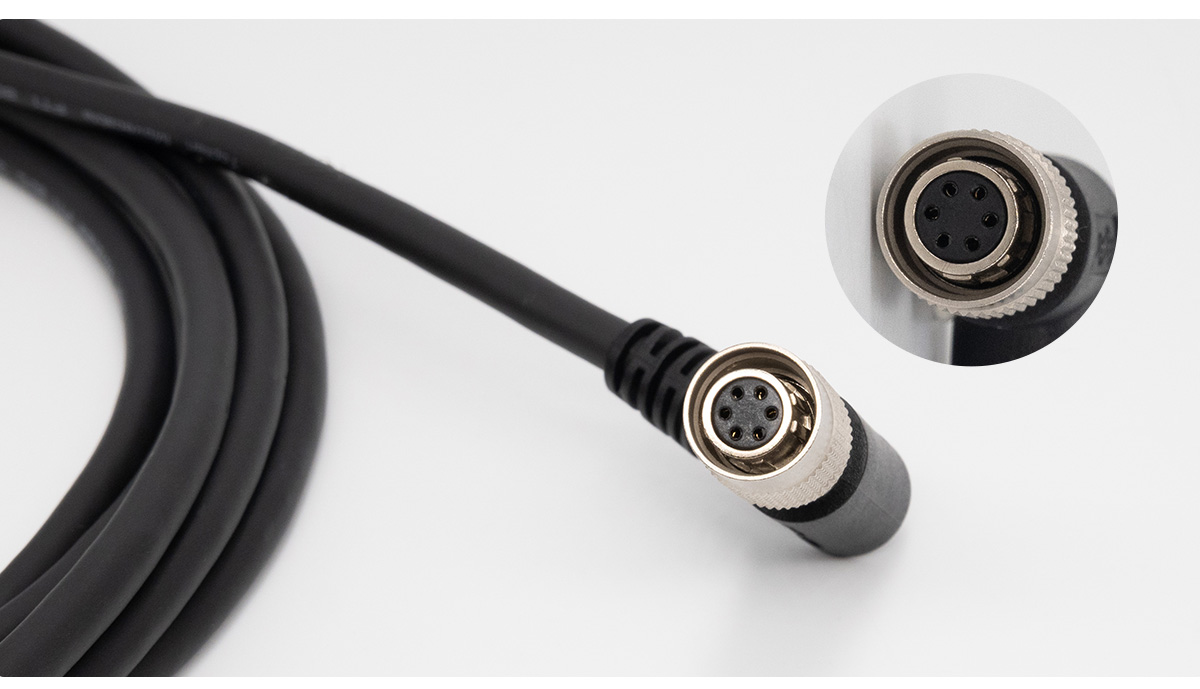

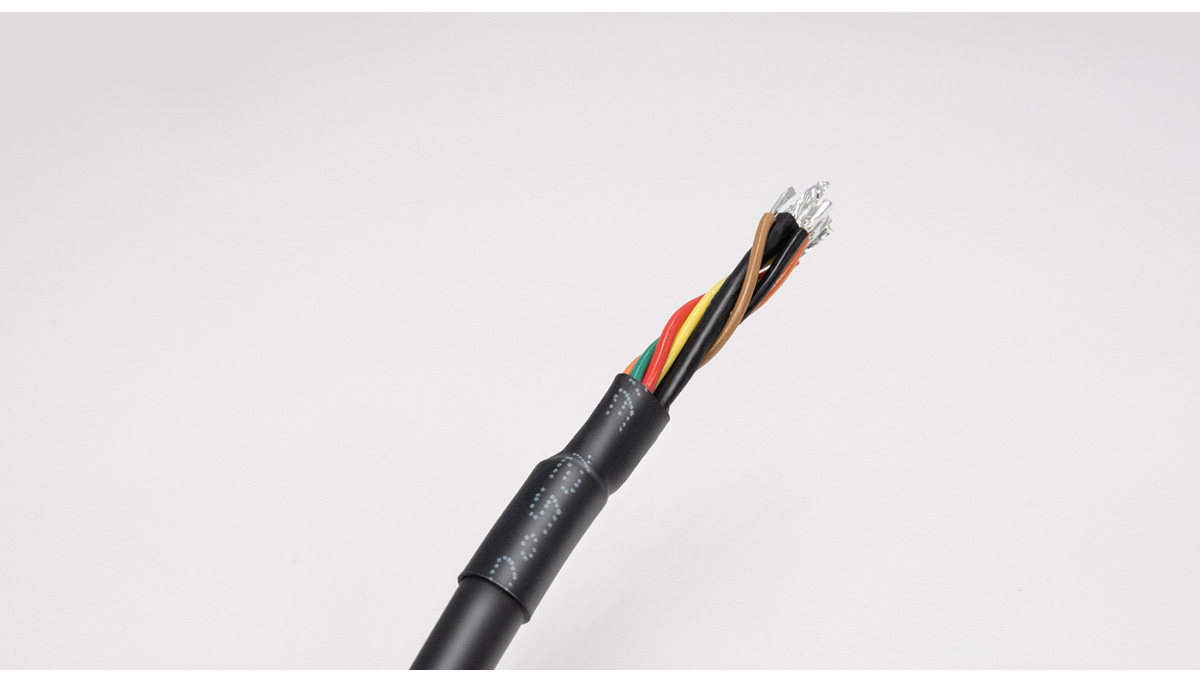

Product Photograph
FAQ of Hirose Connector 6 Pin
1. What Is the Hirose Connector 6 Pin Cable Used For?

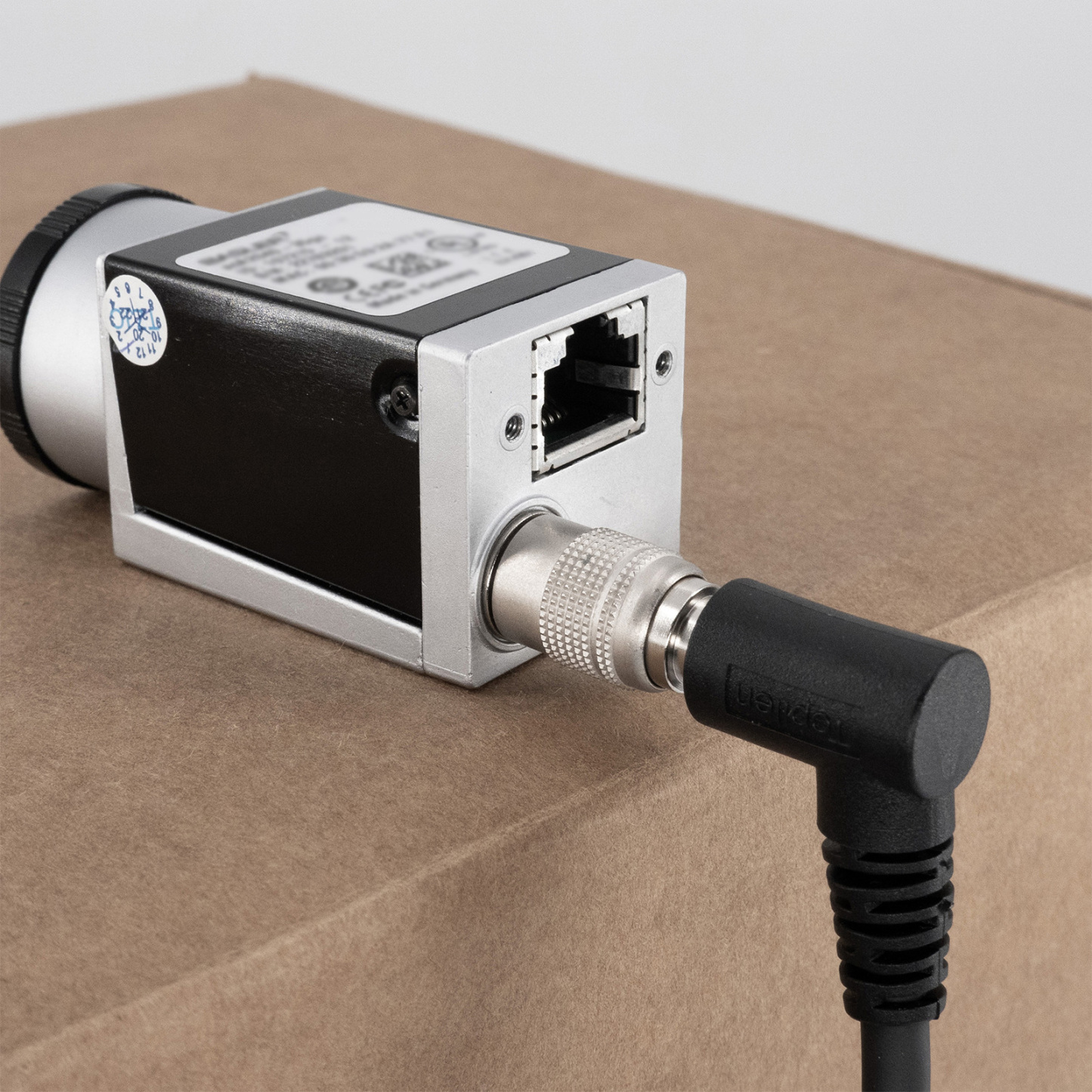

The cable connects an industrial camera’s 6-pin male port to an open-wire interface. It carries camera power and I/O trigger or control signals in machine vision systems, automated inspection equipment and production lines.
2. Which Industrial Cameras Are Compatible with the Hirose Connector 6 Pin Cable?
The cable is compatible with selected Basler racer GigE and runner cameras, Sony industrial CCD cameras, Allied Vision cameras and other cameras with a matching Hirose 6-pin male connector. Check the camera connector, voltage and pinout before ordering.
3. What Connector and Wire Configuration Does the Hirose Connector 6 Pin Cable Use?

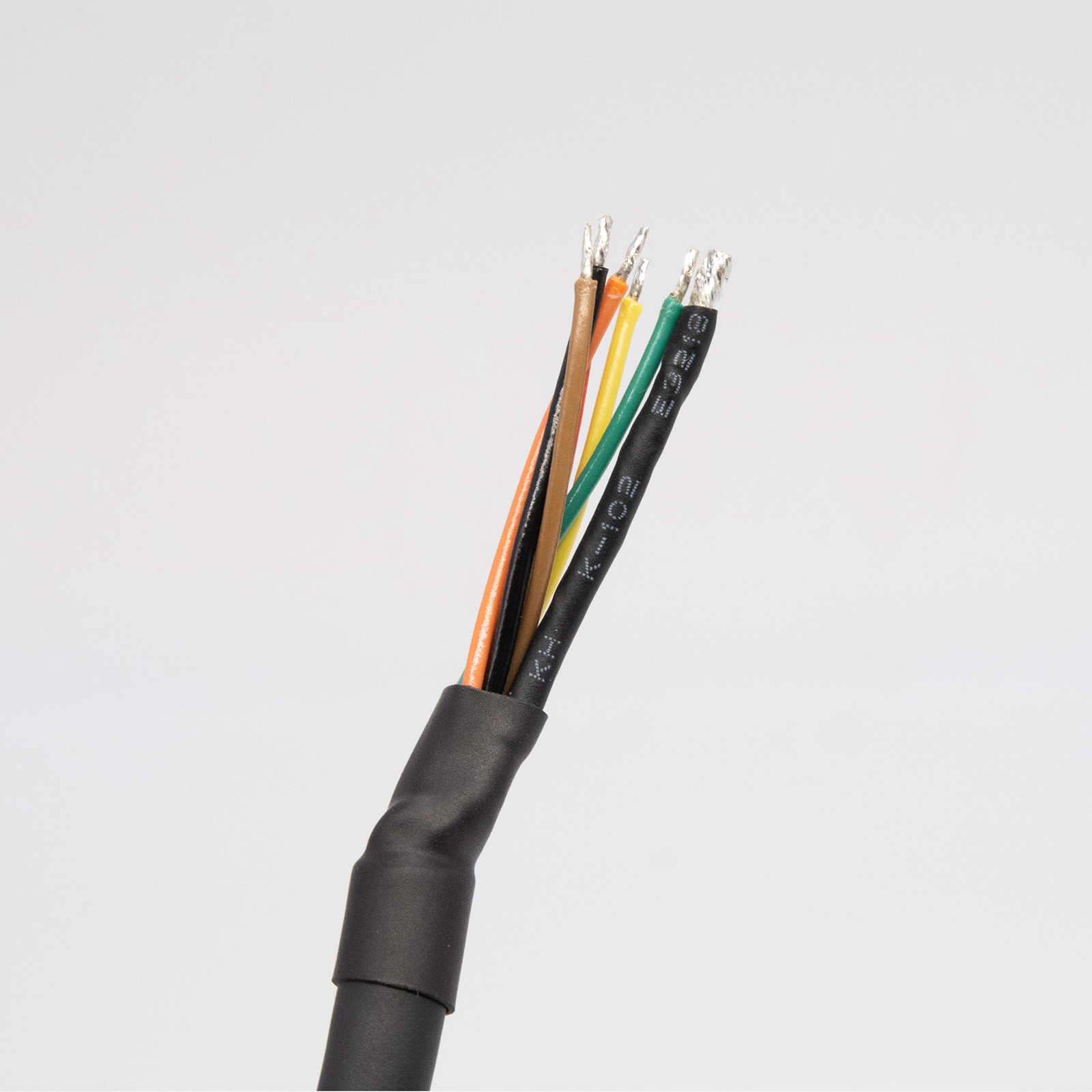

It uses a 90-degree female connector in the HR10A-7P-6S format and an open-wire end. The cable contains two 24 AWG conductors and four 26 AWG conductors, identified by red, green, orange, brown, yellow and black insulation.
4. Can the Hirose Connector 6 Pin Cable Connect to a PLC or Trigger Controller?
Yes. The open end can be wired to a PLC, trigger controller, power supply or custom I/O terminal. Wiring must follow the camera manufacturer’s pinout because conductor colors do not represent universal signal functions.

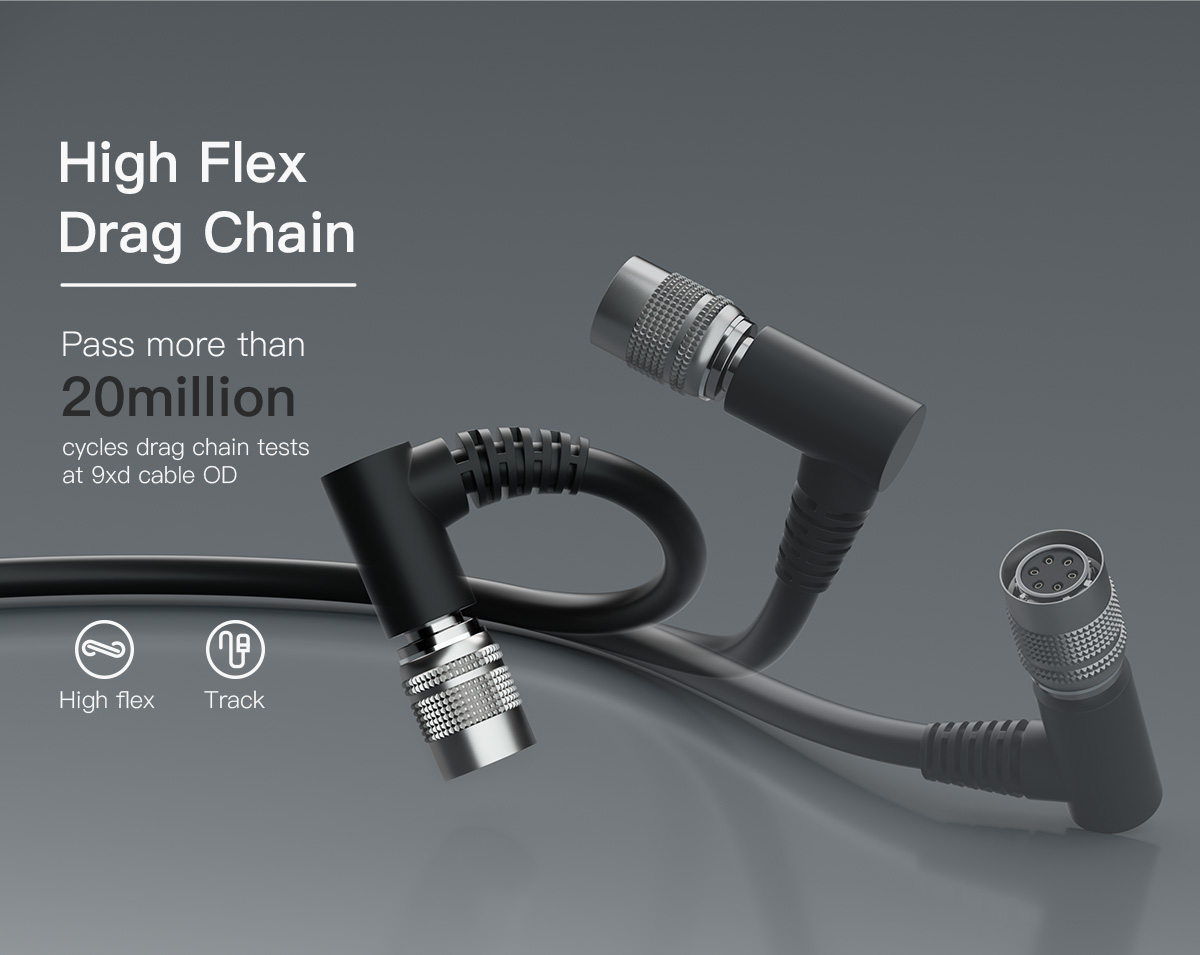

5. Is the Hirose Connector 6 Pin Cable Suitable for Drag-Chain Applications?
Yes. This high-flex cable is designed for moving drag-chain applications and resists abrasion, torsion, heat and flame. The minimum bending radius is four times the cable diameter for fixed installation and eight times the cable diameter for moving installation.
6. What Lengths and Working Temperatures Are Available for the Hirose Connector 6 Pin Cable?
The standard length options are 5 m and 8 m. The working temperature range is -20°C to 80°C for fixed installation and -10°C to 50°C for moving installation.
