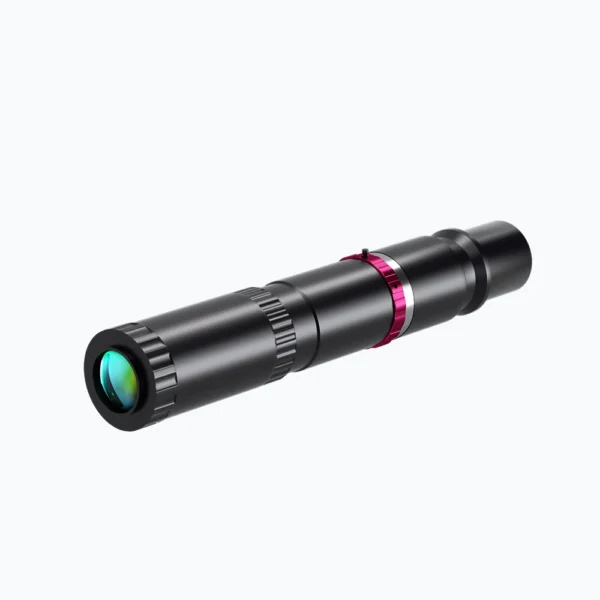

5.0X, 35mm Full Frame M58-Mount Telecentric Lenses Iris Adjustable, BFL Adjustable | DTCA35F COOLENS®

$0.00 USD
Shipping calculated at checkout.
Quantity
5.0X, 35mm Full Frame M58-Mount Telecentric Lenses Iris Adjustable, BFL Adjustable | DTCA35F COOLENS®-OKLAB

Description

Model NO. DTCA35F-8.8-G-M58-AL Magnification(x) 5.0
Object Field of View (Φmm) 8.8  Working Distance (mm) 60
Max Sensor Size (Φmm) 44(35mm Full) Best Aperture (F/#) 32
Telecentricity typical (max) (deg) 0.01 Distortion typical (max) (%) 0.02
MTF30 (lp/mm) 74-31 Depth of Field (mm) 0.04-0.1
Length of I/O (mm) 459 Mount M58
Length (mm) 387 Weight (kg) 1.76
Coaxial Illumination Port Option NO Iris Adjustable YES
Back Focal Length Adjustable YES
Field of View (mm × mm) CMV50000 (36.43x27.62) 7.3x5.5
KAI43142 (36.18x24.12) 7.2x4.8

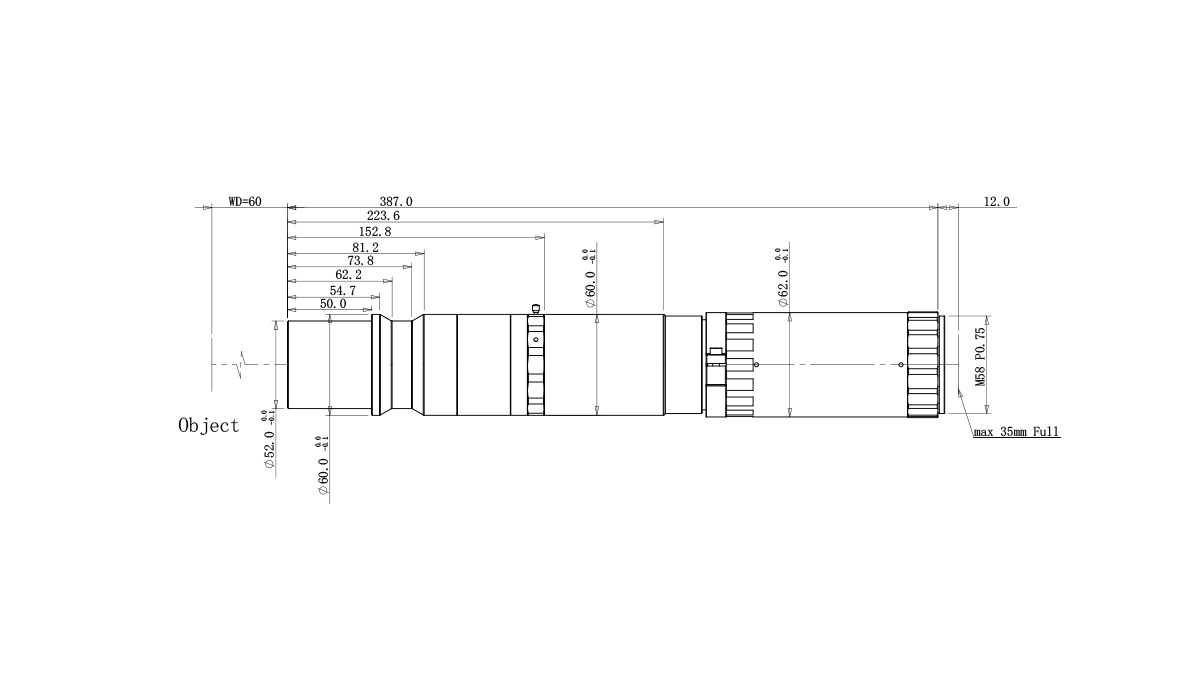

Dimensions

Important Note

Important Shipping & Customs Information

Please note: Your order total includes product cost and shipping fees only. Import duties and customs fees are not included and will be collected separately by your local customs authority upon delivery.

Customs & Duties
  • Import duties vary by destination country and are determined by your local customs office
  • You will be contacted directly by customs or the delivery carrier to arrange payment
  • Oklab cannot pre-collect customs fees as rates differ across international destinations

Additional Documentation
If your delivery location requires special documentation (such as tax ID numbers or import licenses), our team will contact you after order placement to obtain the necessary information.

Questions?
For shipping inquiries, please contact us at sales@oklab.com

By placing an order, you acknowledge responsibility for any applicable import duties, taxes, and customs fees in your country.
  • Description

  • Important Note

Model NO. DTCA35F-8.8-G-M58-AL Magnification(x) 5.0
Object Field of View (Φmm) 8.8  Working Distance (mm) 60
Max Sensor Size (Φmm) 44(35mm Full) Best Aperture (F/#) 32
Telecentricity typical (max) (deg) 0.01 Distortion typical (max) (%) 0.02
MTF30 (lp/mm) 74-31 Depth of Field (mm) 0.04-0.1
Length of I/O (mm) 459 Mount M58
Length (mm) 387 Weight (kg) 1.76
Coaxial Illumination Port Option NO Iris Adjustable YES
Back Focal Length Adjustable YES
Field of View (mm × mm) CMV50000 (36.43x27.62) 7.3x5.5
KAI43142 (36.18x24.12) 7.2x4.8

Dimensions
