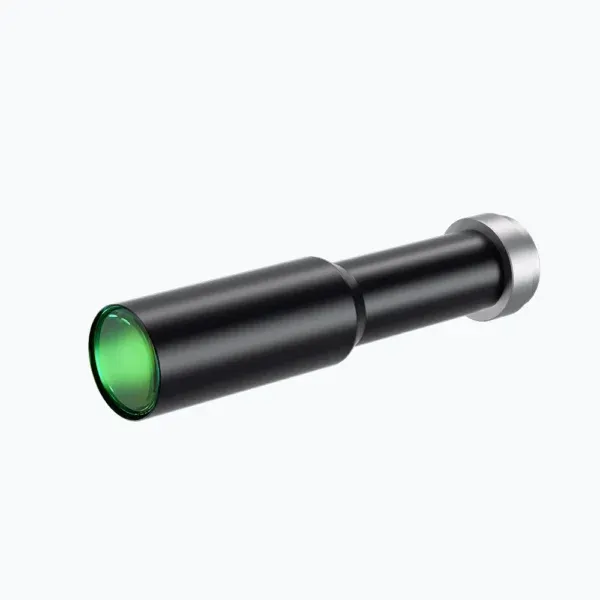

Model NO. | WWH40-63ATV3 | Magnification(x) | 4.0 | ||||
Working Distance(mm) | 63±1 | Max Sensor Size(φmm) | 11.0(2/3") | ||||
Aperture(F/#) | 15.8 | Telecentricity Typical(max)(deg) | 0.03 | ||||
Distortion Typical(max)(%) | 0.01 | NA | 0.13 | ||||
Resolution(μm) | 2.7 | Depth of Field | 0.1 | ||||

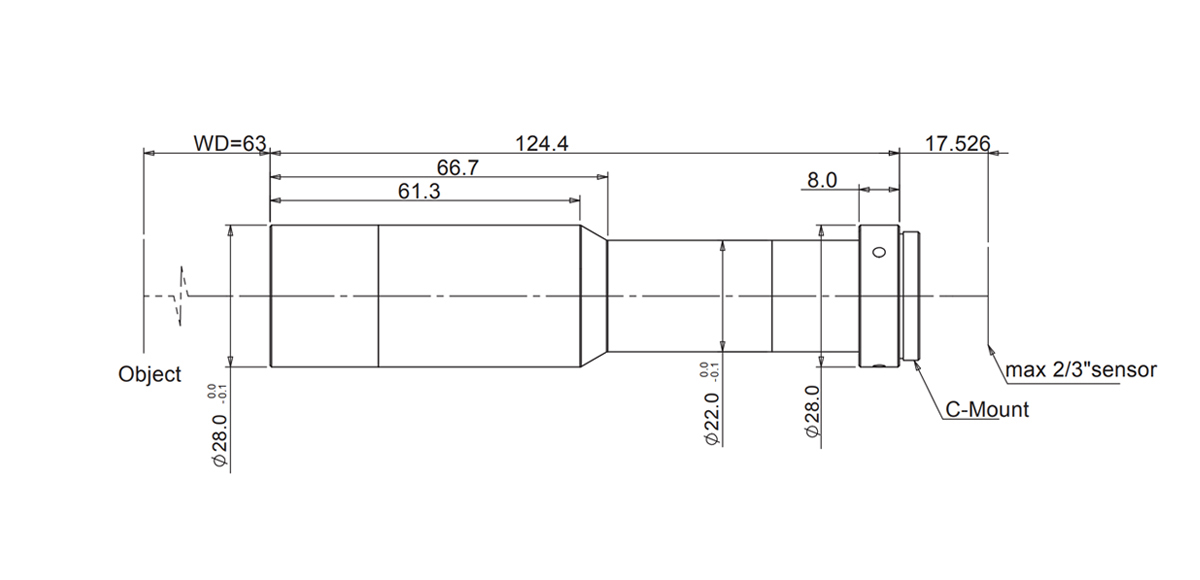

Mount | C | Length (mm) | 124.4 | ||||
Coaxial Illumination Port Option | NO | Iris Adjustable | No | ||||
Field of View (mm x mm) | |||||||
1/2”(6.4x4.8) | 1.6x1.2 | ||||||
1/1.8”(7.13x5.37) | 1.78x1.34 | ||||||
2/3”(8.45x7.1) | 2.2x1.65 |
