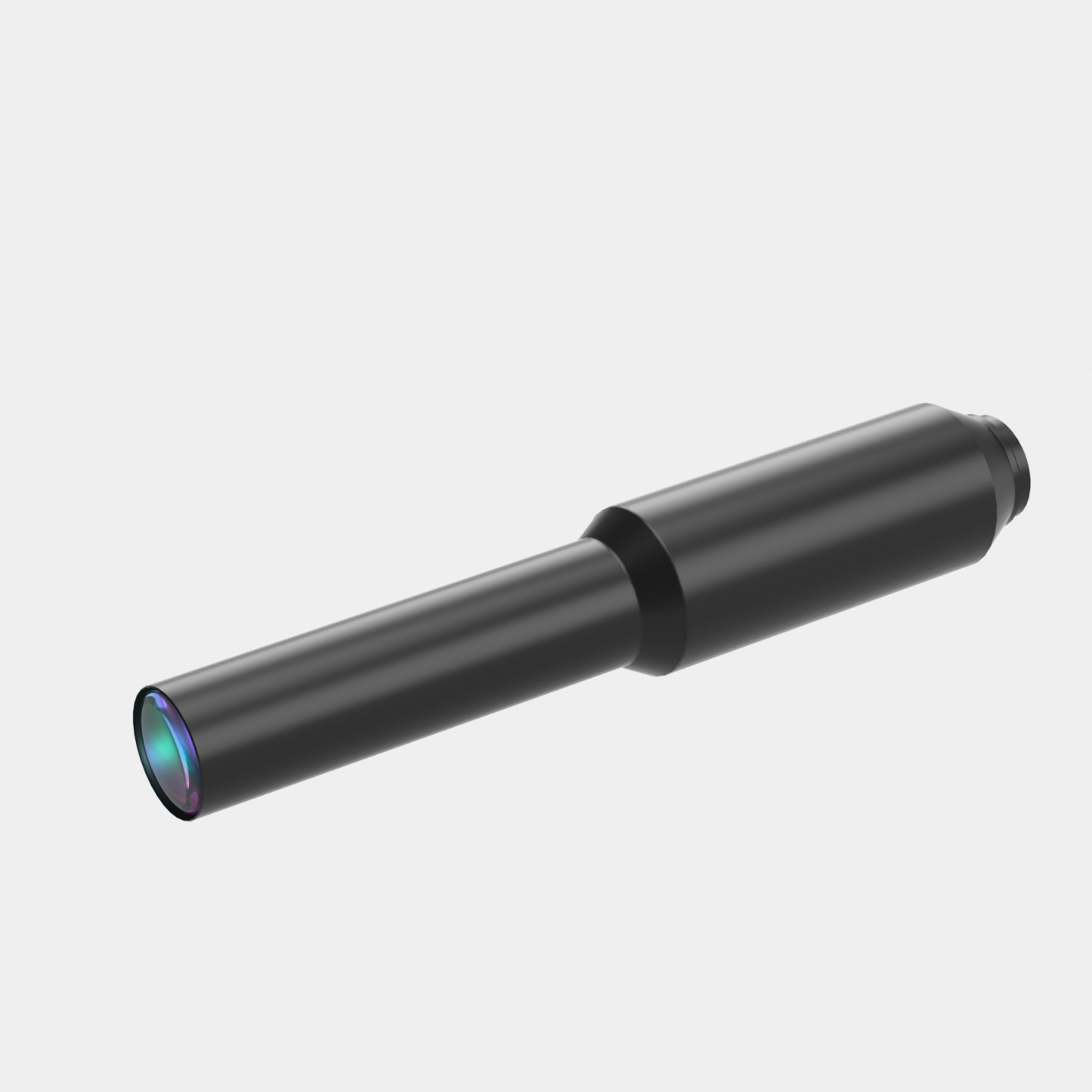

4/3" 0.75X Industrial Lenses | WH075-168A-430D COOLENS®

WH075-168A-430D
$600.00 USD
Shipping calculated at checkout.
Quantity
4/3" 0.75X Industrial Lenses | WH075-168A-430D COOLENS®-OKLAB

Description

Model NO. WH075-168A-430D Image Circle Diameter (Φmm) 22.5(4/3")
Magnification(x) 0.75 Working Distance(mm) 168
NA 0.0278 Type Fixed Magnification
Mount C Best Aperture(f/#) 13.5
MTF30 (lp/mm) 65 Object Resolution(μm) 12.1
Depth of Field(mm) 1.9 Distortion Typical(% max) 0.2
Telecentricity Typical (°max) Non-telecentric Length (mm) 220.3
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.2
Filter Screw Size M25x0.5

Field of View (mm x mm)
2/3"(8.8x6.6) 11.7x8.8
1"(12.43x9.83) 16.6x13.1
1.1"(14.19x10.38) 18.9x13.8
4/3"(17.86x14.32) 23.8x19.1

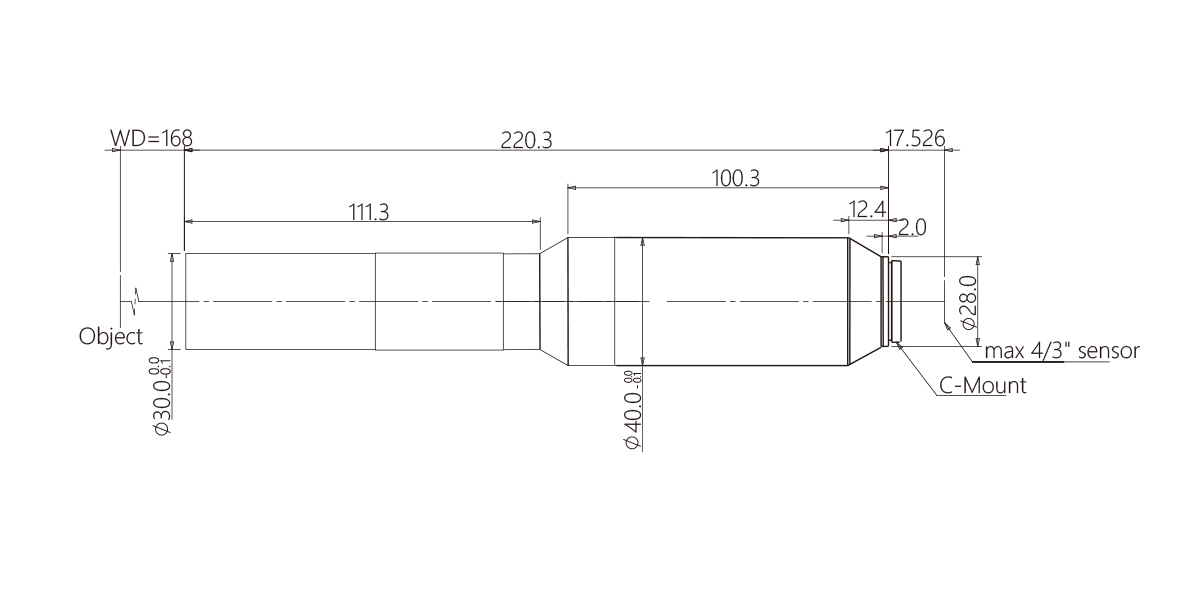

Dimensions

Naming Rule



Important Note
