| Model NO. | WH075-160A-430 | Image Circle Diameter (Φmm) | 22.5(4/3") | ||||
| Magnification(x) | 0.75 | Working Distance(mm) | 160 | ||||
| NA | 0.0207 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 18.2 | ||||
| MTF30 (lp/mm) | 43 | Object Resolution(μm) | 16.2 | ||||
| Depth of Field(mm) | 2.6 | Distortion Typical(% max) | 0.3 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 196.3 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 2/3"(8.8x6.6) | 11.7x8.8 | ||||||
| 1"(12.43x9.83) | 16.6x13.1 | ||||||
| 1.1"(14.19x10.38) | 18.9x13.8 | ||||||
| 4/3"(17.86x14.32) | 23.8x19.1 | ||||||

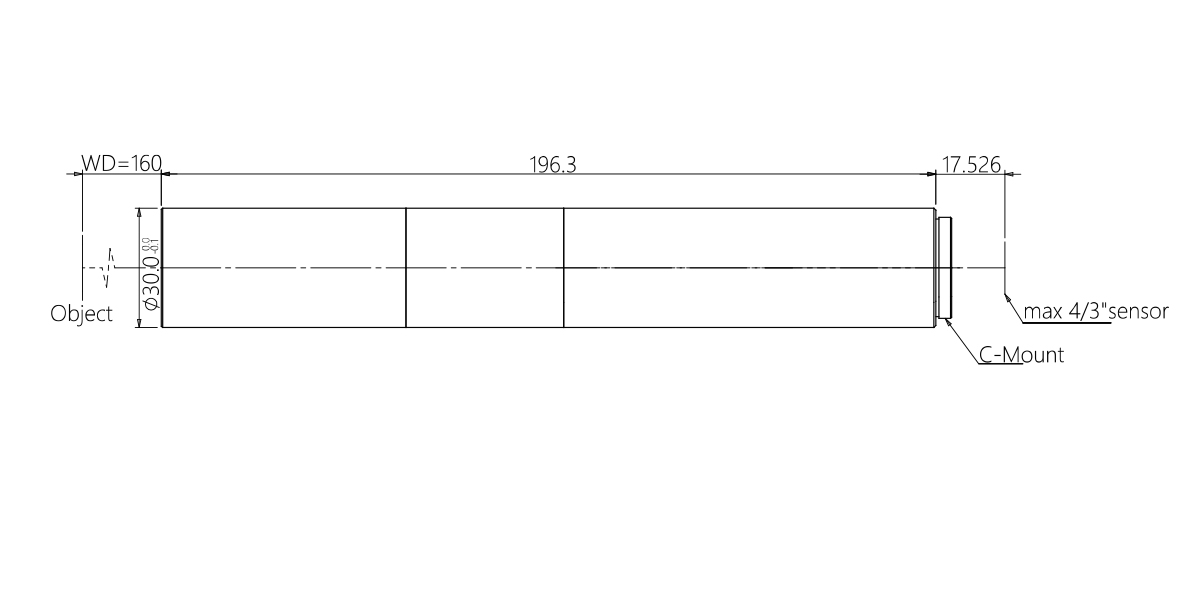

Dimensions
Naming Rule
