Model NO. | WH025-415A-430 | Image Circle Diameter (Φmm) | 22.5(4/3") | ||||
Magnification(x) | 0.25 | Working Distance(mm) | 415 | ||||
NA | 0.0051 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 24.6 | ||||
MTF30 (lp/mm) | 37 | Object Resolution(μm) | 66 | ||||
Depth of Field(mm) | 31.5 | Distortion Typical(% max) | 0.35 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 129.9 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 11 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
2/3"(8.8x6.6) | 35.2x26.4 | ||||||
1"(12.43x9.83) | 49.7x39.3 | ||||||
4/3"(17.86x14.32) | 71.4x57.3 |

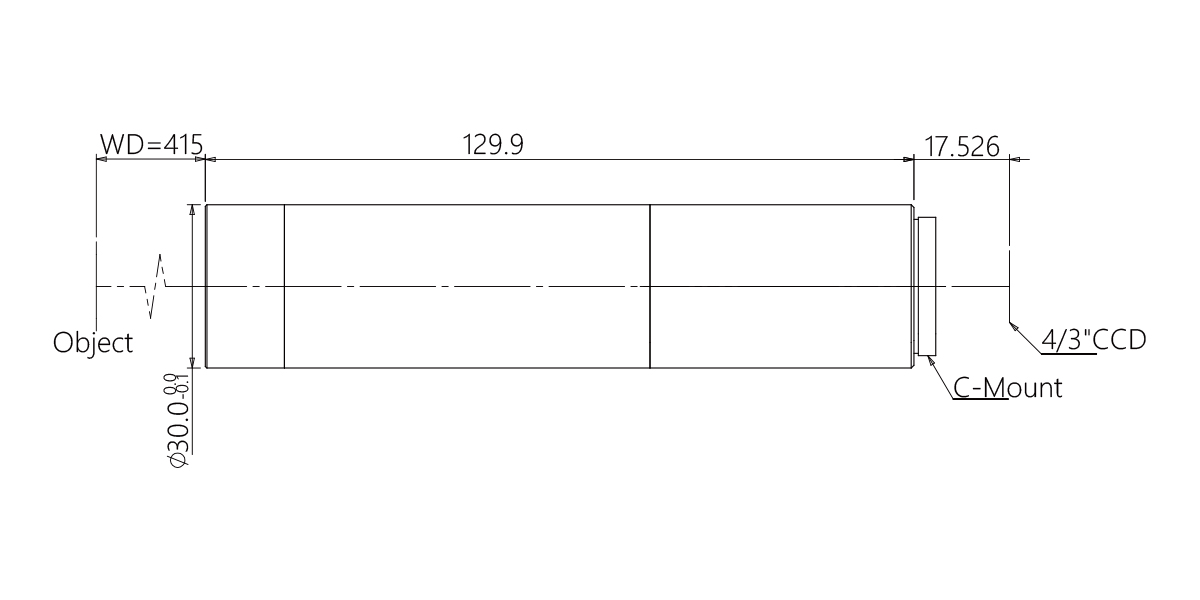

Dimensions
Naming Rule
