| Model NO. |
DTCA35F-14.6C-G-M58-AL |
Magnification(x) |
3.0 |
| Object Field of View (Φmm) |
14.6 |
Working Distance (mm) |
60 |
| Max Sensor Size (Φmm) |
44(35mm Full) |
Best Aperture (F/#) |
32 |
| Telecentricity typical (max) (deg) |
0.17 |
Distortion typical (max) (%) |
0.045 |
| MTF30 (lp/mm) |
106-30 |
Depth of Field (mm) |
0.08-0.28 |
| Length of I/O (mm) |
431 |
Mount |
M58 |
| Length (mm) |
359.4 |
Weight (kg) |
3.62 |
| Coaxial Illumination Port Option |
YES |
Iris Adjustable |
YES |
| Back Focal Length Adjustable |
YES |
|
| Field of View (mm × mm) |
CMV50000 (36.43x27.62) |
12.1x9.2 |
| KAI43142 (36.18x24.12) |
12.1x8.0 |

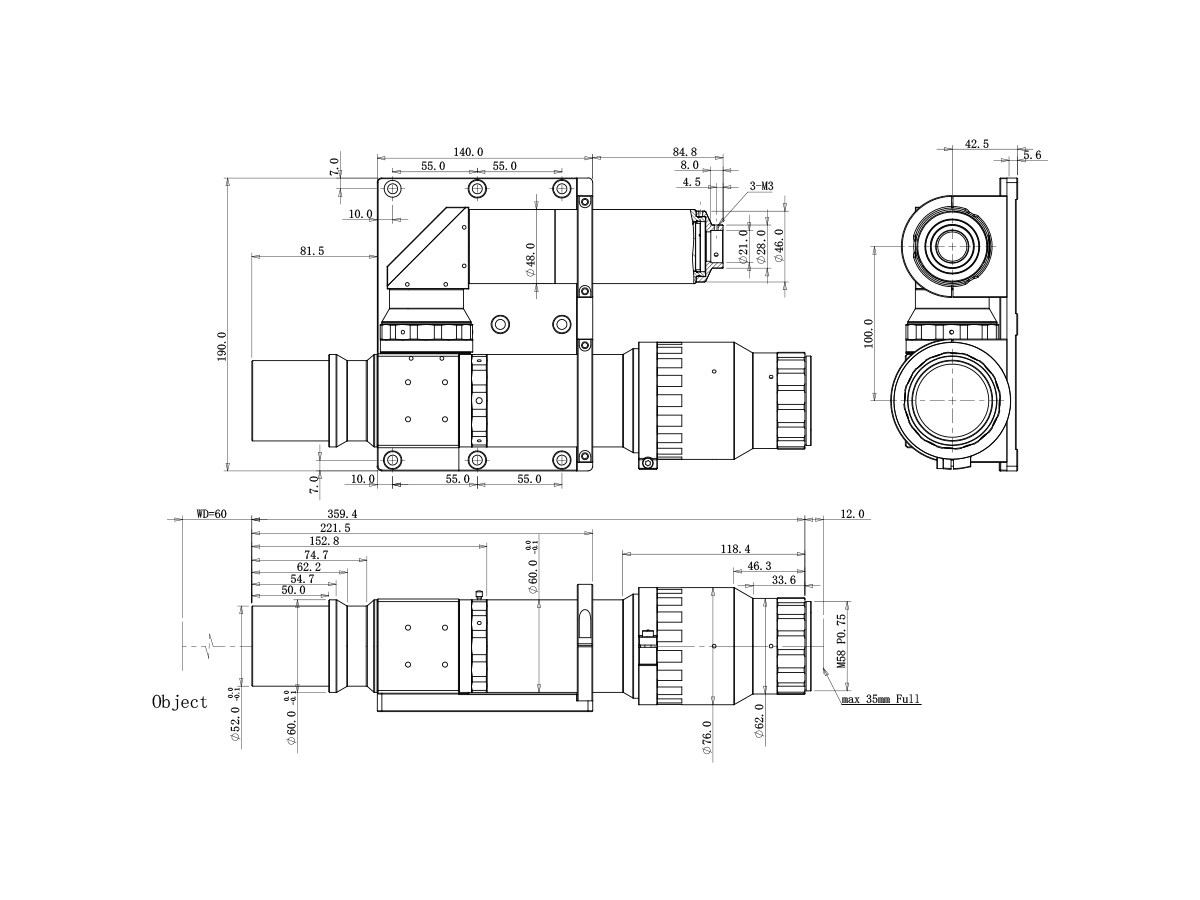

Dimensions
