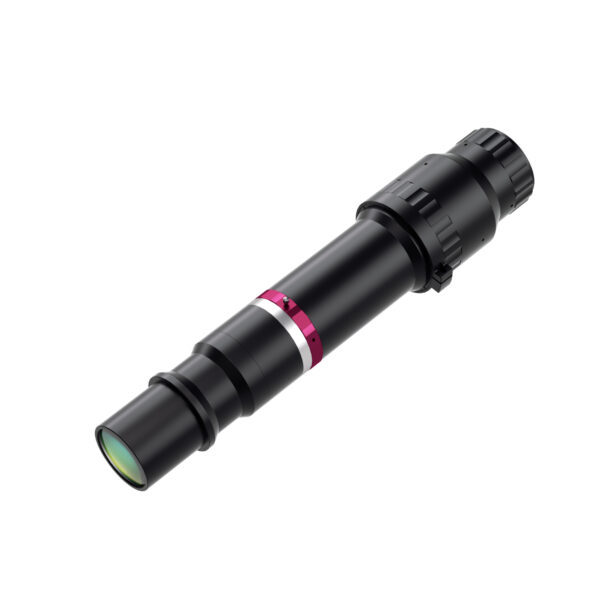

3.0X, 35mm Full Frame M58-Mount Telecentric Lenses Iris Adjustable, BFL Adjustable | DTCA35F COOLENS®

DTCA35F-14.6-G-M58-AL

Model No: DTCA35F-14.6-G-M58-AL •Variable Aperture F/8-F/32, Telecentric Lenses Iris Adjustable, BFL Adjustable •Up to 65 MegaPixels, 3.2μm Pixel Size Sensors •Up to 44mm, Iris Adjustable , M58-Mount Telecentric Lenses •Magnification(x) 3.0

$0.00 USD

Quantity

Description

Model NO.	DTCA35F-14.6-G-M58-AL	Magnification(x)	3.0
Object Field of View (Φmm)	14.6	Working Distance (mm)	60
Max Sensor Size (Φmm)	44(35mm Full)	Best Aperture (F/#)	32
Telecentricity typical (max) (deg)	0.17	Distortion typical (max) (%)	0.045
MTF30 (lp/mm)	106-30	Depth of Field (mm)	0.08-0.28
Length of I/O (mm)	431	Mount	M58
Length (mm)	359.4	Weight (kg)	1.96
Coaxial Illumination Port Option	NO	Iris Adjustable	YES
Back Focal Length Adjustable	YES

Field of View (mm × mm)	CMV50000 (36.43x27.62)	12.1x9.2
	KAI43142 (36.18x24.12)	12.1x8.0

3.0X, 35mm Full Frame M58-Mount Telecentric Lenses Iris Adjustable, BFL Adjustable | DTCA35F COOLENS®

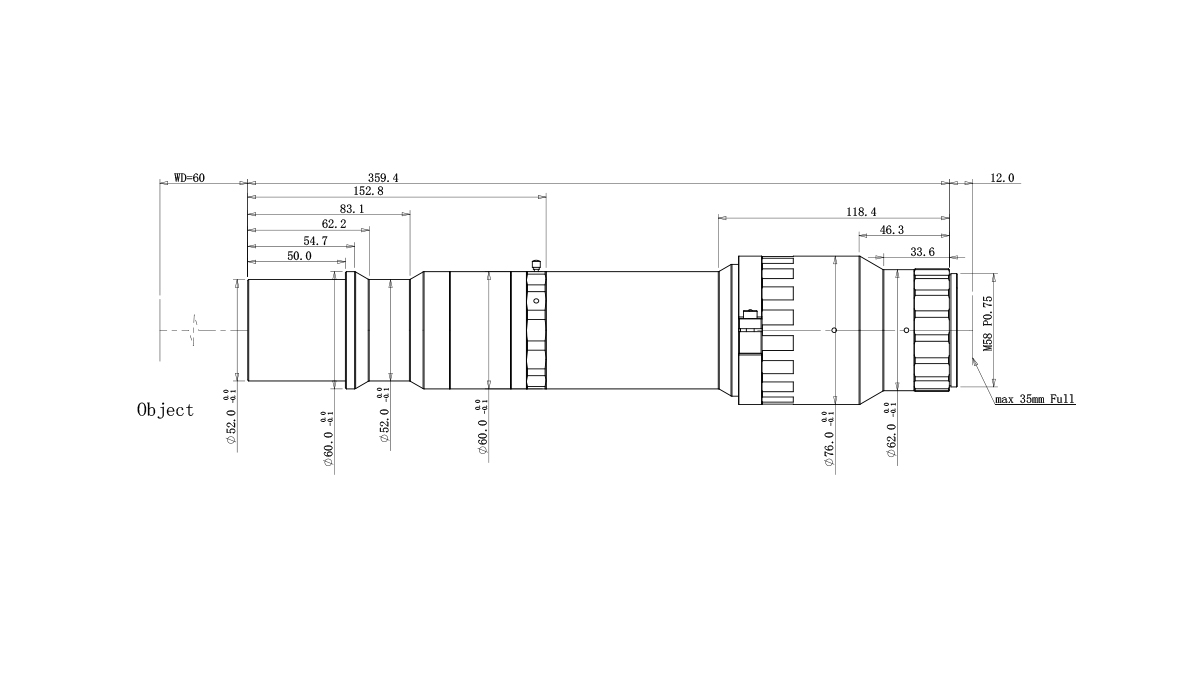

Dimensions
