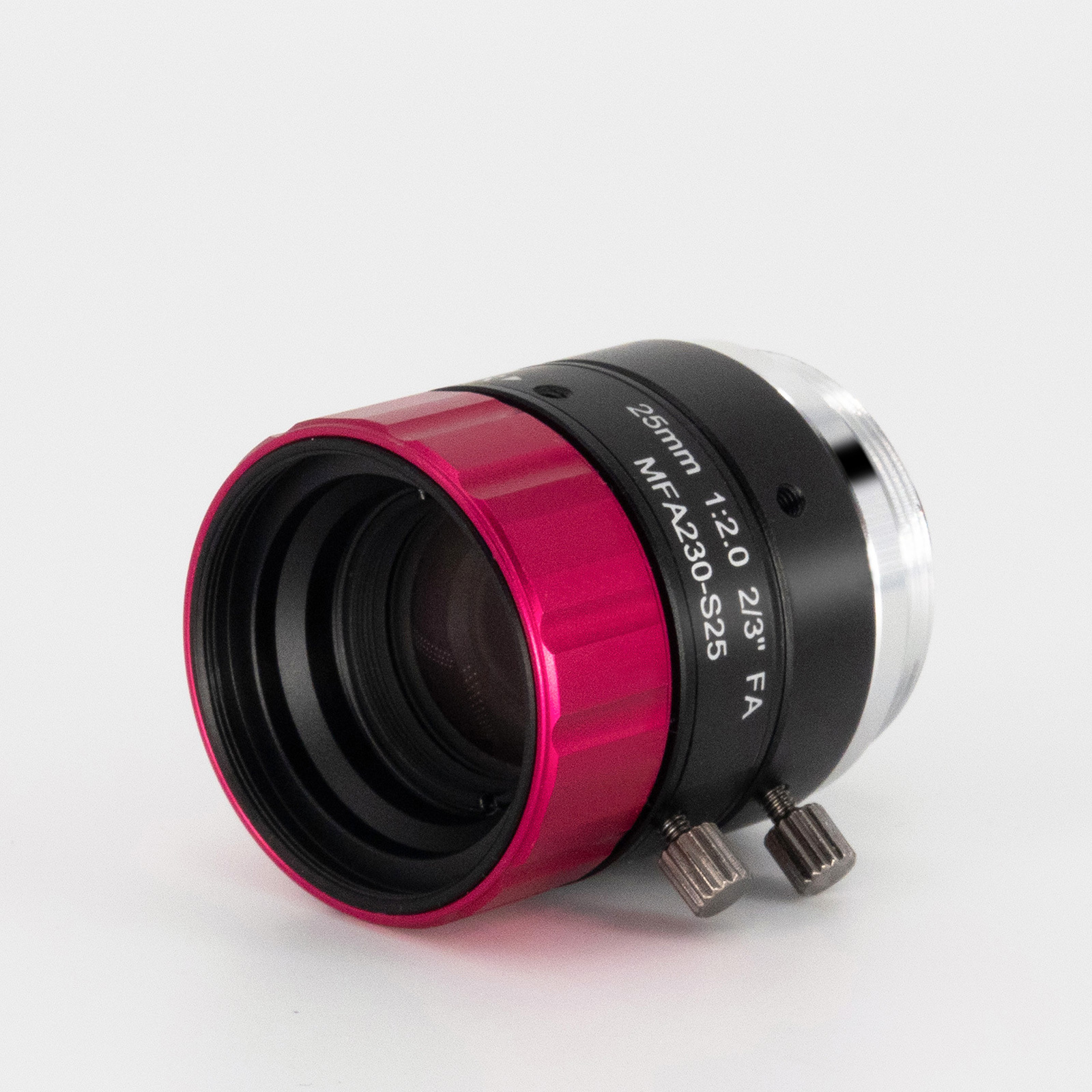

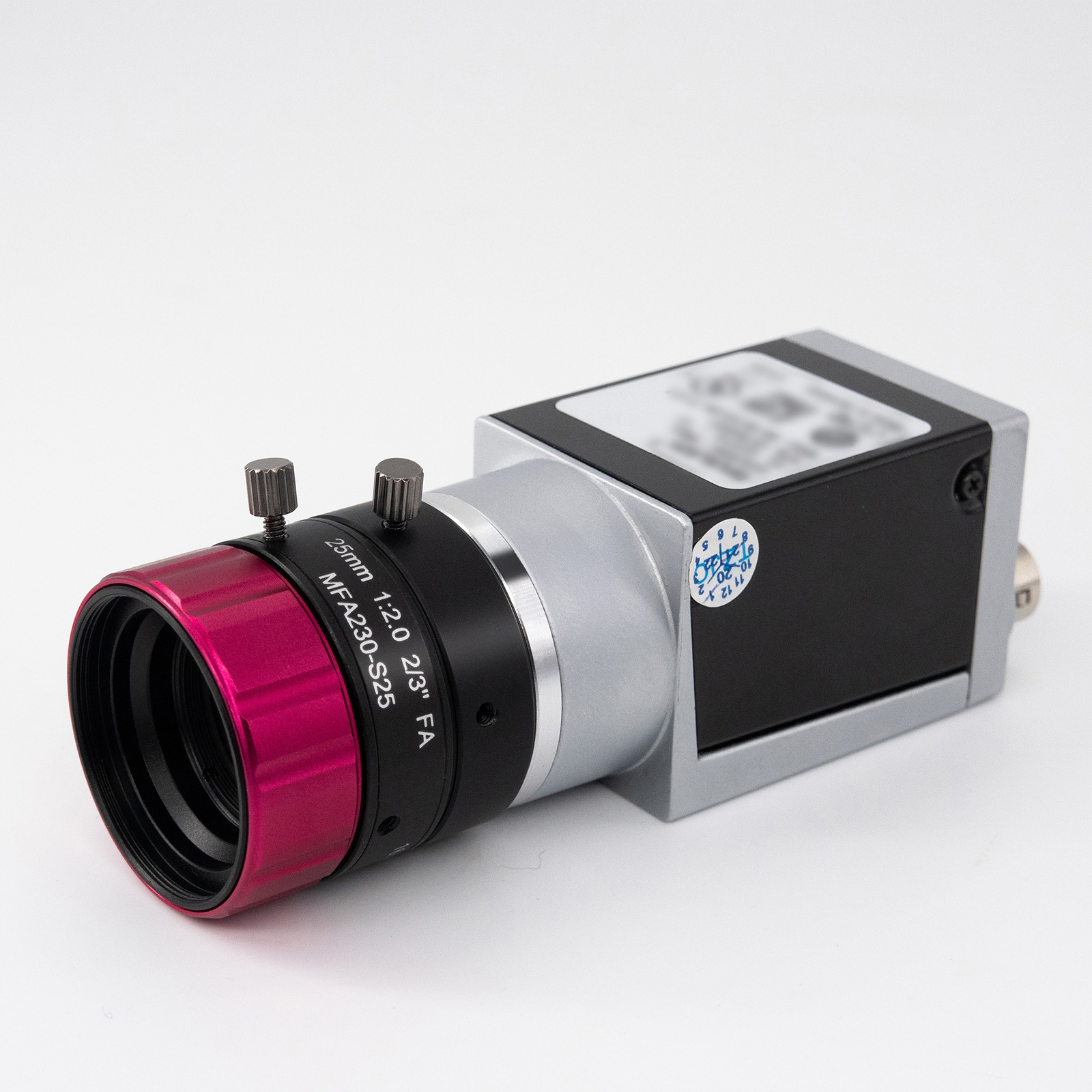

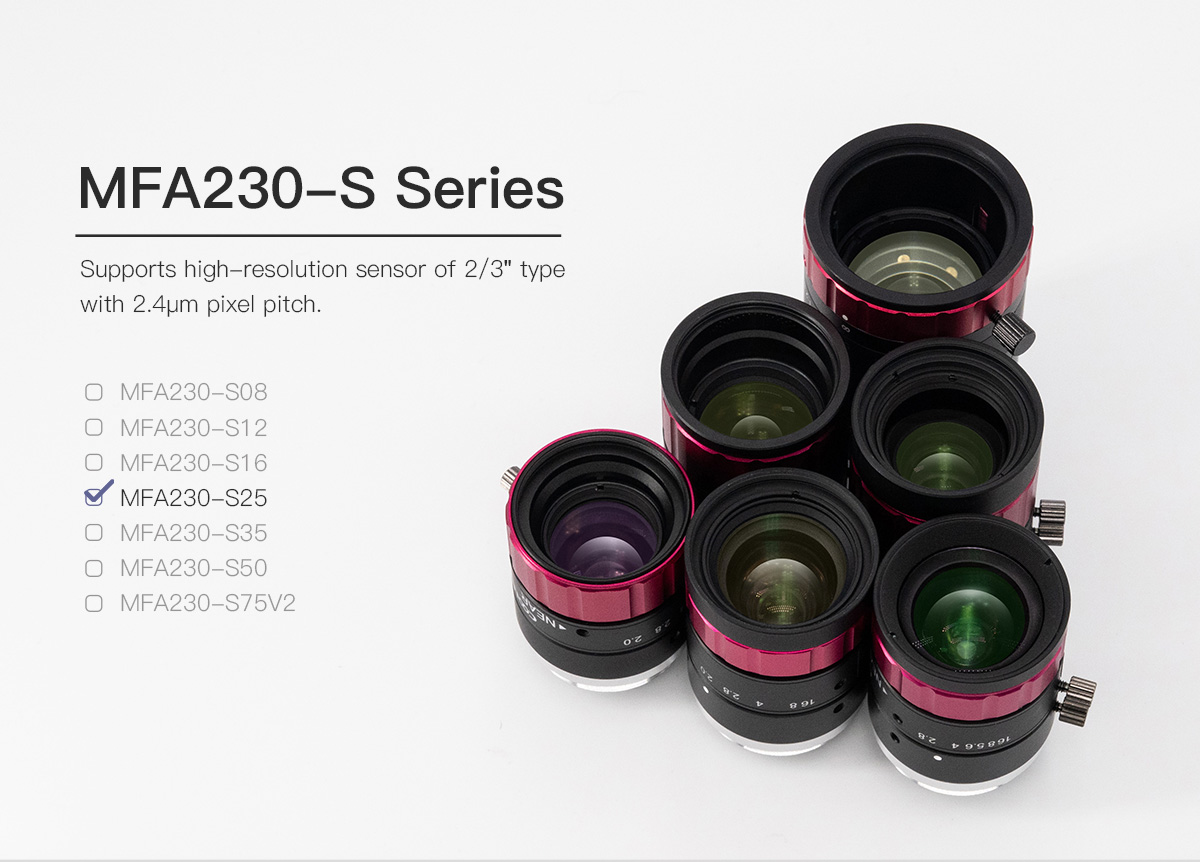

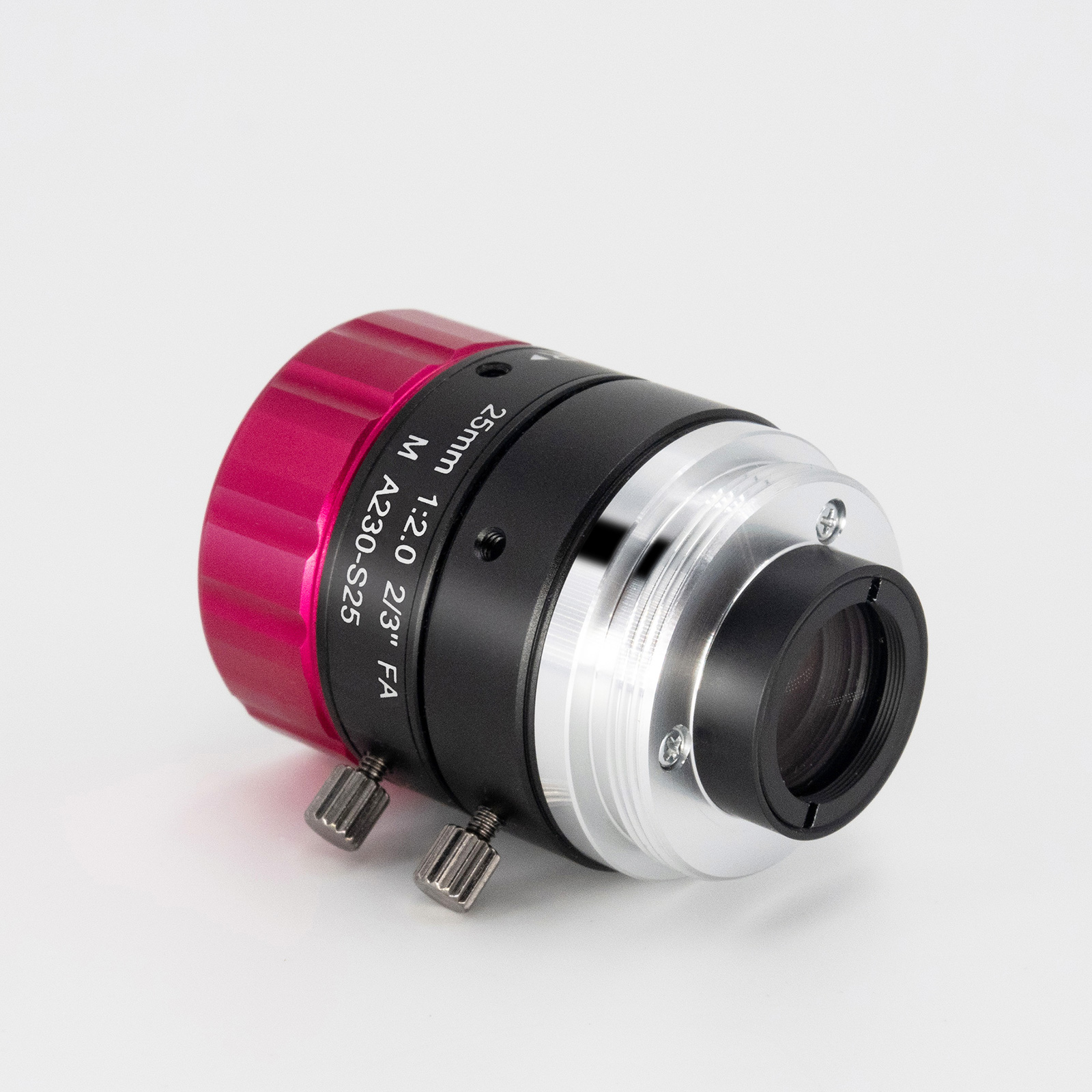

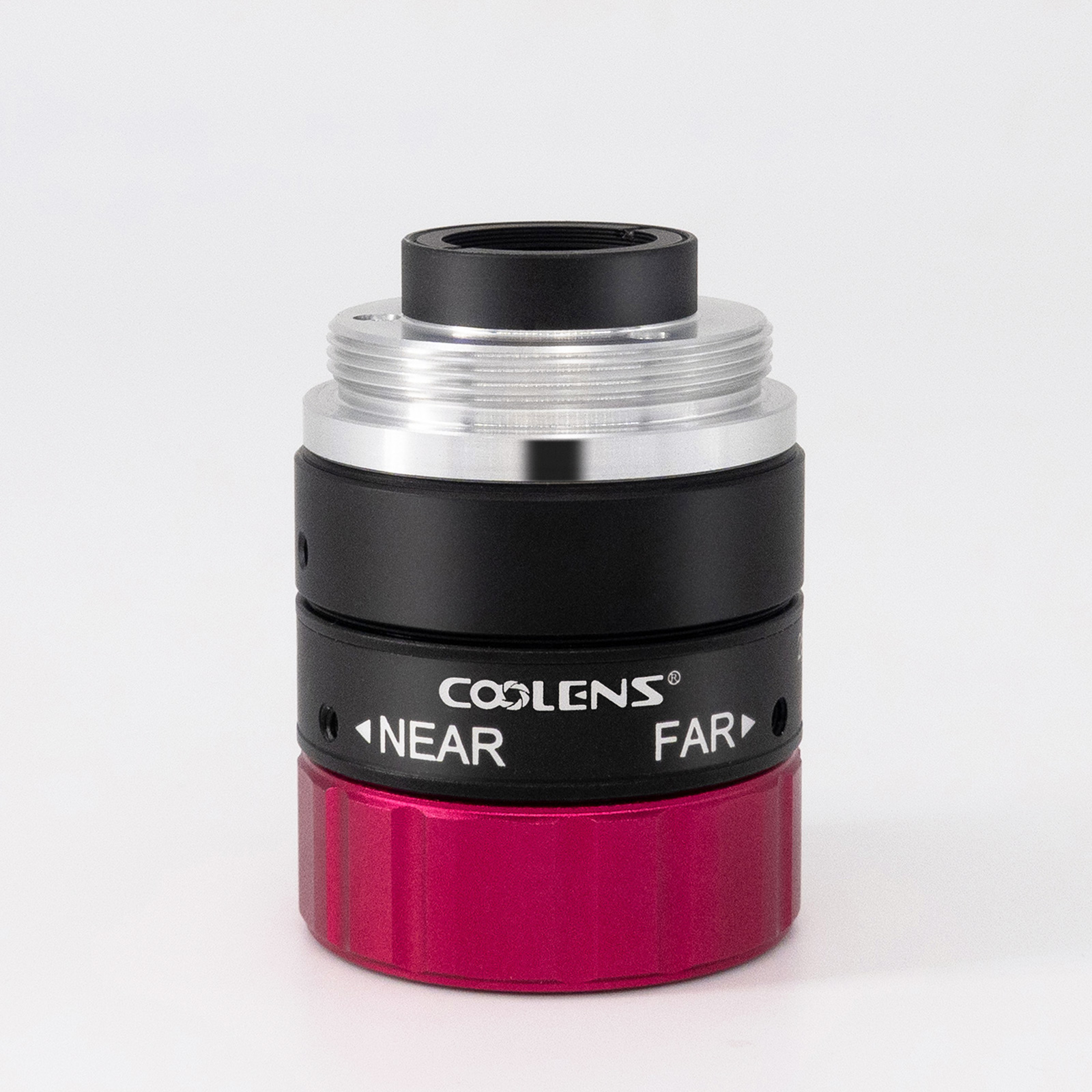

2/3" 25mm Fixed Focal Length Lens | MFA230-S25 COOLENS®

MFA230-S25
$117.00 USD
Shipping calculated at checkout.
Quantity
2/3" 25mm Fixed Focal Length Lens | MFA230-S25 COOLENS®-OKLAB 2/3" 25mm Fixed Focal Length Lens | MFA230-S25 COOLENS®-OKLAB 2/3" 25mm Fixed Focal Length Lens | MFA230-S25 COOLENS®-OKLAB 2/3" 25mm Fixed Focal Length Lens | MFA230-S25 COOLENS®-OKLAB 2/3" 25mm Fixed Focal Length Lens | MFA230-S25 COOLENS®-OKLAB

Description

Model No. MFA230-S25 Image Circle Diameter (Φmm) 2/3"
Focal Length(mm) 25 Magnification(x) Adjustable
Working Distance(mm) Min.200 MTF30 (lp/mm) 150
Type Fixed Focal Length Support Cameras 10M
Mount C Back Focal Length 10.5 mm in Air

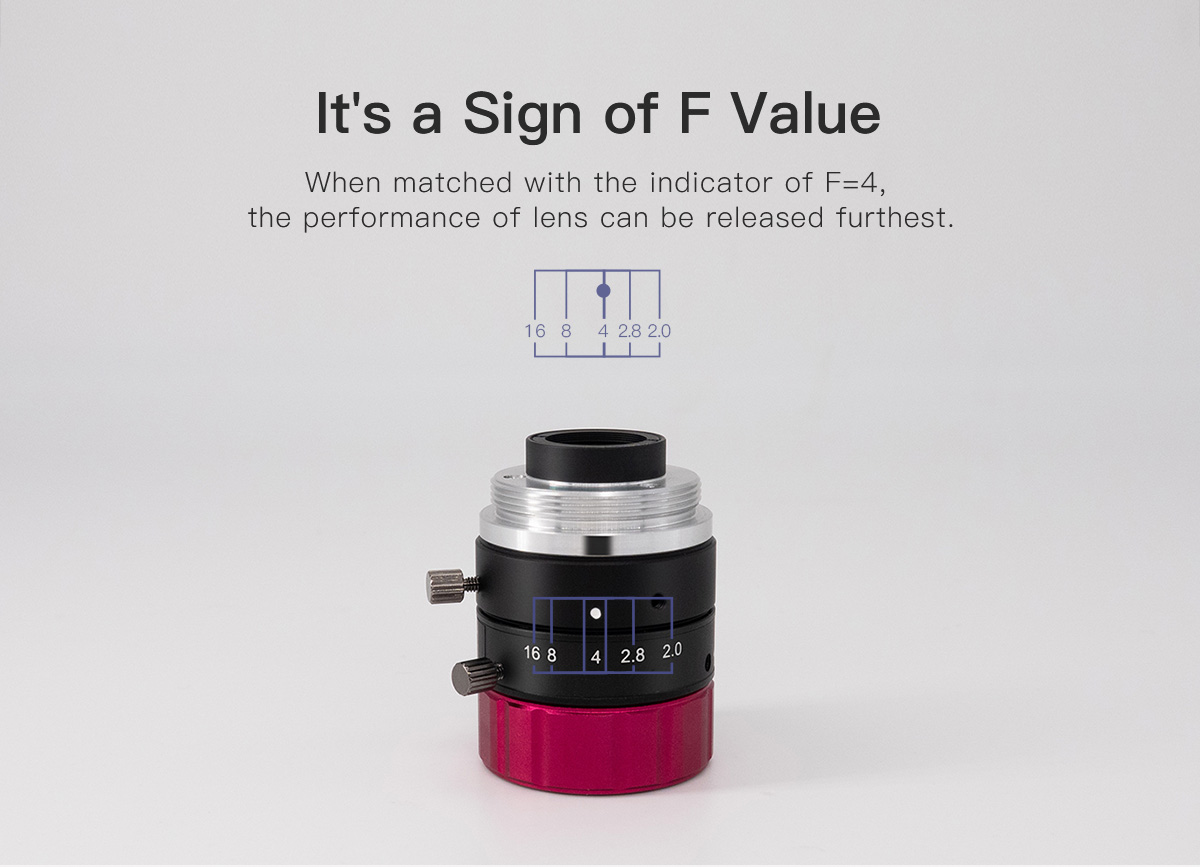

F NO. F2.0 - F16 Filter Size M25.5 x P0.5
Max. Image Format 2/3" (φ11.4mm) Distortion <0.1%
Angle of View D 2/3" 23.9° 1/1.8" 19.4° 1/2" 17.4°
H 18.3°  15.8°  14.0°
V 15.4° 10.7° 10.5°
M.o.D 0.2m Object Dimension at M.o.D 2/3" 69.64mm x 58.38mm
Length (mm) 30.94 1/1.7"  61.18mm x 46.19mm
Flange Back Length 17.526mm in Air
Structure 5 Groups, 8 Elements Operating Temperature -10°C — 50°C

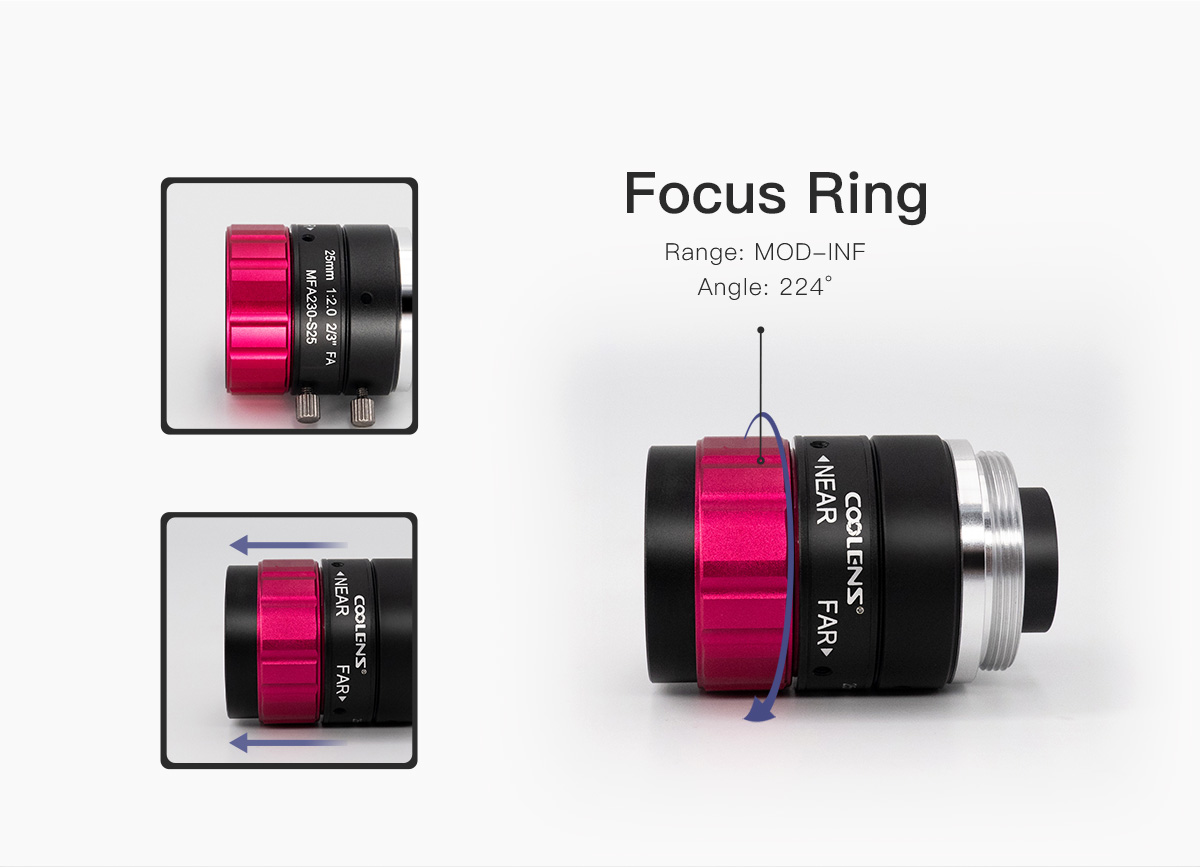

Operation of Iris Range F2.0 - F16 Operation of Focus Range MOD-INF
Angle 68.02°
Angle
224.45°
Spectral Transmission AT 436nm-656nmT≥85%

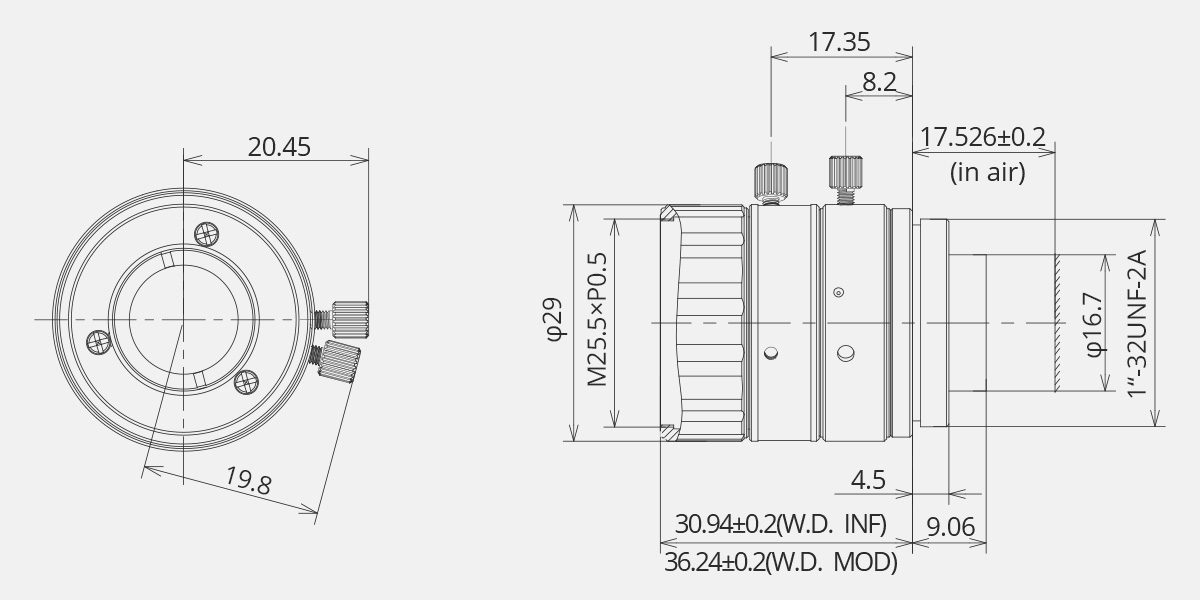

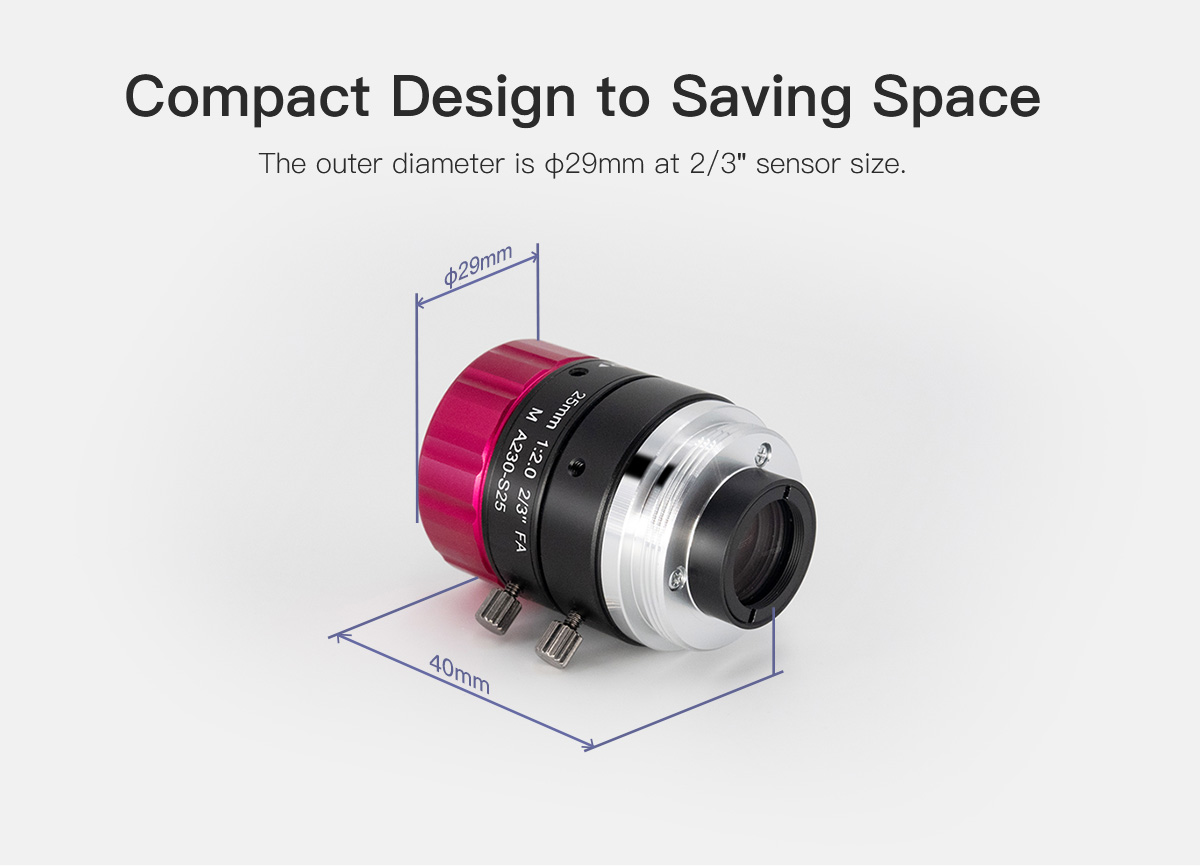

Dimensions

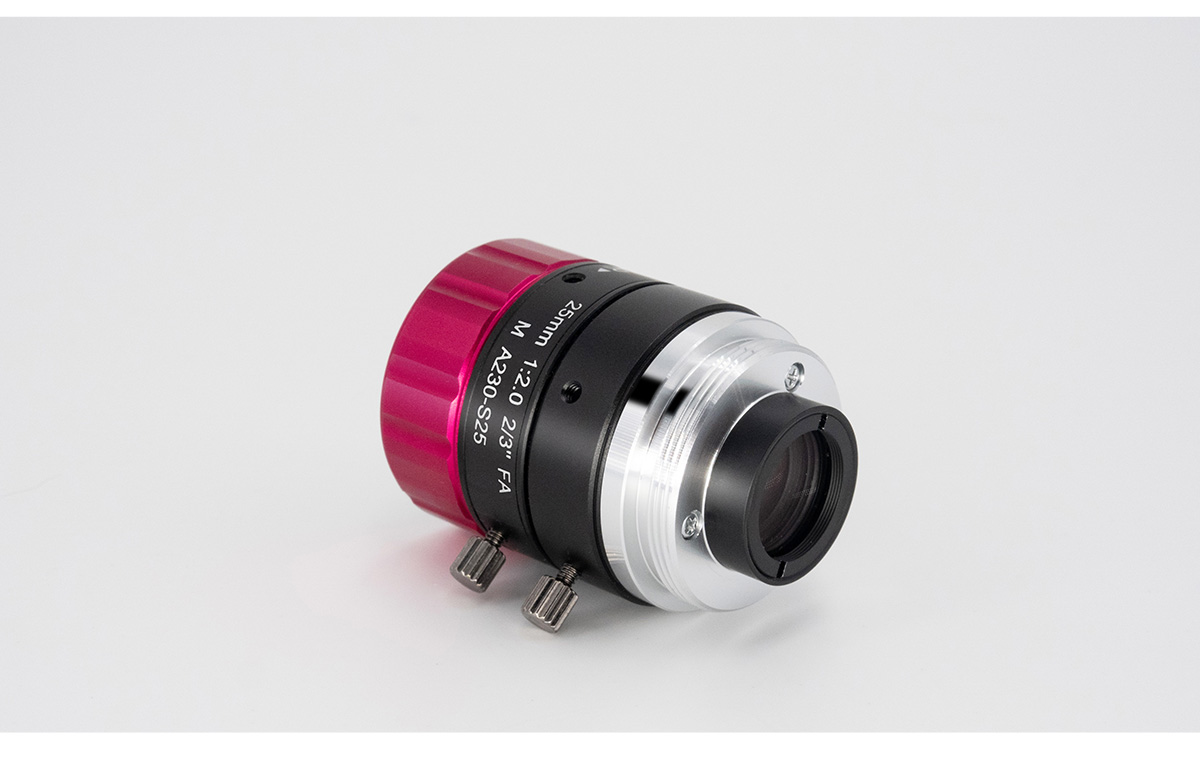

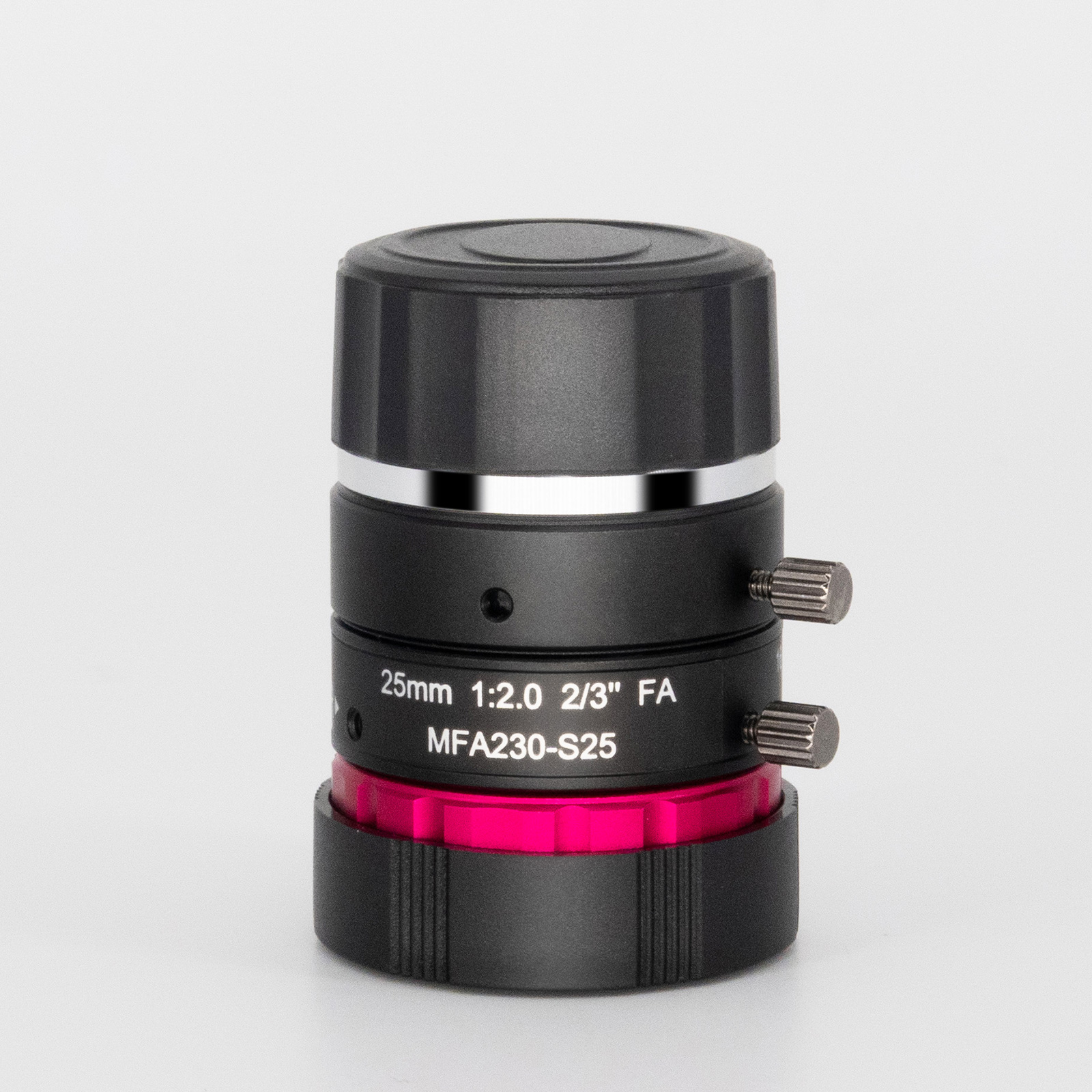

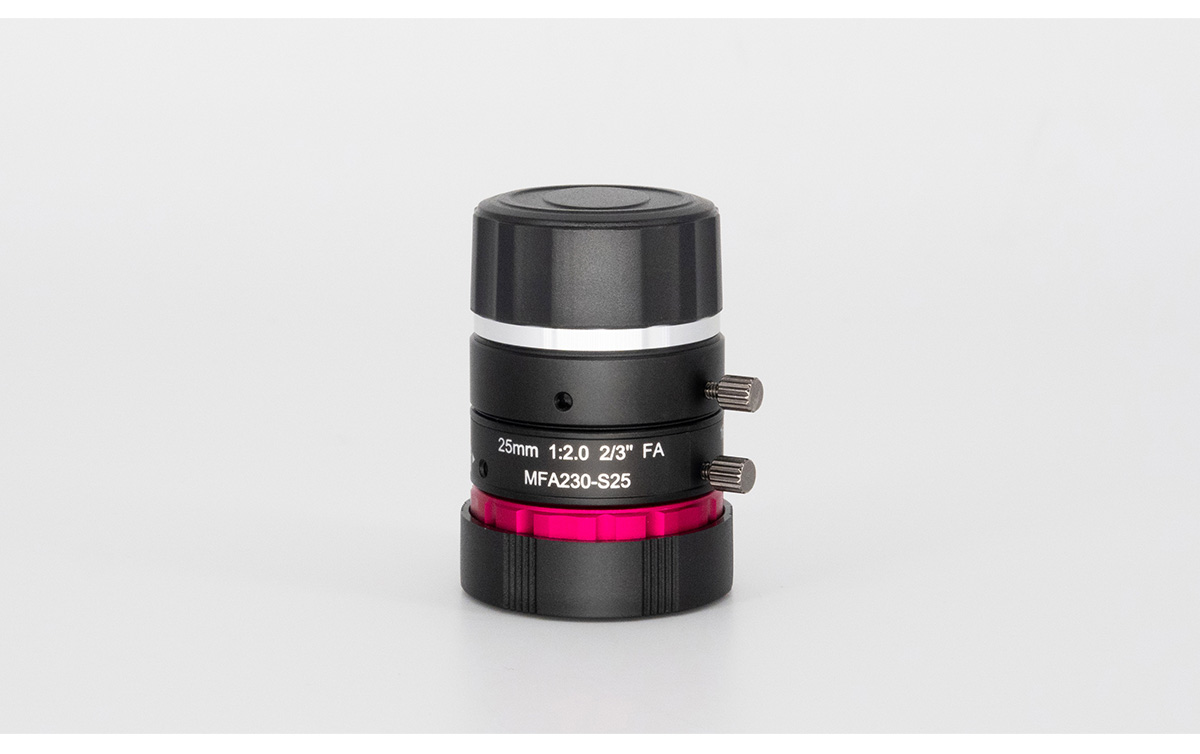

Product Photograph
