| Model NO. |
WWT230-05-121 |
Image Circle Diameter (Φmm) |
11.0(2/3") |
| Focal Length(mm) |
45.52 |
Magnification(x) |
0.5 |
| Working Distance(mm) |
121 |
MTF30 (lp/mm) |
106 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0357 |
Best Aperture(f/#) |
7 |
| Object Resolution(μm) |
9.4 |
Depth of Field(mm) |
2.2 |
| TV Distortion |
0.0364 |
Length (mm) |
66.4 |
| Measured Depth of Field (mm) |
1.2 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/1.8”（7.13x5.37） |
14.26x10.74 |
| 1/1.8”（7.43x4.9） |
14.86x9.8 |
| 2/3”（8.45x7.1） |
16.9x14.2 |

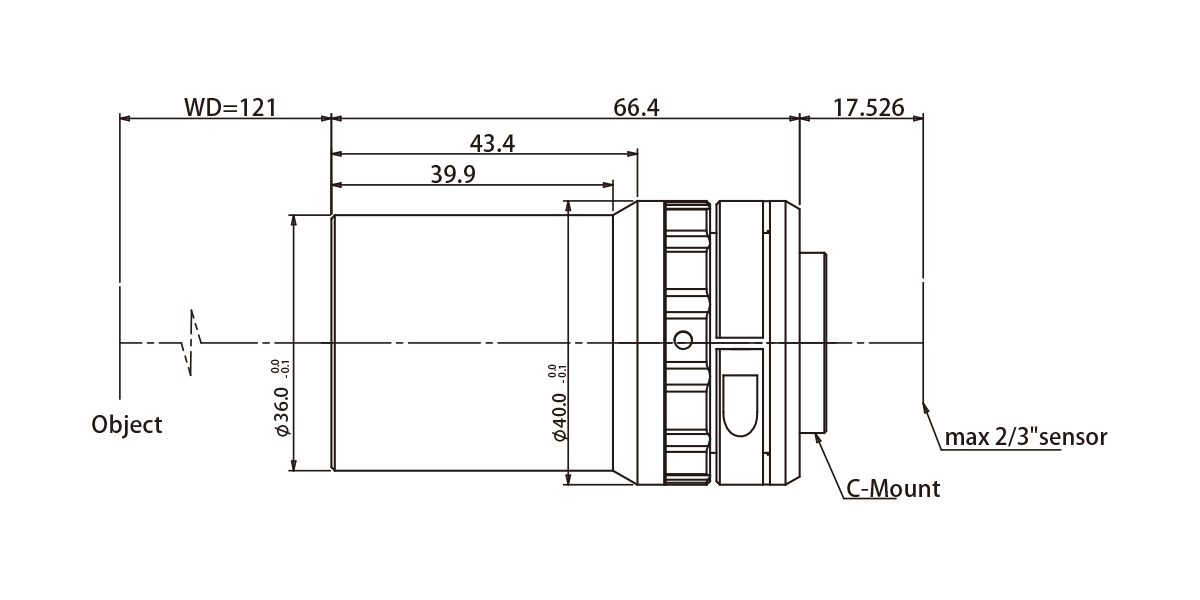

Dimensions
Naming Rule
