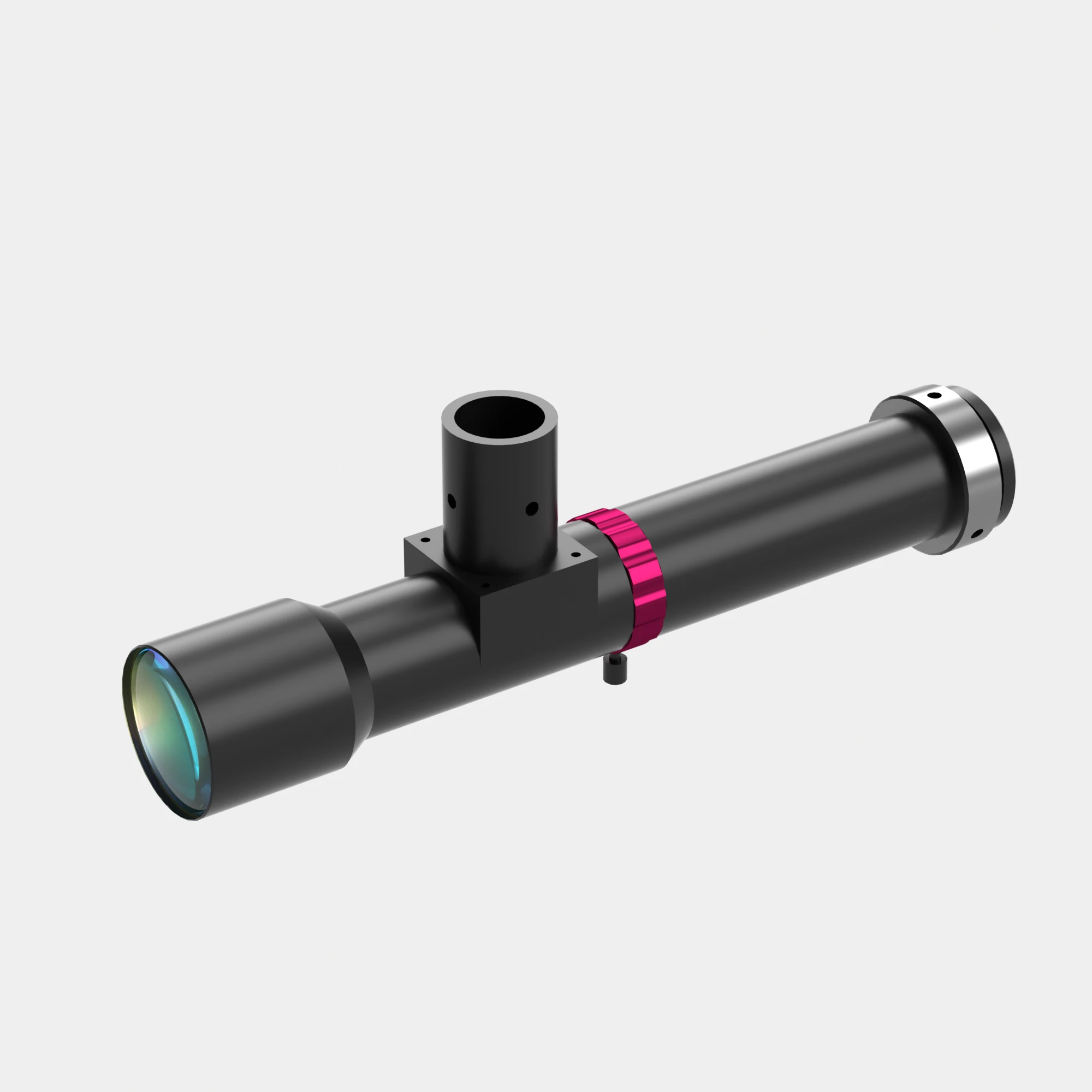

2/3" 3X Telecentric Lenses | WWH20-110CT-G COOLENS®

$585.00 USD
Shipping calculated at checkout.
Quantity
2/3" 3X Telecentric Lenses | WWH20-110CT-G COOLENS®-OKLAB

Description

Model NO. WWH20-110CT-G Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 3.0 Working Distance(mm) 110
NA 0.0536 Type Telecentric
Mount C Best Aperture(f/#) 18.2-Close
MTF30 (lp/mm) 47 Object Resolution(μm) 6.259
Depth of Field(mm) Adjustable Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 151.7
With Coaxial Illumination Port Yes Iris Adjustable Yes
Measured Depth of Field (mm) Adjustable Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2" (6.4x4.8) 3.2x2.4
1/1.8”(7.13x5.37) 3.6x2.7
2/3" (8.8x6.6) 4.4x3.3

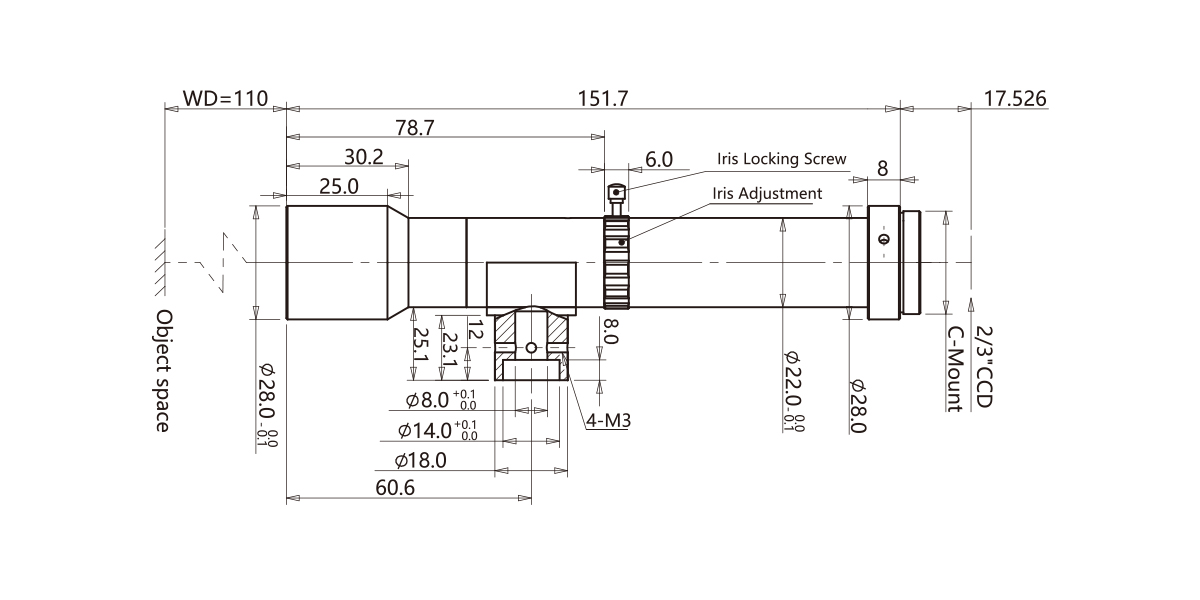

Dimensions

Naming Rule

  • Description

Model NO. WWH20-110CT-G Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 3.0 Working Distance(mm) 110
NA 0.0536 Type Telecentric
Mount C Best Aperture(f/#) 18.2-Close
MTF30 (lp/mm) 47 Object Resolution(μm) 6.259
Depth of Field(mm) Adjustable Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 151.7
With Coaxial Illumination Port Yes Iris Adjustable Yes
Measured Depth of Field (mm) Adjustable Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2" (6.4x4.8) 3.2x2.4
1/1.8”(7.13x5.37) 3.6x2.7
2/3" (8.8x6.6) 4.4x3.3

Dimensions

Naming Rule
