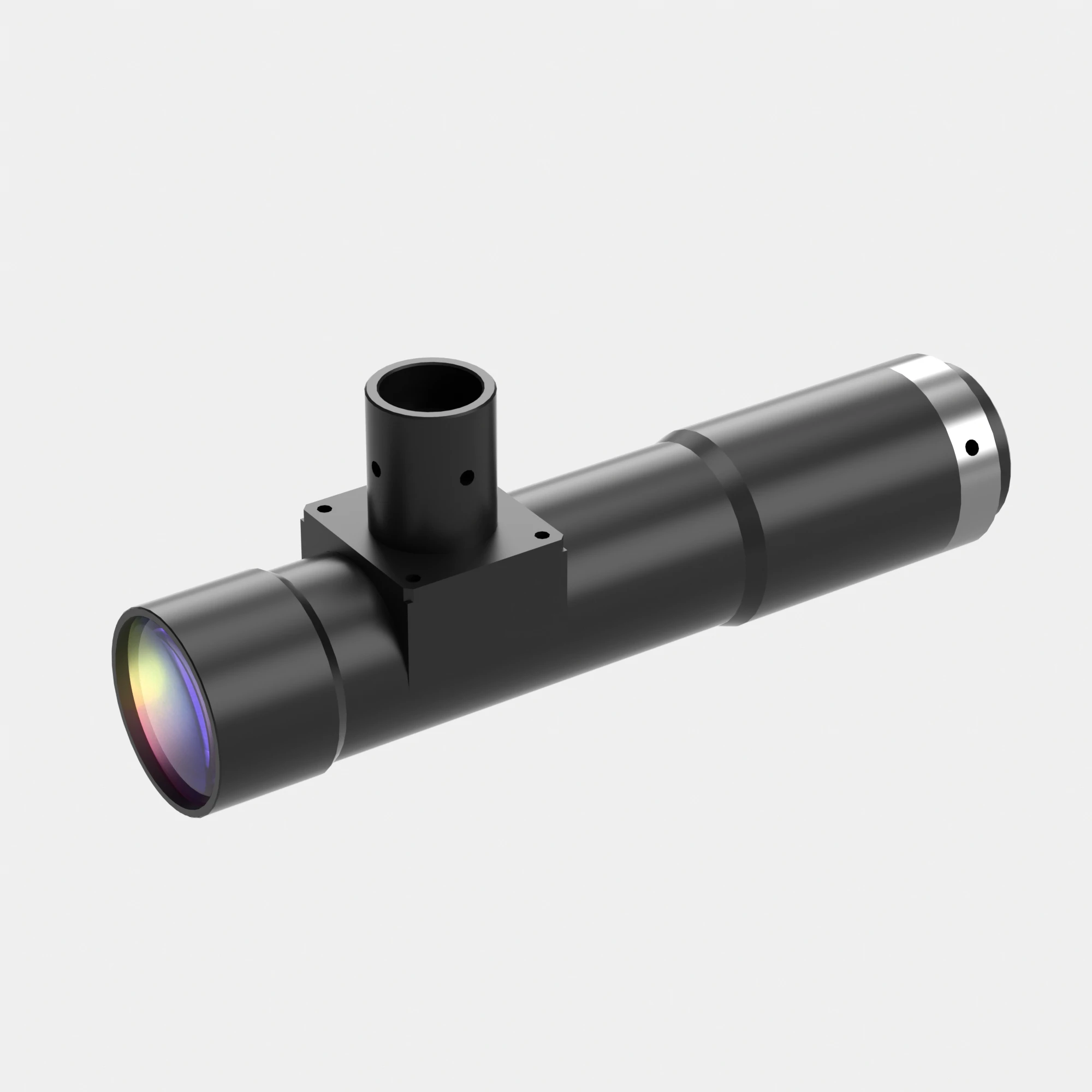

2/3" 2X Telecentric Lenses | WWH20-110CTV2 COOLENS®-OKLAB
2/3" 2X Telecentric Lenses | WWH20-110CTV2 COOLENS®-OKLAB

2/3" 2X Telecentric Lenses | WWH20-110CTV2 COOLENS®

WWH20-110CTV2
Image Circle:11(2/3")mm, Magnification:2X, WD:110±2mm, NA:0.0815, Mount:C, Type:Telecentric Lenses
$624.00 USD $0.00 USD
Quantity
Only 100 left
Volume Pricing
Quantity
Price
1+
$624.00 USD each
Description

Model NO. WWH20-110CTV2 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 2.000 Working Distance(mm) 110±2
NA 0.0815 Type Telecentric
Mount C Best Aperture(f/#) 12.2
MTF30 (lp/mm) 70 Object Resolution(μm) 4.1
Depth of Field(mm) 0.2 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 133.5
With Coaxial Illumination Port Yes Measured Depth of Field (mm) 0.3
Filter Screw Size M28.0x0.5
Field of View (mm x mm)
1/2”(6.4x4.8) 3.2x2.4
1/1.8”(7.13x5.37) 3.6x2.7
2/3" (8.8x6.6) 4.4x3.3

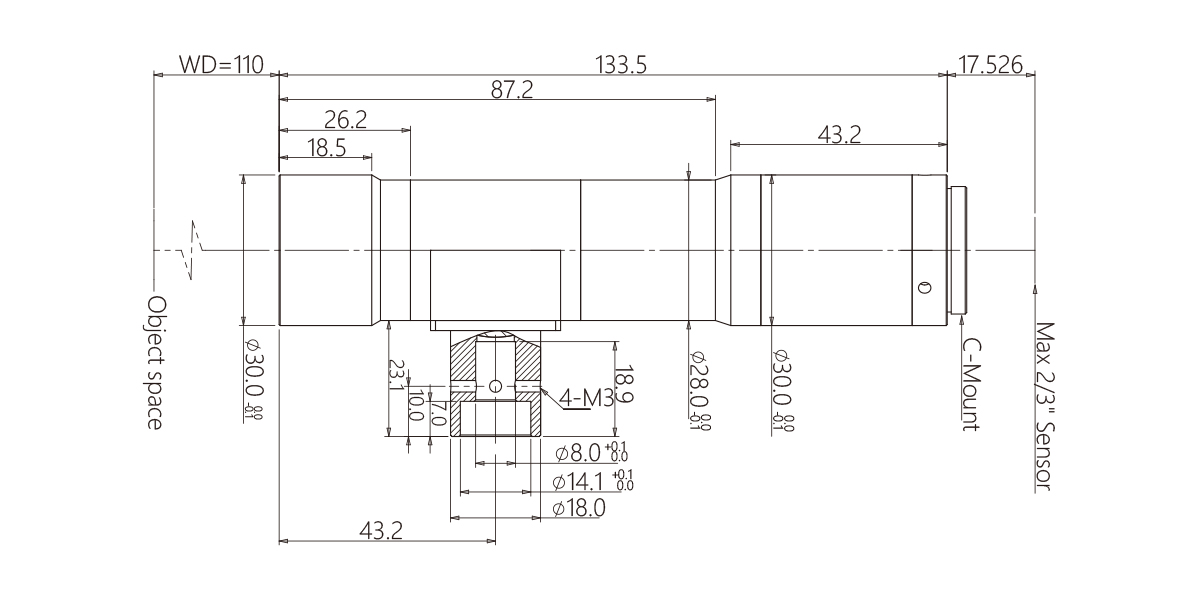

Dimensions

Naming Rule
