| Model NO. |
WWH10-63ATV3 |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
1.000 |
Working Distance(mm) |
63±1 |
| NA |
0.0625 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
8 |
| MTF30 (lp/mm) |
115 |
Object Resolution(μm) |
5.4 |
| Depth of Field(mm) |
0.6 |
Distortion Typical(% max) |
0.07 |
| Telecentricity Typical (°max) |
0.1 |
Length (mm) |
101.3 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
0.3 |
| Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/2”（6.4x4.8） |
6.4x4.8 |
| 1/1.8”（7.13x5.37） |
7.13x5.37 |
| 2/3" (8.8x6.6) |
8.45x7.1 |

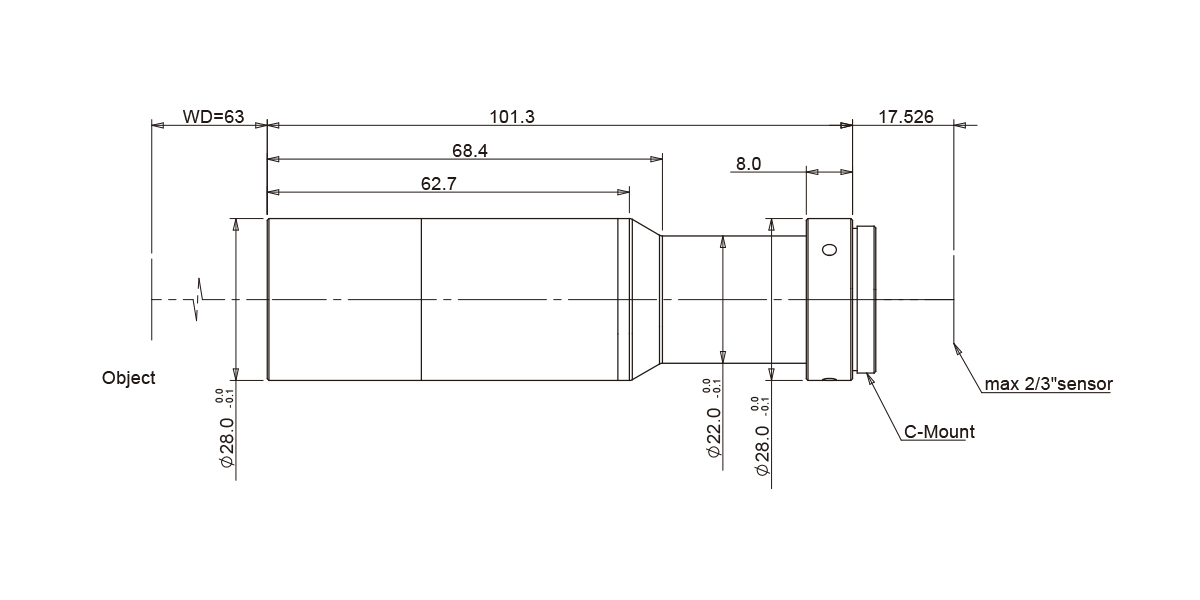

Dimensions
Naming Rule
