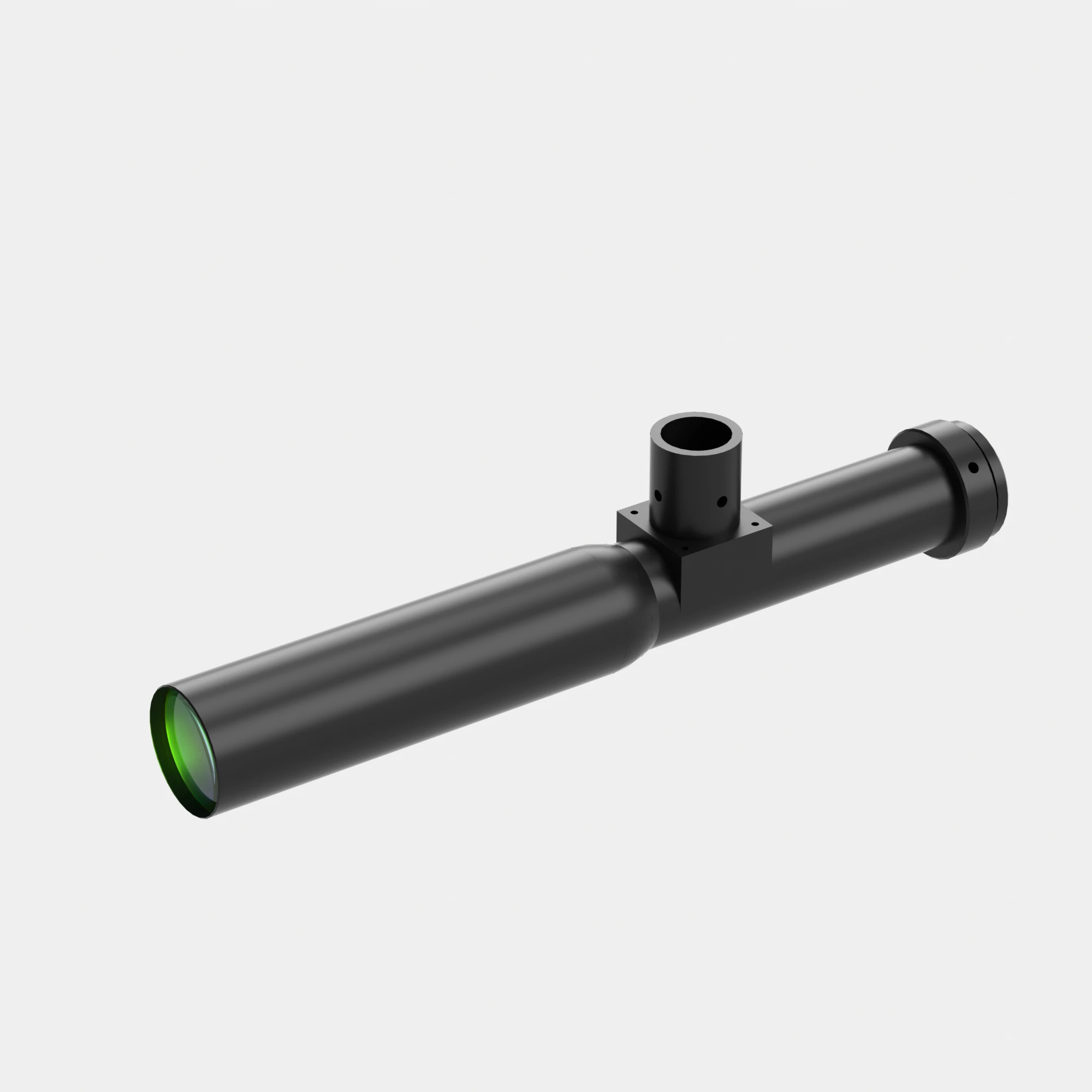

| Model NO. |
WWH10-410CT |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
1.0 |
Working Distance(mm) |
410 |
| NA |
0.0273 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
17.9 |
| MTF30 (lp/mm) |
40 |
Object Resolution(μm) |
12.289 |
| Depth of Field(mm) |
1.432 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
182.2 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
1 |
| Filter Screw Size |
/ |
| Field of View (mm x mm) |
|
| 1/2" (6.4x4.8) |
6.4x4.8 |
| 1/1.8" (7.13x5.37) |
7.13x5.37 |
| 2/3" (8.8x6.6) |
8.8x6.6 |

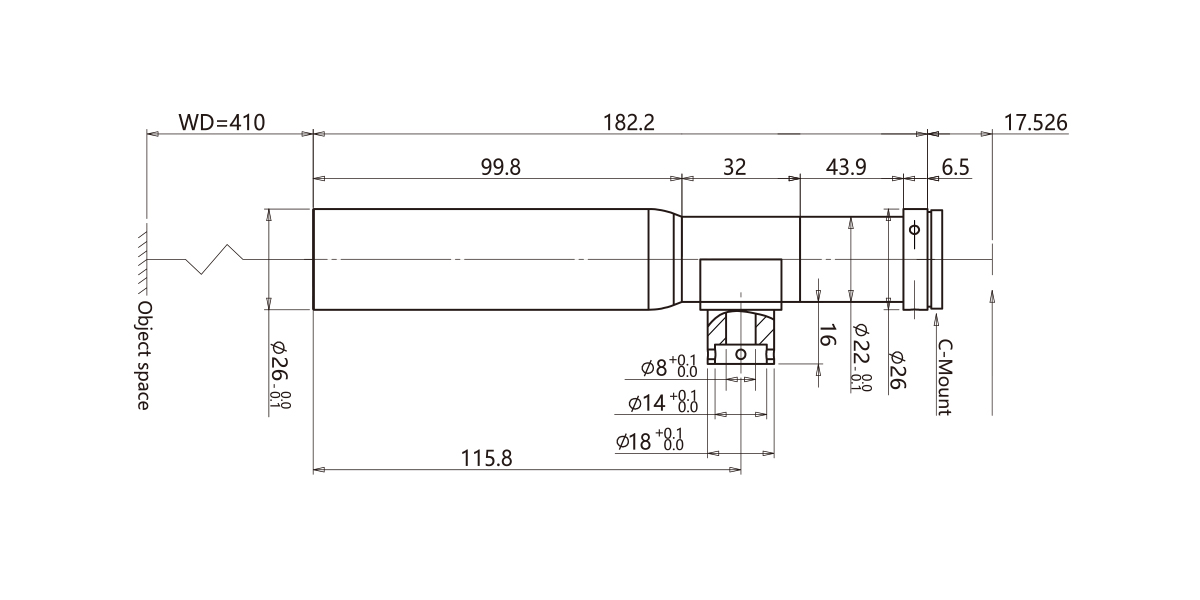

Dimensions
Naming Rule
