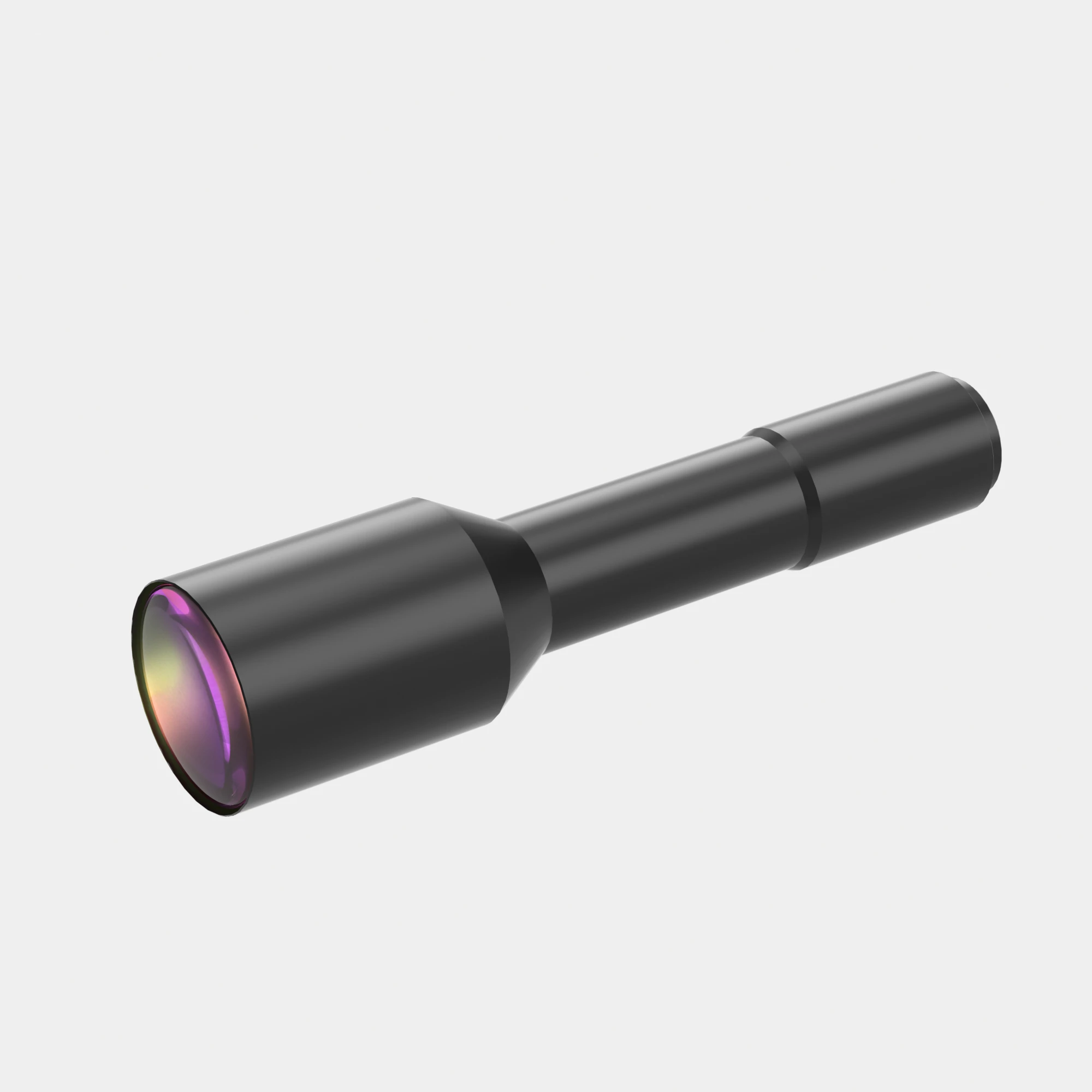

2/3" 1X Telecentric Lenses | WWH10-300AT-230V2 COOLENS®

$546.00 USD
Shipping calculated at checkout.
Quantity
2/3" 1X Telecentric Lenses | WWH10-300AT-230V2 COOLENS®-OKLAB

Description

Model NO. WWH10-300AT-230V2 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1.000 Working Distance(mm) 300±3
NA 0.0454 Type Telecentric
Mount C Best Aperture(f/#) 11
MTF30 (lp/mm) 90 Object Resolution(μm) 7.4
Depth of Field(mm) 0.9 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 179.5
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.5
Filter Screw Size M43x0.5
Field of View (mm x mm)
1/2”(6.4x4.8) 6.4x4.8
1/1.8”(7.13x5.37) 7.13x5.37
2/3" (8.8x6.6) 8.8x6.6

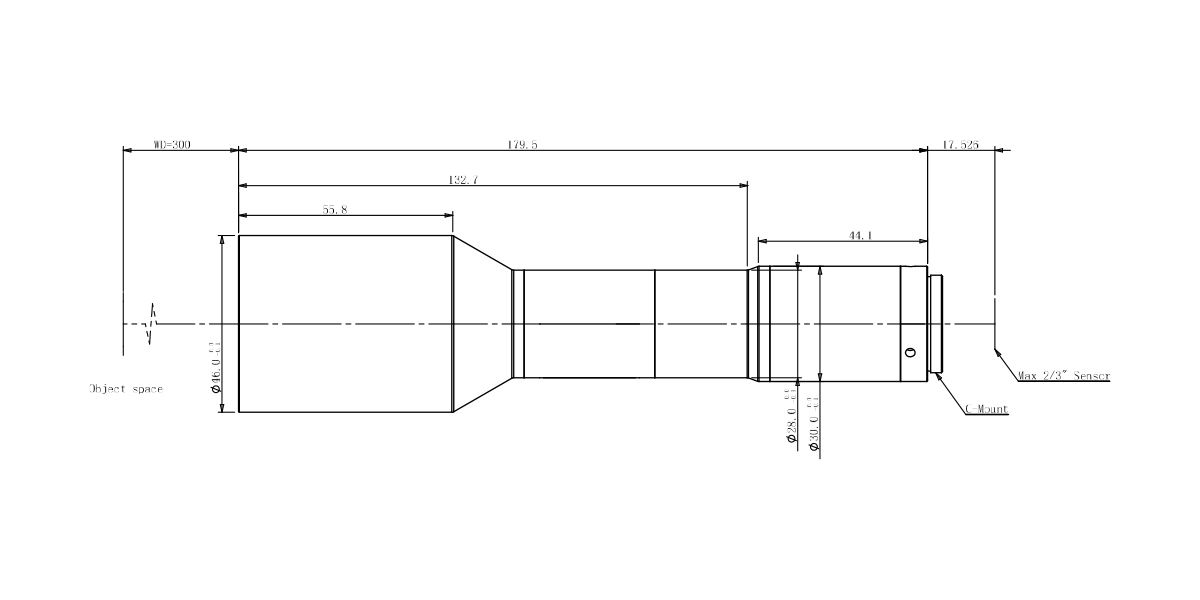

Dimensions

Naming Rule

  • Description

Model NO. WWH10-300AT-230V2 Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1.000 Working Distance(mm) 300±3
NA 0.0454 Type Telecentric
Mount C Best Aperture(f/#) 11
MTF30 (lp/mm) 90 Object Resolution(μm) 7.4
Depth of Field(mm) 0.9 Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 179.5
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.5
Filter Screw Size M43x0.5
Field of View (mm x mm)
1/2”(6.4x4.8) 6.4x4.8
1/1.8”(7.13x5.37) 7.13x5.37
2/3" (8.8x6.6) 8.8x6.6

Dimensions

Naming Rule
