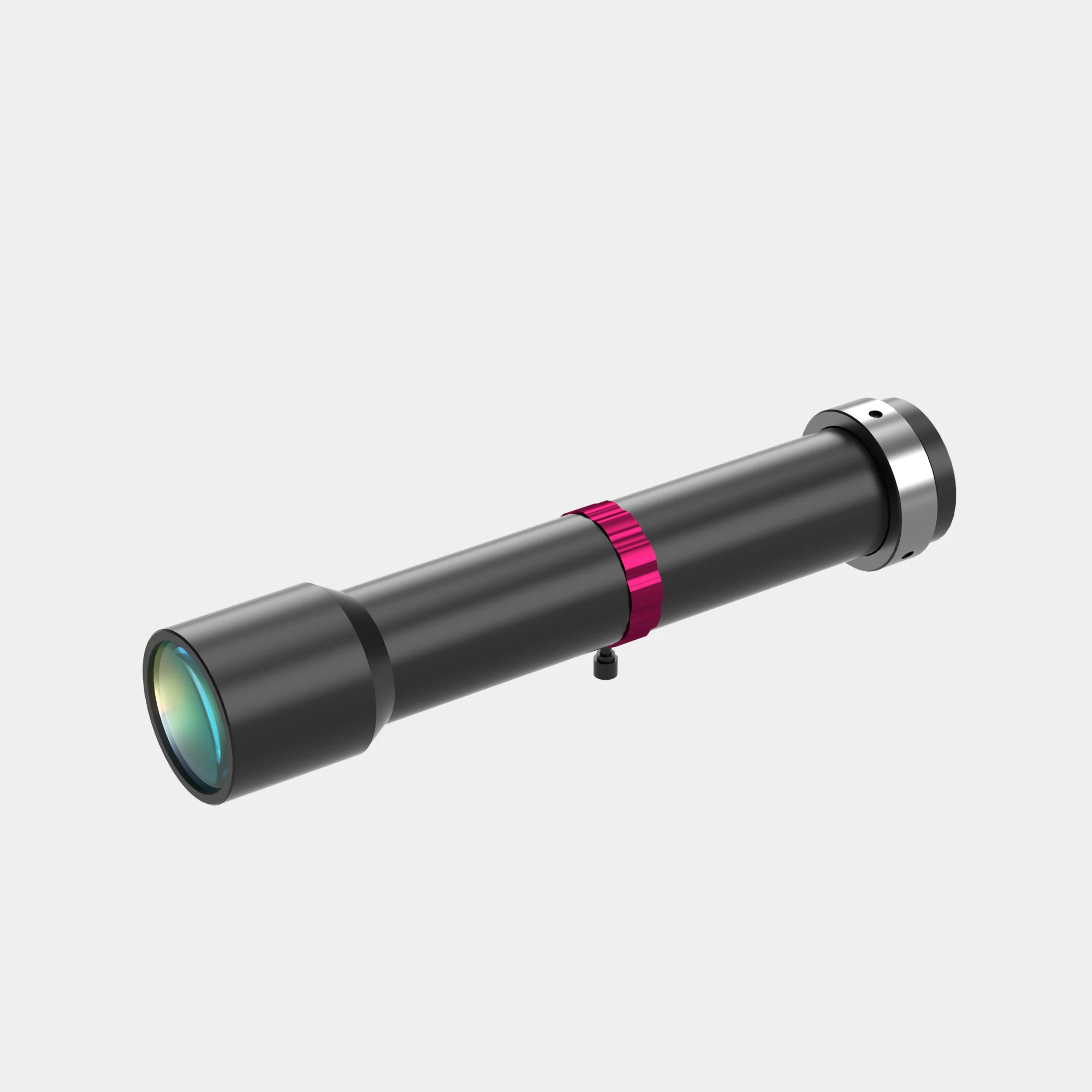

2/3" 1X Telecentric Lenses | WWH10-110AT-G COOLENS®

$468.00 USD
Shipping calculated at checkout.
Quantity
2/3" 1X Telecentric Lenses | WWH10-110AT-G COOLENS®-OKLAB

Description

Model NO. WWH10-110AT-G Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1.0 Working Distance(mm) 110
NA 0.047 Type Telecentric
Mount C Best Aperture(f/#) 10.7-Close
MTF30 (lp/mm) 73 Object Resolution(μm) 7.138
Depth of Field(mm) Adjustable Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 133.9
With Coaxial Illumination Port No Iris Adjustable Yes
Measured Depth of Field (mm) Adjustable Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2" (6.4x4.8) 6.4x4.8
1/1.8”(7.13x5.37) 7.13x5.37
2/3" (8.8x6.6) 8.8x6.6

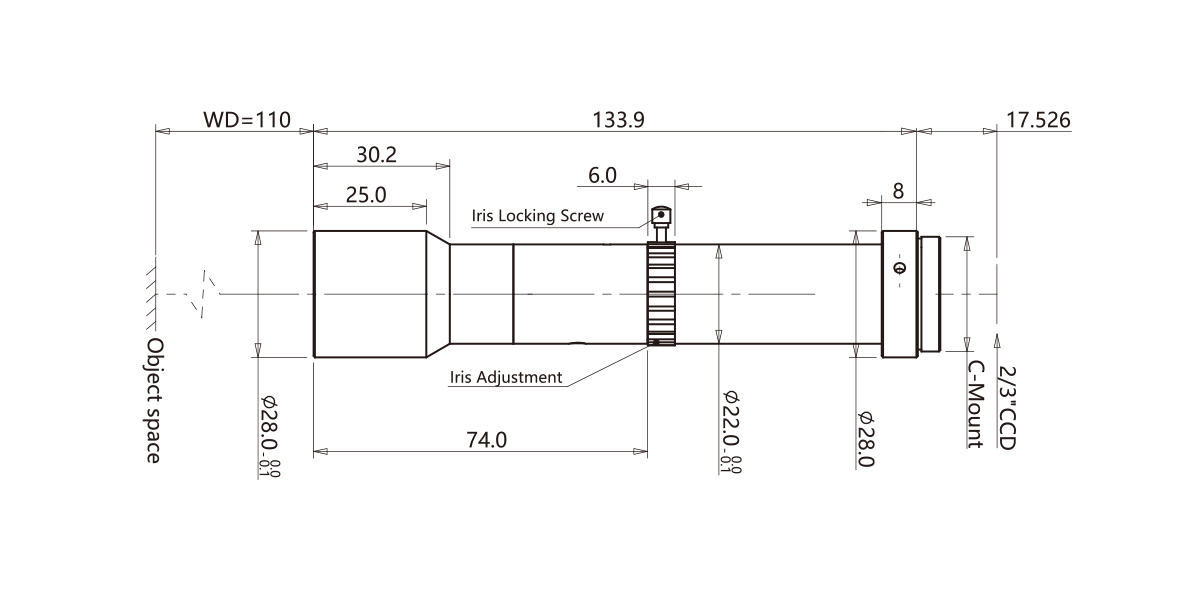

Dimensions

Naming Rule

  • Description

Model NO. WWH10-110AT-G Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1.0 Working Distance(mm) 110
NA 0.047 Type Telecentric
Mount C Best Aperture(f/#) 10.7-Close
MTF30 (lp/mm) 73 Object Resolution(μm) 7.138
Depth of Field(mm) Adjustable Distortion Typical(% max) <0.1
Telecentricity Typical (°max) <0.1 Length (mm) 133.9
With Coaxial Illumination Port No Iris Adjustable Yes
Measured Depth of Field (mm) Adjustable Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2" (6.4x4.8) 6.4x4.8
1/1.8”(7.13x5.37) 7.13x5.37
2/3" (8.8x6.6) 8.8x6.6

Dimensions

Naming Rule
