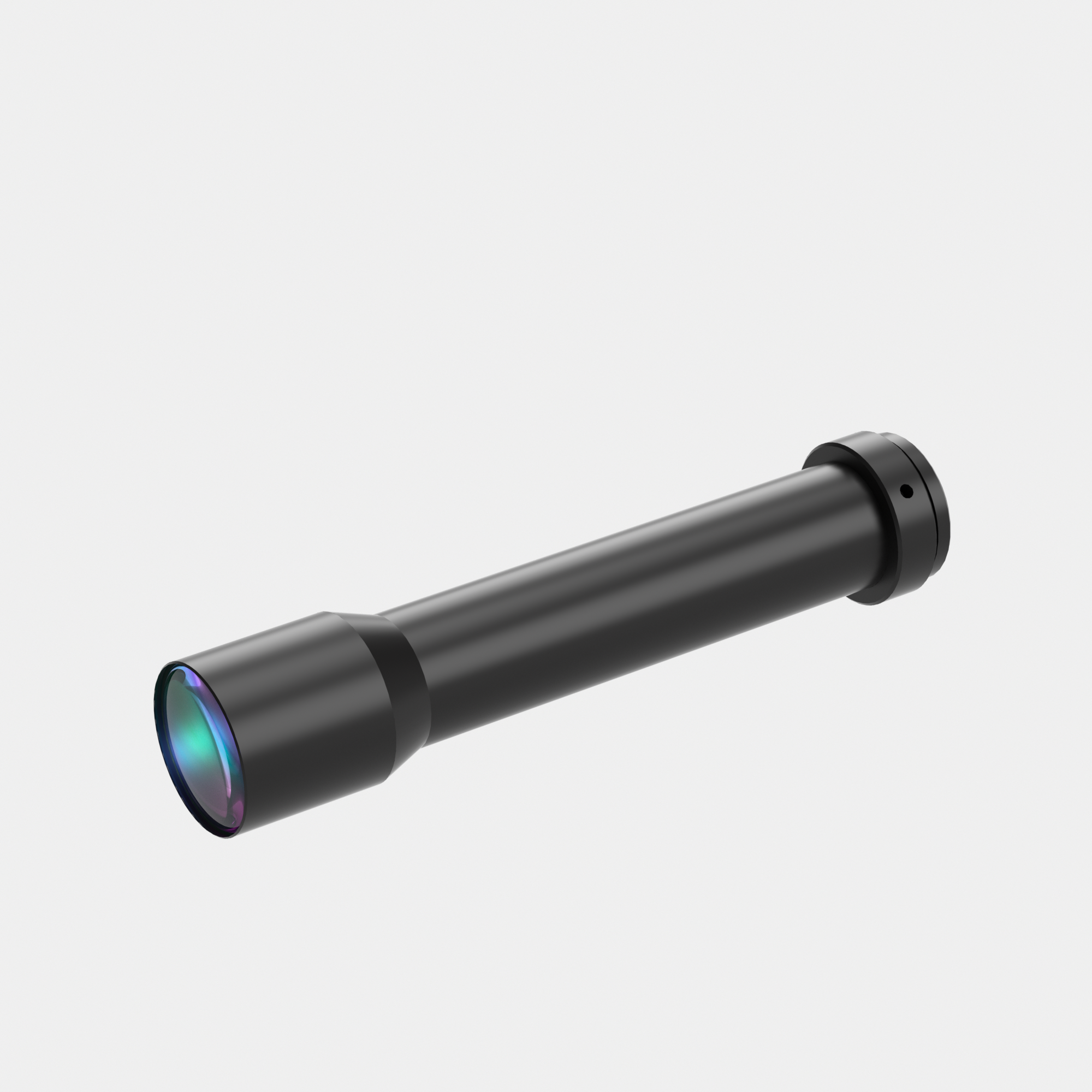

2/3" 1X Industrial Lenses | WH10-155A COOLENS®

$386.00 USD
Shipping calculated at checkout.
Quantity
2/3" 1X  Industrial Lenses | WH10-155A COOLENS®-OKLAB

Description

Model NO. WH10-155A Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1 Working Distance(mm) 155
NA 0.0271 Type Fixed Magnification
Mount C Best Aperture(f/#) 18
MTF30 (lp/mm) 52 Object Resolution(μm) 12.4
Depth of Field(mm) 1.4 Distortion Typical(% max) 1.8
Telecentricity Typical (°max) 0.1 Length (mm) 130.8
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.2
Filter Screw Size M25x0.5

Field of View (mm x mm)

1/2"(6.4×4.8) 6.4x4.8
1/1.8"(7.13×5.37) 7.13x5.37
2/3"(8.8×6.6) 8.8x6.6

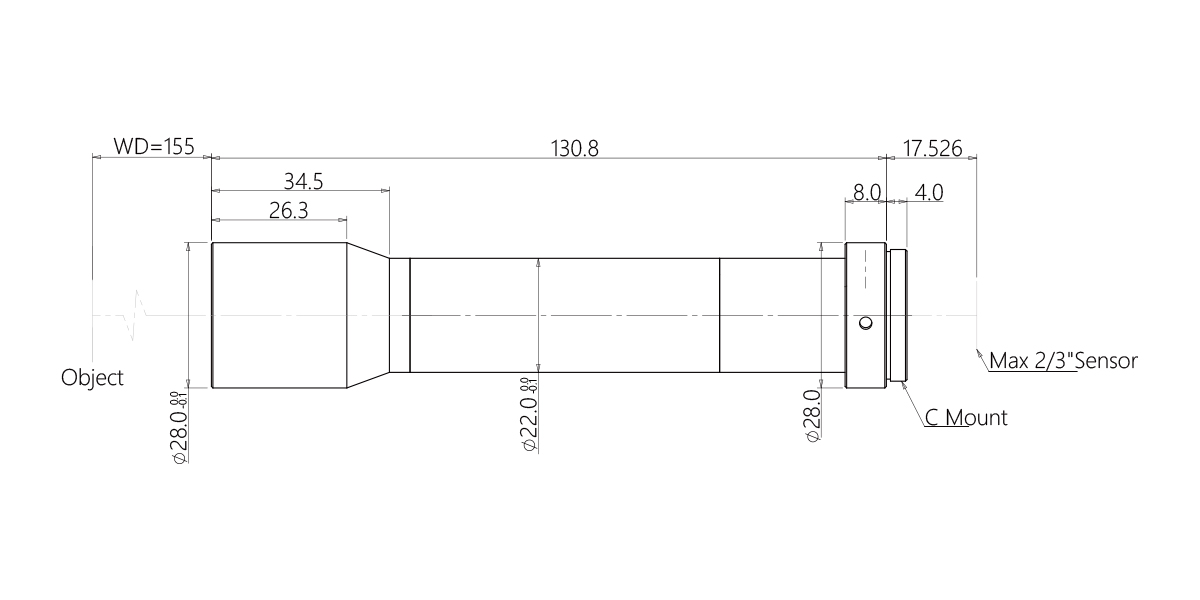

Dimensions

Naming Rule



  • Description

Model NO. WH10-155A Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 1 Working Distance(mm) 155
NA 0.0271 Type Fixed Magnification
Mount C Best Aperture(f/#) 18
MTF30 (lp/mm) 52 Object Resolution(μm) 12.4
Depth of Field(mm) 1.4 Distortion Typical(% max) 1.8
Telecentricity Typical (°max) 0.1 Length (mm) 130.8
With Coaxial Illumination Port No Measured Depth of Field (mm) 1.2
Filter Screw Size M25x0.5

Field of View (mm x mm)

1/2"(6.4×4.8) 6.4x4.8
1/1.8"(7.13×5.37) 7.13x5.37
2/3"(8.8×6.6) 8.8x6.6

Dimensions

Naming Rule
