Model NO. |
WWH100-65AT |
Image Circle Diameter (Φmm) |
11(2/3") |
Magnification(x) |
10.000 |
Working Distance(mm) |
63 |
NA |
0.1266 |
Type |
Telecentric |
Mount |
C |
Best Aperture(f/#) |
39 |
MTF30 (lp/mm) |
22 |
Object Resolution(μm) |
2.600 |
Depth of Field(mm) |
0.030 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
146.7 |
With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
0.08 |
Filter Screw Size |
/ |
Field of View (mm x mm) |
1/2”(6.4x4.8) |
0.64x0.48 |
1/1.8”(7.13x5.37) |
0.71x0.54 |
2/3" (8.8x6.6) |
0.85x0.71 |

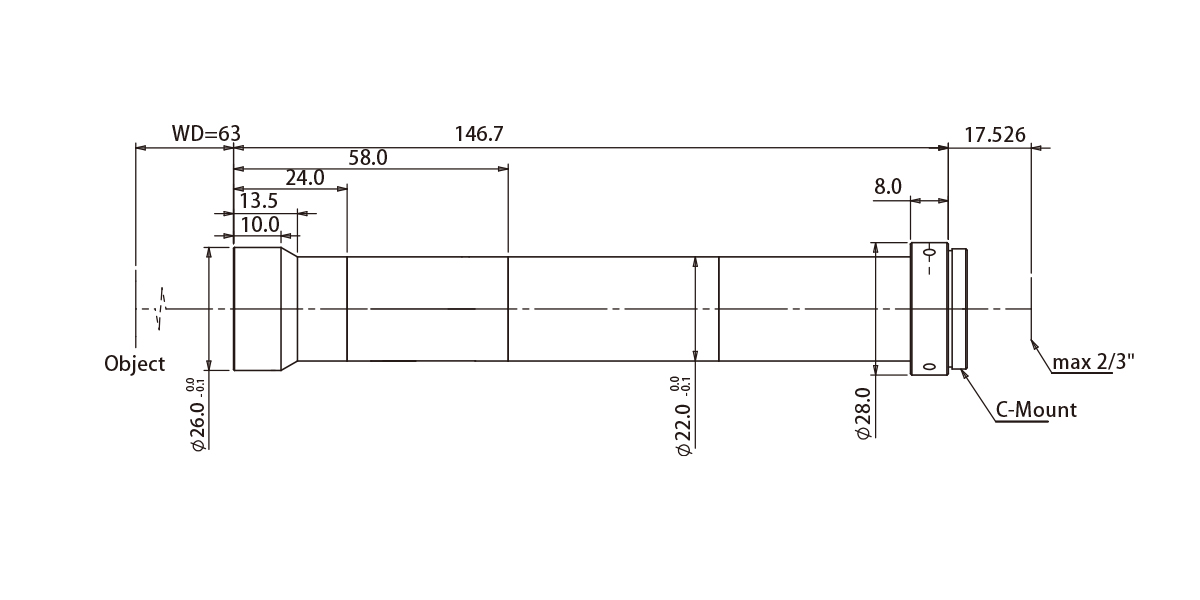

Dimensions
![]()
Naming Rule
![]()
