| Model NO. |
WWH15-65CT |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
1.500 |
Working Distance(mm) |
65 |
| NA |
0.0600 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
12.5 |
| MTF30 (lp/mm) |
65 |
Object Resolution(μm) |
5.592 |
| Depth of Field(mm) |
0.444 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
74.4 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.4 |
| Filter Screw Size |
M23x0.5 |
| Field of View (mm x mm) |
|
| 1/2”（6.4x4.8） |
4.3x3.2 |
| 1/1.8”（7.13x5.37） |
4.8x3.6 |
| 2/3" (8.8x6.6) |
5.9x4.4 |

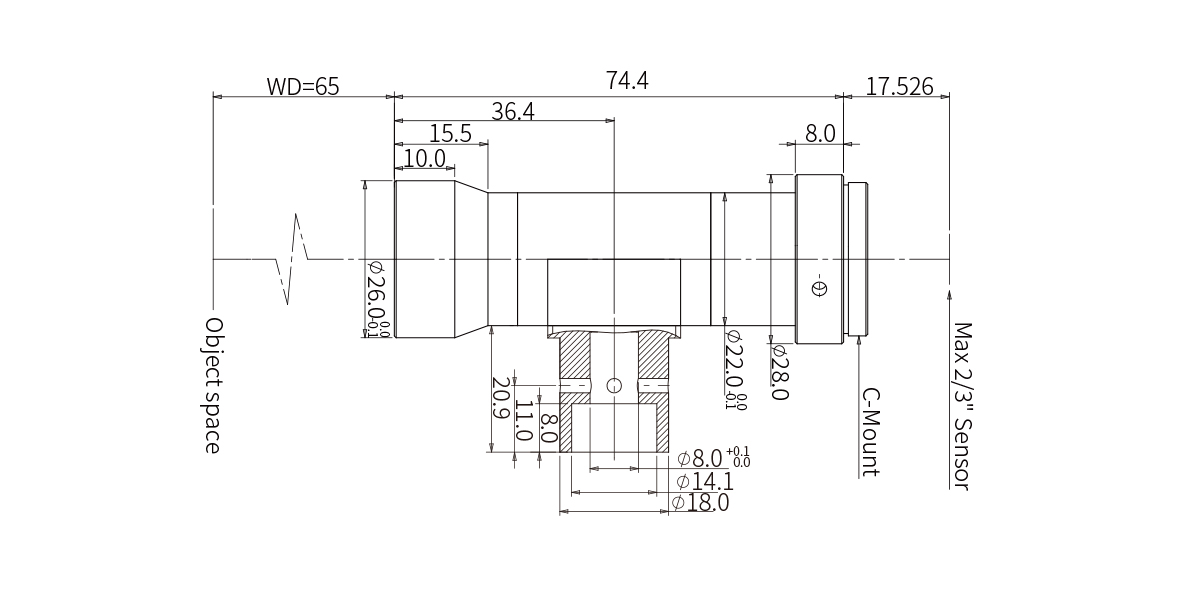

Dimensions
Naming Rule
