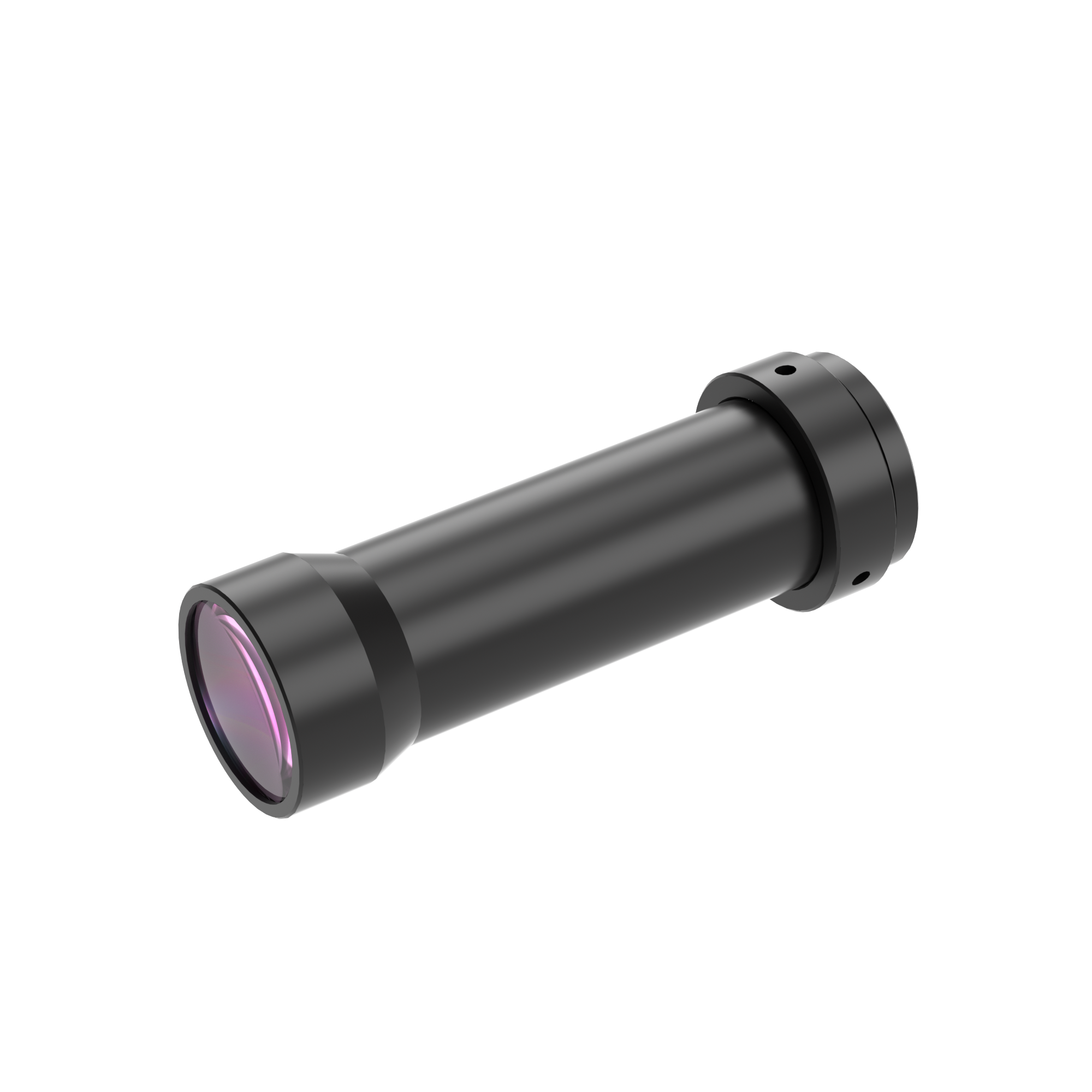

Model NO. |
WWH15-65AT |
Image Circle Diameter (Φmm) |
11(2/3") |
Magnification(x) |
1.500 |
Working Distance(mm) |
65 |
NA |
0.0600 |
Type |
Telecentric |
Mount |
C |
Best Aperture(f/#) |
12.5 |
MTF30 (lp/mm) |
65 |
Object Resolution(μm) |
5.592 |
Depth of Field(mm) |
0.444 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
74.4 |
With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
0.4 |
Filter Screw Size |
M23x0.5 |
Field of View (mm x mm) |
1/2”(6.4x4.8) |
4.3x3.2 |
1/1.8”(7.13x5.37) |
4.8x3.6 |
2/3" (8.8x6.6) |
5.9x4.4 |

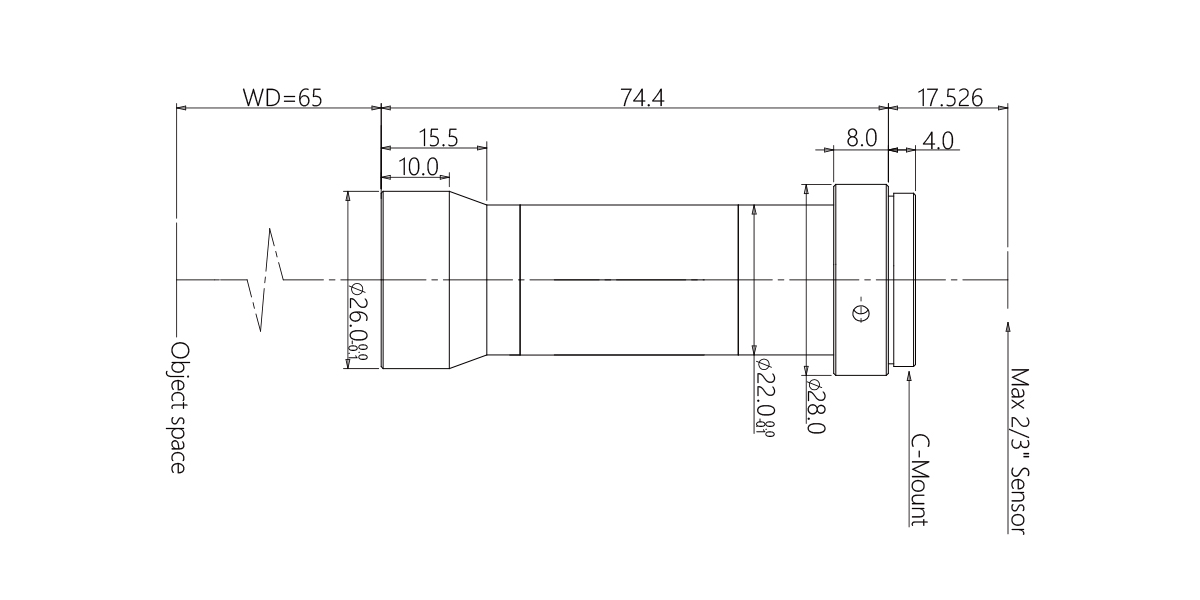

Dimensions
![]()
Naming Rule
![]()
