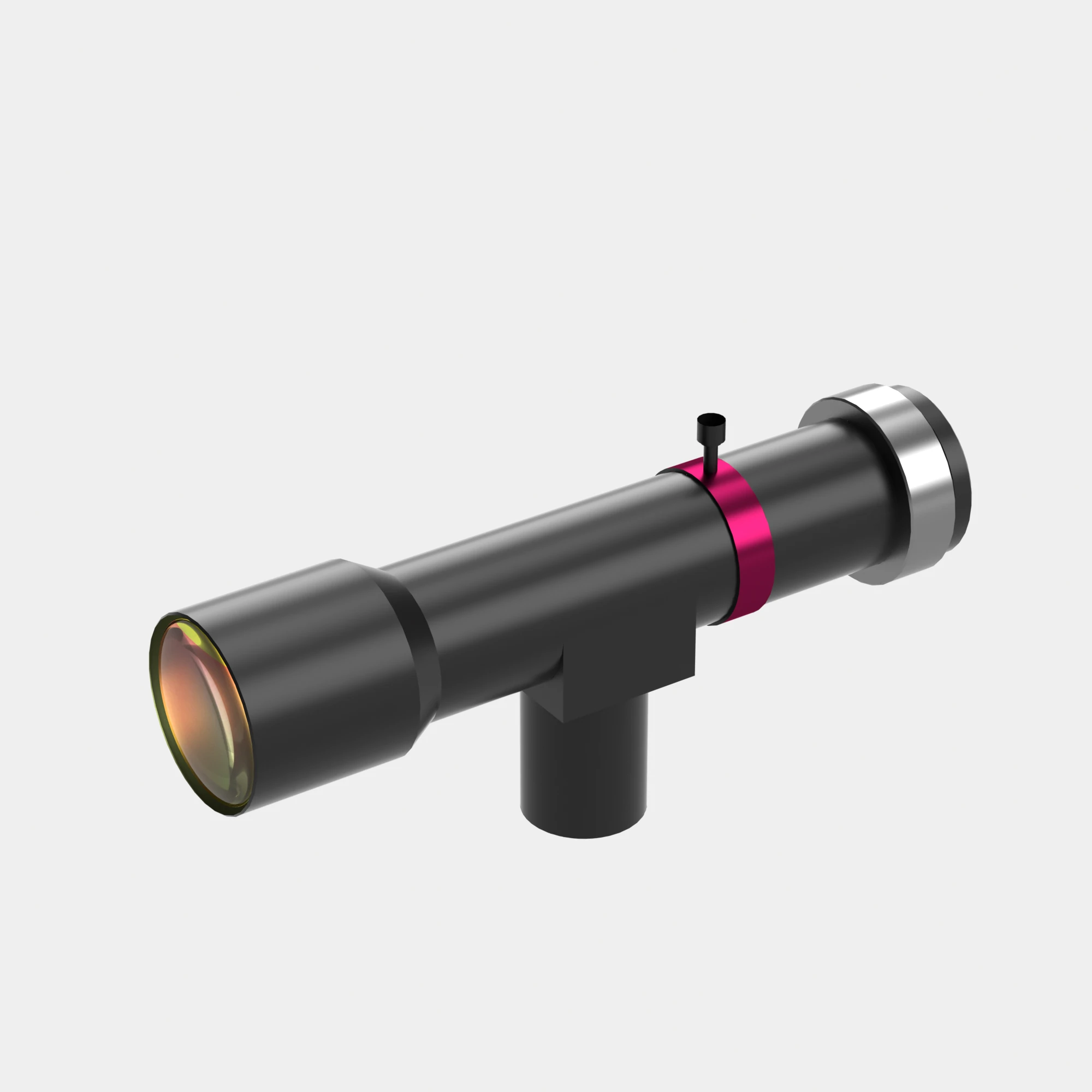

| Model NO. |
WWH07-145CT-G |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
0.7 |
Working Distance(mm) |
145 |
| NA |
0.0207 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
13.4-32 |
| MTF30 (lp/mm) |
55 |
Object Resolution(μm) |
16.208 |
| Depth of Field(mm) |
Adjustable |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
114.7 |
| With Coaxial Illumination Port |
Yes |
Iris Adjustable |
Yes |
| Measured Depth of Field (mm) |
Adjustable |
Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/2" (6.4x4.8) |
9.1x6.9 |
| 1/1.8" (7.13x5.37) |
10.2x7.7 |
| 2/3" (8.8x6.6) |
12.6x9.4 |

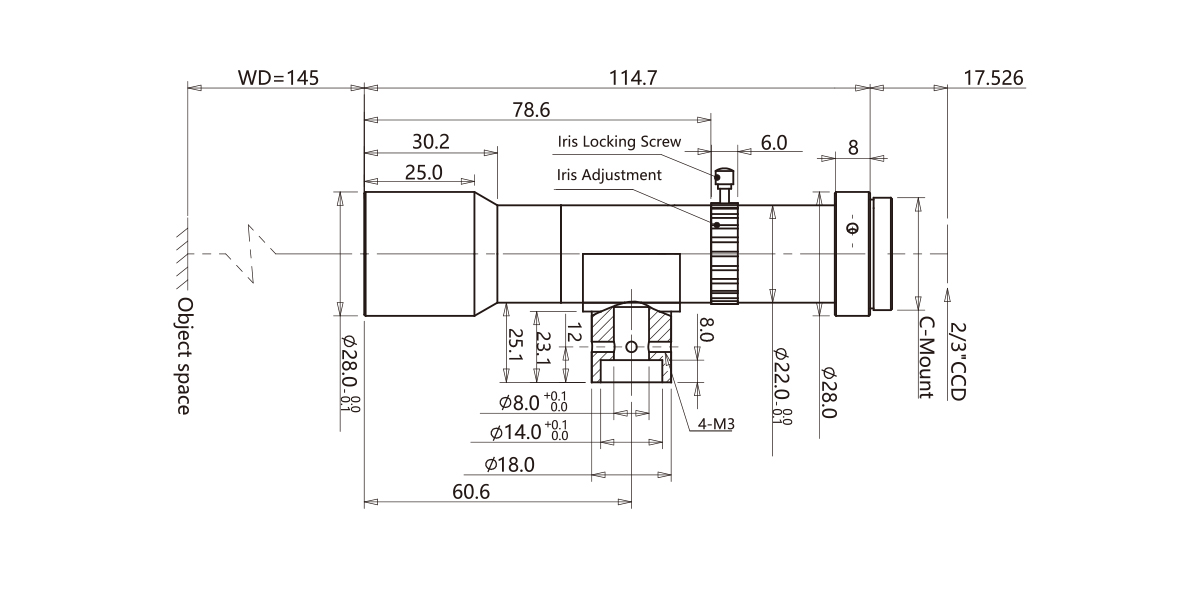

Dimensions
Naming Rule
