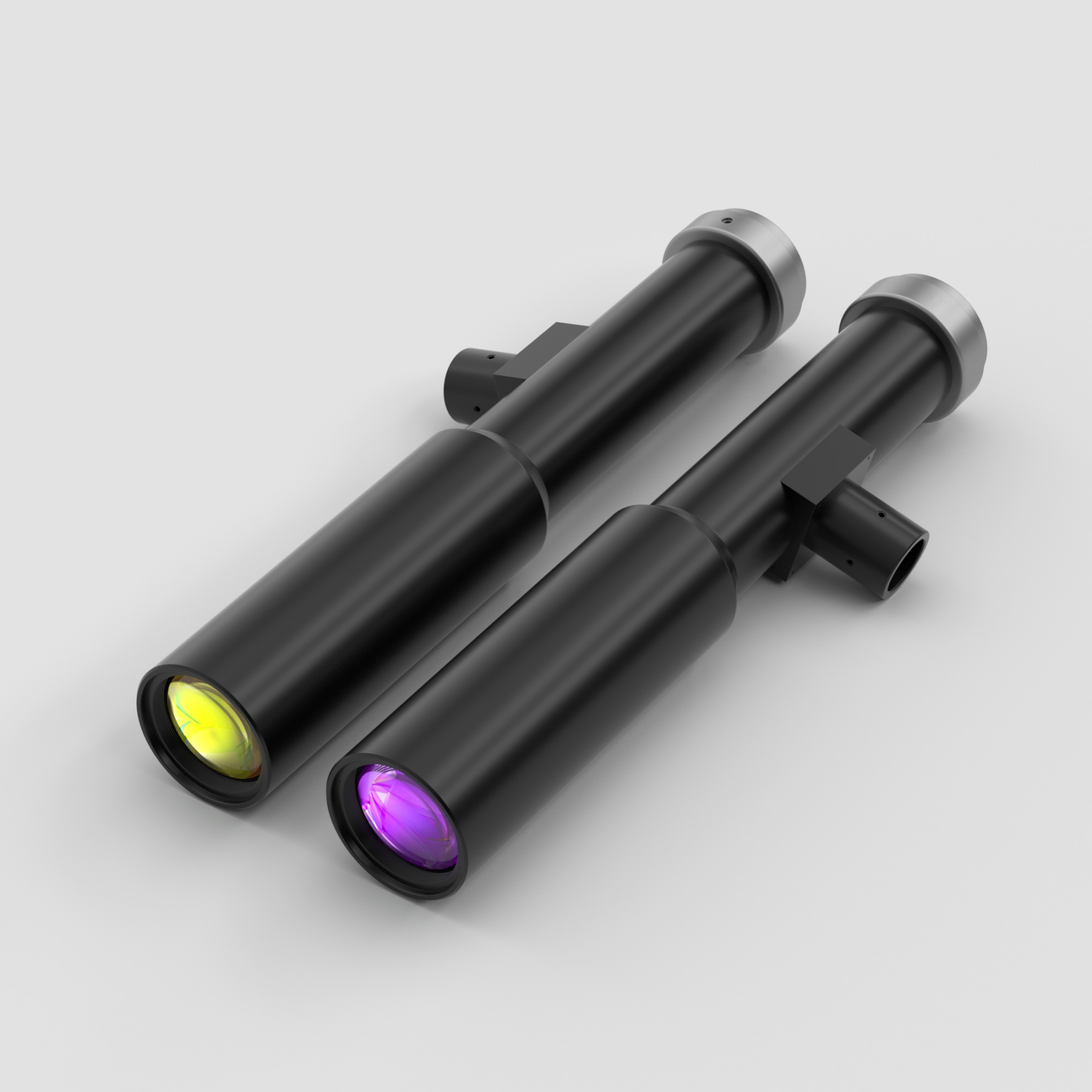

Model NO. |
WWH07-145CT |
Image Circle Diameter (Φmm) |
11(2/3") |
Magnification(x) |
0.7 |
Working Distance(mm) |
145 |
NA |
0.0207 |
Type |
Telecentric |
Mount |
C |
Best Aperture(f/#) |
16.8 |
MTF30 (lp/mm) |
55 |
Object Resolution(μm) |
16.208 |
Depth of Field(mm) |
2.743 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
114.7 |
With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
1.6 |
Filter Screw Size |
M25x0.5 |
Field of View (mm x mm) |
1/2" (6.4x4.8) |
9.1x6.9 |
1/1.8" (7.13x5.37) |
10.2x7.7 |
2/3" (8.8x6.6) |
12.6x9.4 |
