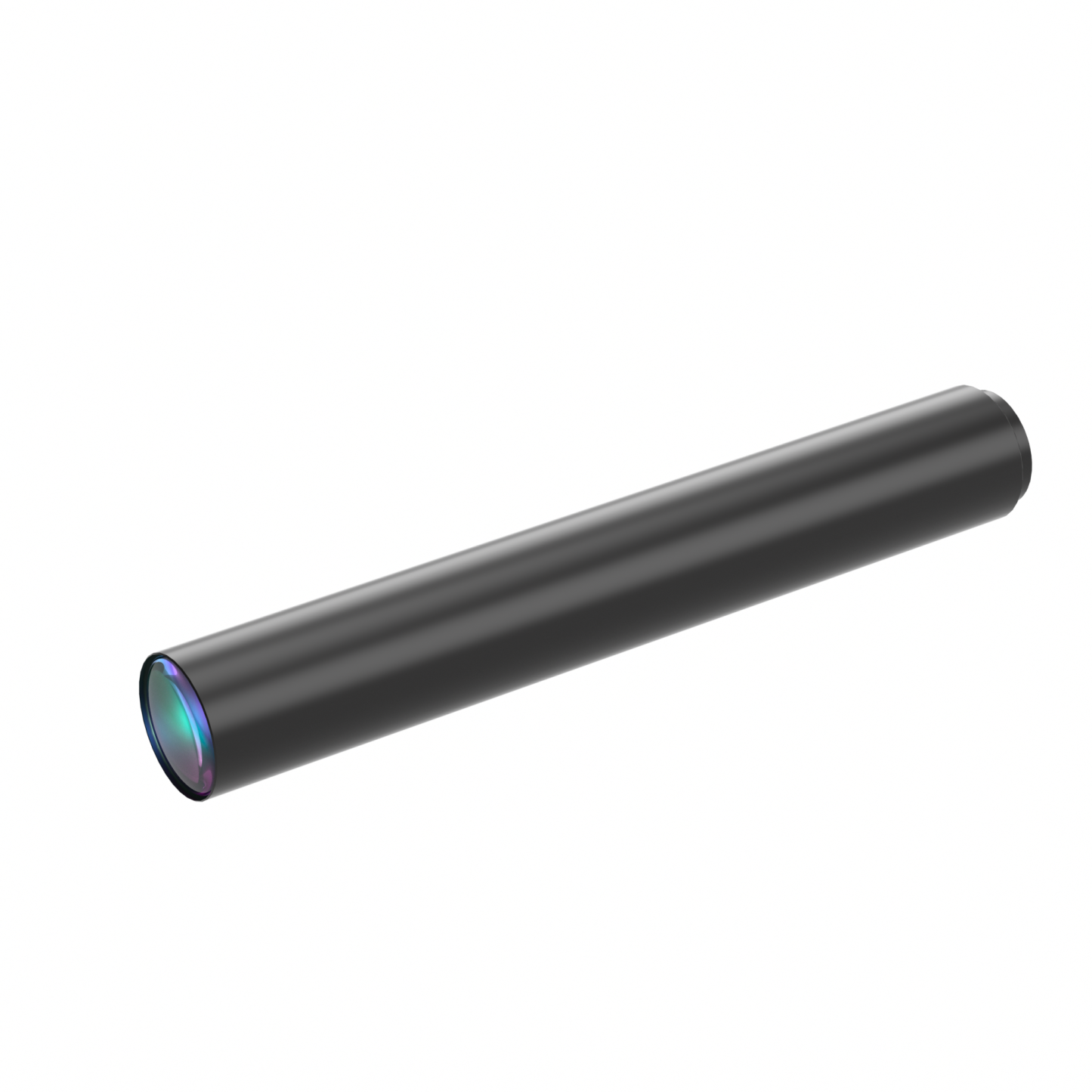

| Model NO. | WH06-300A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.6 | Working Distance(mm) | 300 | ||||
| NA | 0.0151 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 19.9 | ||||
| MTF30 (lp/mm) | 49 | Object Resolution(μm) | 22.3 | ||||
| Depth of Field(mm) | 4.4 | Distortion Typical(% max) | 1.8 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 197.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 10.7x8.0 | ||||||
| 1/1.8"(7.13x5.37) | 11.9x9.0 | ||||||
| 2/3"(8.8x6.6) | 14.7x11.0 | ||||||

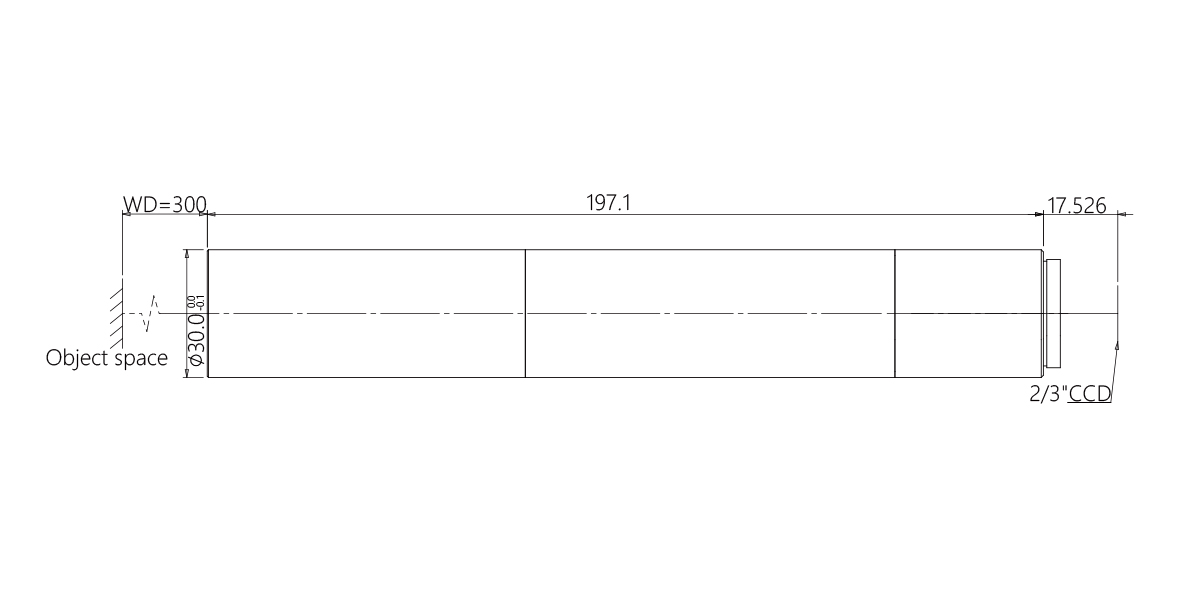

Dimensions
Naming Rule
