| Model NO. | WH044-240A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
| Magnification(x) | 0.44 | Working Distance(mm) | 240 | ||||
| NA | 0.0222 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10 | ||||
| MTF30 (lp/mm) | 85 | Object Resolution(μm) | 15.1 | ||||
| Depth of Field(mm) | 4.1 | Distortion Typical(% max) | 0.1 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 144.8 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 3.6 | ||||
| Filter Screw Size | M25x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/2"(6.4x4.8) | 14.5x10.9 | ||||||
| 1/1.8"(7.13x5.37) | 16.2x12.2 | ||||||
| 2/3"(8.8x6.6) | 20.0x15.0 | ||||||

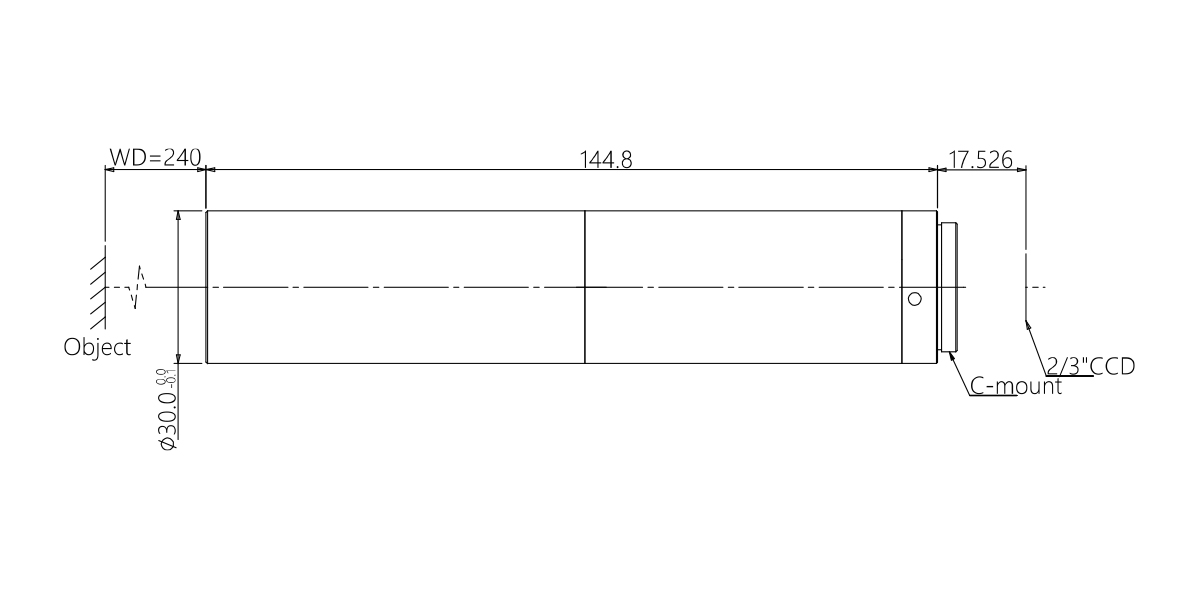

Dimensions
Naming Rule
