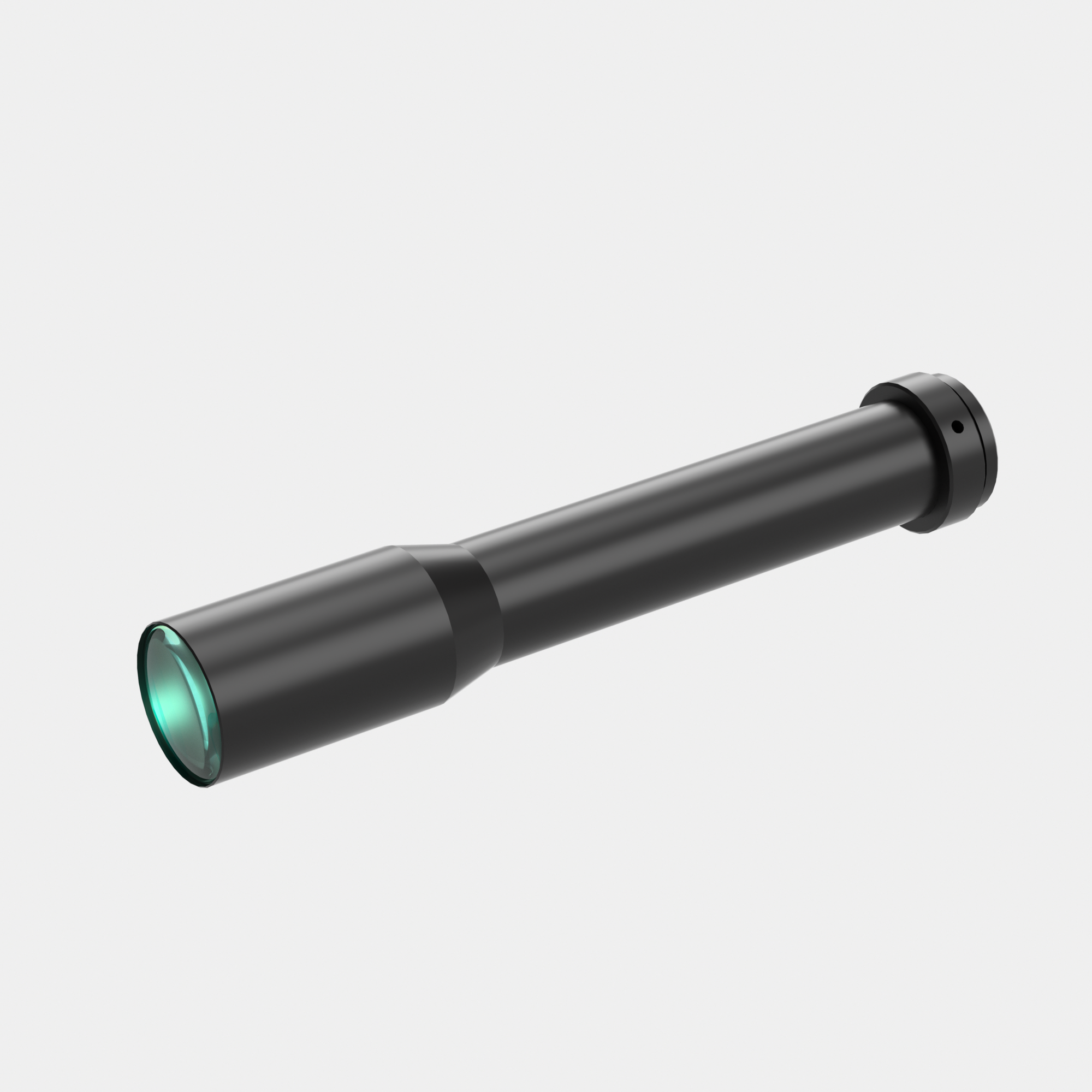

2/3" 0.3X Industrial Lenses | WH03-450AIR COOLENS®

$429.00 USD
Shipping calculated at checkout.
Quantity
2/3" 0.3X  Industrial Lenses | WH03-450AIR COOLENS®-OKLAB

Description

Model NO. WH03-450AIR Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.3 Working Distance(mm) 450
NA 0.0164 Type Fixed Magnification
Mount C Best Aperture(f/#) 9.2
MTF30 (lp/mm) 70 Object Resolution(μm) 31.6
Depth of Field(mm) 8.2 Distortion Typical(% max) 0.15
Telecentricity Typical (°max) Non-telecentric Length (mm) 155.1
With Coaxial Illumination Port No Measured Depth of Field (mm) 3
Filter Screw Size M25x0.5

Field of View (mm x mm)

1/2"(6.4x4.8) 21.3x16.0
1/1.8"(7.13x5.37) 23.8x17.9
2/3"(8.8x6.6) 29.3x22.0

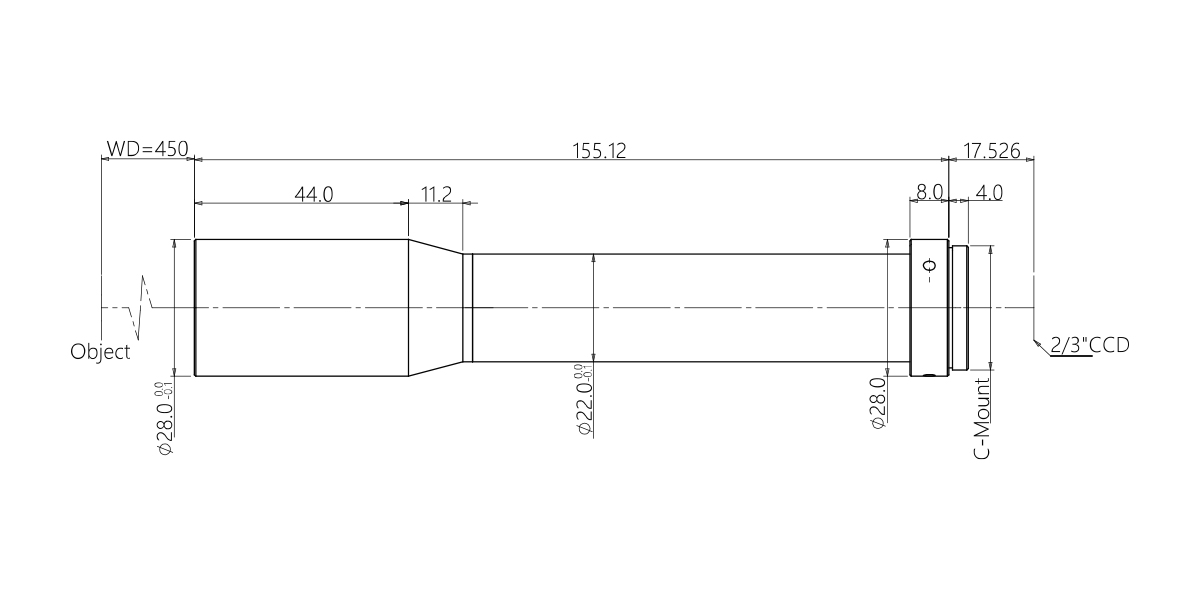

Dimensions

Naming Rule



  • Description

Model NO. WH03-450AIR Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.3 Working Distance(mm) 450
NA 0.0164 Type Fixed Magnification
Mount C Best Aperture(f/#) 9.2
MTF30 (lp/mm) 70 Object Resolution(μm) 31.6
Depth of Field(mm) 8.2 Distortion Typical(% max) 0.15
Telecentricity Typical (°max) Non-telecentric Length (mm) 155.1
With Coaxial Illumination Port No Measured Depth of Field (mm) 3
Filter Screw Size M25x0.5

Field of View (mm x mm)

1/2"(6.4x4.8) 21.3x16.0
1/1.8"(7.13x5.37) 23.8x17.9
2/3"(8.8x6.6) 29.3x22.0

Dimensions

Naming Rule
