Model NO. | WH03-270A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.3 | Working Distance(mm) | 270 | ||||
NA | 0.0196 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 7.7 | ||||
MTF30 (lp/mm) | 90 | Object Resolution(μm) | 17.1 | ||||
Depth of Field(mm) | 6.8 | Distortion Typical(% max) | 0.02 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 132.9 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 2.8 | ||||
Filter Screw Size | M25x0.5 |

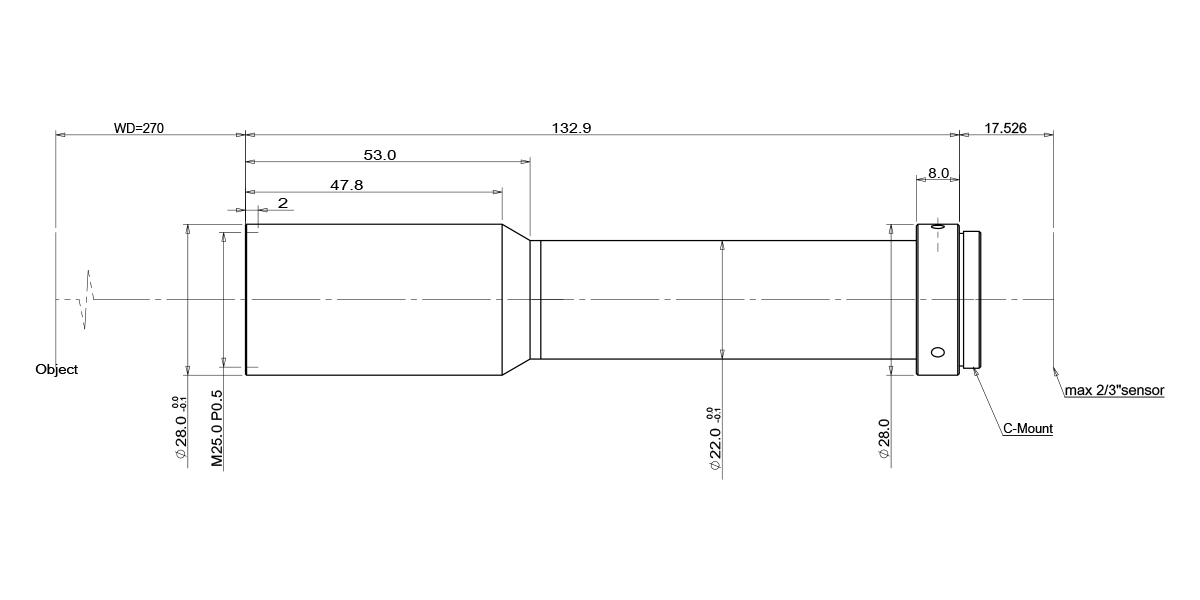

Dimensions
Naming Rule
