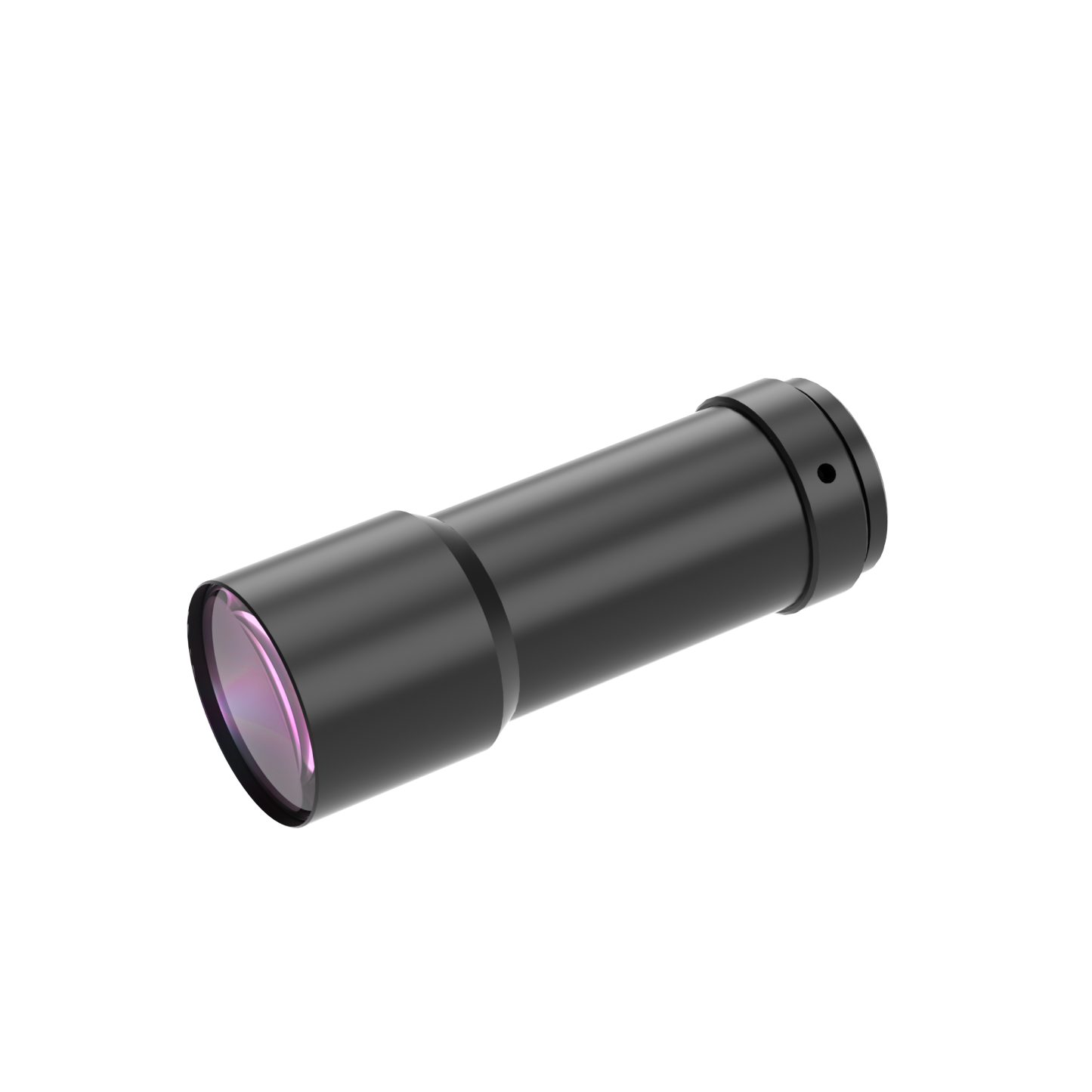

2/3" 0.38X Industrial Lenses | WH038-120A COOLENS®

$386.00 USD
Shipping calculated at checkout.
Quantity
2/3" 0.38X  Industrial Lenses | WH038-120A COOLENS®-OKLAB

Description

Model NO. WH038-120A Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.38 Working Distance(mm) 120
NA 0.0171 Type Fixed Magnification
Mount C Best Aperture(f/#) 11.6
MTF30 (lp/mm) 60 Object Resolution(μm) 19.7
Depth of Field(mm) 6.4 Distortion Typical(% max) 0.7
Telecentricity Typical (°max) Non-telecentric Length (mm) 76.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 7
Filter Screw Size M25x0.5

Field of View (mm x mm)

1/2"(6.4x4.8) 16.8x12.6
1/1.8"(7.13x5.37) 18.8x14.1
2/3"(8.8x6.6) 23.2x17.4

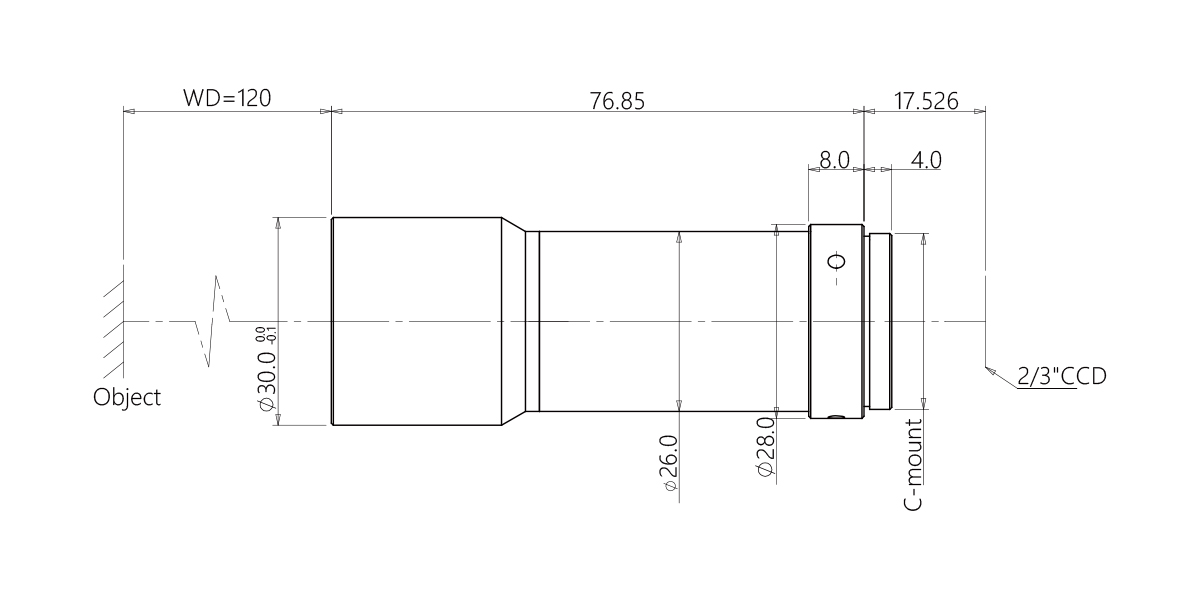

Dimensions

Naming Rule



  • Description

Model NO. WH038-120A Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.38 Working Distance(mm) 120
NA 0.0171 Type Fixed Magnification
Mount C Best Aperture(f/#) 11.6
MTF30 (lp/mm) 60 Object Resolution(μm) 19.7
Depth of Field(mm) 6.4 Distortion Typical(% max) 0.7
Telecentricity Typical (°max) Non-telecentric Length (mm) 76.9
With Coaxial Illumination Port No Measured Depth of Field (mm) 7
Filter Screw Size M25x0.5

Field of View (mm x mm)

1/2"(6.4x4.8) 16.8x12.6
1/1.8"(7.13x5.37) 18.8x14.1
2/3"(8.8x6.6) 23.2x17.4

Dimensions

Naming Rule
