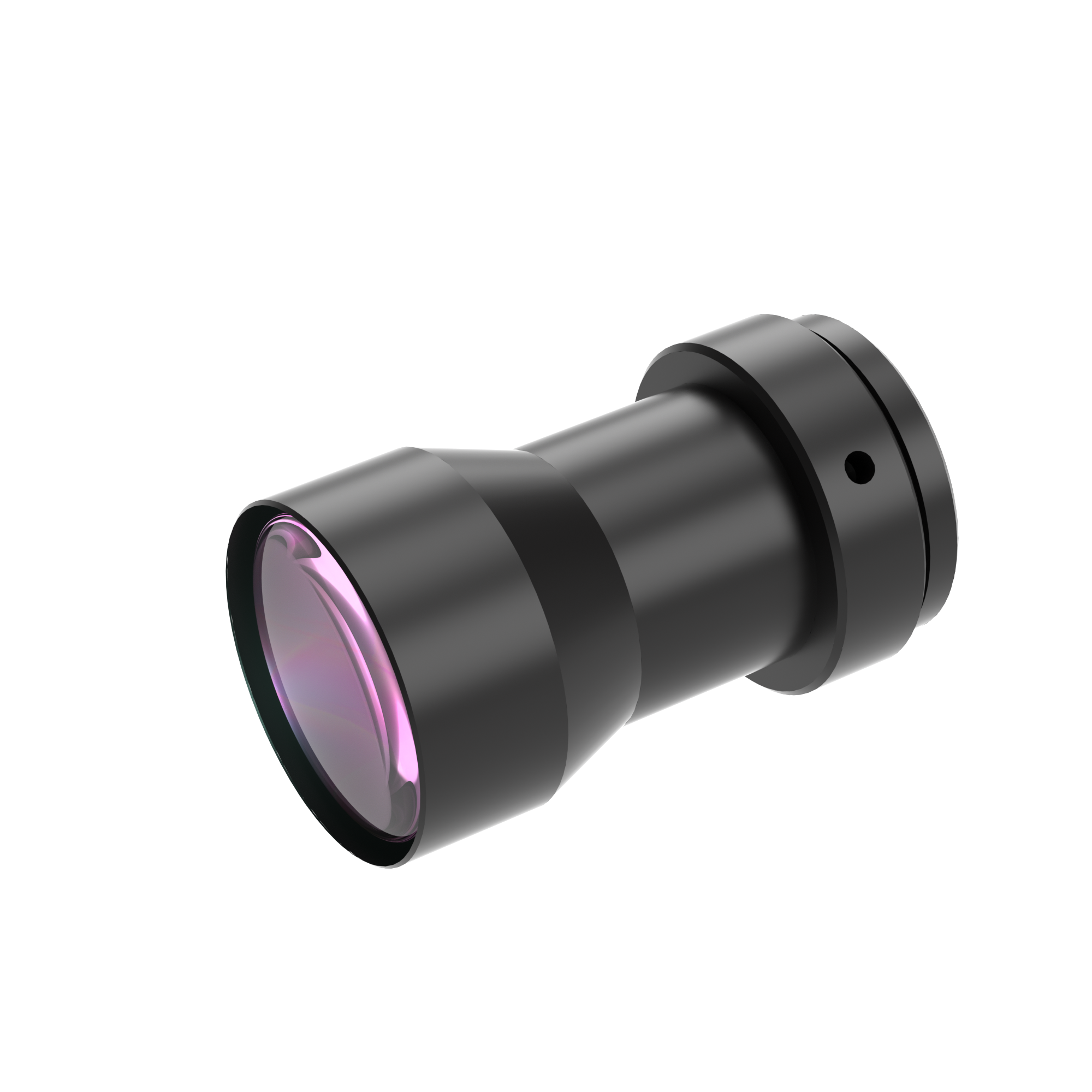

Model NO. | WH027-120A | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.27 | Working Distance(mm) | 120 | ||||
NA | 0.0094 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 14.3 | ||||
MTF30 (lp/mm) | 60 | Object Resolution(μm) | 35.7 | ||||
Depth of Field(mm) | 15.7 | Distortion Typical(% max) | 0.9 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 43.7 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 7 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4x4.8) | 23.7x17.8 | ||||||
1/1.8"(7.13x5.37) | 26.4x19.9 | ||||||
2/3"(8.8x6.6) | 32.6x24.4 |

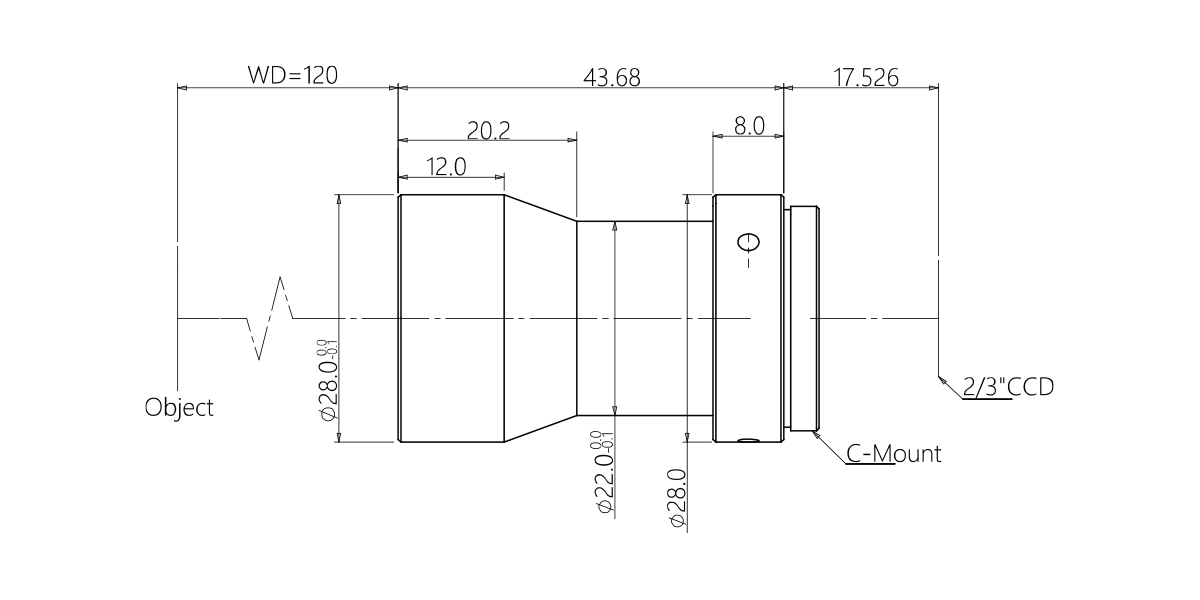

Dimensions
Naming Rule
