Model NO. | WH022-650A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.22 | Working Distance(mm) | 650 | ||||
NA | 0.011 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 10 | ||||
MTF30 (lp/mm) | 77 | Object Resolution(μm) | 30.5 | ||||
Depth of Field(mm) | 16.5 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 171.1 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | / | ||||
Filter Screw Size | / | ||||||
Field of View (mm x mm) | |||||||
2/3"IMX250/264(8.45x7.1) | 38.4x32.3 |

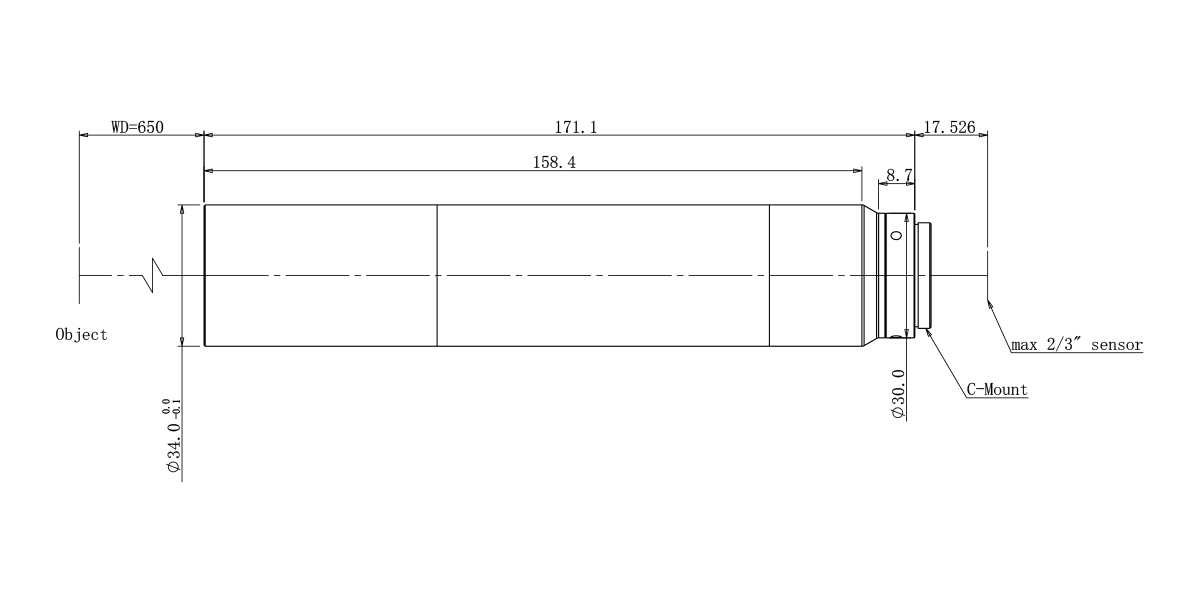

Dimensions
Naming Rule
