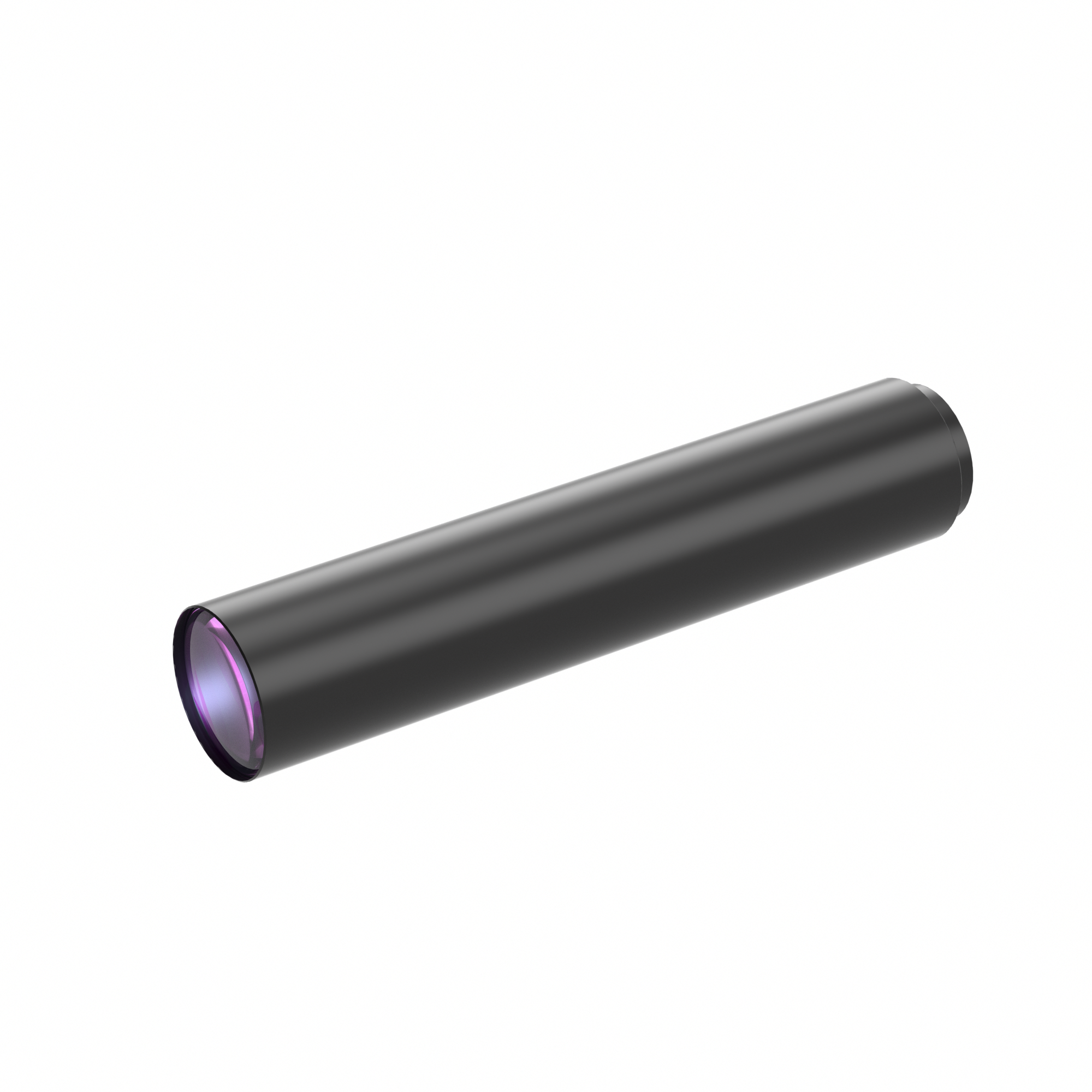

2/3" 0.22X Industrial Lenses | WH022-580A COOLENS®

$386.00 USD
Shipping calculated at checkout.
Quantity
2/3" 0.22X  Industrial Lenses | WH022-580A COOLENS®-OKLAB

Description

Model NO. WH022-580A Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.22 Working Distance(mm) 580
NA 0.0088 Type Fixed Magnification
Mount C Best Aperture(f/#) 12.5
MTF30 (lp/mm) 75 Object Resolution(μm) 38.1
Depth of Field(mm) 20.7 Distortion Typical(% max) 0.15
Telecentricity Typical (°max) Non-telecentric Length (mm) 142.5
With Coaxial Illumination Port No Measured Depth of Field (mm) 7
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2"(6.4x4.8) 29.1x21.8
1/1.8"(7.13x5.37) 32.4x24.4
2/3"(8.8x6.6) 40.0x30.0

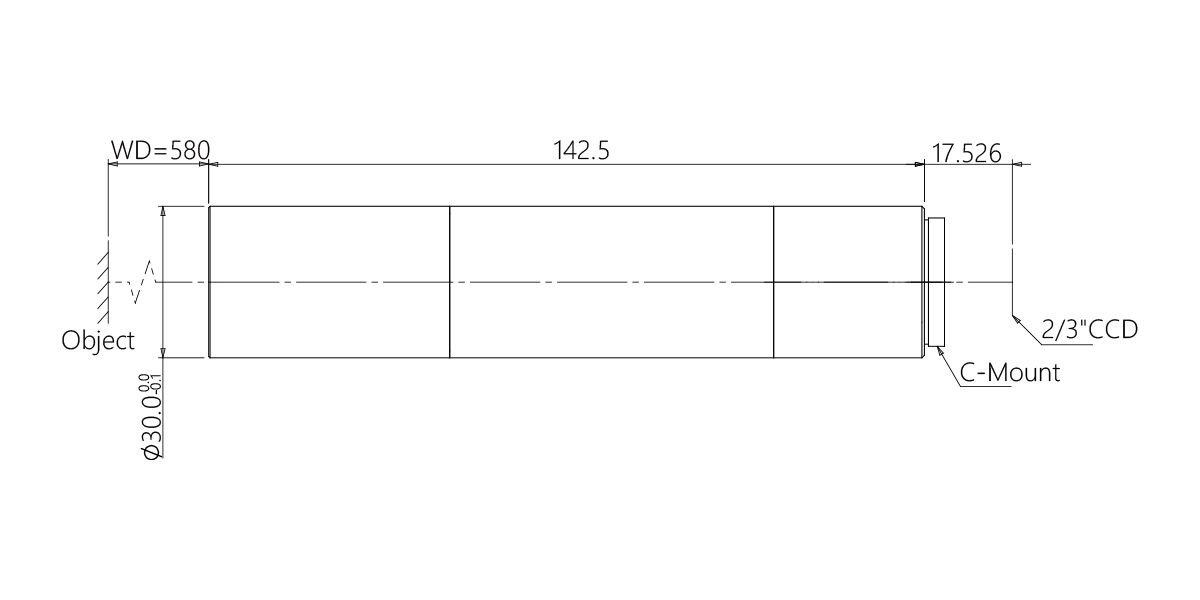

Dimensions

Naming Rule



  • Description

Model NO. WH022-580A Image Circle Diameter (Φmm) 11(2/3")
Magnification(x) 0.22 Working Distance(mm) 580
NA 0.0088 Type Fixed Magnification
Mount C Best Aperture(f/#) 12.5
MTF30 (lp/mm) 75 Object Resolution(μm) 38.1
Depth of Field(mm) 20.7 Distortion Typical(% max) 0.15
Telecentricity Typical (°max) Non-telecentric Length (mm) 142.5
With Coaxial Illumination Port No Measured Depth of Field (mm) 7
Filter Screw Size M25x0.5
Field of View (mm x mm)
1/2"(6.4x4.8) 29.1x21.8
1/1.8"(7.13x5.37) 32.4x24.4
2/3"(8.8x6.6) 40.0x30.0

Dimensions

Naming Rule
