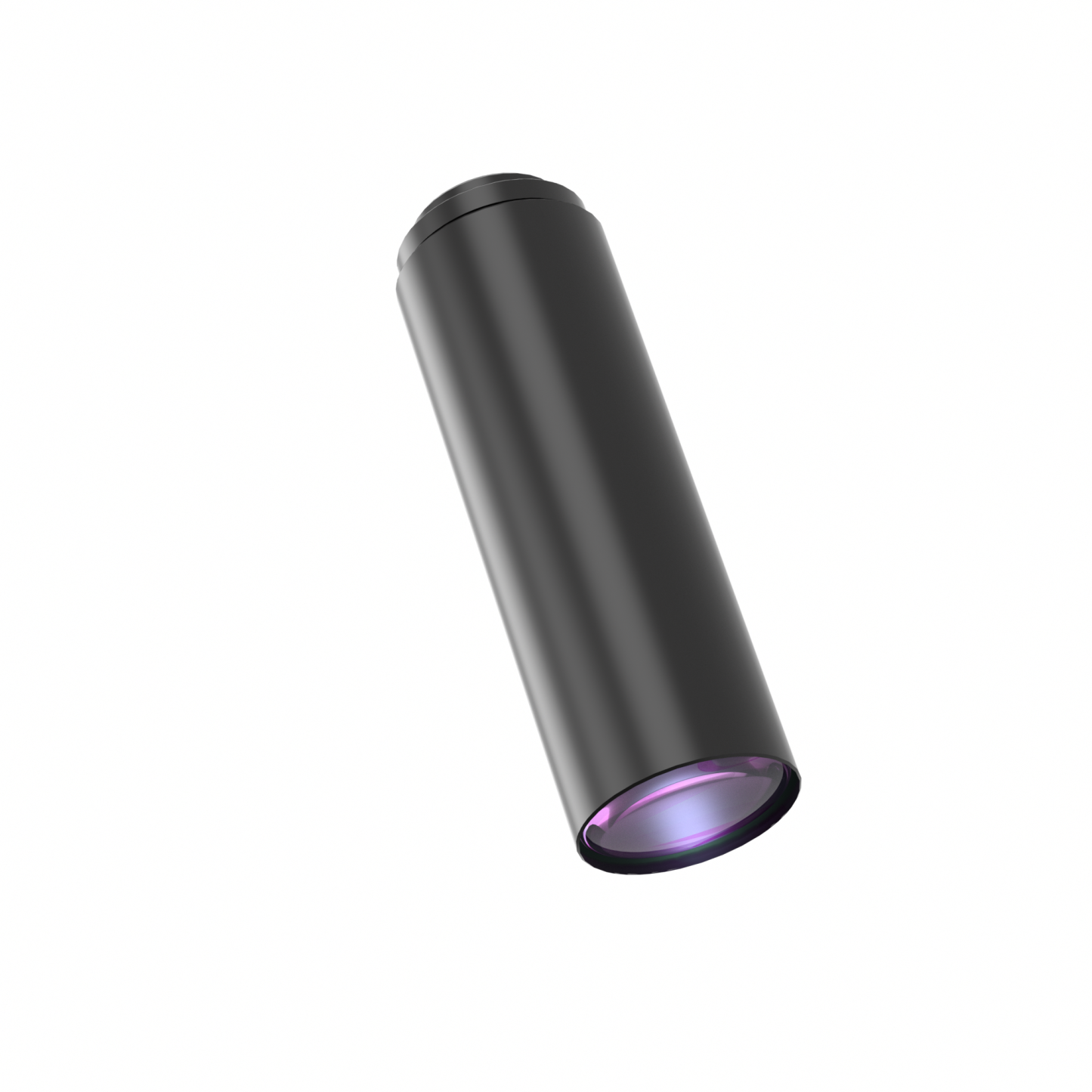

Model NO. | WH021-520AIR | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.21 | Working Distance(mm) | 520 | ||||
NA | 0.0072 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 14.5 | ||||
MTF30 (lp/mm) | 43 | Object Resolution(μm) | 72.3 | ||||
Depth of Field(mm) | 26.3 | Distortion Typical(% max) | 1 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 82.2 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 18 | ||||
Filter Screw Size | M25x0.5 | ||||||
Field of View (mm x mm) | |||||||
2/3"(8.45x7.1) | 40.2x33.8 |

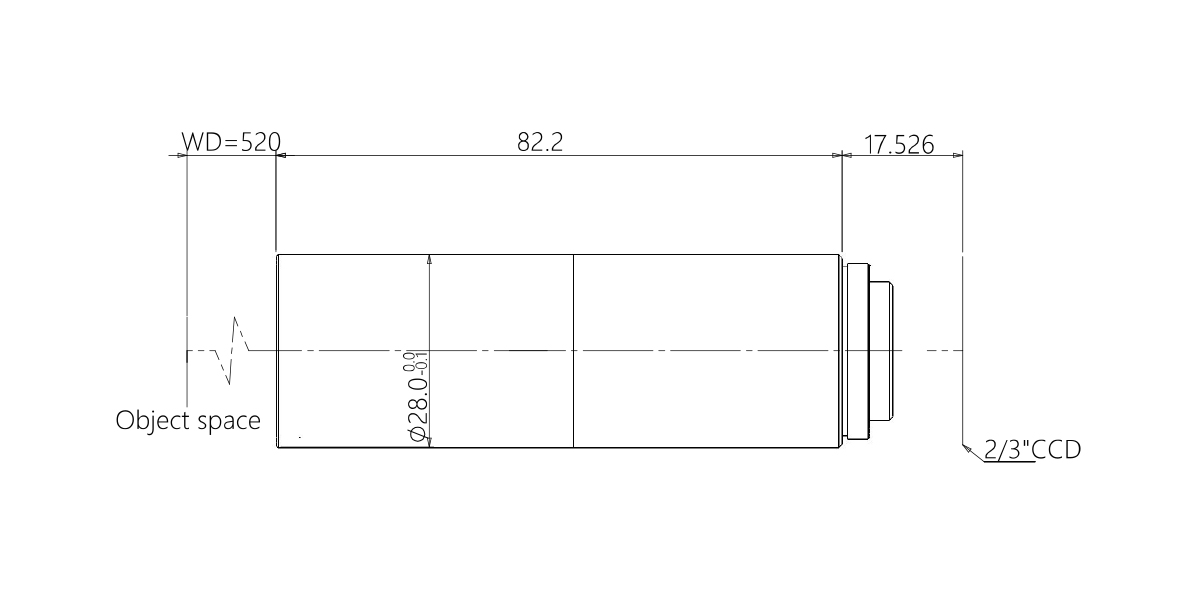

Dimensions
Naming Rule
