Model NO. | WH018-750A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.18 | Working Distance(mm) | 750 | ||||
NA | 0.009 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 10 | ||||
MTF30 (lp/mm) | 90 | Object Resolution(μm) | 37.3 | ||||
Depth of Field(mm) | 24.7 | Distortion Typical(% max) | 0.05 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 162.2 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 10 | ||||
Filter Screw Size | M30x0.5 | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4x4.8) | 35.6x26.7 | ||||||
1/1.8"(7.13x5.37) | 39.6x29.8 | ||||||
2/3"(8.8x6.6) | 48.9x36.7 |

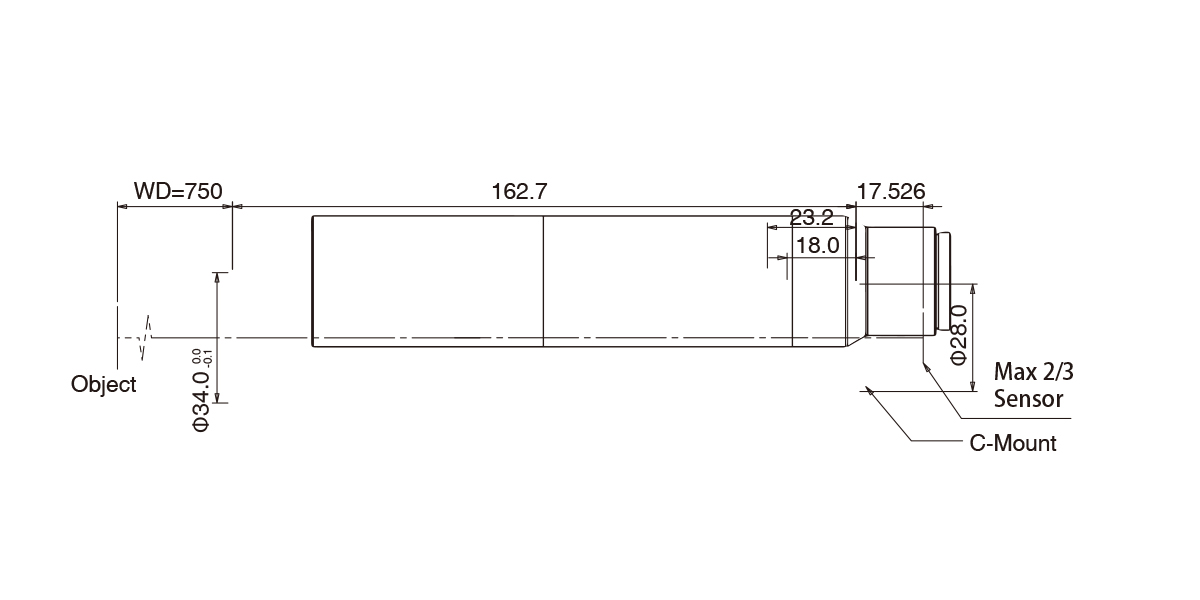

Dimensions
Naming Rule
