Model NO. | WH018-550A-230 | Image Circle Diameter (Φmm) | 11(2/3") | ||||
Magnification(x) | 0.18 | Working Distance(mm) | 550 | ||||
NA | 0.0090 | Type | Fixed Magnification | ||||
Mount | C | Best Aperture(f/#) | 10 | ||||
MTF30 (lp/mm) | 80 | Object Resolution(μm) | 37.4 | ||||
Depth of Field(mm) | 24.7 | Distortion Typical(% max) | 0.1 | ||||
Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 120.8 | ||||
With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 13 | ||||
Filter Screw Size | / | ||||||
Field of View (mm x mm) | |||||||
1/2"(6.4x4.8) | 35.6x26.7 | ||||||
1/1.8"(7.13×5.37) | 39.6×29.8 | ||||||
2/3"(8.45×7.1) | 46.9×39.4 |

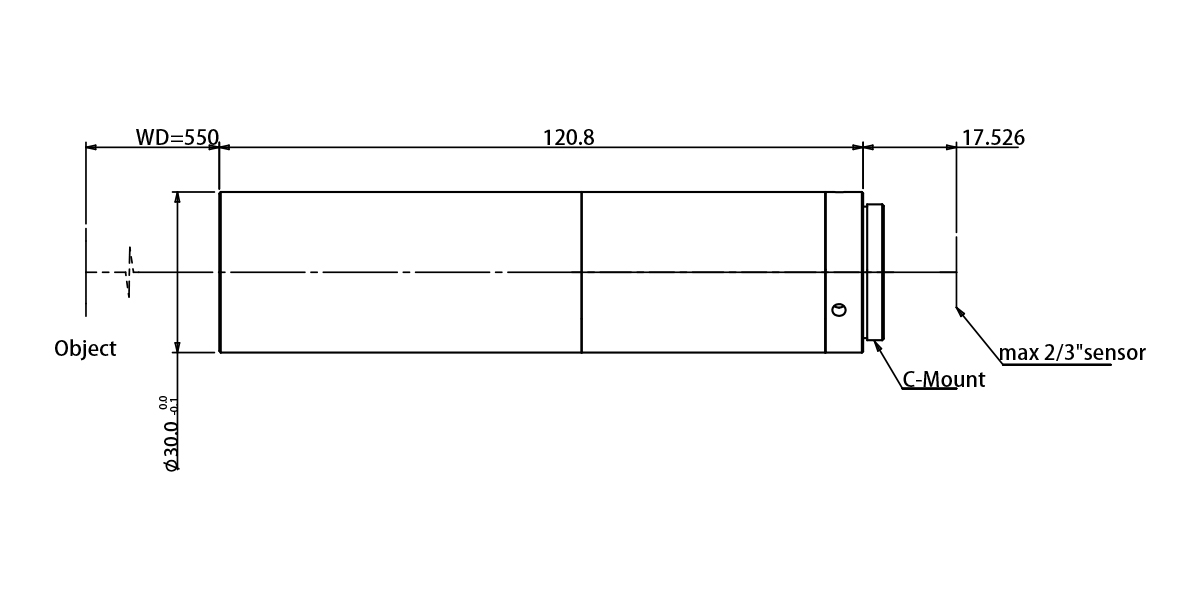

Dimensions
Naming Rule
