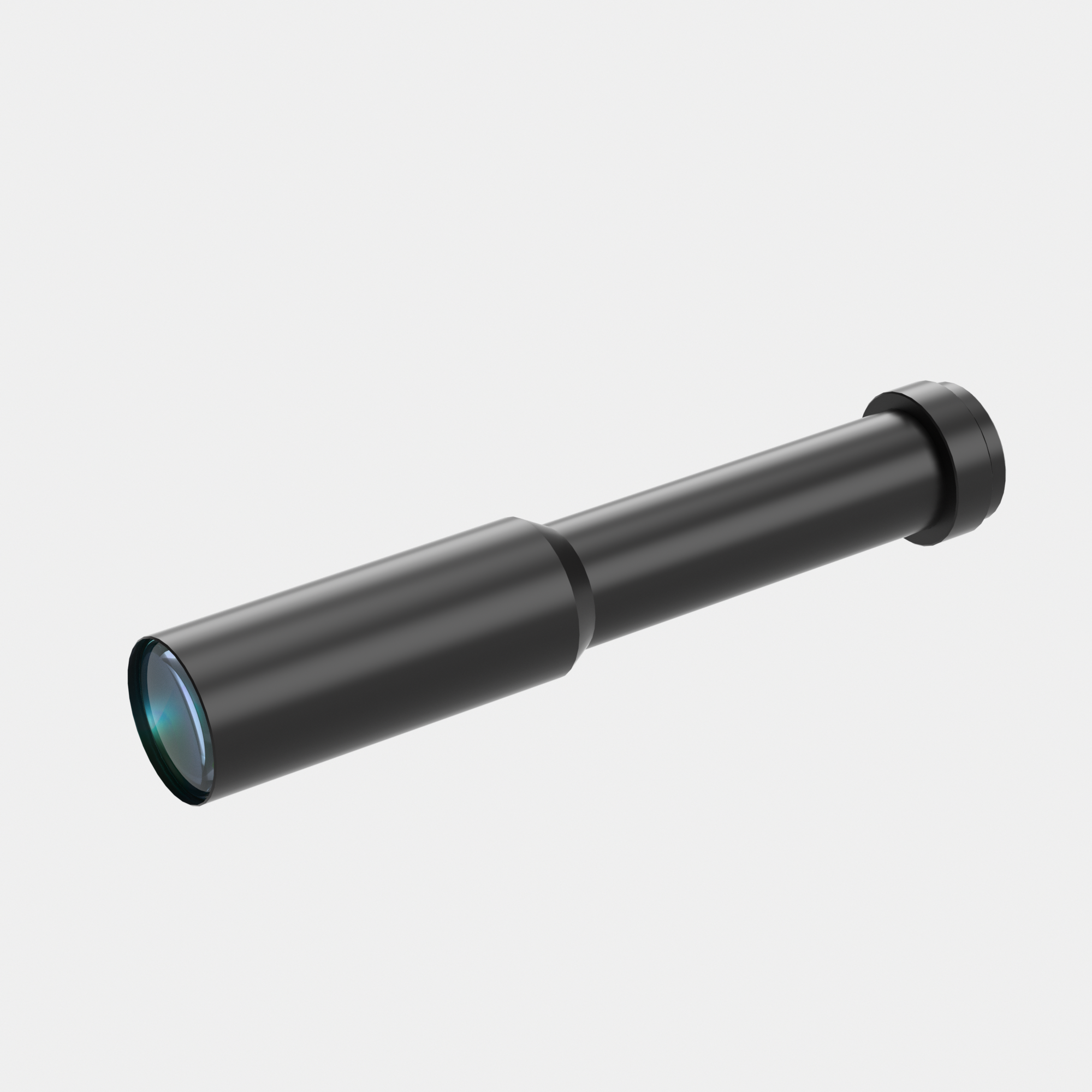

| Model NO. |
WH0185-350A-230 |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
0.185 |
Working Distance(mm) |
350 |
| NA |
0.0098 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
9.5 |
| MTF30 (lp/mm) |
100 |
Object Resolution(μm) |
34.4 |
| Depth of Field(mm) |
22.2 |
Distortion Typical(% max) |
0.05 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
154.6 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
6 |
| Filter Screw Size |
/ |
| Field of View (mm x mm) |
|
| 1/2"(6.4x4.8) |
34.6×25.9 |
| 1/1.8"(7.13x5.37) |
38.5×29.0 |
| 2/3"(8.45×7.1) |
45.7×38.4 |

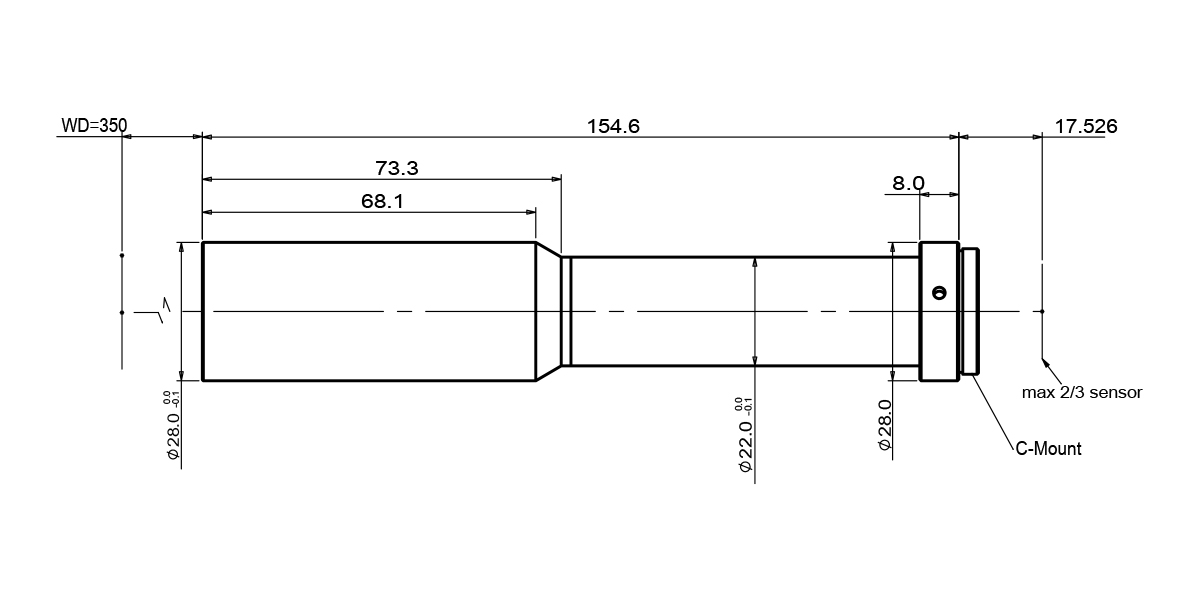

Dimensions
Naming Rule
