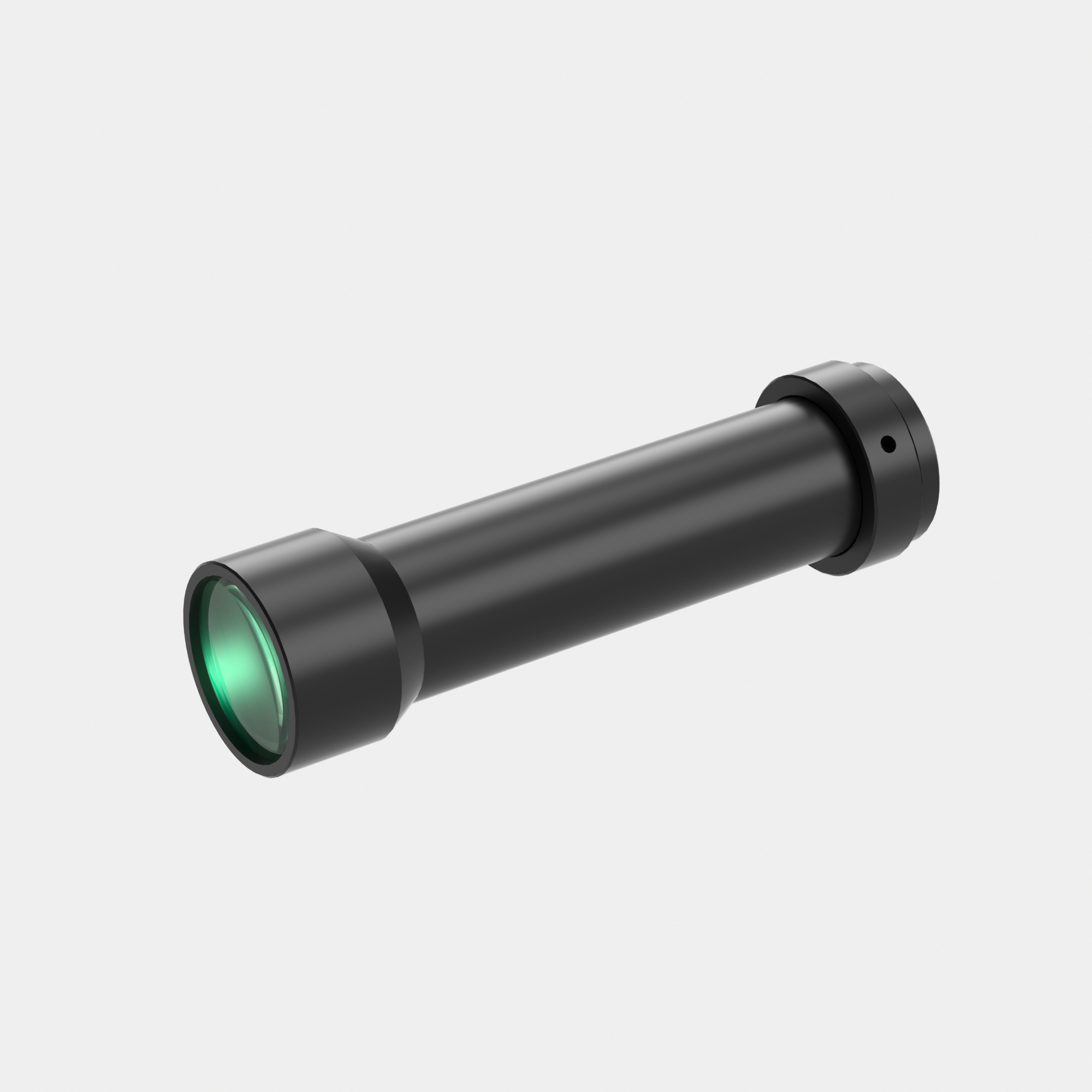

| Model NO. |
WH016-525A-230 |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
0.16 |
Working Distance(mm) |
525 |
| NA |
0.0044 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
18.3 |
| MTF30 (lp/mm) |
53 |
Object Resolution(μm) |
76.8 |
| Depth of Field(mm) |
57.2 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
96.5 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
10 |
| Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/2"(6.4x4.8) |
40.0x30.0 |
| 1/1.8"(7.13x5.37) |
44.6x33.6 |
| 2/3"(8.8x6.6) |
55.0x41.3 |

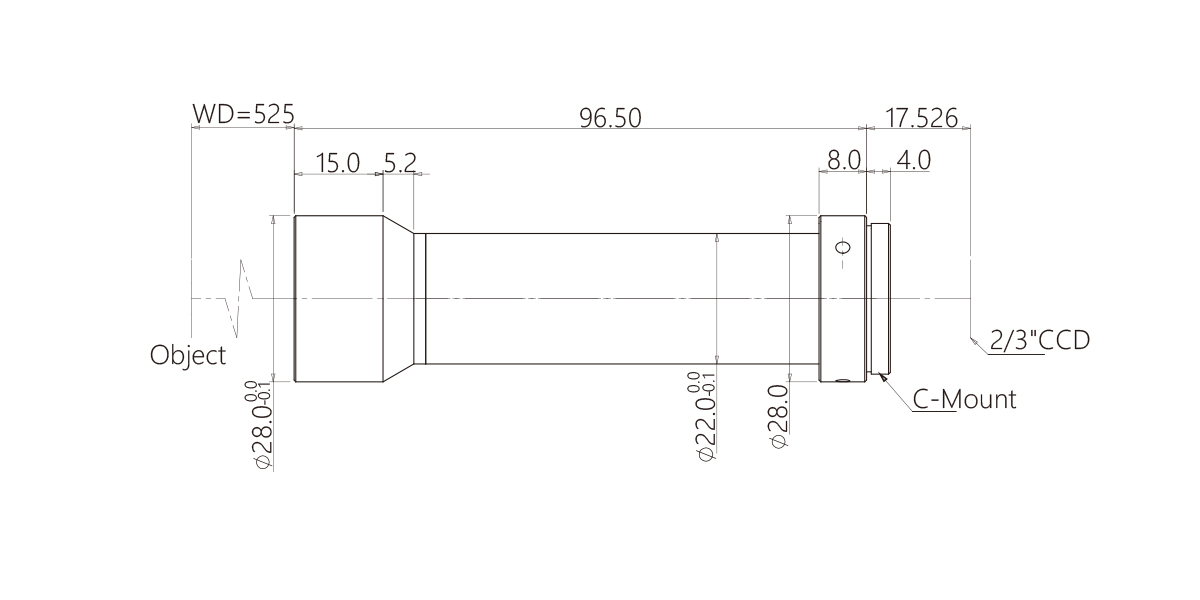

Dimensions
Naming Rule
