| Model NO. |
WWH100-63CTLV3 |
Image Circle Diameter (Φmm) |
11(2/3") |
| Magnification(x) |
10.000 |
Working Distance(mm) |
63±1 |
| NA |
0.125 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
39.4 |
| MTF30 (lp/mm) |
23 |
Object Resolution(μm) |
2.7 |
| Depth of Field(mm) |
0.03 |
Distortion Typical(% max) |
0.02 |
| Telecentricity Typical (°max) |
0.02 |
Length (mm) |
205.7 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.05 |
| Filter Screw Size |
M25x0.5 |
| Field of View (mm x mm) |
|
| 1/2”（6.4x4.8） |
0.64×0.48 |
| 1/1.8”（7.13x5.37） |
0.71×0.54 |
| 2/3”（8.45x7.1） |
0.85×0.71 |

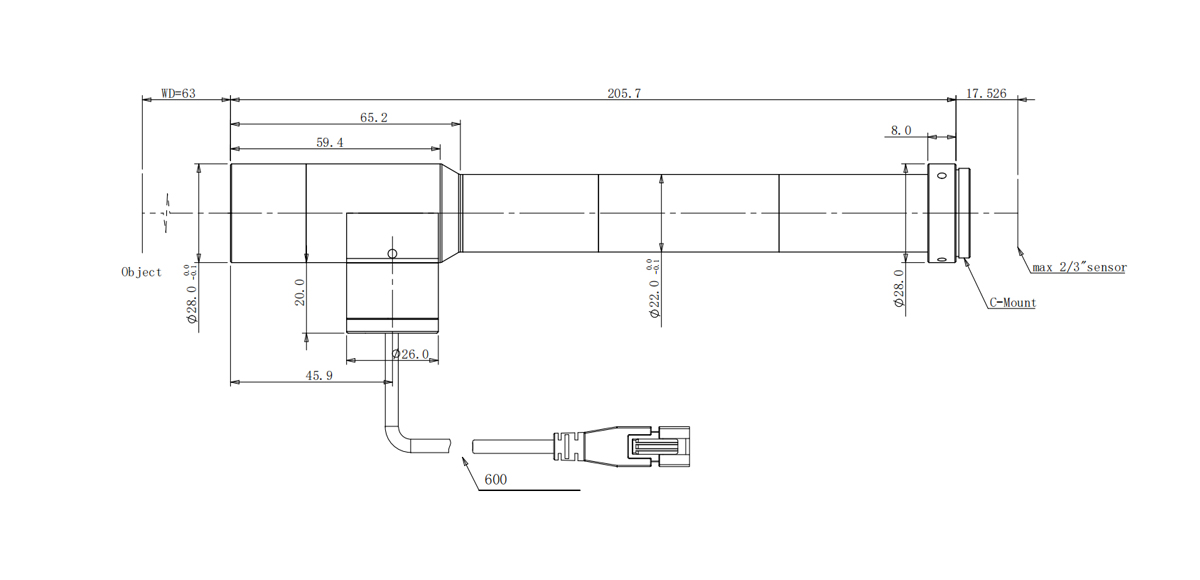

Dimensions
Naming Rule
