| Model NO. |
WWK15-110C-111 |
Image Circle Diameter (Φmm) |
18(1.1") |
| Magnification(x) |
1.500 |
Working Distance(mm) |
110±2 |
| NA |
0.0747 |
Type |
Telecentric |
| Mount |
C |
Best Aperture(f/#) |
10 |
| MTF30 (lp/mm) |
>78 |
Object Resolution(μm) |
4.5 |
| Depth of Field(mm) |
±0.18@F10 |
Distortion Typical(% max) |
<0.1 |
| Telecentricity Typical (°max) |
<0.1 |
Length (mm) |
128.8 |
| With Coaxial Illumination Port |
Yes |
Measured Depth of Field (mm) |
0.2 |
| Filter Screw Size |
M32.0x0.5 |
| Field of View (mm x mm) |
|
| 1" IMX183 (13.13x8.76) |
8.8x5.8 |
| 1" IMX183 (13.13x8.76) |
9.5x6.9 |

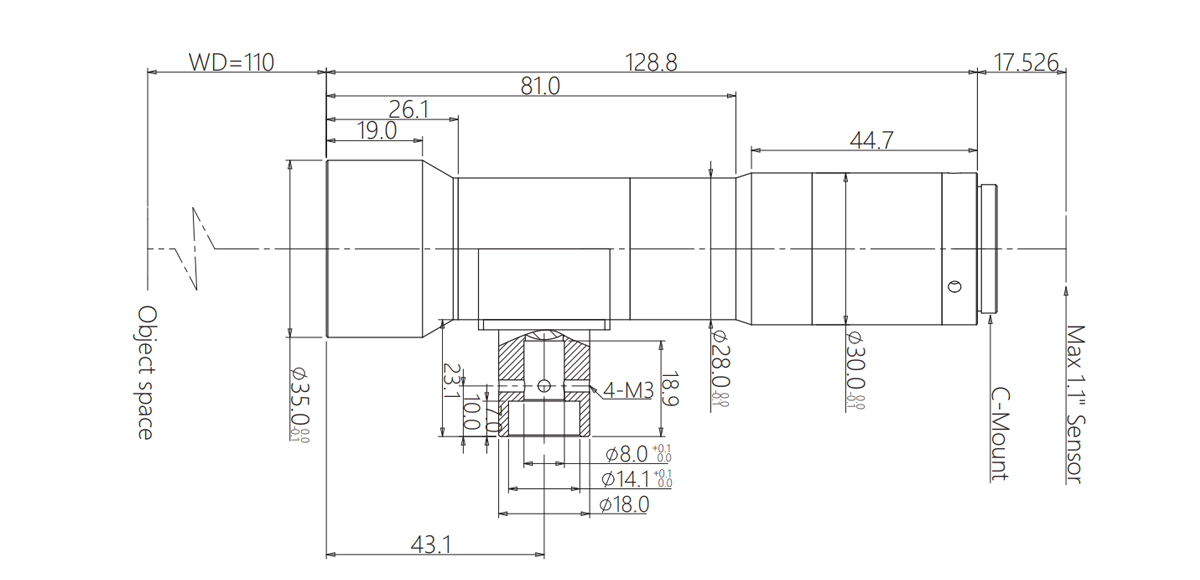

Dimensions
Naming Rule
