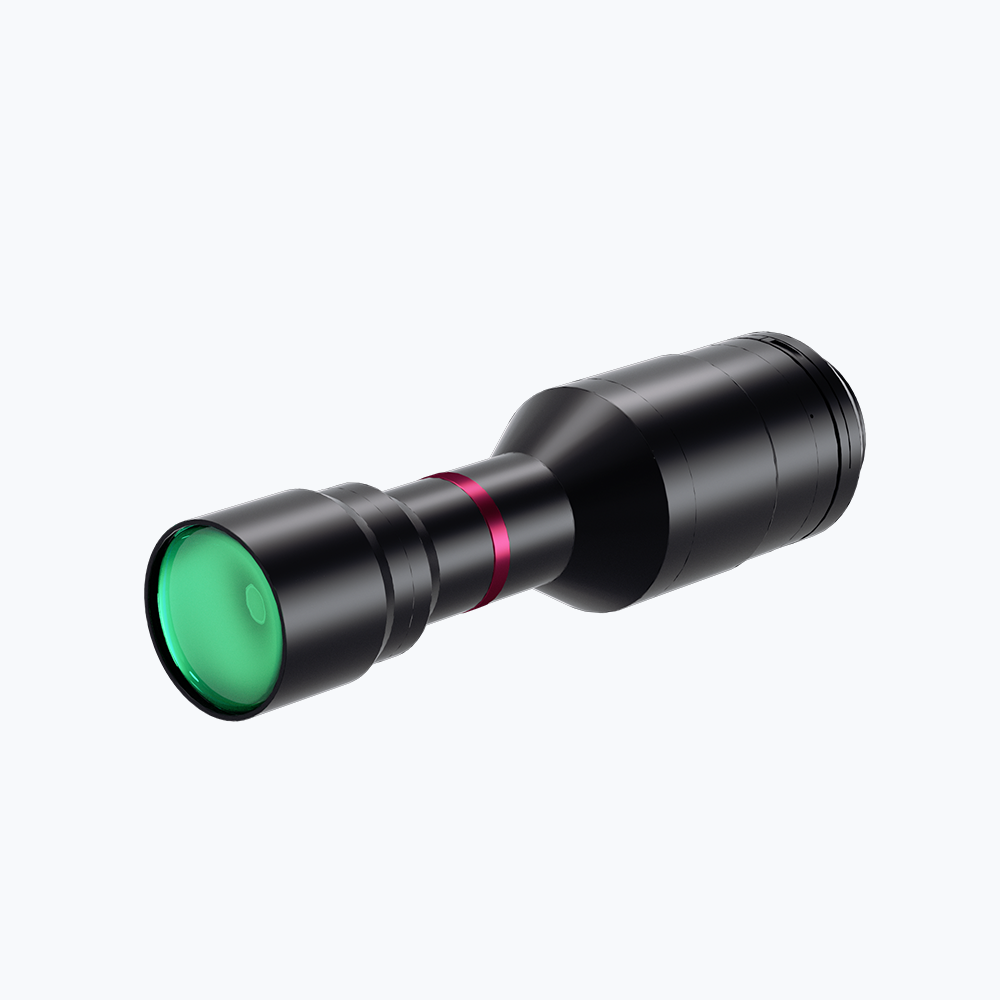

24K 1.419X Bi-Telecentric Lenses | DTCA24K-62-M95-AL COOLENS®

DTCA24K-62-M95-AL
$3,605.00 USD
Shipping calculated at checkout.
Quantity
24K 1.419X Bi-Telecentric Lenses | DTCA24K-62-M95-AL COOLENS®-OKLAB

Description

Model NO. DTCA24K-62-M95-AL Image Circle Diameter (Φmm) 88(24K)
Magnification(x) 1.419 Working Distance(mm) 123
NA 0.1007 Type Bi-Telecentric
Mount M95 Object Field of View(Φmm) 62
Best Aperture(f/#) 7 MTF30 (lp/mm) >115
Object Resolution(μm) 3.3 Depth of Field(mm) ±0.1@F7.0
Distortion Typical(% max) <0.1 Telecentricity Typical (°max) <0.1
Length of I/O(mm) 601 Length (mm) 466.3
Weight(kg) 5.5 Iris Adjustable No
With Coaxial Illumination Port No Measured Depth of Field (mm) 0.4
Filter Screw Size M95x1.0
Field of View (mm × mm)
 64.32x48.38 with DALSA 86M 45.3×38.3
81.9mm with Linescan-16K 5μm 57.7mm
86.0mm with Linescan-24K 3.5μm 60.6mm

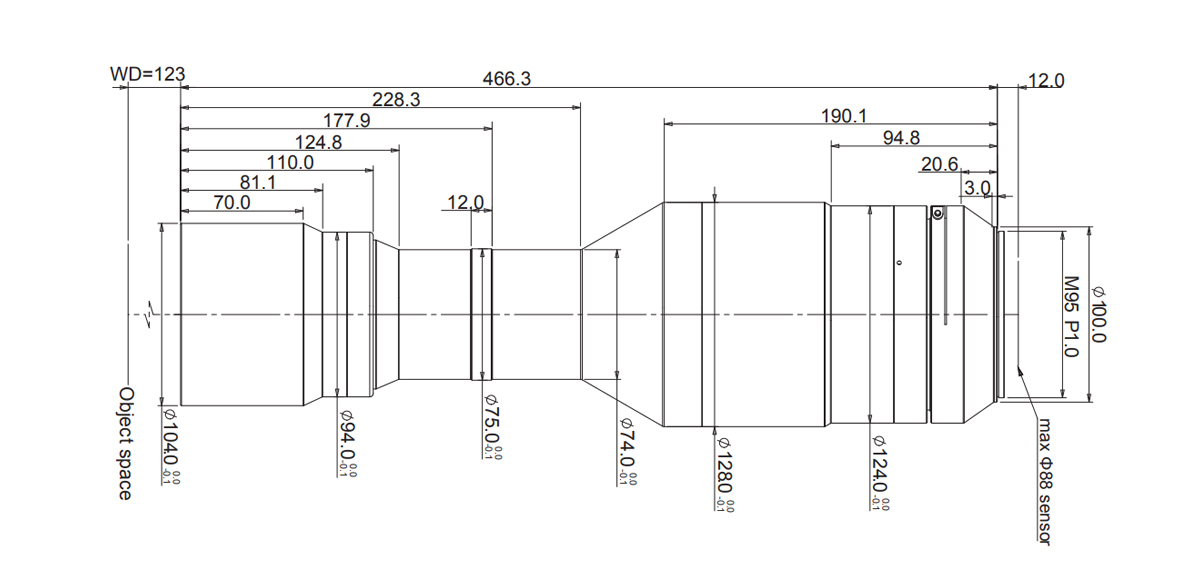

Dimensions
