| Model NO. |
WWT121-035-58 |
Image Circle Diameter (Φmm) |
19.2(1.2") |
| Focal Length(mm) |
24.92 |
Magnification(x) |
0.35 |
| Working Distance(mm) |
58 |
MTF30 (lp/mm) |
82 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0257 |
Best Aperture(f/#) |
6.8 |
| Object Resolution(μm) |
13 |
Depth of Field(mm) |
4.4 |
| TV Distortion |
0.46 |
Length (mm) |
62.5 |
| Measured Depth of Field (mm) |
/ |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/2” IMX530/540（14.6x12.6） |
41.7x36 |

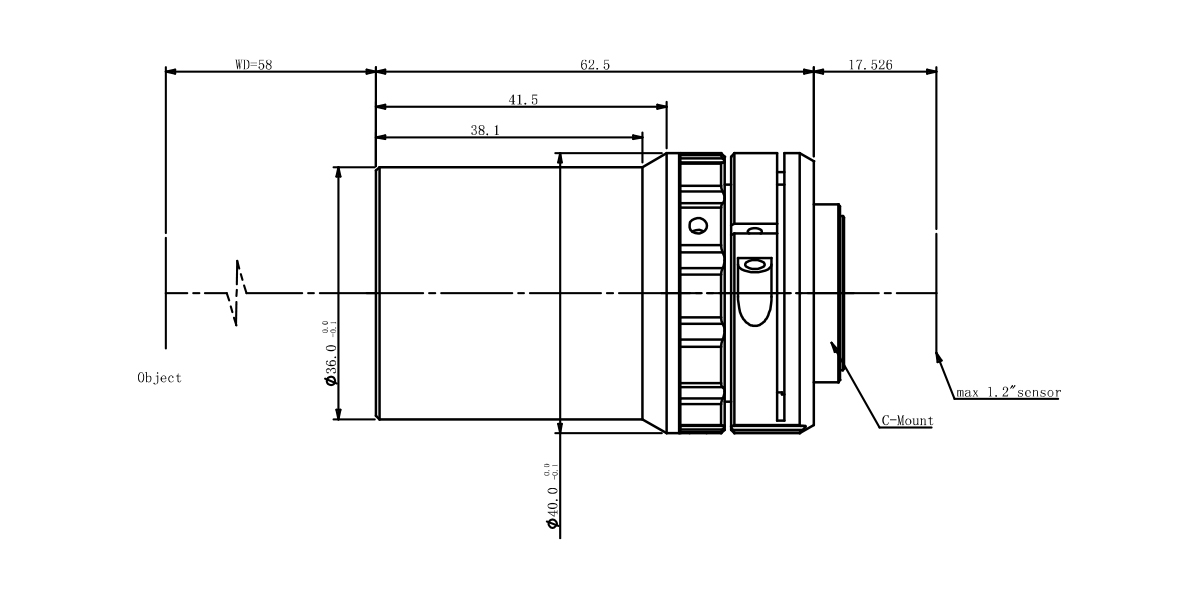

Dimensions
Naming Rule
