| Model NO. |
WWT121-05-37 |
Image Circle Diameter (Φmm) |
19.2(1.2") |
| Focal Length(mm) |
24.8 |
Magnification(x) |
0.5 |
| Working Distance(mm) |
37 |
MTF30 (lp/mm) |
70 |
| Type |
Fixed Magnification Focal Length |
Mount |
C |
| NA |
0.0313 |
Best Aperture(f/#) |
8 |
| Object Resolution(μm) |
10.7 |
Depth of Field(mm) |
2.6 |
| TV Distortion |
0.42 |
Length (mm) |
65.7 |
| Measured Depth of Field (mm) |
1.2 |
Filter Screw Size |
M30x0.5 |
| Field of View (mm x mm) |
|
| 1/2” IMX530/540（14.6x12.6） |
29.2x25.2 |

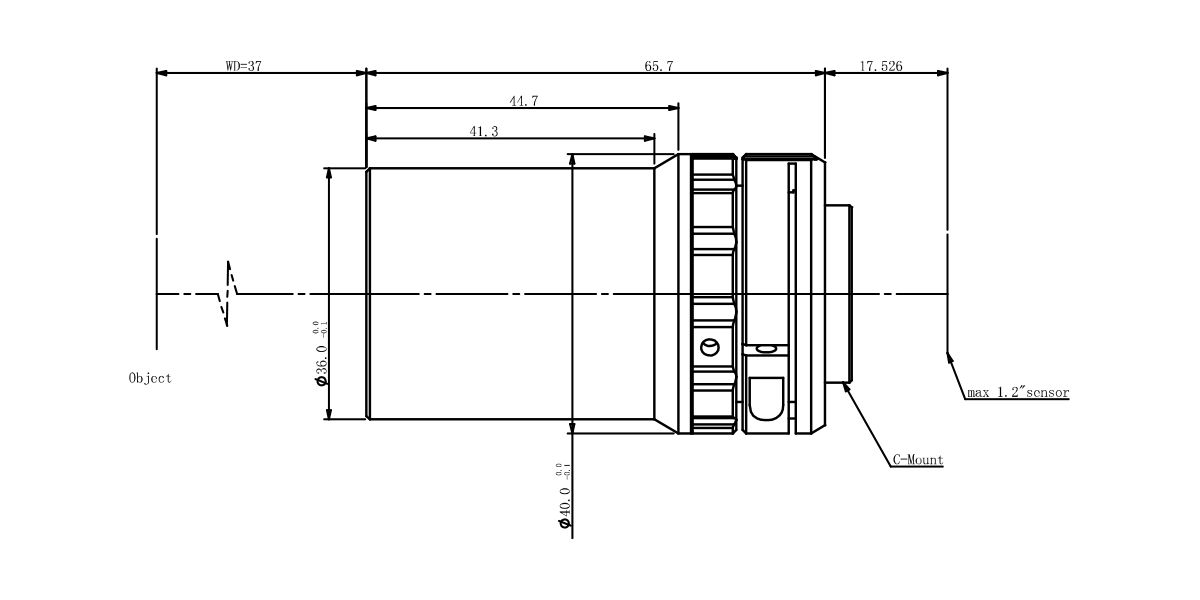

Dimensions
Naming Rule
