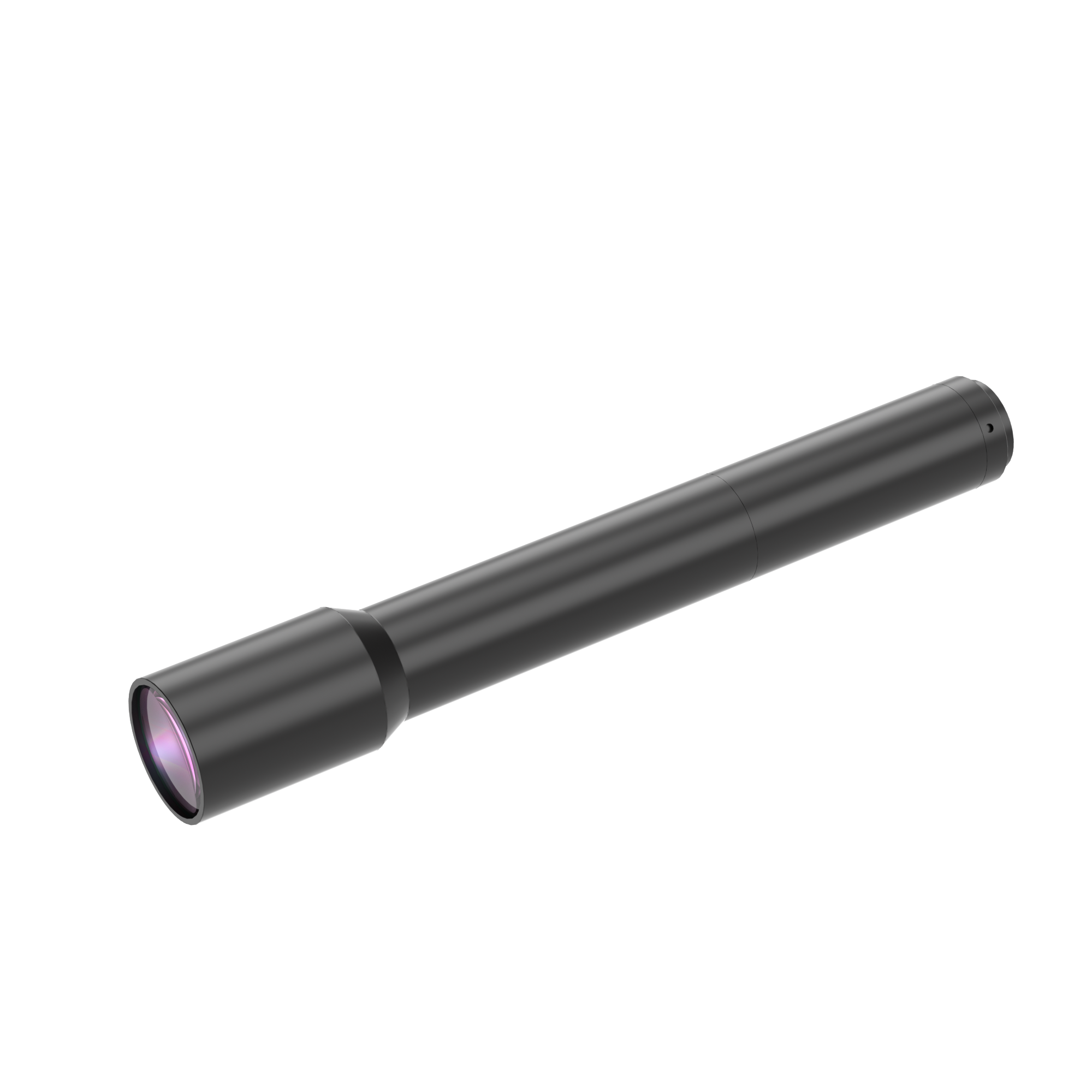

| Model NO. | WH03-650A-111 | Image Circle Diameter (Φmm) | 18(1.1") | ||||
| Magnification(x) | 0.3 | Working Distance(mm) | 650 | ||||
| NA | 0.0126 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 10.5 | ||||
| MTF30 (lp/mm) | 75 | Object Resolution(μm) | 26.5 | ||||
| Depth of Field(mm) | 9.3 | Distortion Typical(% max) | 0.002 | ||||
| Telecentricity Typical (°max) | Non-telecentric | Length (mm) | 243.9 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 4.8 | ||||
| Filter Screw Size | M35x0.5 | ||||||
|
Field of View (mm x mm) |
|||||||
| 1.1"(13.13x8.76) | 43.8x29.2 | ||||||
| 1.1"(14.19x10.38) | 47.3x34.6 | ||||||
Dimensions
Naming Rule
