1.1" 0.2X Industrial Lenses | WH02-965A-111 COOLENS®

WH02-965A-111
$471.00 USD
Shipping calculated at checkout.
Quantity
1.1" 0.2X Industrial Lenses | WH02-965A-111 COOLENS®-OKLAB

Description

Model NO. WH02-965A-111 Image Circle Diameter (Φmm) 18(1.1")
Magnification(x) 0.2 Working Distance(mm) 965
NA 0.0090 Type Fixed Magnification
Mount C Best Aperture(f/#) 11
MTF30 (lp/mm) 74 Object Resolution(μm) 37.2
Depth of Field(mm) 22.2 Distortion Typical(% max) 0.04
Telecentricity Typical (°max) Non-telecentric Length (mm) 233.7
With Coaxial Illumination Port No Measured Depth of Field (mm) 8
Filter Screw Size M35x0.5
Field of View (mm x mm)
1/2"(6.4×4.8) 32×24
1/1.8"(7.13×5.37) 35.7×26.9
2/3"(8.8×6.6) 44×33
1"(12.43×9.83) 62.2×49.2
1.1"(14.19x10.38) 80×51.9

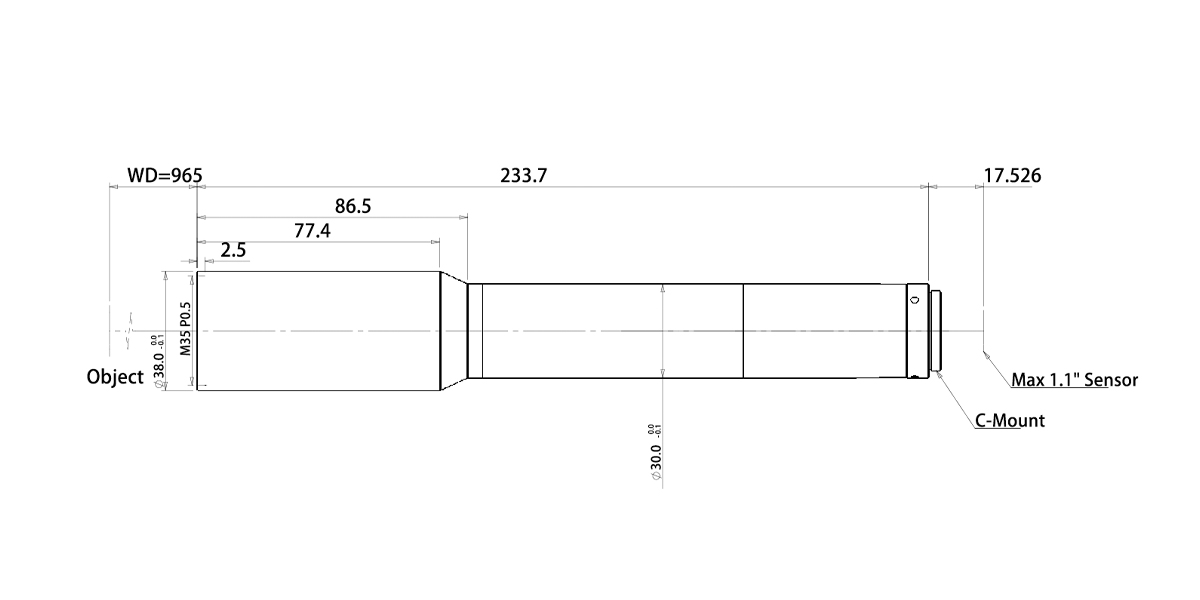

Dimensions
