| Model NO. |
WH011-1030A-111 |
Image Circle Diameter (Φmm) |
18(1.1") |
| Magnification(x) |
0.11 |
Working Distance(mm) |
1030 |
| NA |
0.0091 |
Type |
Fixed Magnification |
| Mount |
C |
Best Aperture(f/#) |
6 |
| MTF30 (lp/mm) |
122 |
Object Resolution(μm) |
36.7 |
| Depth of Field(mm) |
39.7 |
Distortion Typical(% max) |
0.15 |
| Telecentricity Typical (°max) |
Non-telecentric |
Length (mm) |
100.9 |
| With Coaxial Illumination Port |
No |
Measured Depth of Field (mm) |
25 |
| Filter Screw Size |
M32x0.5 |
| Field of View (mm x mm) |
|
| 1"(13.13×8.76) |
119.4×79.6 |
| 1.1"(14.19×10.38) |
129×94.4 |

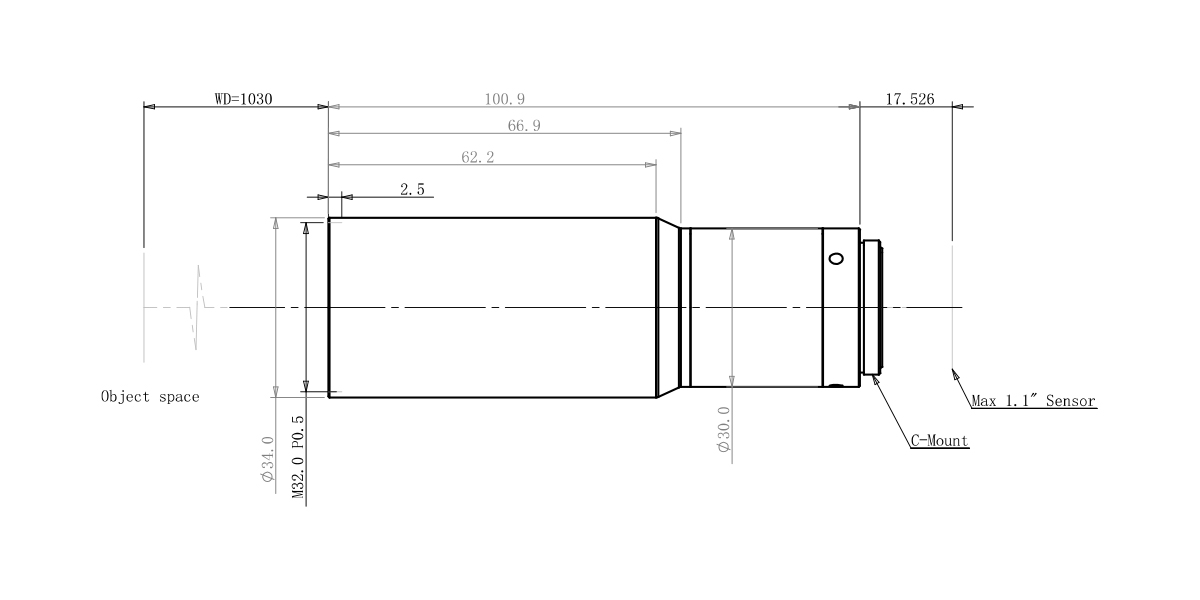

Dimensions
Naming Rule
