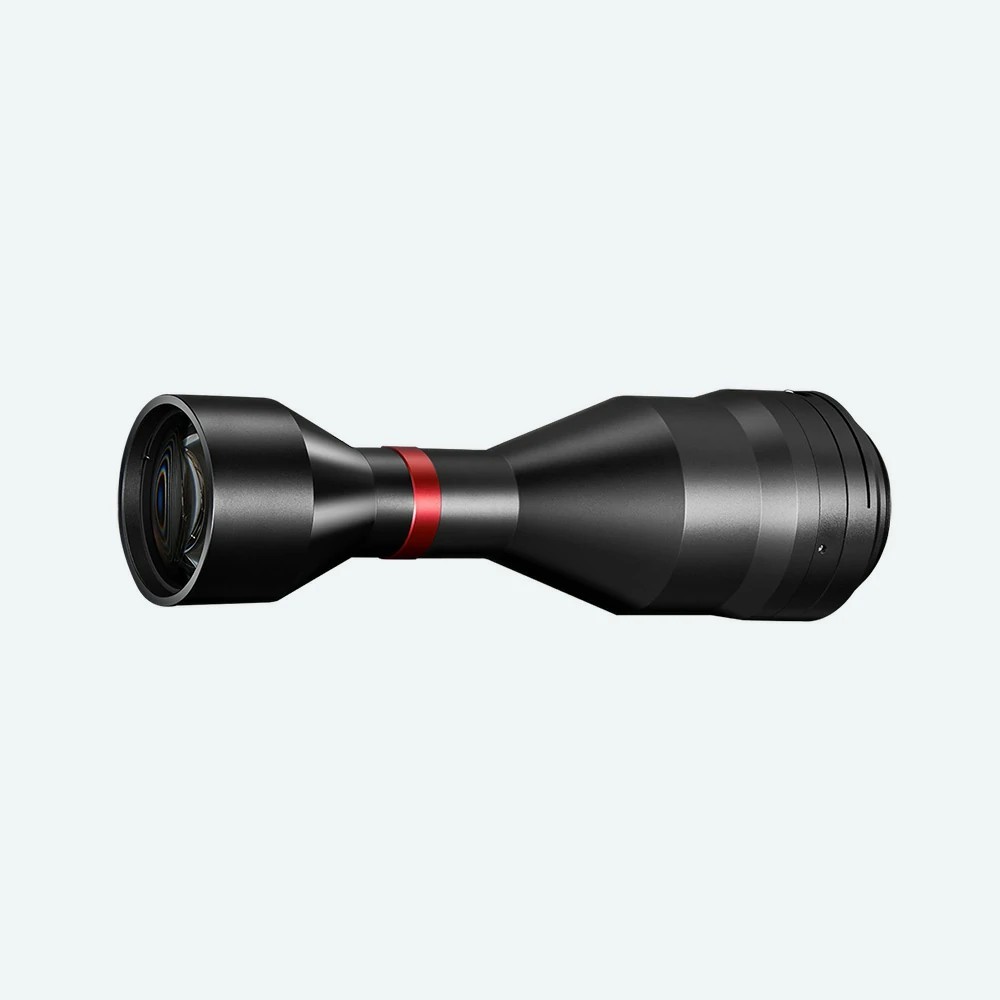

Model NO. |
DTCM35FH-42-M58-AL |
Image Circle Diameter (Φmm) |
43.6(35mm Full) |
Magnification(x) |
1.038 |
Working Distance(mm) |
118±3 |
NA |
0.0304 |
Type |
Bi-Telecentric |
Mount |
M58 |
Object Field of View(Φmm) |
42 |
Best Aperture(f/#) |
17.1 |
MTF30 (lp/mm) |
>50 |
Depth of Field(mm) |
±0.7@F20 |
Distortion Typical(% max) |
<0.1 |
Telecentricity Typical (°max) |
<0.1 |
Length of I/O(mm) |
378±3 |
Length (mm) |
247.8 |
Weight(kg) |
1.2 |
Measured Depth of Field (mm) |
1.2 |
Filter Screw Size |
M56x0.5 |
Field of View (mm × mm)
|
CMV50000 (36.43x27.62) |
35.1x26.6 |
KAI29050/2 (36.17x24.11) 34.8x23.2 |
34.8x23.2 |
KAI43142 (36.18x24.12) |
34.9x23.2 |
Compatible Lighting
|
Telecentric LED Lighting |
DTCL-42-xW-y |
Beam Diameter 42mm |

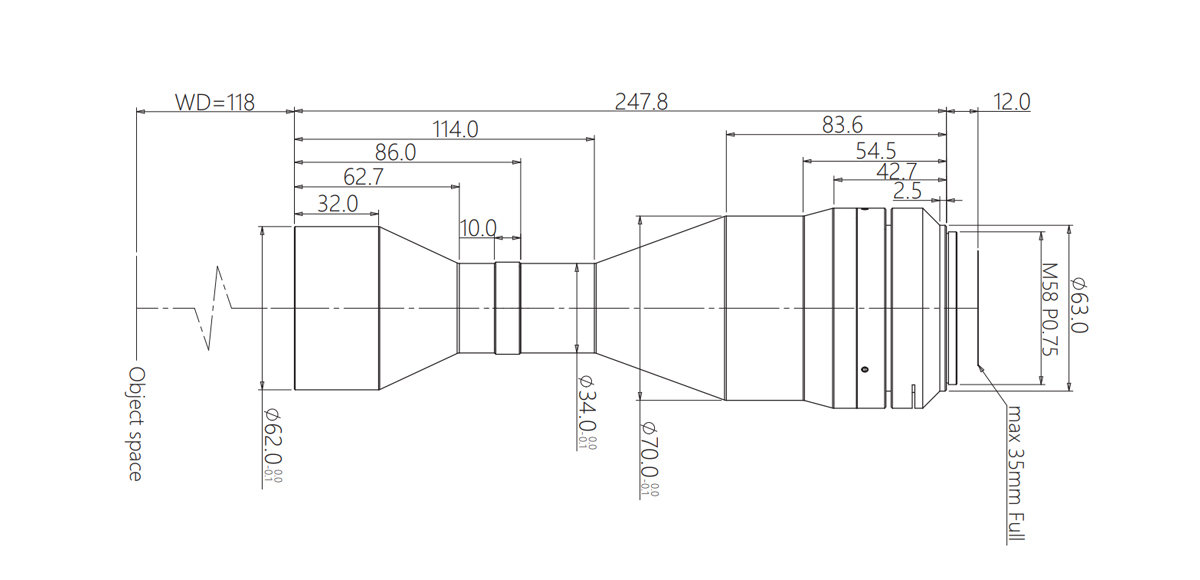

Dimensions
![]()
Naming Rule
![]()
