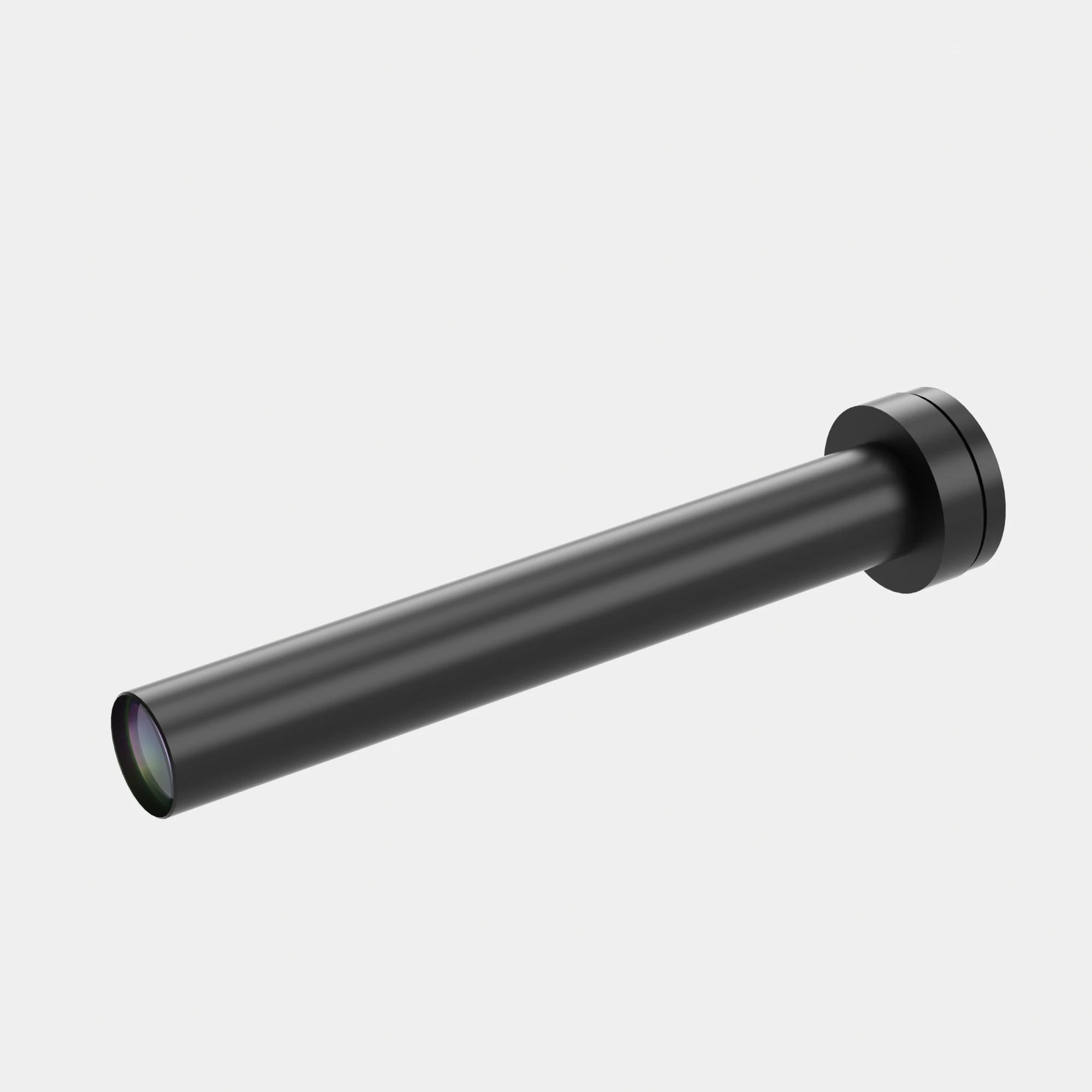

| Model NO. | WWL60-65AT | Image Circle Diameter (Φmm) | 6(1/3") | ||||
| Magnification(x) | 6.0 | Working Distance(mm) | 65 | ||||
| NA | 0.073 | Type | Telecentric | ||||
| Mount | C | Best Aperture(f/#) | 39.2 | ||||
| MTF30 (lp/mm) | 23 | Object Resolution(μm) | 4.6 | ||||
| Depth of Field(mm) | 0.1 | Distortion Typical(% max) | 0.02 | ||||
| Telecentricity Typical (°max) | 0.1 | Length (mm) | 118.6 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.1 | ||||
| Filter Screw Size | / | ||||||
| Field of View (mm x mm) | |||||||
| 1/4" (3.2x2.4) | 0.5x0.4 | ||||||
|
1/3" (4.8x3.6)
|
0.8x0.6 | ||||||

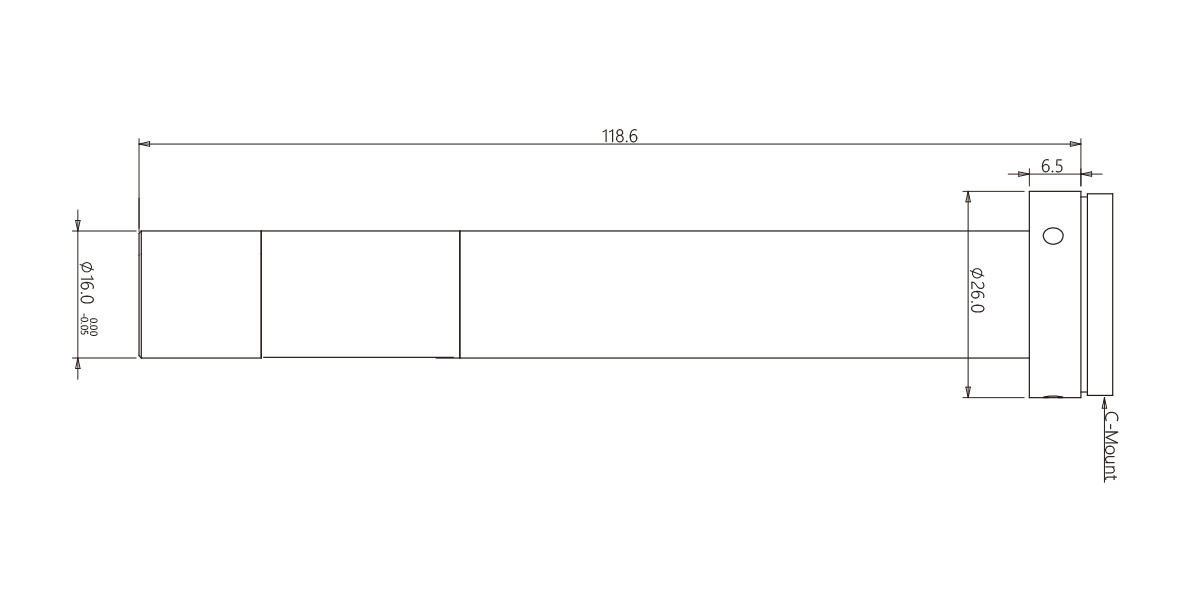

Dimensions
Naming Rule
