| Model NO. | WH40-250A-130 | Image Circle Diameter (Φmm) | 6(1/3") | ||||
| Magnification(x) | 4 | Working Distance(mm) | 250 | ||||
| NA | 0.0361 | Type | Fixed Magnification | ||||
| Mount | C | Best Aperture(f/#) | 47 | ||||
| MTF30 (lp/mm) | 20 | Object Resolution(μm) | 9.3 | ||||
| Depth of Field(mm) | 0.2 | Distortion Typical(% max) | 0.2 | ||||
| Telecentricity Typical (°max) | 0.2 | Length (mm) | 289.1 | ||||
| With Coaxial Illumination Port | No | Measured Depth of Field (mm) | 0.6 | ||||
| Filter Screw Size | / | ||||||
|
Field of View (mm x mm) |
|||||||
| 1/3"(4.8×3.6) | 1.2×0.9 | ||||||

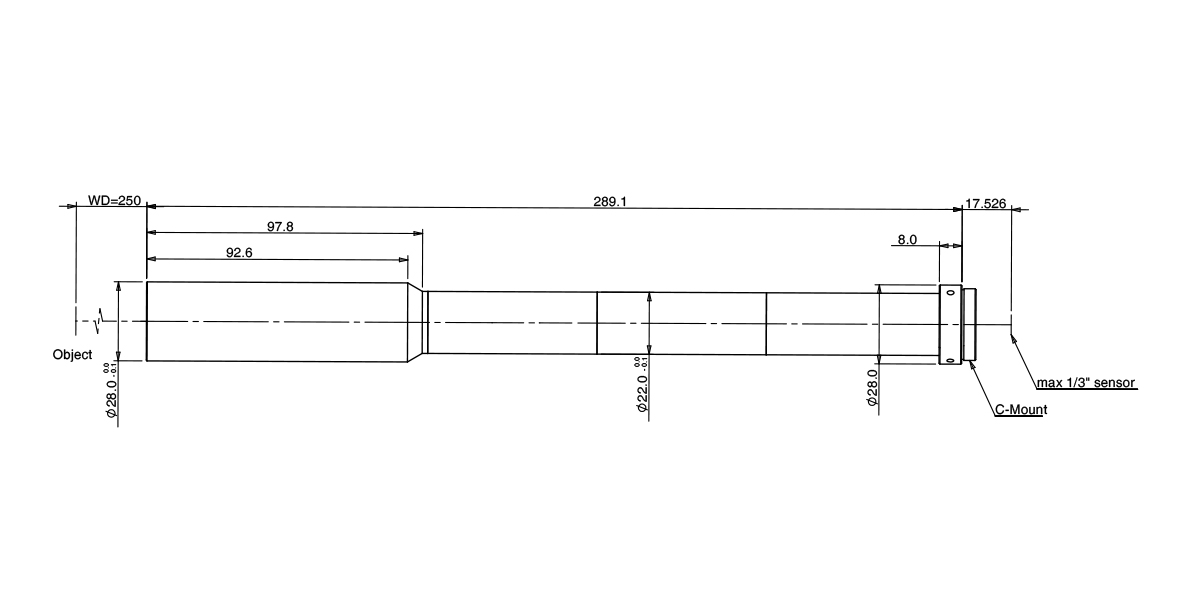

Dimensions
Naming Rule
